Peugeot Narrowboat Engine

Post by vwwykes »

Hi all I am hoping someone on here may be able to help me. I've just bought a narrowboat with a peugeot engine. Block tag say PTC Type 162. Cylinder head has 4.7kw stamped by the thermostat housing which is all metal.
I need a new cylinder head after the cambelt snapped and basically it's now no good and cannot be repaired. I belived the engine was a 1.8d. But now believe it's a 1.9d as the bore size is 84mm.
Can anyone help or advise also.anyone have a cylinder head.
Thanks John
vwwykes
Posts: 4
Joined: 20 Jan 2011, 16:02
Location: 227
My Cars:

Re: Peugeot Narrowboat Engine

Post by vwwykes »

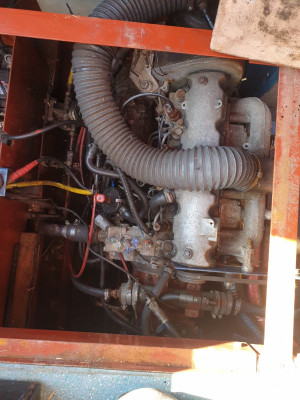

Please find pics attached off the engine fitted.
Thanks John
Attachments
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Peugeot Narrowboat Engine

Post by xantia_v6 »

If you have not already seen it, take a look at this topic: viewtopic.php?t=62872
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Peugeot Narrowboat Engine

Post by white exec »

The block label 162 identifies it as an XUD9 (1.9) engine.
161A = XUD7 (1.7/1.8).
So the same as our blue smurf project above.

Haynes' manual #1379 (Diesel Engine) covers this engine really well.
We're also about to expand our Mechanics' booklets library, and this will include BX etc, and those engines.
Should be available by the end of this month.
Chris
User avatar
Oldpug
Posts: 481
Joined: 07 Aug 2010, 11:15
Location: Berkshire
My Cars: Peugeot 406 GLX
Audi A3 TFSI S Line
Mercedes SL320
(In the past,just about every old Peugeot you can think of.)
x 64

Re: Peugeot Narrowboat Engine

Post by Oldpug »

Yes that`s a trusty old XUD. and your right, the whole head will be shot. Have a word with Dean Hunter www.peugeotparts.co.uk he will have a head ready to fit and will supply all the necessary parts to do the job.
Its best to renew the water pump and pulley`s as well.
