XUD9 cooling water unintentionally spilled! Cannot find coolant bleed points.

Post by CPtje »

HELP needed! I am learning more and more about my Peugeot 1.9TD XUD motor in my Fiat based campervan.

This morning I unintentionally spilled/drained about 1-2 liters of cooling liquid because I unscrewed a metal coverplate at the lower right side (standing in front) of my motor. Cooling liquid poored out and I spilled about 1-2 liters before being able to close it again.

Now for my question. After closing I just filled the large cooling liqued container again. Is this sufficient or do I need to do more? I read about bleeding points and so on. My coolant tank is way above the motor itself (see picure). Is bleeding necessary? And if yes, what is the easiest way to do this at home?
Attachments
Last edited by CPtje on 11 May 2020, 16:28, edited 1 time in total.
Shredder11
Posts: 33
Joined: 09 Nov 2011, 21:54
Location:
My Cars:

Re: Cooling water unintentionally spilled!

Post by Shredder11 »

Check out this guys YouTube channel on mostly 306 diesel cars and repairs of them. He knows a thing or two and you can ask him questions.

https://www.youtube.com/user/jamesandle ... /playlists
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Cooling water unintentionally spilled!

Post by white exec »

On your cooling system pipework, I can't advise, but it is essential that all air is bled from an XUD engine, as they are prone to trapped air in the head causing localised overheating and head warping/HG leaks.
Chris
User avatar
CPtje
Posts: 33
Joined: 01 Oct 2018, 15:42
Location: Netherlands
My Cars: Fiat Ducato with Peugeot 1.9TD XUD9 Bosch injection pump

Re: XUD9 cooling water unintentionally spilled! Cannot find coolant bleed points.

Post by CPtje »

I understand that the air must be bled, but I really cannot find any bleeding points. Checked the hoses to the cooling matrix, nothing. The thermostat: No.
The coolant tank is the highest point in the system as far as I can see. But it still gives me that nagging, unsecure feeling.
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: XUD9 cooling water unintentionally spilled! Cannot find coolant bleed points.

Post by moizeau »

Hard to see from the photo, but that 'may' be one just to the right of the green plug? It looks like a plastic hand operated one. If it is be careful, they break. Don't take any of what I've said as gospel, I don't know that configuration.
Pete
Notice the BX is still top the list but sadly gone
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: XUD9 cooling water unintentionally spilled! Cannot find coolant bleed points.

Post by white exec »

A service manual/owner's book would help
Guesswork would be: thermostat housing, radiator top, radiator top hose, hoses going through firewall to heater matrix, and any 'high points' on the system. Easy to overlook a vital one.
Having the coolant tank up high helps drive air out, but bleed screws still need to be opened.
Chris
User avatar
CPtje
Posts: 33
Joined: 01 Oct 2018, 15:42
Location: Netherlands
My Cars: Fiat Ducato with Peugeot 1.9TD XUD9 Bosch injection pump

Re: XUD9 cooling water unintentionally spilled! Cannot find coolant bleed points.

Post by CPtje »

Thanks everyone for helping and searching.

I have been looking at the places you adviced but am really puzzled. The search for bleed screws....
This morning I checked again and made some pics. Hopefully someone can help me out. Every description I might make here is looking from the front of the engine.

Picture 1: The left top of the radiator has a smaller hose that goes up to the large coolant tank. I don't find a bleed screw.
Picture 1: The left top of the radiator has a smaller hose that goes up to the large coolant tank. I don't find a bleed screw.
Picture 2: Might this white thing on the thermostat be a bleed screw? If Yes, how to operate without breaking it.
Picture 2: Might this white thing on the thermostat be a bleed screw? If Yes, how to operate without breaking it.
Picture 3: Highest positioned hoses going into the van. Nothing?
Picture 3: Highest positioned hoses going into the van. Nothing?
Picture 4: Highest positioned hoses going into the van. Nothing?
Picture 4: Highest positioned hoses going into the van. Nothing?
Picture 5: Thermostat. Nothing?
Picture 5: Thermostat. Nothing?

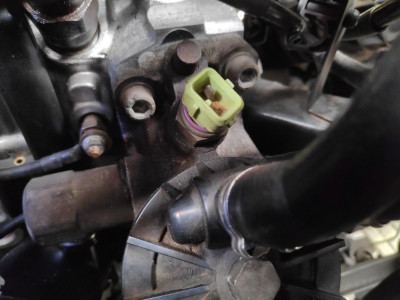

Picture 6: Thermostat. Nothing?
Picture 6: Thermostat. Nothing?
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: XUD9 cooling water unintentionally spilled! Cannot find coolant bleed points.

Post by xantia_v6 »

I had a look at the PSA instructions for bleeding this engine, but they are generic, not specific to the vans, and although a bleed valve is mentioned, it is not clear that there actually is one in all installations.

In the bottom photo, there is a connector with no plug, just above it is a round cap. That cap may be the bleed point, or it may just be capping off a port that is not used in this installation.
GoceKU
Posts: 25
Joined: 06 May 2020, 13:47
Location: Kumanovo, Macedonia
My Cars: Peugeot 607 2,7 HDI 150Kw
Peugeot 405 SR
Peugeot 405 GLD
Peugeot 405 Mi16x4
Peugeot 405 RWD
Peugeot 605 SRdt
Peugeot 605 V6 3.0 auto
Peugeot 605 2.1td
Peugeot 605 Sri
Peugeot 206 1.4i
Renault R19
Ranault Megane Coupe
Renault clio
Lada Niva 1600
Fiat 600
x 2

Re: XUD9 cooling water unintentionally spilled! Cannot find coolant bleed points.

Post by GoceKU »

In the last picture right above the sensor that is not connected, is you bleeder screw, if that is not you can always unscrew that sensor, most importantly is you to get coolant behind the thermostat, so it can work. Peugeot thermostats have rubber seal and they are often airtight so coolant get to the thermostat to heat it up.
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: XUD9 cooling water unintentionally spilled! Cannot find coolant bleed points.

Post by white exec »

That plug at the top of the 'stat housing could be a bleed point, or it could be an (unused) take-off point for the expansion tank on other models.
It you can't find the bleed screws, then removing/slackening the sensor is a reasonable way forward, although really unusual.
Bleeding, after draining/refilling, need to be done with the engine heating up and getting to full working temperature (fan(s) cutting in).

If all else fails, you could try asking your local Fiat agent workshop where the bleed screws are, or try a Fiat Ducato forum, via google. We know the engine well, but not how it was plumbed into the vehicle by Fiat.
Chris
