Peugeot 607 aircon codes that i can't figure out

This is the Forum for all your Peugeot Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
GoceKU
Posts: 25
Joined: 06 May 2020, 13:47
Location: Kumanovo, Macedonia
My Cars: Peugeot 607 2,7 HDI 150Kw
Peugeot 405 SR
Peugeot 405 GLD
Peugeot 405 Mi16x4
Peugeot 405 RWD
Peugeot 605 SRdt
Peugeot 605 V6 3.0 auto
Peugeot 605 2.1td
Peugeot 605 Sri
Peugeot 206 1.4i
Renault R19
Ranault Megane Coupe
Renault clio
Lada Niva 1600
Fiat 600
x 2

Peugeot 607 aircon codes that i can't figure out

Post by GoceKU »

I'm new on this forum, but i'm sure not new to the brand, right now i'm trying to fix the A/C on my 607 2,7HDI 2005, i'll attach a picture from the code that i got from PP2000. Don't mine the first code about the auto high headlights i figured out it's the front height sensor, any prior experience or help with knowledge or diagrams is much appreciated.
mek007
Posts: 7
Joined: 12 May 2020, 18:17
Location: Lusaka
My Cars: Peugeot 307 NFU
peugeot 307 RFN
Peugeot 306 RFV Classic
Peugeot 407 RFN

Re: Peugeot 607 aircon codes that i can't figure out

Post by mek007 »

Quick question... Does the AC pump clutch engage.
If no
Have you check the circuit pressure on the high and low sides ?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Peugeot 607 aircon codes that i can't figure out

Post by GiveMeABreak »

There should be a fault code itself. Click onto the faults, then confirm, it should take you to another screen with som e more detail and the actual code.

Pop those up with your VIN
Please Don't PM Me For Technical Help

Marc
GoceKU
Posts: 25
Joined: 06 May 2020, 13:47
Location: Kumanovo, Macedonia
My Cars: Peugeot 607 2,7 HDI 150Kw
Peugeot 405 SR
Peugeot 405 GLD
Peugeot 405 Mi16x4
Peugeot 405 RWD
Peugeot 605 SRdt
Peugeot 605 V6 3.0 auto
Peugeot 605 2.1td
Peugeot 605 Sri
Peugeot 206 1.4i
Renault R19
Ranault Megane Coupe
Renault clio
Lada Niva 1600
Fiat 600
x 2

Re: Peugeot 607 aircon codes that i can't figure out

Post by GoceKU »

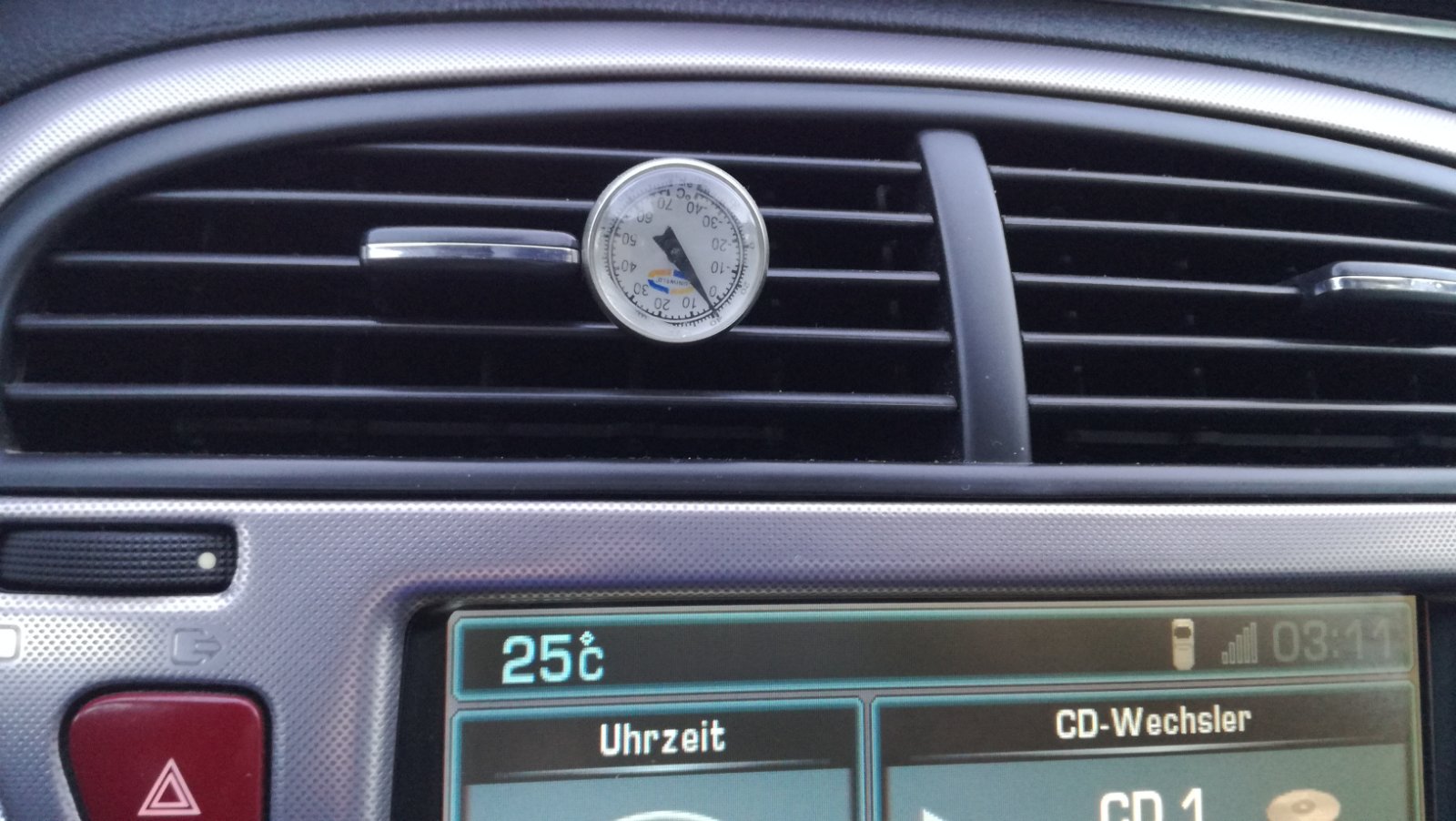

Problem is fixed, it turn out to be a loose connection, previously the clutch will engage the freon is good, but the variable stroke on the pistons in the aircon compressor will not pump the freon around. here is a pic, outside is 25 degrees, in the vents is blowing 4 degrees.
I've done a lot of work on this car before i become member on this site,
here is a link : https://www.hobby-machinist.com/threads ... eot.82235/
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Peugeot 607 aircon codes that i can't figure out

Post by xantia_v6 »

GoceKU wrote: 13 May 2020, 19:29 I've done a lot of work on this car before i become member on this site,
here is a link : https://www.hobby-machinist.com/threads ... eot.82235/
Wow, that blog makes interesting reading. I am impressed with your perseverance and ingenuity.

You might be interested to watch this series of videos (in French) showing someone attempting to rebuild the engine on a Citroen C6 (but I think he has a little less experience than you), This is the first in the series, after about 10 episodes he has got the point of removing the heads...
