Parts No request - Xantia HDi CORE PLUG

[Skull]

VF7**************[VIN obfuscated, can be read by forum staff]

Upper smaller cylinder head CORE PLUG

Available as a single?

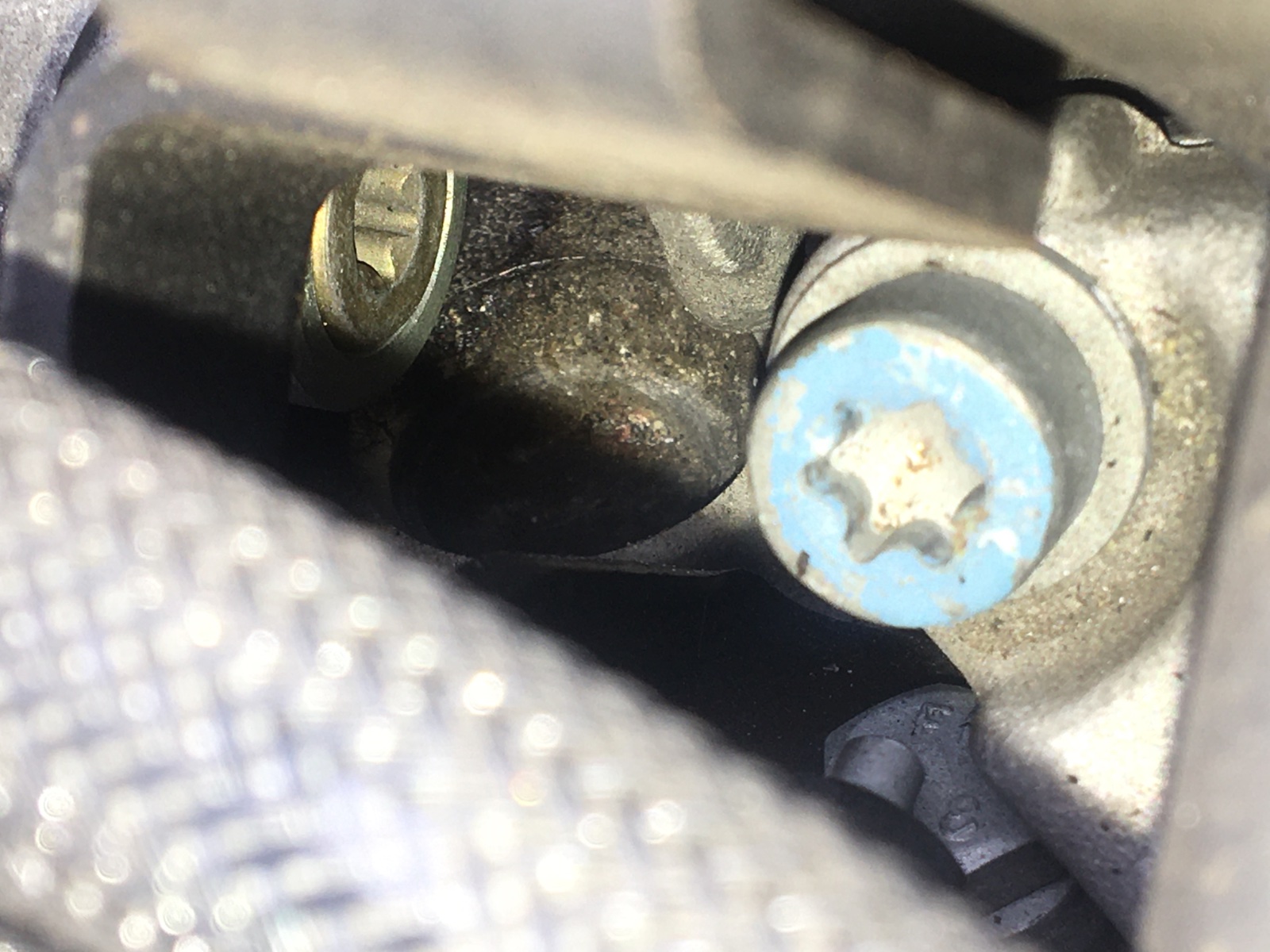

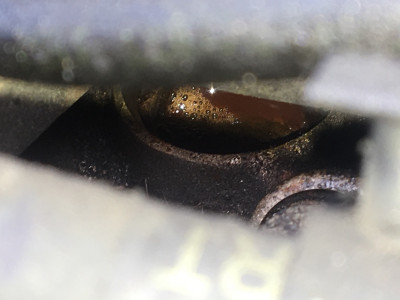

Skull’s leaky core plug

Got a small video but can’t load it ?

Part number please ?

[Skull]

Cylinder head Core plug

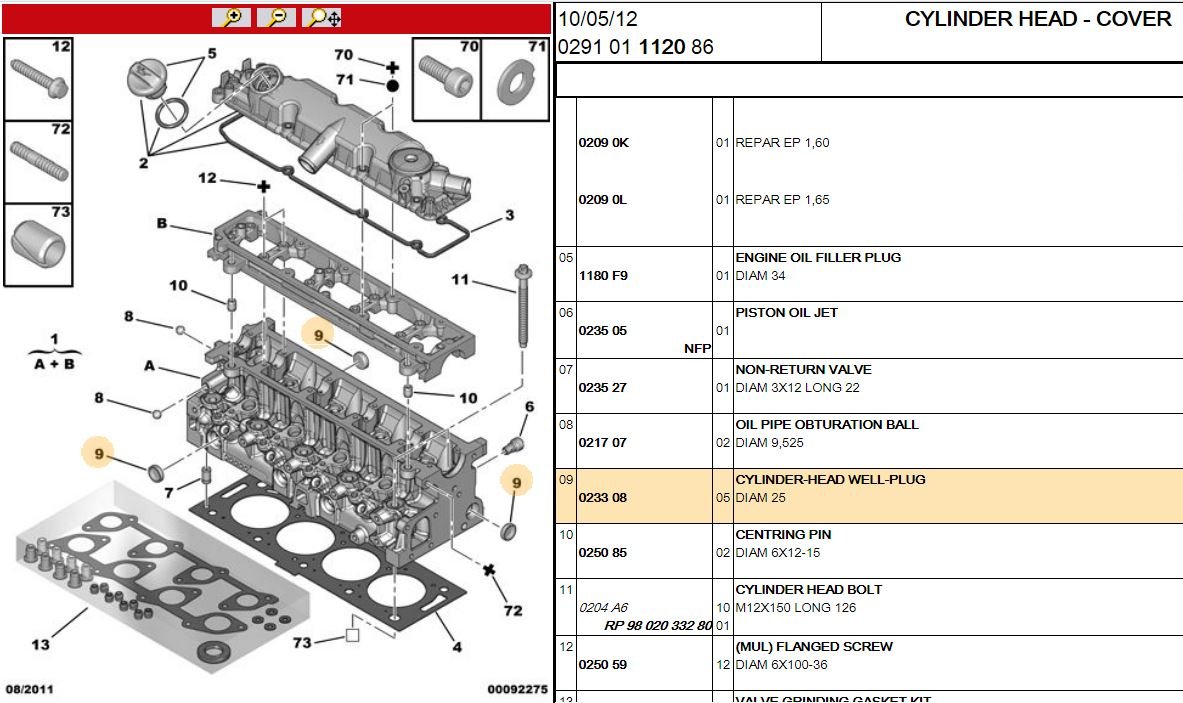

Same as this one but better photo

[white exec]

This bit possibly...

[Skull]

Thanks Chris

I'll have a measure up and see if 25mm is close.

I'll re-post if I need anymore help ....

[Skull]

Bit of a faff getting access, I had intended to take the fuel rail fully off but the rubber breather pipe that runs over the rail is rigid and will probably break if I try to remove it ....anyway undone all the connections on the fuel rail and managed to lower it 2” which gave me enough access to remove and replace plug .... first one I’ve done so not sure if it’s in far enough? I hit it with a 16mm socket and Hammer - it doesn’t seem to want to go in any further So will let the sealant set overnight and test tomorrow

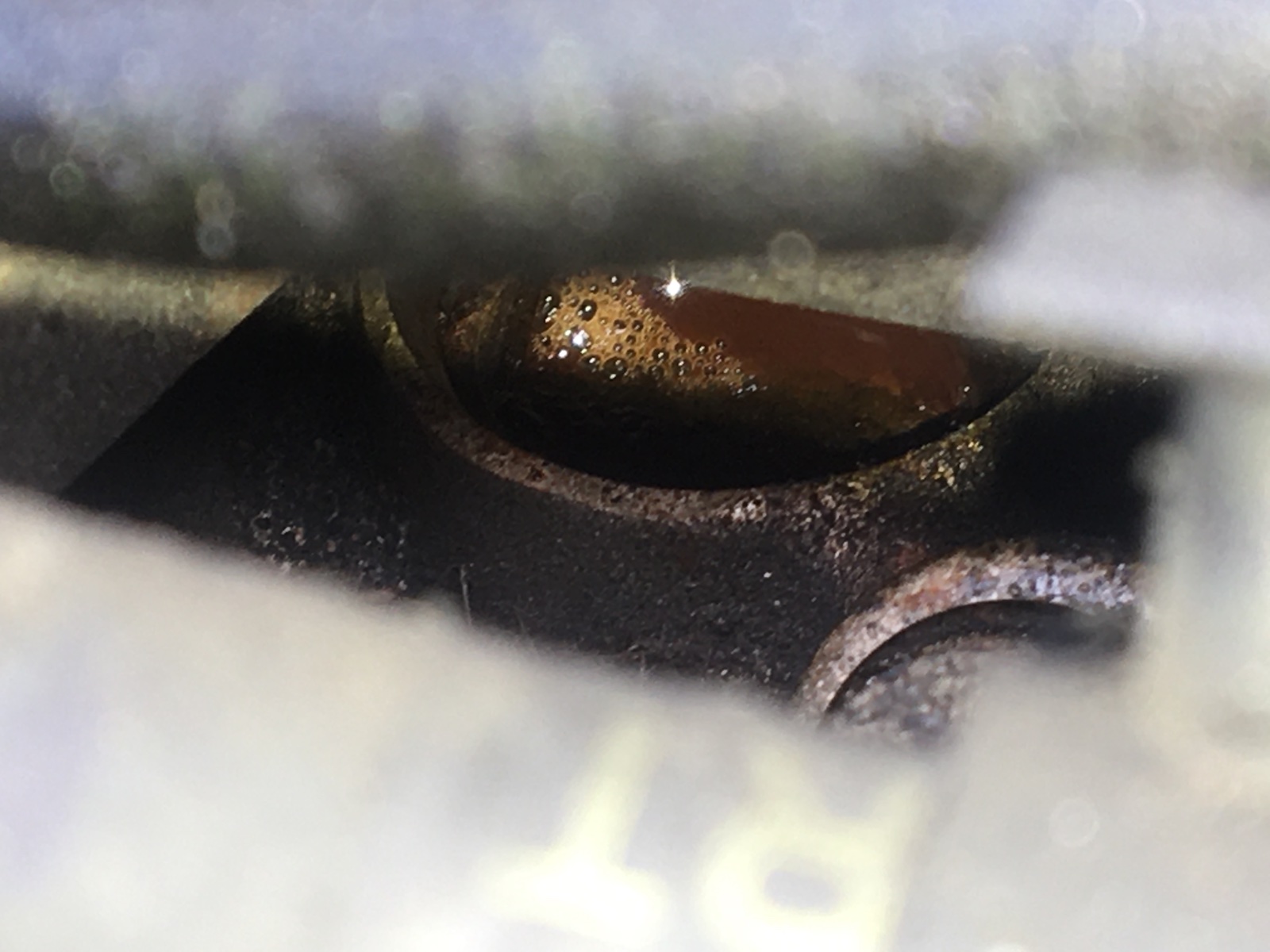

Skull’s leaky core plug

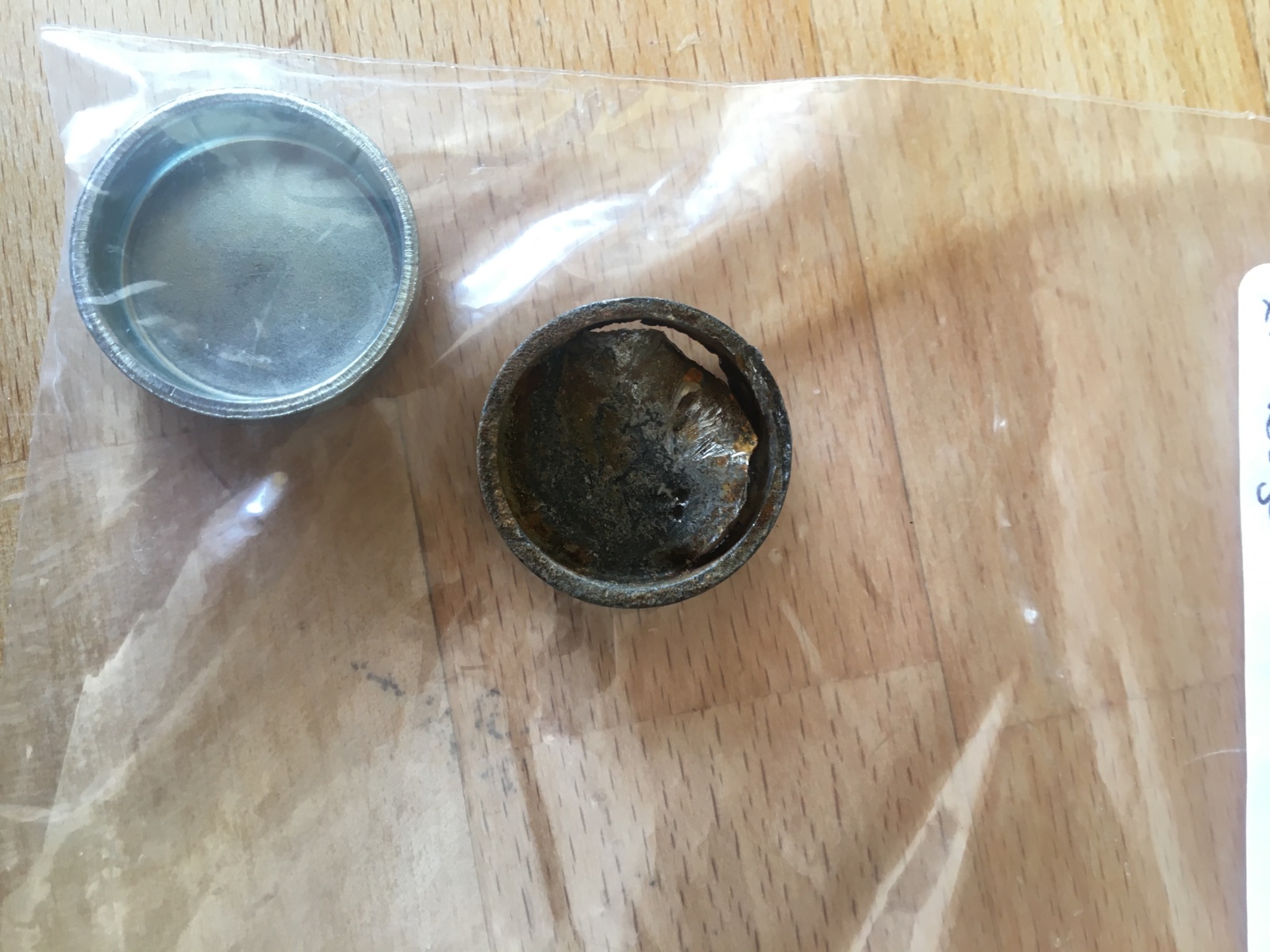

Skull’s new and old plugs

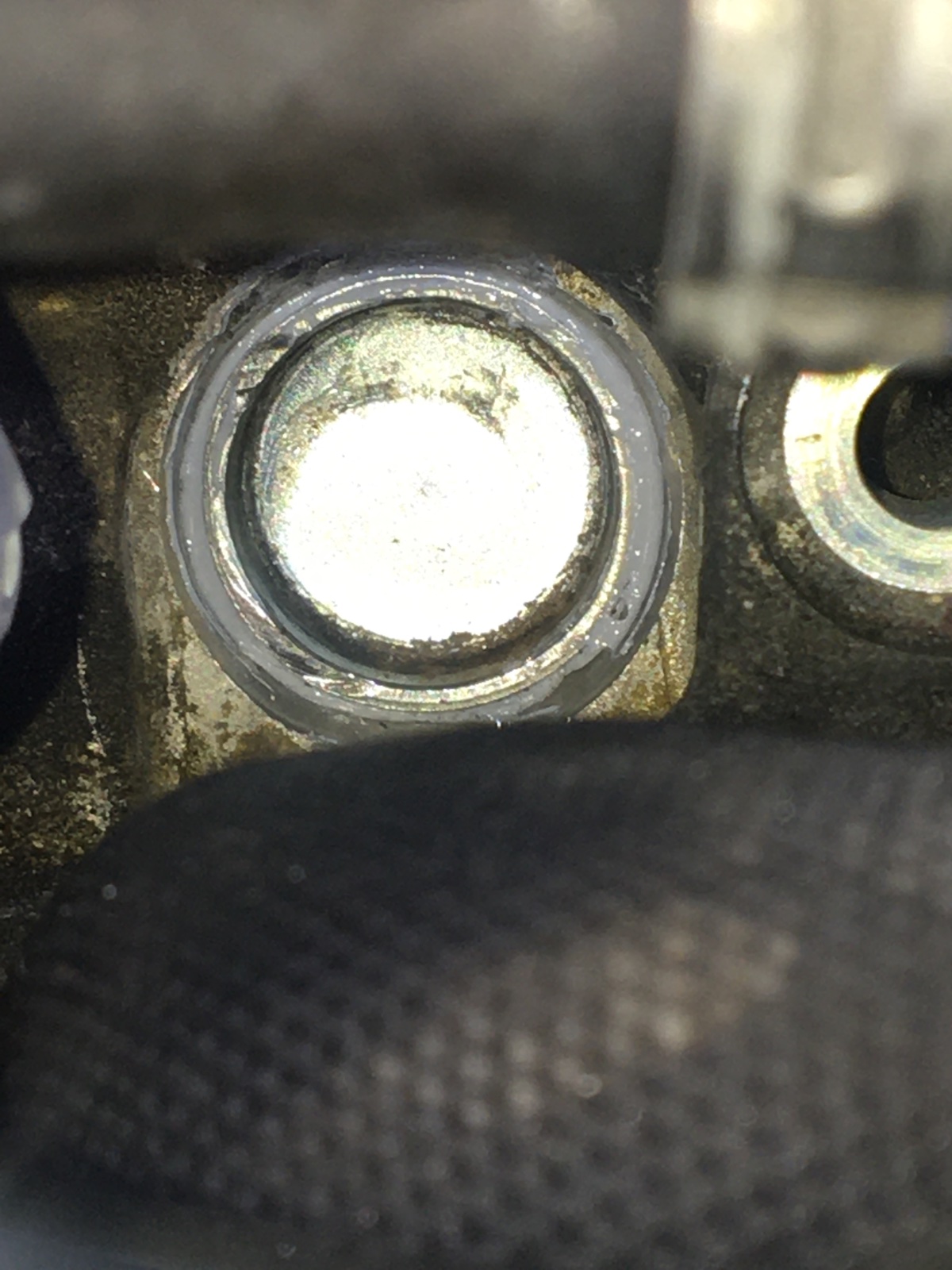

Skull’s New Core Plug

[Skull]

Thanks Chris

Looks to be holding under pressure - just needs another flush and some coolant in a couple of days

[white exec]

Glad to hear it's sorted. Back in the middle of the last century (how do I know?) those things could be 3-4mm thick - but then it was common not to bother with anti-freeze/coolant/corrosion inhibitor on a lot of cars!
