Hello fellas!
I am building a custom car audio system in my 2008 C5 X7. I installed the JL Audio's e6450 6-channel amplifier in the trunk where that "cloth-basket" was initially, on the left side. Now it is time to power it. The thickest power cable that fits into amp's socket is 25 mm² - that's what I bought (100% Copper cable, OFC, not CCA). The amp requires a 60 A fuse.
I am going to pull the positive wire through the firewall using a water-sealed grommet and install a 60A fuse near the positive terminal of the battery. Now the question I have is:
Shall I:
A) pull another (negative) wire through the firewall straight to the amplifier at the back
or
B) use a factory grounding point (I located one near the seat-belt tensioner at that top shelf of my Saloon)?
Will B) impact the electronics in the car somehow? The obvious drawback of A) is that I would have to fish 2 wires instead one.
C5 X7 amplifier power cables, trunk ground point
Moderator: RichardW
Re: C5 X7 amplifier power cables, trunk ground point
I haven't had a close look but im sure there will be an earth point near to where you are installing, probably for the rear lights. If not you would be far better off making your own earth point rather than run a separate cable from the battery.
Also be very careful where you pass the wiring through, I've seen may BSI units written off due to water ingress caused by poor installation of wiring through the bulkhead, The favourite on the Mk1 C5 was wiring for taxi meters being passed through the rubber grommet for the main wiring harness which was located right above the BSI.
EDIT: Original earth location picture added. This is for a saloon model, let me know if it's an estate.
Also be very careful where you pass the wiring through, I've seen may BSI units written off due to water ingress caused by poor installation of wiring through the bulkhead, The favourite on the Mk1 C5 was wiring for taxi meters being passed through the rubber grommet for the main wiring harness which was located right above the BSI.
EDIT: Original earth location picture added. This is for a saloon model, let me know if it's an estate.
Re: C5 X7 amplifier power cables, trunk ground point
Thanks, great image!wheeler wrote: ↑04 May 2020, 13:57 I haven't had a close look but im sure there will be an earth point near to where you are installing, probably for the rear lights. If not you would be far better off making your own earth point rather than run a separate cable from the battery.
Also be very careful where you pass the wiring through, I've seen may BSI units written off due to water ingress caused by poor installation of wiring through the bulkhead, The favourite on the Mk1 C5 was wiring for taxi meters being passed through the rubber grommet for the main wiring harness which was located right above the BSI.
EDIT: Original earth location picture added. This is for a saloon model, let me know if it's an estate.
My car is LHD, though I believe those locations are the same, especially at the trunk.
I have already made use of MC40 ground point, I installed the DSP there
On the other hand, why would they fish new wiring for those taxi-meters? I would just use a fuse-tap.
Re: C5 X7 amplifier power cables, trunk ground point
I Selected LHD when I got the diagram, but I imagine they would be the same.
Good question, I would use a feed inside the car too. The Mk1 C5 has been around since 2001 thought & piggy back fuses weren't that popular back then.
Re: C5 X7 amplifier power cables, trunk ground point
Actually my parents have the mark 1 since brand new in 2004, I'll be installing some aftermarket rear-view camera and parking sensors real soon
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: C5 X7 amplifier power cables, trunk ground point
If I read you right (and I might have misunderstood)...
25mm²/60A-fusing for the power cable, and original cabling for 100mm/4-inch door speakers?
25mm²/60A-fusing for the power cable, and original cabling for 100mm/4-inch door speakers?
Chris
Re: C5 X7 amplifier power cables, trunk ground point
Well, yes. Actually those speakers are 165 mm.
I initially planed to go with some smaller/cheaper amp but I needed 6-channel amplification and that JL Audio was at a bargain price, so I bought it. Now I need to power it and it requires such power, that's why such a cable is needed.
I have everything done by now except for fishing that power wire, which I feel is the most cumbersome task of the entire process :/.
Already done: (RNEG2 install, car audio upgrade):
Some photos I took throughout the process:
I initially planed to go with some smaller/cheaper amp but I needed 6-channel amplification and that JL Audio was at a bargain price, so I bought it. Now I need to power it and it requires such power, that's why such a cable is needed.
I have everything done by now except for fishing that power wire, which I feel is the most cumbersome task of the entire process :/.
Already done: (RNEG2 install, car audio upgrade):

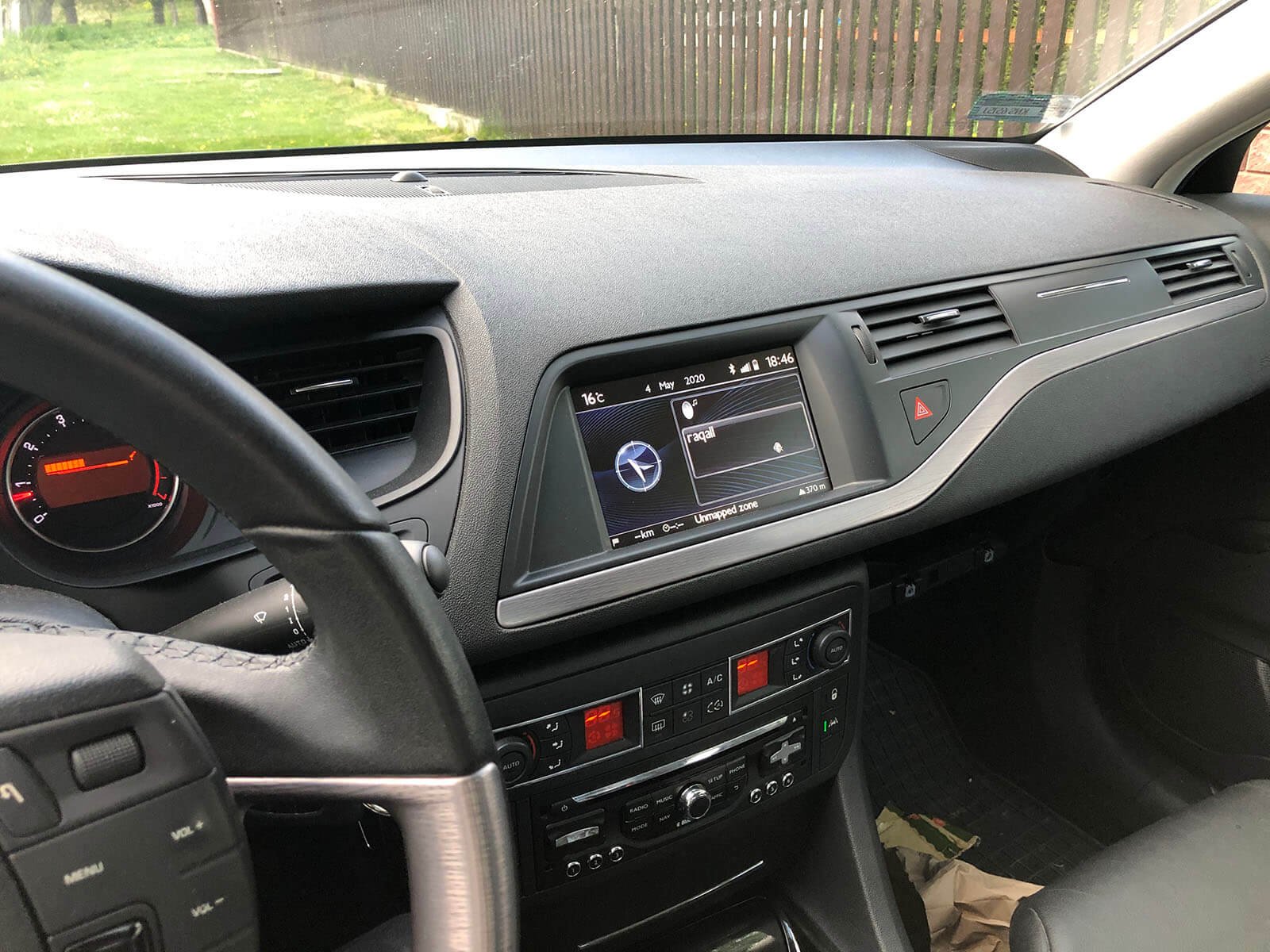

- RNEG2 screen with its bezel and head-unit installed
- roof console fitted with FAKRA GPS antena, USB extension cable for a soon-to-be-installed dash cam and mic for RNEG2

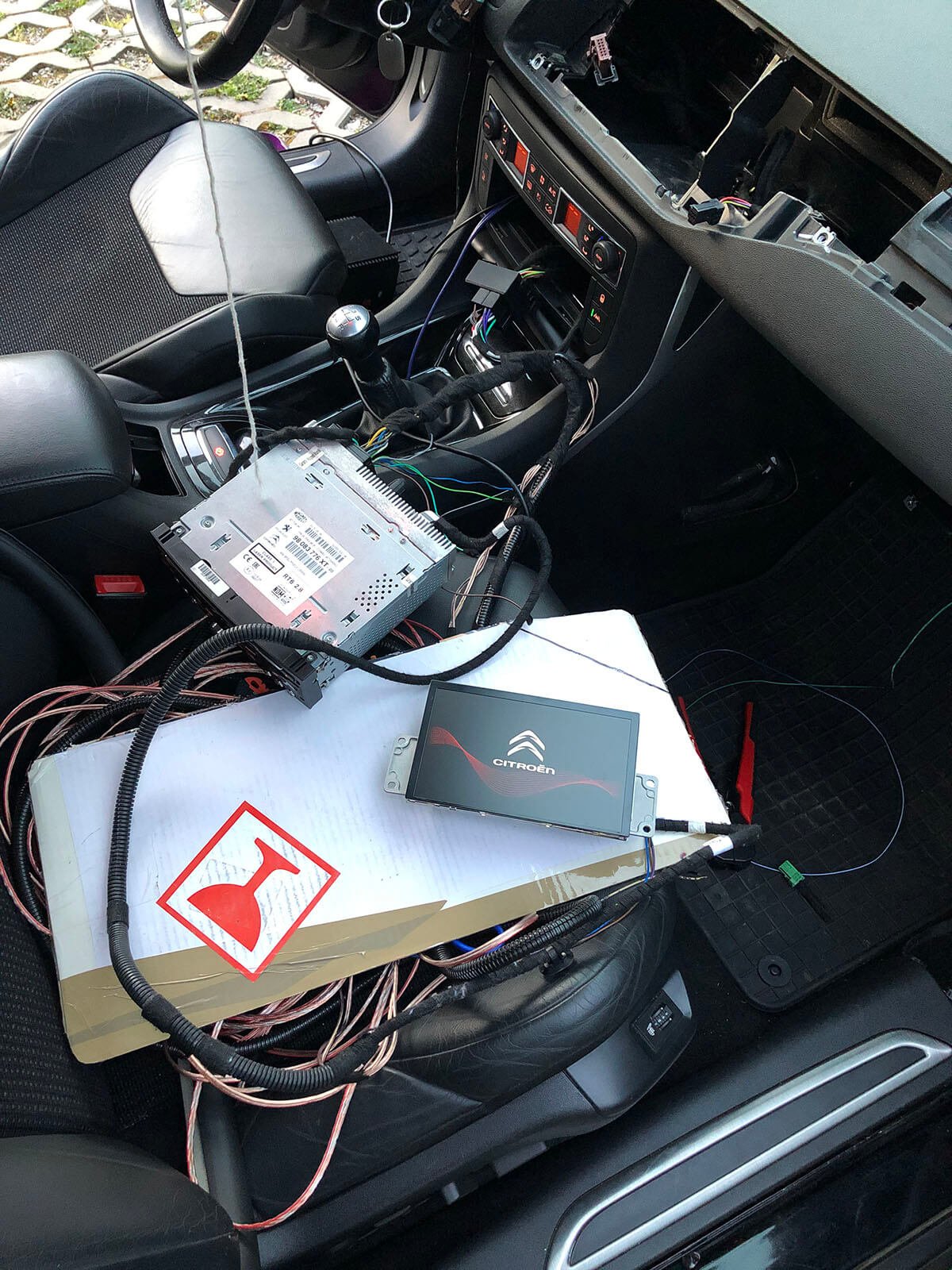

- custom harness made so not to cut the OEM cables
- Pioneer DSP installed and wired: two fuse-taps used (one for power, one for ignition-only power), custom harness utilised to receive the RNEG2's audio signal

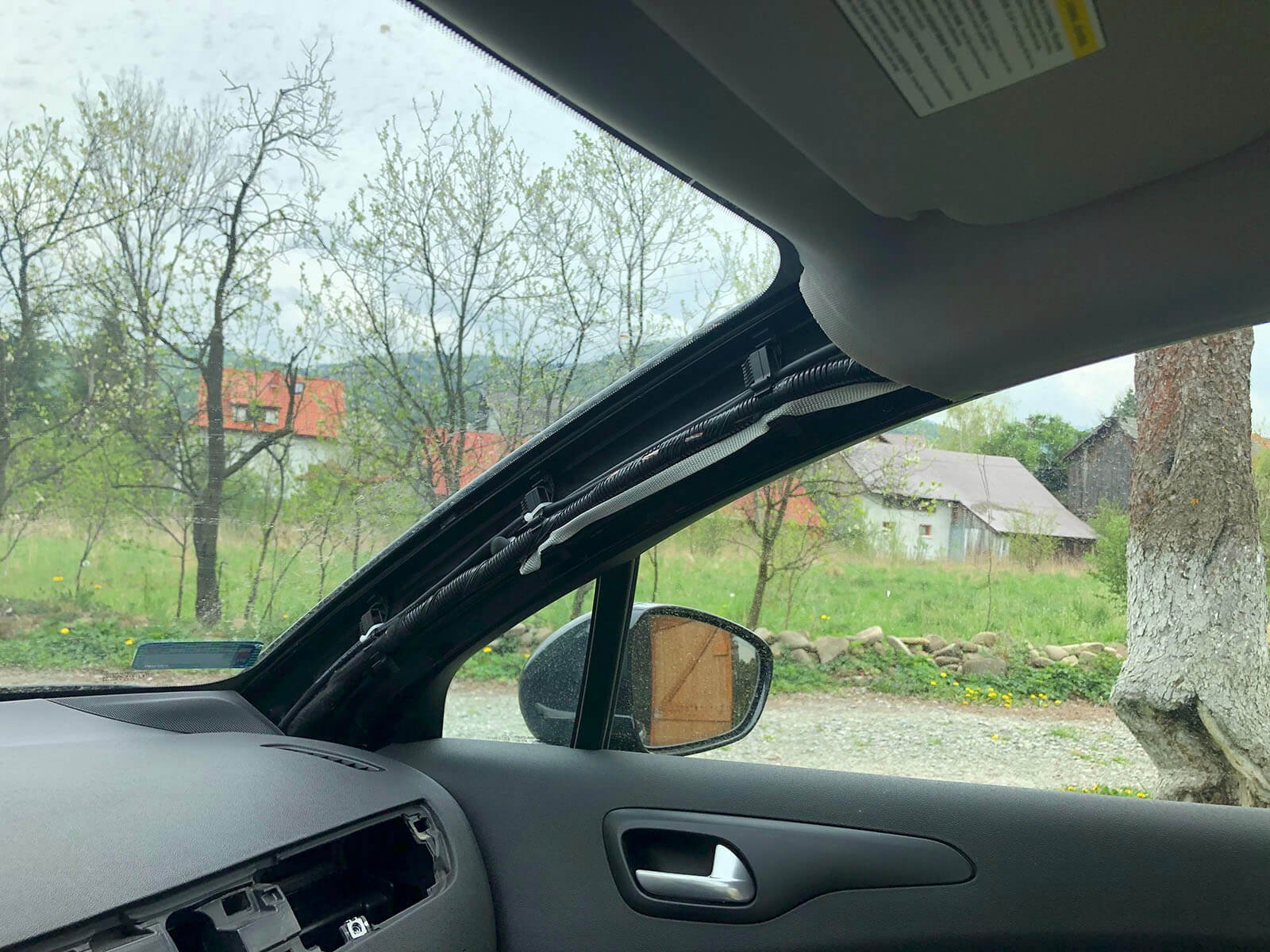

- audio cables wrapped in protective loom and fished through the headliner away from the airbags, extra cables wired for additional speakers at the back shelf (for audible parking sensors)
- tweeters replaced with Clarion tweeters
- crossovers installed behind the glove box (LHD) and connected
- door pockets in all 4 doors treated with sound dampening butyl/aluminium mats, OEM moisture-barrier also replaced with butyl mats
- Clarion speakers installed on aftermarket rings (separated set for the front, coaxials in the back doors)
- custom-made sub-woofer enclosure fitted to the trunk's right pocket and shallow-mount subwoofer installed
- amplifier mounted into the trunk's left pocket

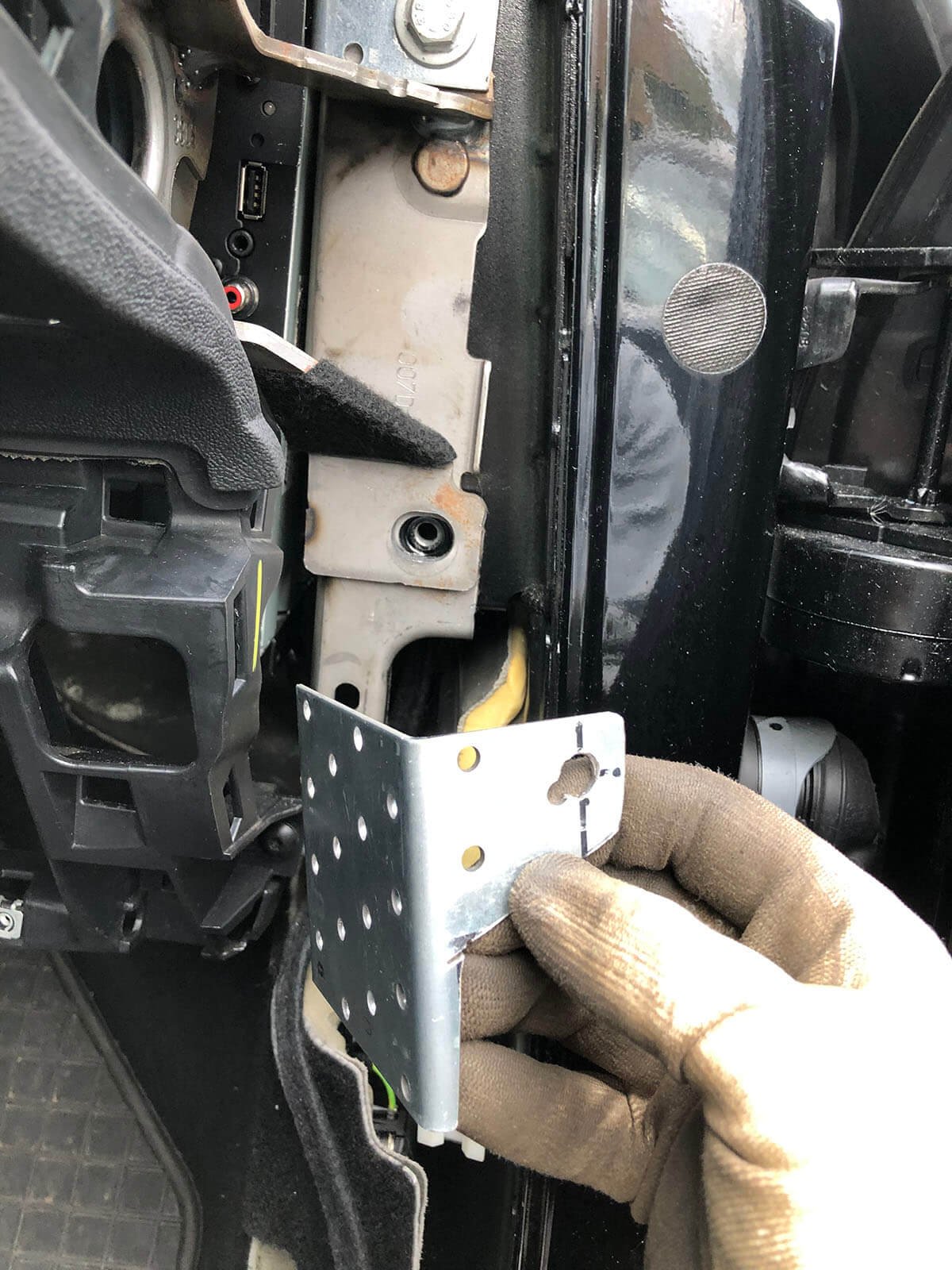

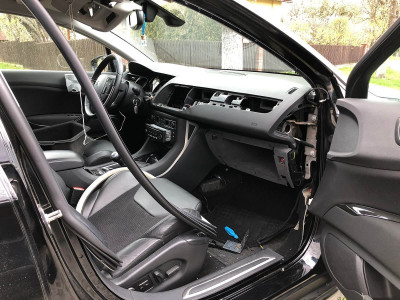

Some photos I took throughout the process:
Re: C5 X7 amplifier power cables, trunk ground point
Thank you for your answers, the amp is finally installed!
I fished the hot-wire from the battery to the trunk going under left doors' kick-panels. There is just a perfect factory grommet, goes right through the firewall, more/less on the level where the steering wheel (LHD) is. One needs to look from below the steering wheel rack. I can post some pics if anyone interested.
I grounded the amp using factory ground location MC61 used for tail lights.
I've been listening for some time - no issues with the electronics of the car.
I fished the hot-wire from the battery to the trunk going under left doors' kick-panels. There is just a perfect factory grommet, goes right through the firewall, more/less on the level where the steering wheel (LHD) is. One needs to look from below the steering wheel rack. I can post some pics if anyone interested.
I grounded the amp using factory ground location MC61 used for tail lights.
I've been listening for some time - no issues with the electronics of the car.
Re: C5 X7 amplifier power cables, trunk ground point
I would like to see those pictures of the cable routing if you still have them.
Re: C5 X7 amplifier power cables, trunk ground point
I don't have the pictures but I have the car
Tomorrow I will make some pictures to show you how I routed the +12 cable from the battery to the trunk.
Tomorrow I will make some pictures to show you how I routed the +12 cable from the battery to the trunk.
Re: C5 X7 amplifier power cables, trunk ground point
Hello. I came across your post while searching for a solution for my project.
I have a 2016 C5 x7 with the SMEG+IV2 nav and Philips HiFi factory setup and I'm facing an issue regarding the parking sensors sound volume.
How did you manage the parking sensors sound with the aftermarket dsp and amp? Did you bypass the sound somehow?
I have a 2016 C5 x7 with the SMEG+IV2 nav and Philips HiFi factory setup and I'm facing an issue regarding the parking sensors sound volume.
How did you manage the parking sensors sound with the aftermarket dsp and amp? Did you bypass the sound somehow?
Re: C5 X7 amplifier power cables, trunk ground point
You can alter the parking aid volume using Lexia in RNEG settings. I don’t remember if I made changes or it was OK when left at default.
Is it too loud or too quiet for you?
Is it too loud or too quiet for you?
Re: C5 X7 amplifier power cables, trunk ground point
I have added two dedicated (only for beeps) speakers under the sedan’s back shelf and wired them directly to the RNEG as rear speakers and set the RNEG balance to 100% front because I capture front only signal from RNEG with my DSP.
RNEG always mutes (or significantly drops volume) of the music before playing beeps from the parking aid at constant volume (selectable via Lexia) and I keep my Amplifier at fixed amplification/volume level so it is possible to set it so that it works just like OEM setup with no addded amps, DSPs or speakers.
RNEG always mutes (or significantly drops volume) of the music before playing beeps from the parking aid at constant volume (selectable via Lexia) and I keep my Amplifier at fixed amplification/volume level so it is possible to set it so that it works just like OEM setup with no addded amps, DSPs or speakers.
