Dear fellow Citroen experts.
After buying my C5 I checked the oil level manual. The car shows level ok but after finding other fluids being over max I thought I check oil.
I drove the care a few miles and let it stand for 30 min on a level spot.
The dip stick was at least 5 cm above the crosses and the downwards arrow which I guess is the oil level.
Is there any reason why the level comes so high above the indication on the dip stick.
The engine is running a little rough, meaning more vibrations I would expect from a citroen.
It has done 154k and I see no leaks on the engine.
What is your advice. Do I drain. Do I change the filter. How do I know how much should be in the engine.
I look forward to your advices
Reading out the oil dip stick
Moderator: RichardW
- GiveMeABreak
- Forum Admin Team
- Posts: 36996
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5644
Re: High oil Level on C5 2011 TDi 16
If in doubt, change the oil and refill it to the correct level on level ground. Always use the dipstick to check the level. The electronic measurement (where fitted) is a secondary check.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 94
- Joined: 05 Dec 2019, 22:20
- Location: Liverpool
- My Cars: C5 estate 2l diesel 2011
Re: High oil Level on C5 2011 TDi 16
Thanks Marc, where can one find the correct amount to fill up with..In litres.
The handbook I found online says it's a 2011 handbook but seems a different model.
Cheers
Bela
The handbook I found online says it's a 2011 handbook but seems a different model.
Cheers
Bela
Re: High oil Level on C5 2011 TDi 16
If it was ok before & the level has gone up definitely drain oil & replace filter as the oil may be diluted with diesel. Once you have reset to the correct level keep a very close eye on this with at least weekly checks, oil level creeping up on a DPF equipped car can be a sign of a problem with the DPF system or failed regeneration attempts. Incase your not aware high oil level especially on a diesel can go really badly.
If this was my car I would also get it on decent diagnostic equipment and check the regeneration frequency & attempts.
If this was my car I would also get it on decent diagnostic equipment and check the regeneration frequency & attempts.
-
- (Donor 2020)
- Posts: 94
- Joined: 05 Dec 2019, 22:20
- Location: Liverpool
- My Cars: C5 estate 2l diesel 2011
Reading out the oil dip stick
Dear all,

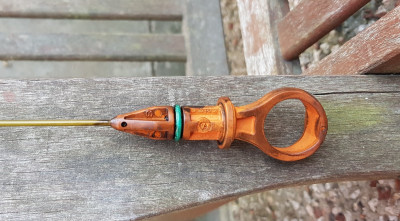

I'm trying to get my oil level back where it suppose to by sucking it out the dip stick tube as I can not get to the sump.
I might be a dip stick myself but am I reading the level right. The manual does not show the same type which is used.
I'm presuming the xxxxx <-- is the safe level and the dip stick top needs to be full down and not stopped at the green O ring.
I'm trying to be safe because I already taken 1 ltr out by suction and it's still not on the arrow
Anyone who can give me good advice during garage lockdown
Regards
Bela
I'm trying to get my oil level back where it suppose to by sucking it out the dip stick tube as I can not get to the sump.
I might be a dip stick myself but am I reading the level right. The manual does not show the same type which is used.
I'm presuming the xxxxx <-- is the safe level and the dip stick top needs to be full down and not stopped at the green O ring.
I'm trying to be safe because I already taken 1 ltr out by suction and it's still not on the arrow
Anyone who can give me good advice during garage lockdown
Regards
Bela
- myglaren
- Forum Admin Team
- Posts: 25362
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4888
Re: Reading out the oil dip stick
Try smelling the oil that you remove. If it smells of diesel then there is a real problem with fuel getting into the lubrication system.
With diesels it is potentially fatal.
With diesels it is potentially fatal.
-
- (Donor 2020)
- Posts: 94
- Joined: 05 Dec 2019, 22:20
- Location: Liverpool
- My Cars: C5 estate 2l diesel 2011
Re: Reading out the oil dip stick
Thanks for the tip.
The engine runs a little rough to my liking so I'm checking all I can myself. More vibration than I'm used to but I have no comparison
You think I got the dip stick read out correct
Regards
Bela
The engine runs a little rough to my liking so I'm checking all I can myself. More vibration than I'm used to but I have no comparison
You think I got the dip stick read out correct
Regards
Bela
-
- (Donor 2020)
- Posts: 94
- Joined: 05 Dec 2019, 22:20
- Location: Liverpool
- My Cars: C5 estate 2l diesel 2011
Re: High oil Level on C5 2011 TDi 16
Thanks for the advice on the diesel going into the oil.
I have managed to drop the oil one x below the arrow and will keep an eye on it.
Cheers
I have managed to drop the oil one x below the arrow and will keep an eye on it.
Cheers
- myglaren
- Forum Admin Team
- Posts: 25362
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4888
Re: Reading out the oil dip stick
Topics merged.
