Fault codes

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Fault codes

Post by KennyW »

Hi All,

Trying fathom out a new problem.

Last summer replaced dpf after these fault codes appeared while in France.
P1496, P1497 P149C and finally P0234.

Cleared these faults after fitment and informed ECU of new DPF no problems until recently when P0234 reappeared.

Just done diagbox global test and found this new fault P1396.

It looks like faulty solenoid, vacuum hoses or worse still EGR valve or turbo.

What could it be any thoughts gratefully received.

Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Fault codes

Post by GiveMeABreak »

Hi Kenny, a few pointers for you:

Fault P0234 is a boost pressure regulation fault, meaning the air pressure is above the reference value.

Description: The engine speed is 2000 - 3000 RPM with the engine torque below 300 Nm and secondly, the measured turbocharged air pressure is 450 mbar above the reference value for 6 seconds.

For the fault to trigger, the engine speed needs to be above 1500 RPM and the actual engine torque higher than 100 Nm.

The fault can disappear on its own if the car is driven for 5 minutes with the engine hot with several accelerations under full load for 10 seconds, with foot off in between.

Whilst this fault is active, the following downgrade operations are enacted:
  • Deactivation of the pilot and post-injection injections
  • Deactivation of the request for regeneration of the particle filter from the diagnostic tool
  • Deactivation of the EGR function
  • Cutting of the exhaust heat saver function
  • Prohibition of regenerations of the particle emission filter and stopping of those in progress
  • Deactivation of the kick-down for automatic gearboxes
  • Limitation of performance
  • Request for emergency closing of the turbocharged air cooler by-pass
  • Deactivation of the tight spot for the cruise control
The engine warning light will also be lit.

Symptoms noticed: Noise, Diesel fuel consumption a bit higher, Lack of power, Engine hesitating, cutting out, Smoke from the exhaust.

Suspect Areas: Manifold air entry pressure sensor, Turbo air cooler by-pass unit, Electrovalve of the turbo air cooler by-pass unit, Position indicator of the turbocharging air cooler bypass unit, Turbocharger, Turbocharger solenoid valve, Position indicator of the turbocharger.

So if you suspect the MAP sensor is faulty, it could be sending the wrong values and having a knock-on effect down the line. It is part 1920QR.

The MAP sensors on these measure both the Air temperature and the air pressure.
Please Don't PM Me For Technical Help

Marc
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Re: Fault codes

Post by KennyW »

Thanks Marc,

Never thought of the MAF sensor

Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Fault codes

Post by GiveMeABreak »

Not the MAF kenny, the MAP :-D

Also called the Inlet Air Temperature and Pressure Sensor.

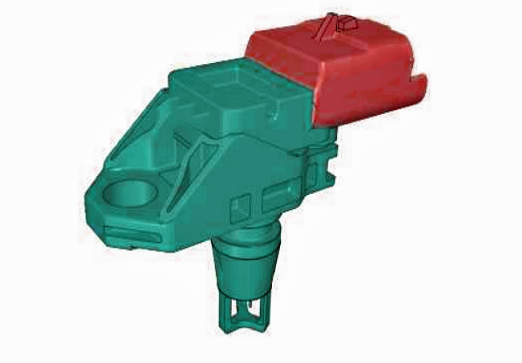

Kenny MAP.PNG
This sensor measures both the air temperature and air pressure and is first on the suspect list in my previous post. It is part 1920QR.
Please Don't PM Me For Technical Help

Marc
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Fault codes

Post by Paul-R »

Are you sure about the temperature Marc? I thought that was co-located inside the MAF.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Fault codes

Post by GiveMeABreak »

Yes, I'm sure Paul - this sensor is for the manifold specifically.

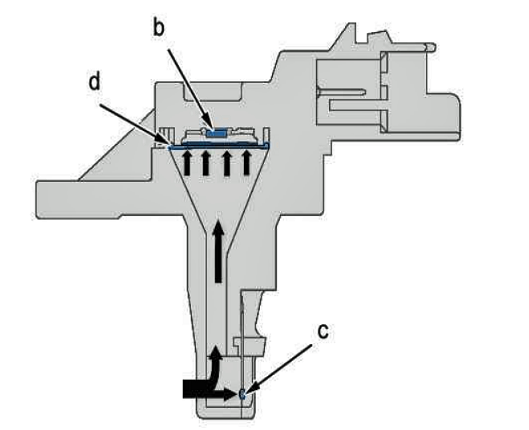

Kenny MAP b.PNG
"b" Resistive Plate.
"c" Resistor for measuring the air temperature.
"d" Diaphragm.
The incoming air is diverted into 2 sections - one channel goes up and forces the diaphragm up against a resistive plate, which is then converted into an electrical current.

For the air coming through the other channel at 'c' an NPC (Negative Temperature Coefficient) sensor is used to change the resistance in line with the air temperature.

This sensor is specifically for measuring the air and temperature around the manifold.

The MAF also has a temperature sensor Paul, so you are correct there, but they are for different parts of the system.

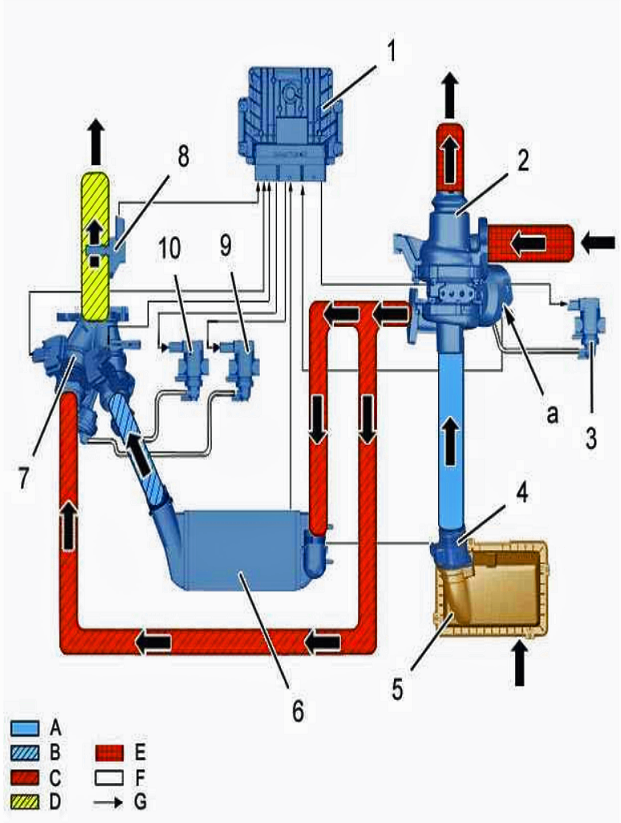

Here are the components in a representative diagram. I've emboldened the 2 sensors in the table.

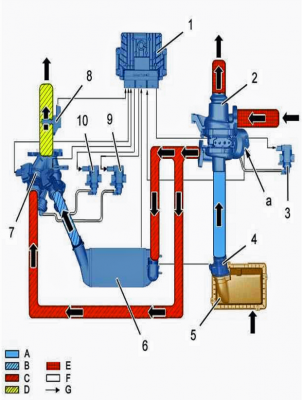

Kenny c.PNG
ReferenceDesignation
"A"Turbocharger Blades Control Diaphragm (With Position Copy Sensor)
(1)Engine ECU
(2)Variable Geometry Turbocharger
(3)Proportional Electrovalve Controlling the Variable Resistance Turbocharger
(4)Air Flowmeter by Mass
(5)Air Filter Unit
(6)Turbocharger Air Cooler
(7)Double Air Mixer With Position Repeat Sensors
(8)Inlet Air Pressure and Temperature Sensor
(9)Turbo Air Cooler By-Pass Control Electrovalve
(10)Air Metering Unit Control Electrovalve
Please Don't PM Me For Technical Help

Marc
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Re: Fault codes

Post by KennyW »

Okay, Thanks Marc fortunately I found the part via the part number so got the right part.

Ignore my senior moment, I was reading an old post about MAP's & MAF's and a comprehensive reply from Jim (Citrojim).

Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Fault codes

Post by GiveMeABreak »

:-D No worries - I thought so Kenny.

The MAP, by its nature of having a diaphragm is likely to be a failure area at some point I suspect.
Please Don't PM Me For Technical Help

Marc
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Re: Fault codes

Post by KennyW »

Marc,

Can you confirm the position of the Map sensor ? Is it located at the rear of the engine besides the electro vlave solenoids ?

Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Fault codes

Post by GiveMeABreak »

It should be near the manifold air intake, item (7)
Please Don't PM Me For Technical Help

Marc
User avatar
KennyW
(Donor 2022)
Posts: 2499
Joined: 17 Jan 2006, 21:22
Location: Letham, Fife
My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate
x 132

Re: Fault codes

Post by KennyW »

Thanks Marc.
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
rafal85
Posts: 12
Joined: 05 Sep 2019, 10:45
Location: Europe
My Cars: Citroen C5 X7
x 1

Re: Fault codes

Post by rafal85 »

Hi.
Have you fixed that?
I have similar issues 😑
Post Reply
