Hi

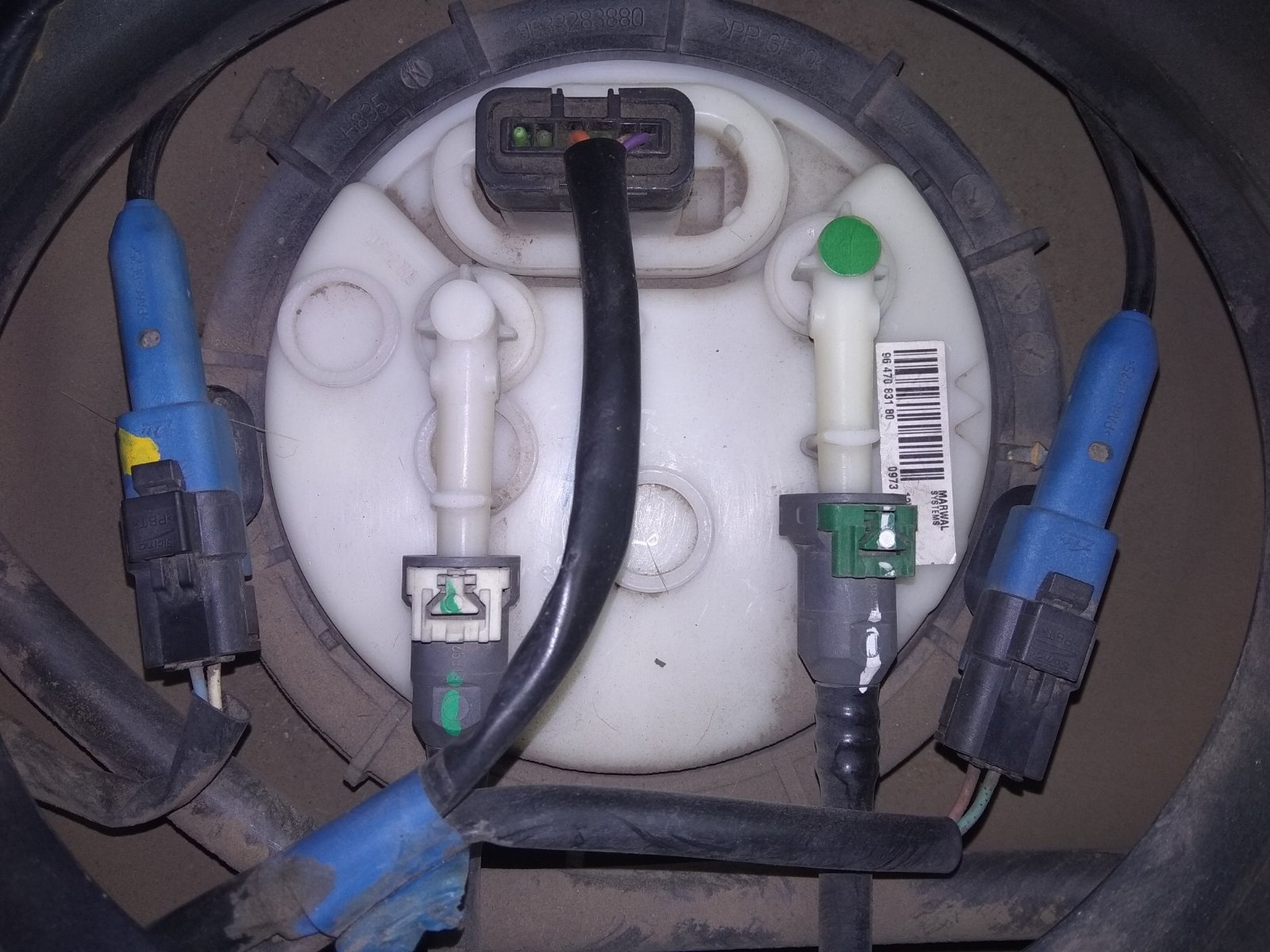

Attached a picture of the fuel tank (petrol) of my C5 2010. I would like to ask how the hoses connectors - the ones with the green and white locks can be removed from the fuel tank's cover nipples? what are the green and white markings for? I guess that one is the output of the fuel pump and the other is "back line" but which is what? I've tried to push the little triangle, assuming that it will release the connector but it seems that it's done otherwise.
Thanx for your help and stay well.
Avi
C5 fuel tank hoses connectors
Moderator: RichardW
-
atr
- Posts: 314
- Joined: 09 Oct 2010, 05:02
- Location: Israel
- My Cars: Xantia 2.0l 16v 2001 petrol
C5 mkII 2.0l petrol sx pack 2007
C5 x7 saloon petrol 2010 - x 6
C5 fuel tank hoses connectors
- Attachments
-
-
Peter.N.
- Moderating Team
- Posts: 11574
- Joined: 02 Apr 2005, 16:11
- Location: Charmouth,Dorset
- My Cars: Currently:
C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red
In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars. - x 1204
Re: C5 fuel tank hoses connectors
Just press in the lugs on the two sides in and pull the connector off. A pair of pointed nose pliers may help, I don't have enough strength in my fingers, you will see the small plastic blocks if you look closely. Don't know which is which I'm afraid.
Peter
Peter
-
KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Re: C5 fuel tank hoses connectors
Is there not any direction arrows on the white connectors ? As per the fuel filter in the engine bay.
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
-
atr
- Posts: 314
- Joined: 09 Oct 2010, 05:02
- Location: Israel
- My Cars: Xantia 2.0l 16v 2001 petrol
C5 mkII 2.0l petrol sx pack 2007
C5 x7 saloon petrol 2010 - x 6
Re: C5 fuel tank hoses connectors
No, unfortunately not, at least not that I've been able to see, only the green & white lines made with some sort of a marker.
