USB Jack / Rear 12V Socket
I would like to help me disassemble the 12V socket on the back to replace it with a USB socket; My VIN: VF7**************[VIN obfuscated, can be read by forum staff]. Thank you
- myglaren
- Forum Admin Team
- Posts: 25480
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4922
Re: USB Jack / Rear 12V Socket
Why not just use one of these - Amazon link.
Re: USB Jack / Rear 12V Socket
I prefer the hidden USB so nothing comes out outside. Thank you
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: USB Jack / Rear 12V Socket

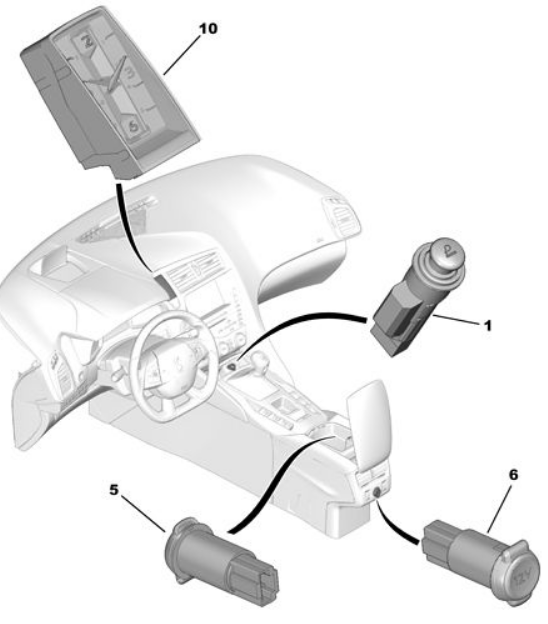

It's just a plug module - but you'll need a converter for the voltage as USB is 5V. The rear trim comes off with simple trim removal tools. (5) is the power lead for accessories and (6) is the 12V Lighter.
Please Don't PM Me For Technical Help
Marc
Marc
Necesito una toma 12V
Very good Señori@s, I would like to know if I can take a 12V shot in the back. And I would need an outline of the positives of brake and reverse light flashing, thanks my VIN is VF7**************[VIN obfuscated, can be read by forum staff]
Last edited by GiveMeABreak on 27 Feb 2020, 09:33, edited 1 time in total.
Reason: Topics Merged
Reason: Topics Merged
- GiveMeABreak
- Forum Admin Team
- Posts: 37433
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5742
Re: Necesito una toma 12V
No you cannot take a 12v feed from the reversing light or brake circuit! These are specific circuits for the lighting and are not designed to provide a 12V power outlet.

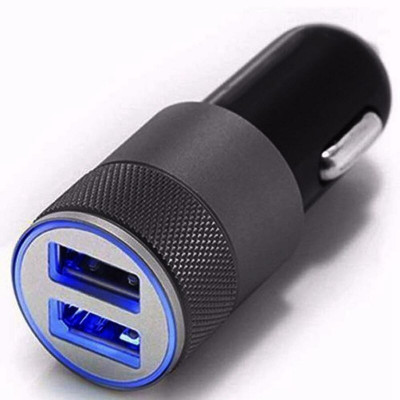

You already have a 12V supply in the rear. Just use a 12V to USB adapter if you require USB power - something like this:
You already have a 12V supply in the rear. Just use a 12V to USB adapter if you require USB power - something like this:
