X7 Electric handbrake

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 Electric handbrake

Post by Trainman »

Right then, I've run Lexia over the Secondary Electric Brake ECU, originally there were 4 faults listed:

C1554 - Temporary fault, Electric motor temperature sensor Coherence
P0562 - Temporary fault, ECU low supply voltage
C1550 - Temporary fault, Brake cable
C1559 - Temporary fault, Electric motor control

so I cleared those fault, which all cleared and then tried to reset the handbrake, at which point I got these faults

C155E - Temporary fault, Mechanical unlocking of the electric parking brake detected
U1108 - No communication with engine EC U no signal
U1313 - Permanent fault, No communication with electronic stability program (ESP) ecu
C1559 - Temporary fault, Electric motor control

once again I cleared the faults and they have all disappeared, but I still get the flashing red circle!
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: X7 Electric handbrake

Post by GiveMeABreak »

Ok, I'll have a squiz now...
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: X7 Electric handbrake

Post by GiveMeABreak »

So P0562 would explain a lack of communication with the ECU. The ECU needs a minimum of 8.1V to operate. Now I can tell you that I had a similar issue with the parking brake not releasing after I had the car parked up for a few weeks and the battery was in a weakened condition. I took the battery off and charged it overnight, and then after 2 attempts at releasing the handbrake it worked. It did take a while - so seemed to be doing some sort of calibration. So I applied it a couple of times and all is well again.

The thermal code (C1554) I can understand if you have been continually operating and attempting to release it - that would make sense.

As for U1313, that relates to a fault in the reception of the partial triggering message by the built-in systems interface - but agrees with the same conclusion as the C1559 fault as being the unit itself (unless you had any reason to suspect the ESP ECU).
Fault CodeU1313
After sales description of the fault codeFault in the reception of the partial triggering message by the built-in systems interface (BSI)
Description of the diagnosticsThe dynamic stability control ECU causes functional faults
Conditions of activation of the diagnosticsIgnition on
Conditions of disappearance of the faultReception of 3 consecutive items of valid information
Down-grade modes if fault presentDeactivation of automatic mode
Ignition on: The electrically controlled parking brake releases if the button is not held
Ignition off: The electrically controlled parking brake releases if you hold the button for less than 3 seconds
Switching on of the warning lamp and/or warning messageWarning lamp
- "a": lit
- "b": lit
- "c": lit
Main customer complaints likelySwitching on of the warning lamp and/or warning message
Electrically-controlled parking brake does not apply correctly
Electrically-controlled parking brake releases unexpectedly
Electrically-controlled parking brake does not release correctly
Electrically-controlled parking brake applies itself unexpectedly
The hill start assist is not working
Loss of stability of the vehicle in dynamic braking
Suspect areasElectronic stability control (ESP)
Electric parking brake

However the remaining issue of C1559 could be the unit itself and may need replacing. What exactly the 2000 'Maximum number of releases at the Stop' relates to exactly, I can't say, but that can't relate to the max. number of applications as that would be over in 250 days at 4 application and release cycles a (8 operations per day).

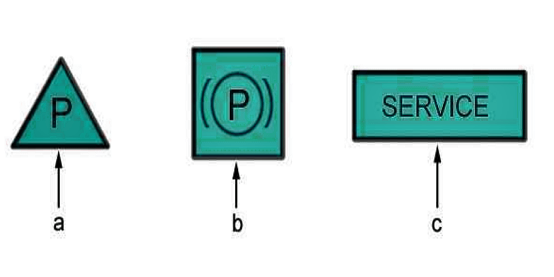

Ok, so here is the common fault - and below the table are the symbols / warning lights that 'a, b & c' refer to.
Fault CodeC1559
After sales description of the fault codeSystem locked: Electric motor, cables or callipers
Description of the diagnosticsThreshold of the application and release counter exceeded
Rotation speed of the electric motor too high
Lockup detected
Maximum number (=2000) of releases at the stop exceeded
Conditions of activation of the diagnosticsActivation of the electrically-controlled parking brake
Conditions of disappearance of the faultApplication and release of the electrically-controlled parking brake successful
Down-grade modes if fault presentDeactivation of automatic mode
No application or release
Switching on of the warning lamp and/or warning messageWarning lamp
- "a": lit
- "b": On for 10 seconds after the request for application or release
- "c": lit
Main customer complaints likelyIllumination of LED/Error message
Electrically-controlled parking brake does not apply correctly
Electrically-controlled parking brake releases unexpectedly
Suspect areasElectric parking brake
Attachments
Steve Parking Brake A.PNG
Please Don't PM Me For Technical Help

Marc
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 Electric handbrake

Post by Trainman »

So basically, looking at the above, it sounds like the electronic handbrake is knackered.........

I get it up on ramps tomorrow and see if I can see if anything
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
Y Cymro
Posts: 118
Joined: 11 Sep 2017, 11:36
Location: Swansea
My Cars: Citroen C5 Tourer 2.0hdi Exclusive Auto
x 7

Re: X7 Electric handbrake

Post by Y Cymro »

Hi Steve
Did you get anywhere with this? Mines got a snapped cable and I’m not looking forward to spending over a grand on a new unit.
2013 Citroen C5 Exclusive Tourer, 2.0 HDI Automatic with Techno pack
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 Electric handbrake

Post by Trainman »

To be perfectly honest, I've decided to bite the bullet and buy a new one........ not ideal.....but......

when the old one is off, im going to strip it down and see what's what.......
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
Trainman
(Donor 2018)
Posts: 2589
Joined: 21 Aug 2009, 11:58
Location: Penwortham
Lexia Available: Yes
My Cars: 2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather
2017 1.6HDi Berlingo Van - the works van
x 42
Contact:

Re: X7 Electric handbrake

Post by Trainman »

Right, Time to hold my hands up........ I’m a muppet......... nothing wrong with the handbrake mechanism, when I was underneath, I failed to notice the one of the plastic spacers, which are about the size of a 13mm socket, was missing.

Two new ones ordered for £5 and handbrake reset and fully working.
Steve

2008 C6 2.7 Exclusive in Mativoire Beige with Vitali Leather.
2019 C5 1.6 Aircross Flair+ in Platinum Grey with Claudia Rimini Leather

http://c6owners.org/index.php
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36990
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: X7 Electric handbrake

Post by GiveMeABreak »

Sometimes it's the little things.... :-D Well done Steve and thanks for the update.
