508 2012 driver side no hot air fault.

Post by jmptrsn »

Hello everyone, I need a little help if someone can give me some ideas, please.

this is my first post here and I've looked around the forums and read a lot of helpful information but nothing relating to my current issue. If there is a post there please link to me and ill remove this one.

Problem: dual climate air condition
No hot air coming from both driver side front vents. But blows cold AC fine.
Tested:
flashed heater core on the passenger side, with heater core out checked all flaps inside are intact and working. all cogs and motors on both left and right have been removed and checked okay.
exterior inspection of all parts moving when turning the heater on.
Current:
Full dashboard removed. ac/heater system exposed

passenger and driver side on hottest temp, turn down passenger to cold, and it blows lukewarm on the driver side for few seconds then goes back to cold( not sure if relevant )

please let me know if I've missed anything and happy to answer any questions(or post photos)
Hell Razor5543
Donor 2023
Posts: 13726
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: 508 2012 driver side no hot air fault.

Post by Hell Razor5543 »

Hi, and :welc: to the Forum. I am not going to be able to help you personally, but I feel certain somebody with experience of the 508 will be able to give you good advice.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
mickthemaverick
Donor 2024
Posts: 13520
Joined: 11 May 2019, 17:56
Location: Hertford
My Cars: 70+ former cars (list available) including 11 Citroens, 3 Renaults
Current cars: 2004 Subaru Legacy 2.5 SEn, 1994 Mazda MX3
x 6010

Re: 508 2012 driver side no hot air fault.

Post by mickthemaverick »

Hi, and :welc: to the Forum also. Similarly to James I have little to offer with your actual problem but the right chaps will be along soon. Meanwhile have a look round the forum from the Board Index above and join in wherever it takes your fancy. Good luck with the aircon. :-D
I used to be indecisive, now I'm not so sure!
I used to ride on two wheels, but now I need all four!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 508 2012 driver side no hot air fault.

Post by GiveMeABreak »

Post your VIN up so I can check out the system you have installed.

I suspect that it is the air mixing flaps on the driver side that have worn cogs. They may be operating motor wise but not turning as the plastic gears can wear.

But I’ll know better when I have your VIN
Please Don't PM Me For Technical Help

Marc
jmptrsn
Posts: 3
Joined: 26 Sep 2019, 21:54
Location: new zealand
My Cars: Citroen c4 Peugeot 508 and Renault megane gt

Re: 508 2012 driver side no hot air fault.

Post by jmptrsn »

Thank you for all your kind replies.

VIN : VF3**************[VIN obfuscated, can be read by forum staff]

are those cogs fully inside the unit and can't be seen without opening it up? (or cutting in)
I wouldn't mind trying to open it as I've already removed dashboard
User avatar
myglaren
Forum Admin Team
Posts: 25362
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: 508 2012 driver side no hot air fault.

Post by myglaren »

The flaps can distort and jam, causing the gears to strip. Check for stuck flaps.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 508 2012 driver side no hot air fault.

Post by GiveMeABreak »

Ok, so here are the sections of the heating gear. These are slightly different to some other models in that they have 'rods' .

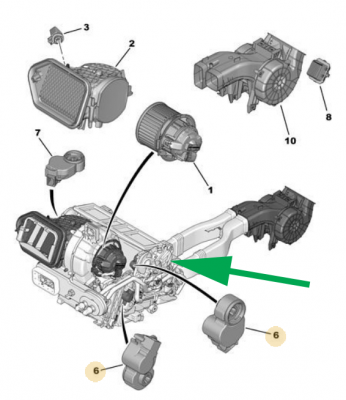

508 Rods B.PNG
508 Rods A.PNG

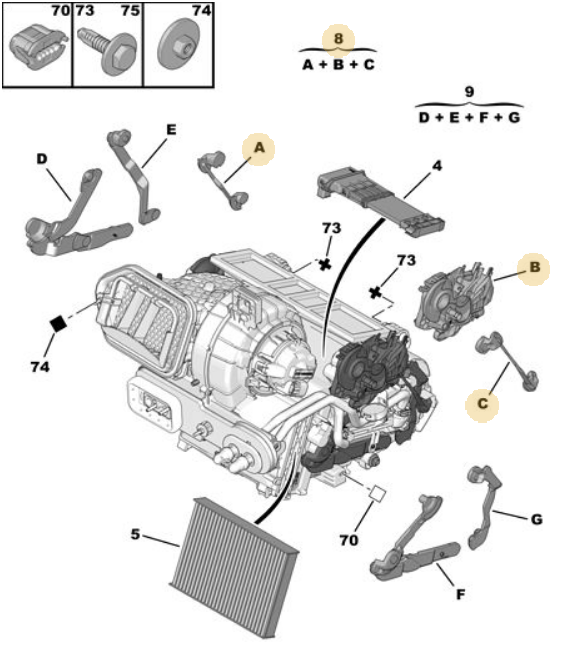

The reduction gear modules are at 6 & 78 & 9 are replacement kits


508 Reduction.PNG
Here's a close up of one of the internals and is the unit on the diagram that I have arrowed in green.
Please Don't PM Me For Technical Help

Marc
jmptrsn
Posts: 3
Joined: 26 Sep 2019, 21:54
Location: new zealand
My Cars: Citroen c4 Peugeot 508 and Renault megane gt

Re: 508 2012 driver side no hot air fault.

Post by jmptrsn »

would a very blocked cabbin filter cause no hot air to driver side?
Thanks
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: 508 2012 driver side no hot air fault.

Post by GiveMeABreak »

Item (5) Pollen filter?

Not really, that would affect all the air not just the hot air as it filters all the air before it enters the cabin.
