2.0 Synergie HDi oil leak.

[Gray]

So for the last 2 years the garage that does my servicing mentioned a slight oil leak from rear of engine, slight to me just meant a little weeping, the odd drip maybe, well it has been about two months since it's last service and the other day I noticed a large patch of oil one the ground where my wife had parked it, so I checked under the car and the first thing I found was no under tray, it was missing hence me being able to see the oil on the floor, I called the garage about the leak and the missing tray they denied all knowledge telling me that it must have broken off, like anybody would not notice an engine tray coming off? they since backed up there explanation by pointing out part of the tray at the front is still is still there, so that just means the mechanic undid all the side bolts before the front and then let it fall snapping it off and did not want to be held liable, anyway onto the leak. The garage again could not find where it was coming from after having for most of the day, they came back with oil pressure switch maybe, then gave me the details of another garage that might be able to help, now I have had a look, if you look up from the back of the engine, you have the turbo, to the right of the turbo and up a bit there is what looks like a big valve, the oil looks like it is coming from that as it is very oily, I have looked on line to find out what that part is but can not find anything helpful, so before I put it in the hands of another garage do any of you guys have any idea of what that might be? or anything up that high that could leak oil, oh and its not constant, sometimes there is only a small drip on the floor and on another time a larger patch, it's been doing it probably for around 2 years and the oil level always seems normal just I have never noticed and probably would be none the wiser had the engine tray still been in place.

[GiveMeABreak]

Gray, pop your VIN up and I'll put a diagram up so that maybe you can identify it from there - hard for us to see without pictures.

[Gray]

Thanks Mark it's VF7**************[VIN obfuscated, can be read by forum staff]

[GiveMeABreak]

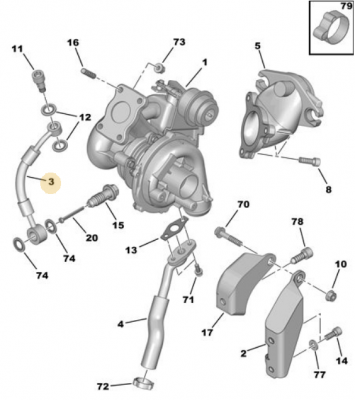

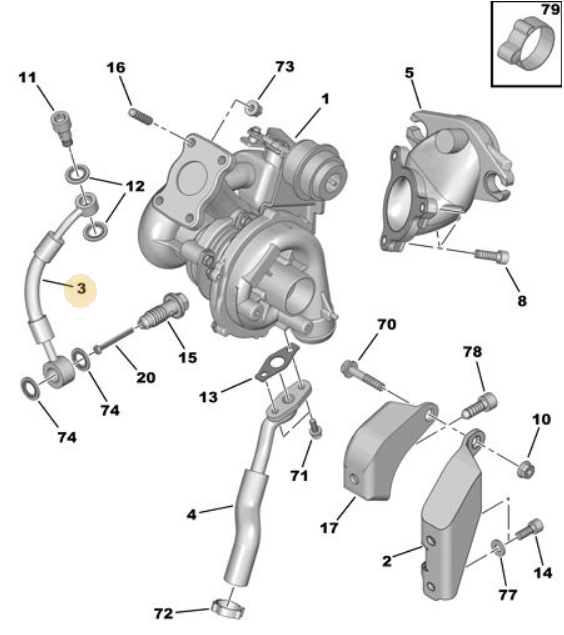

Unfortunately I don't have a lot for this vehicle, but here is the turbo:

3 is the turbo lubrication pipe and 4 is the oil return hose - so might be worth checking there. Post a few pictures up if you get the chcance and maybe someone here can give you some pointers. Take one zoomed out so we can get an idea of the surrounding area and then one or two a bit closer to the suspect area.

[Gray]

Thanks I will try and get underneath it over the weekend hopefully the rain will have stopped, but I can't say I can see the part I noticed in that diagram, there is what looks like a manifold the valve looking part protrudes from that and kind of points up wards.. I think a picture will be easier for you to id it which I will also take.
Thanks.

[Gibbo2286]

I think you need a photo of the inlet manifold, there's a part on there described as a diaphragm that may be the part you are seeing.

[Gray]

That sounds like the part, if it has oil going through it then I bet it will be the cause of the problem.

[Gray]

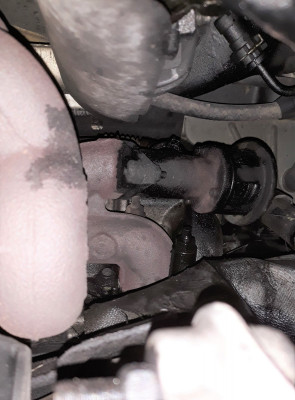

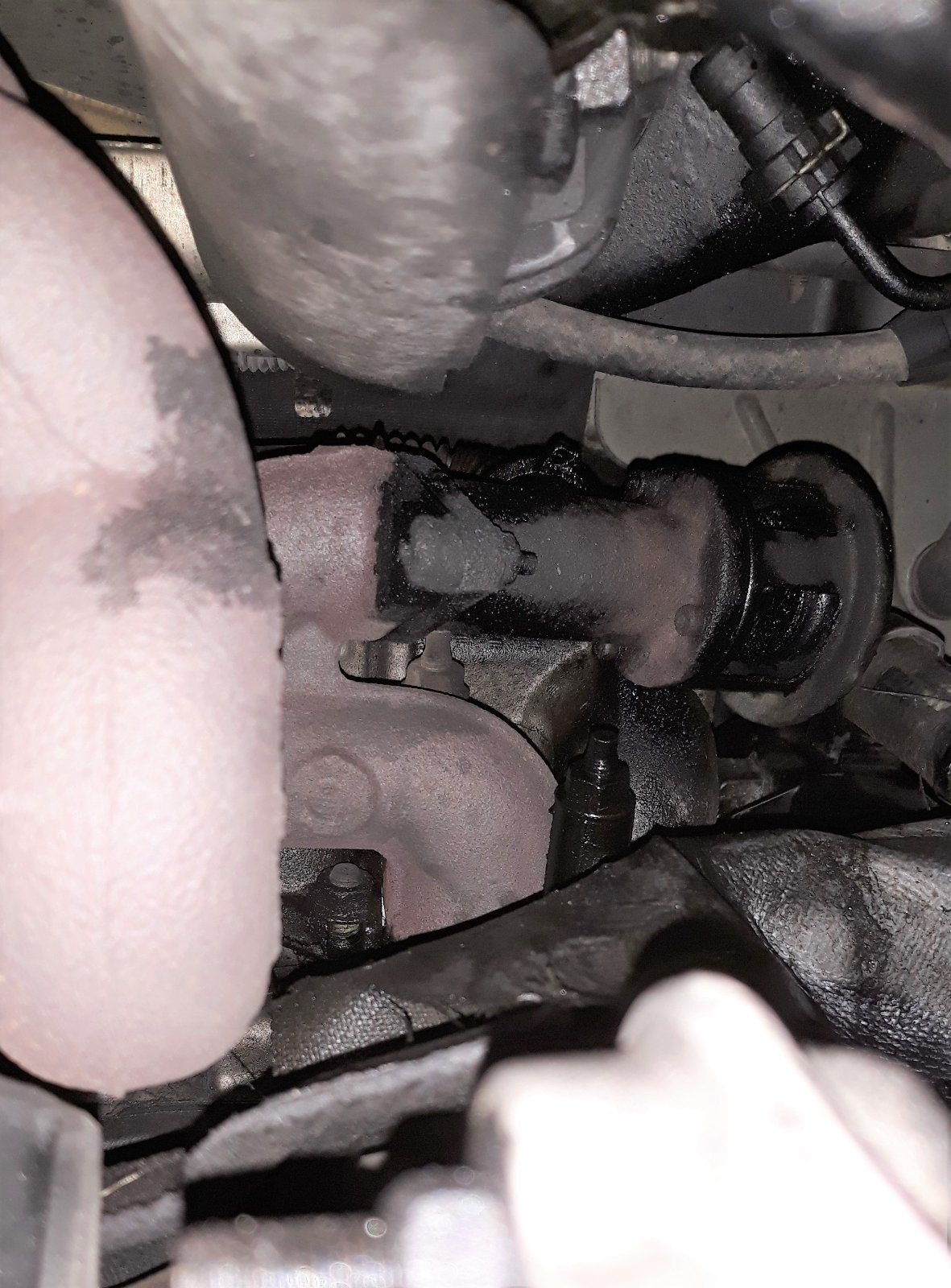

Ok hopefully this might help a little more, looking up turbo on the left, looks like oil is coming from that pipe just above that valve looking object but maybe you can shed some light as the techs at the garage had no idea.
Thanks
