Rear Parking sensors wiring

This is the Forum for all your DS Automobiles Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
Johnyboy64
Posts: 3
Joined: 13 Jul 2019, 16:47
Location: Redcar
My Cars: Citroen DS4 5 door

Rear Parking sensors wiring

Post by Johnyboy64 »

Hi to all.
I'm having problems finding which is the reverse live on my DS4 2013.
I've had the bumper repaired, and while it was off the guy drilled/sprayed/fitted my £8 Ebay reversing sensors.
I said I'd finish the wiring off.
Easy.
No it's not.
I've got the emanuals prog installed but it won't let me look at wiring diagrams without the RPO number.
I've spent hours Googling where to find it, which is how I ended up here.
I found a post from 2010 about this. I can't find anything on my car that resembles an RPO number.
I followed a link to a site that does tell you, if you register, but it only accepts trade.
To get at the wiring block to try to identify which colour could be the one looks like major surgery.
Can anyone shed some light on this for me please?
I've attached some photos in hope.
Thank you.
John.

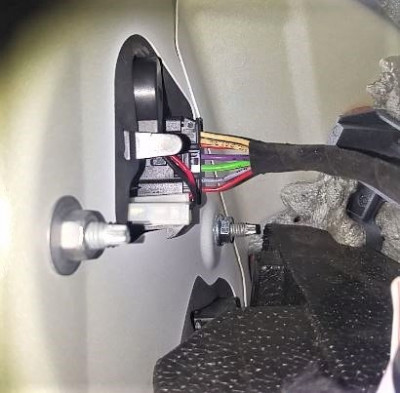

The colours are, from the top -

2 x mustard?
1 x red
1 x purple
1 x green/yellow
1 x grey
1 x brown
The labels are all I can find anywhere on the car.
Last edited by GiveMeABreak on 13 Jul 2019, 18:21, edited 2 times in total.
Reason: VIN pic removed for Security
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Rear Parking sensors wiring

Post by xantia_v6 »

The rpo is usually on the tyre pressure sticker
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Rear Parking sensors wiring

Post by GiveMeABreak »

Your RPO is 13365

For the rear LH lamps on the BODY, yellow and green is the common earth for all the lamps on that cluster.
on the left hand side, Pin 2 is the reverse feed, with the earth in pin 3
on the Right Hand rear Body unit, the reverse is Pin 5 with the earth in Pin 4
Please Don't PM Me For Technical Help

Marc
Johnyboy64
Posts: 3
Joined: 13 Jul 2019, 16:47
Location: Redcar
My Cars: Citroen DS4 5 door

Re: Rear Parking sensors wiring

Post by Johnyboy64 »

Thank you so much for the replies.
Xantia - I've looked everywhere for stickers. There's the VIN on the door pillar and one on each headlight, Nothing anywhere that I can see. And believe me I looked yesterday in sheer desperation.

Givemeabreak - That's exactly what I needed! Thanks.
Didn't know about the VIN number. I'd seen it posted on the one I mentioned from 2010.
With that RPO number you supplied I've now been able to get into my emanual.
Thanks again.
But, now, I'm sure I'm sure, but not altogether sure which colour is the feed.... :roll:
I've attached the drawing from the emanual.
I'm assuming you are counting brown, on my photo, as pin 1, grey as pin 2 and g/y as pin 3.

I'm using the left cluster so I'm hoping grey is my reverse feed.

The drawing just confuses matters. In my world at least.
Am I correct or just completely wrong?
Thank you.
John
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Rear Parking sensors wiring

Post by xantia_v6 »

Pin 2 is the feed, as Marc said above and the number 2205 should be printed along the wire for identification.
Johnyboy64
Posts: 3
Joined: 13 Jul 2019, 16:47
Location: Redcar
My Cars: Citroen DS4 5 door

Re: Rear Parking sensors wiring

Post by Johnyboy64 »

Thanks for the reply.
I understood it was pin 2, but the drawing is configured 624513, not 123456 or 654321, which confused me.
Anyway, I had to strip the side trims etc out to get at the cables and unwrap them to find the 2205 number, which I'd have preferred not to do.
2205 is the grey wire, so it must be 123456 from the bottom up, brown being 1.
I only point this out in case anyone else gets easily confused like me.
But, I've just finished and it all works.
So my thanks again to both of you, without your help I'd still be Googling and head scratching.
Kind regards,
John
