Hi, my Xantia woes continue...
The car will not start. Turn the key and no dashboard lights but whirring/buzzing noise from a 'Bosch' box fixed to the inside of the body adjacent to the right of the battery behind the headlight unit.
Ignition lock/barrel problems?
When I turn the key to the first position (auxiliary?) the battery light illuminates.
I checked the battery and my 'intelligent' charger says the battery is fine...
I think this may have started a few weeks ago when, on a couple of occasions, whilst turning the key, the dash lights went out and nothing. Immediately turn the key again and it started each time - brief enough problem for me to think I maybe didn't turn the key properly...
Xantia,
vin: VF7**************[VIN obfuscated, can be read by forum staff]
engine code: DHX (XUD9TF/BTF) / D ः (XUD9SE / O),
ORGA/RP Number: 0 6972 CJ = 11 December 1985 was date of assembly in Factory
Homologation
Version 18A, BE: 93/A095, ES: B-2076
Model type: x18a, TDX
In anticipation, many thanks,
Santa won't start, whirring noise near battery... Help!
Moderator: RichardW
- xantia_v6
- Forum Admin Team
- Posts: 9091
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 835
Re: Santa won't start, whirring noise near battery... Help!
It is probably necessary to measure some voltages to narrow down the problem.
As a first guess, based on history, I would say that the problem is likely to be corrosion inside one of the crimped battery terminal connectors.
Do the dashboard warning lights go dim when you turn the key to the start position?
As a first guess, based on history, I would say that the problem is likely to be corrosion inside one of the crimped battery terminal connectors.
Do the dashboard warning lights go dim when you turn the key to the start position?
-
- Posts: 39
- Joined: 19 Apr 2018, 18:14
- Location: Perpignan, France
- My Cars: Ancient Xantia 1.9td 1996
- x 2
Re: Santa won't start, whirring noise near battery... Help!
Hi, thank you for responding!
The lights went out when going to the run position though it is very sunny here at the moment so maybe they were dim. Ancillary equipment seemed to work though, for example, the wipers ran very slowly. So that might indicate a poor connection somewhere.
Also when turning the key to the off position, the central locking system started rapid clicking almost as if the locks were trying to close but couldn't though I was able to lock all the doors from the drivers door key when leaving the car (in frustration!).
Thinking back to yesterday when the problem manifested itself, I realise that because the dash lights went out, I didn't actually turn the key to start position, just the preheat/run position, I shall try that this morning. It might be an issue with the ignition barrel as I had to bypass it with a relay for the cabin heater blower as that had stopped working after a period of the ignition barrel getting hot. Perhaps the internal switch contacts gone?
I suppose the best way forward is to test for voltage and earth continuity at the ignition barrel connectors as well as for continuity through the ignition switch itself...
The lights went out when going to the run position though it is very sunny here at the moment so maybe they were dim. Ancillary equipment seemed to work though, for example, the wipers ran very slowly. So that might indicate a poor connection somewhere.
Also when turning the key to the off position, the central locking system started rapid clicking almost as if the locks were trying to close but couldn't though I was able to lock all the doors from the drivers door key when leaving the car (in frustration!).
Thinking back to yesterday when the problem manifested itself, I realise that because the dash lights went out, I didn't actually turn the key to start position, just the preheat/run position, I shall try that this morning. It might be an issue with the ignition barrel as I had to bypass it with a relay for the cabin heater blower as that had stopped working after a period of the ignition barrel getting hot. Perhaps the internal switch contacts gone?
I suppose the best way forward is to test for voltage and earth continuity at the ignition barrel connectors as well as for continuity through the ignition switch itself...
-
- Donor 2023
- Posts: 13745
- Joined: 01 Apr 2012, 09:47
- Location: Reading
- My Cars: C5 Mk2 VTX+ estate.
- x 3008
Re: Santa won't start, whirring noise near battery... Help!
I would try to start the car, and then (if it doesn't start after a couple of attempts) feel the main battery leads. If either (or both) feel that they are getting hot it would show that they are failing. There is a known issue in that, over a long period of time, the battery leads break down internally and need to be replaced.
viewtopic.php?f=3&t=38273
viewtopic.php?f=3&t=38273
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR
C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
-
- Posts: 39
- Joined: 19 Apr 2018, 18:14
- Location: Perpignan, France
- My Cars: Ancient Xantia 1.9td 1996
- x 2
Re: Santa won't start, whirring noise near battery... Help!
Thank you - I'm about to go out and mess with the car. Hot here so not looking forwards to it.
I'll post on my findings...
I'll post on my findings...
-
- Posts: 39
- Joined: 19 Apr 2018, 18:14
- Location: Perpignan, France
- My Cars: Ancient Xantia 1.9td 1996
- x 2
Re: Santa won't start, whirring noise near battery... Help!
Hi,
I have been out in the heat messing with the car.
Checked for continuity with the earth from chassis to battery cable - all good.
Reconnected the battery and measured the voltage under load (cranking the engine) and there was a big drop in volts, so the battery was unable to delivery despite the 'intelligent' charger reading good.
I am relieved that it was not some hidden wiring problem and have learned a lesson in the veracity of conditioning chargers...
So, new battery and all good so far...
Thank you for your help and interest all!
I have been out in the heat messing with the car.
Checked for continuity with the earth from chassis to battery cable - all good.
Reconnected the battery and measured the voltage under load (cranking the engine) and there was a big drop in volts, so the battery was unable to delivery despite the 'intelligent' charger reading good.
I am relieved that it was not some hidden wiring problem and have learned a lesson in the veracity of conditioning chargers...
So, new battery and all good so far...
Thank you for your help and interest all!
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Santa won't start, whirring noise near battery... Help!
Seems it is the season for dodgy battery chargers - this must be the third issue in a few weeks about them, including my own.
Please Don't PM Me For Technical Help
Marc
Marc
- white exec
- Moderating Team
- Posts: 7445
- Joined: 21 Dec 2015, 12:46
- Location: Sayalonga, Malaga, Spain
- My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S - x 1752
Re: Santa won't start, whirring noise near battery... Help!
It's probably a good idea to replace ANY of the original lead (Pb) lump battery connectors on our cars from 10 or more years ago.
As the earlier thread viewtopic.php?f=3&t=38273#p317742 details, the crimped-on connectors lose their grip over time, and also allow corrosion/oxidation of the multi-strand copper batter cables.
The poor connection that results
- prevents proper pre-heating (glowplugs) and cranking
- can prevent proper functioning of battery chargers, if clipped on to the lead connectors
- causes voltage drops to the car's systems, particularly on starting/pre-heating
- can cause the alternator to mis-read the battery's voltage, and prevent good charging from the alternator.
Resistance at the connectors may well allow small currents to be drawn (eg Batt/IGN light etc, on first click of the key), but will not allow higher current items (pre-heaters, windows, door locks, main lights) to operate properly.
These old connectors are best replaced with new brass ones, and cables cut back slightly (if length allows) and the strands cleaned up back to bright copper. (See web tips for cleaning up oxidised cable strands.)
As the earlier thread viewtopic.php?f=3&t=38273#p317742 details, the crimped-on connectors lose their grip over time, and also allow corrosion/oxidation of the multi-strand copper batter cables.
The poor connection that results
- prevents proper pre-heating (glowplugs) and cranking
- can prevent proper functioning of battery chargers, if clipped on to the lead connectors
- causes voltage drops to the car's systems, particularly on starting/pre-heating
- can cause the alternator to mis-read the battery's voltage, and prevent good charging from the alternator.
Resistance at the connectors may well allow small currents to be drawn (eg Batt/IGN light etc, on first click of the key), but will not allow higher current items (pre-heaters, windows, door locks, main lights) to operate properly.
These old connectors are best replaced with new brass ones, and cables cut back slightly (if length allows) and the strands cleaned up back to bright copper. (See web tips for cleaning up oxidised cable strands.)
Chris
-
- Posts: 260
- Joined: 18 Mar 2013, 16:07
- Location: Cambridgeshire
- My Cars: 2004 c5 2.0 hdi 138. *gone*
1988 pontiac firebird.
1996 1.8 8v xantia auto. soon to go .......
1999 2.0hdi xantia estate - x 16
Re: Santa won't start, whirring noise near battery... Help!

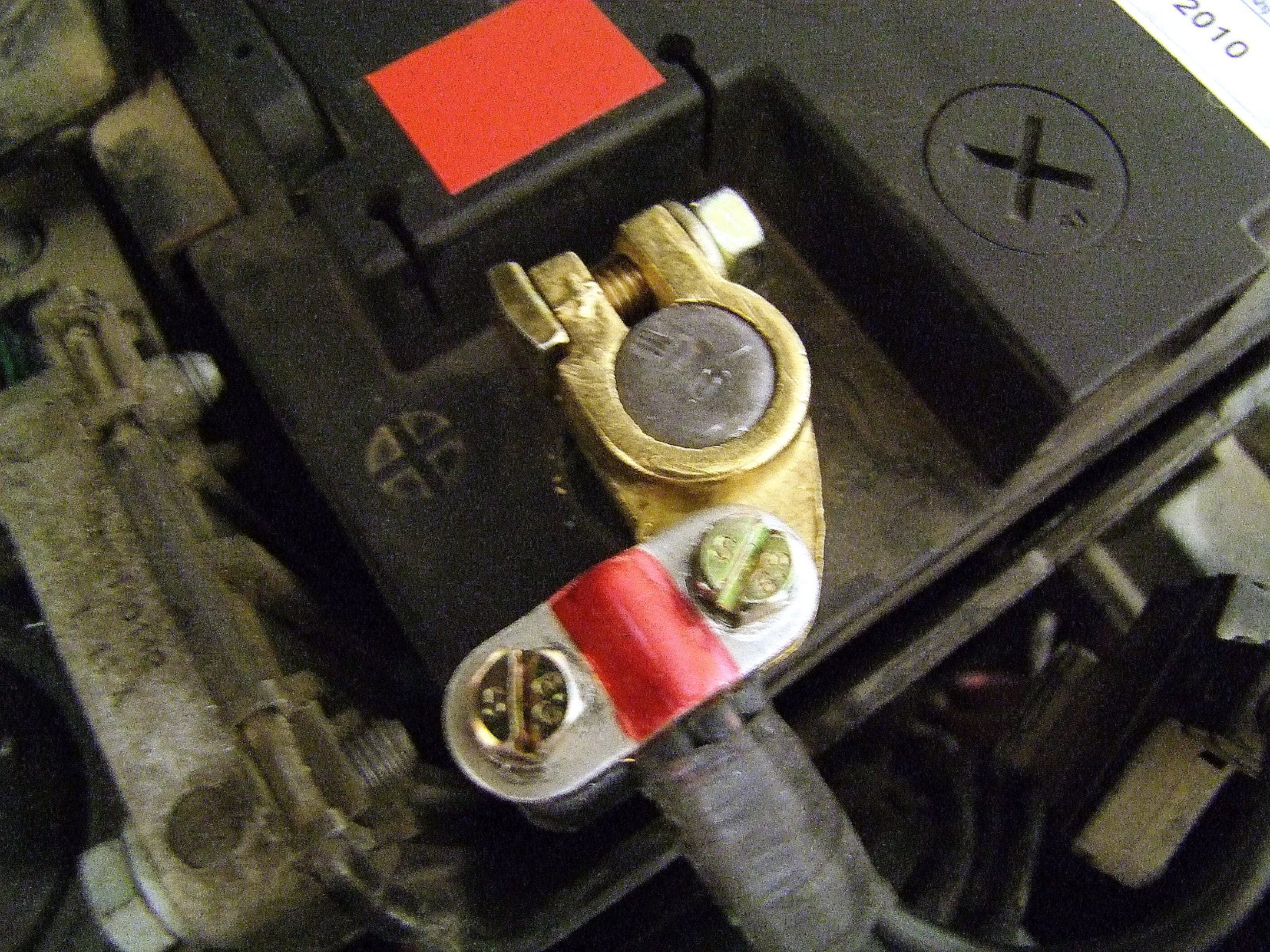

I just did this job , massive improvement in starter speed !
