Front suspension , Drive shaft rebuild, Help
I'm needing as much help,advice regarding my old zx estate .
Its 1.9D no turbo no power steering soon to be 25 yr old.
It recently passed its MOT. With advisory to keep eye on pinch bolt ,lower ball joint off side front.
I was checking everyday before use and it had no movement and the bolt was as it should be.
Thursday evening a loud bang , I managed to get the car grounded on a grass verge and part in a hedge, recovery that's another story for another day.
Went back to the mot place he's going to make sure car is all square after a new driveshaft and lower balljoint is fitted and he's going to give me the heads up on what's what.
My plan of action.
New driveshaft on its way
New lower balljoint on its way
Also considering.
New front legs
I need to know what's needed for the front legs the fitting is easy enough just need to know stuff like bolts type size and so on.
The incident happen as finding out the lower wishbone purchased off a site wasn't the correct fitment, I trusted this seller as they claimed to have an excellent track record and many years of experience.
When I found out what the part looks like I went mad, I've had a massive row with the seller and they say sorry warranty is out as its been over 2 years on the car.. Its only covered 800 miles as I rebuilt all the suspension and steering two year just over had major health issues and took the car off the road while I recovered, I'm in remission now and live this old car to bits and thought I was going to get out from the crash and see it all smashed up ..... It wasn't !! Just my side the wheel was facing east to west !! The drop links ain't even bent , thankfully I was doing about 28mph to 32mph and held the wheel straight and planted it where I was looking to stop.
Me and the wife got out and where shaken but fine.
If the two young people , couple that helped us ever get to read this I cannot thank you enough and will be forever great full.
So
Any help ?
Its 1.9D no turbo no power steering soon to be 25 yr old.
It recently passed its MOT. With advisory to keep eye on pinch bolt ,lower ball joint off side front.
I was checking everyday before use and it had no movement and the bolt was as it should be.
Thursday evening a loud bang , I managed to get the car grounded on a grass verge and part in a hedge, recovery that's another story for another day.
Went back to the mot place he's going to make sure car is all square after a new driveshaft and lower balljoint is fitted and he's going to give me the heads up on what's what.
My plan of action.
New driveshaft on its way
New lower balljoint on its way
Also considering.
New front legs
I need to know what's needed for the front legs the fitting is easy enough just need to know stuff like bolts type size and so on.
The incident happen as finding out the lower wishbone purchased off a site wasn't the correct fitment, I trusted this seller as they claimed to have an excellent track record and many years of experience.
When I found out what the part looks like I went mad, I've had a massive row with the seller and they say sorry warranty is out as its been over 2 years on the car.. Its only covered 800 miles as I rebuilt all the suspension and steering two year just over had major health issues and took the car off the road while I recovered, I'm in remission now and live this old car to bits and thought I was going to get out from the crash and see it all smashed up ..... It wasn't !! Just my side the wheel was facing east to west !! The drop links ain't even bent , thankfully I was doing about 28mph to 32mph and held the wheel straight and planted it where I was looking to stop.
Me and the wife got out and where shaken but fine.
If the two young people , couple that helped us ever get to read this I cannot thank you enough and will be forever great full.
So
Any help ?
Husky.
- Huskyxantia
- Donor 2023
- Posts: 2040
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Front suspension , Drive shaft rebuild, Help
Needing to know front wheel bearing part numbers for zx diesel estate 1.9d
Husky.
Re: Front suspension , Drive shaft rebuild, Help
I would pop the reg into Mr Auto site and buy a quality bearing from them. I have had the non turbo non power steering ZX. Keep fit steering but great feel on the road. I think the engine would go forever if looked after.
Citroen C5 1.6 HDI 110bhp Estate 06 plate
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
- Huskyxantia
- Donor 2023
- Posts: 2040
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Front suspension , Drive shaft rebuild, Help
OE part cat would be helpful , where or how to get one ??
Any help .........
Any help .........
Husky.
- Huskyxantia
- Donor 2023
- Posts: 2040
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Front suspension , Drive shaft rebuild, Help
EBay seems to not no what's the bearing for this the book says double roller type ... I need numbers OE part numbers.
I've emailed the main dealer .... Yuk...
to see if they have any OE parts books with the correct part numbers ....
This is like hanging off a cliff with one arm and an itchy ..... Need I say more lol
I've emailed the main dealer .... Yuk...
to see if they have any OE parts books with the correct part numbers ....
This is like hanging off a cliff with one arm and an itchy ..... Need I say more lol
Husky.
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Front suspension , Drive shaft rebuild, Help
If you want OEM parts info, you need to supply your VIN and be specific on the actual part, then I can help.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Forum Treasurer
- Posts: 10871
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 996
Re: Front suspension , Drive shaft rebuild, Help
There's only 1 part number for XU engined ZXs - 335016. Surprisingly only £37.04 at the dealer - however, it's a widely used bearing, so I would expect it to be easily available aftermarket from SKF (I would only fit an SKF or SNR bearing - unless you want to do it again in a few months!). e.g https://www.mister-auto.co.uk/wheel-bea ... /vkba-915/ if you search on VKBA-915 you will no doubt find plenty of others.
That bearing looks like it might put up a bit of a fight before it is released from the hub carrier!!
That bearing looks like it might put up a bit of a fight before it is released from the hub carrier!!
Richard W
- Huskyxantia
- Donor 2023
- Posts: 2040
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
- Huskyxantia
- Donor 2023
- Posts: 2040
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Front suspension , Drive shaft rebuild, Help
RichardW wrote: ↑08 Jul 2019, 12:23 There's only 1 part number for XU engined ZXs - 335016. Surprisingly only £37.04 at the dealer - however, it's a widely used bearing, so I would expect it to be easily available aftermarket from SKF (I would only fit an SKF or SNR bearing - unless you want to do it again in a few months!). e.g https://www.mister-auto.co.uk/wheel-bea ... /vkba-915/ if you search on VKBA-915 you will no doubt find plenty of others.
That bearing looks like it might put up a bit of a fight before it is released from the hub carrier!!

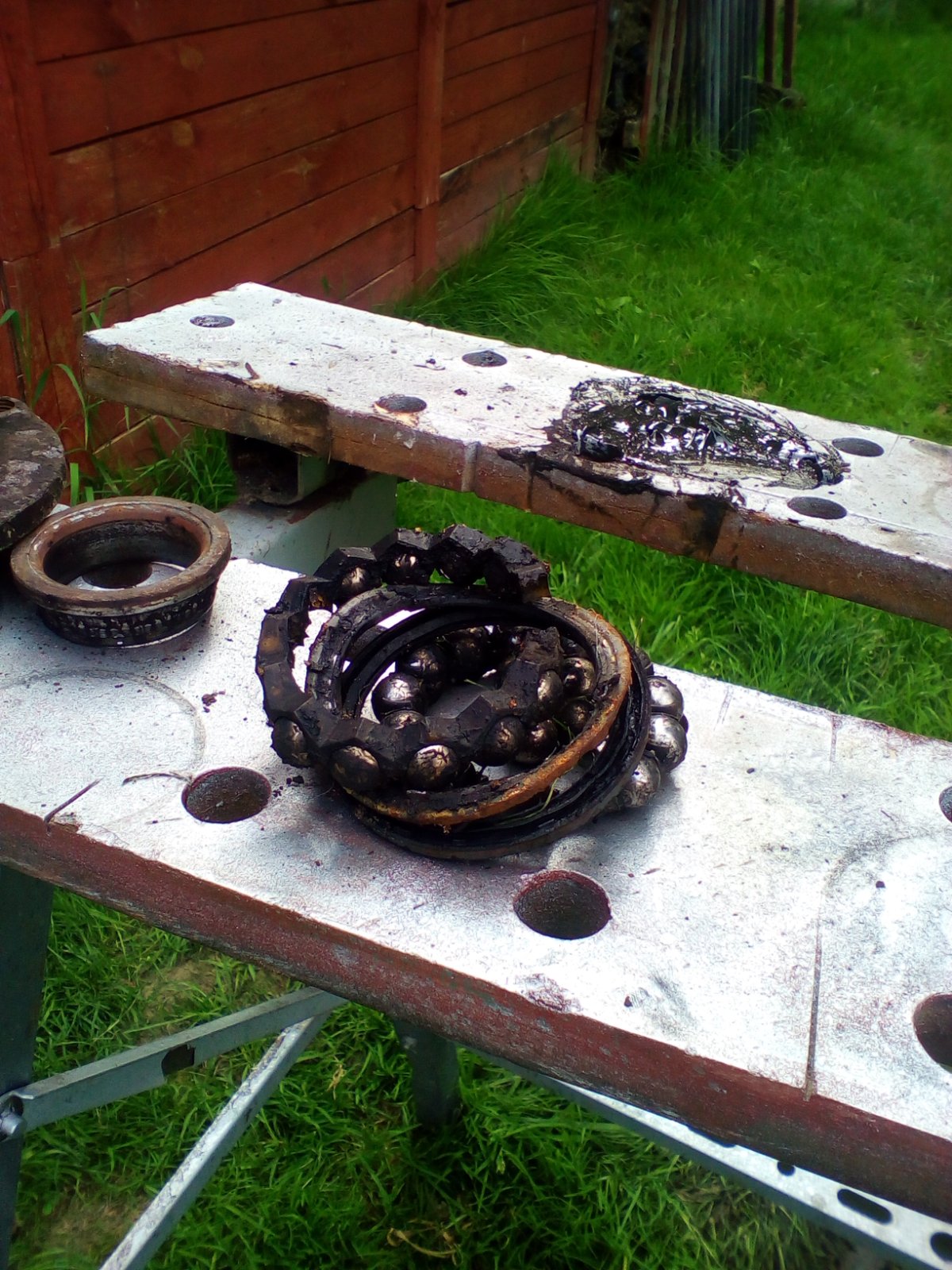

Mine are double roller type I'll try post a picture
Husky.
-
- Forum Treasurer
- Posts: 10871
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 996
Re: Front suspension , Drive shaft rebuild, Help
That's right - the outer race of your bearing is still in the hub carrier and needs to be pressed out - after you remove the circlip that's presumably hiding in there somewhere disguised as rusty crud...!
Richard W
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Front suspension , Drive shaft rebuild, Help
Item 6, part number 335016 £37.04 for an original part, Or there is a cheaper one supplied by Citroen, part number: 1623948380, priced £27.12, all inc. VAT.
Please Don't PM Me For Technical Help
Marc
Marc
- Huskyxantia
- Donor 2023
- Posts: 2040
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
- Huskyxantia
- Donor 2023
- Posts: 2040
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Front suspension , Drive shaft rebuild, Help
Thank you so muchGiveMeABreak wrote: ↑08 Jul 2019, 22:24 CD2E7010-8062-40C8-89DD-AE1CCA4991B8.jpeg
Item 6, part number 335016 £37.04 for an original part, Or there is a cheaper one supplied by Citroen, part number: 1623948380, priced £27.12, all inc. VAT.
Husky.
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Front suspension , Drive shaft rebuild, Help
If you identify any other part numbers you need, just tell me the item numbers in the diagram. I wasn’t sure if you needed the self locking nut (16), but ask if you do.
Please Don't PM Me For Technical Help
Marc
Marc
- Huskyxantia
- Donor 2023
- Posts: 2040
- Joined: 30 Jul 2018, 22:11
- Location: Surrey Kent sussex border
- My Cars: Past cars
Xsara Picasso 2019 to 2022 r.i.p
Xantia mk1&2 1.9D & 2.0Hdi
Peugeot 206 sw 1.4hdi
Other models
Skoda fabia,escort van,ford ka,Vauxhall astra g car & estate, Vauxhall corsa b, Suzuki swift
Escorts mk 1,2,3,4,5 fiestas mk 1,2, Sierra diesel mk1 Mondeo mk1 diesel .
Peugeot 207 , 307sw
Now cars
Picasso 2.0Hdi now gone to scrappie
Citroen zx estate 1.9D the cherished one
Peugeot 206cc raised from the dead & saved from the crusher traded up to a 308cc
307sw traded for the 207 .
Wish list.
Peugeot 405 diesel
106 or 206
Mondeo Mk1 diesel once owned 1.8tdi was real nice. - x 423
Re: Front suspension , Drive shaft rebuild, Help
GiveMeABreak wrote: ↑08 Jul 2019, 22:33 If you identify any other part numbers you need, just tell me the item numbers in the diagram. I wasn’t sure if you needed the self locking nut (16), but ask if you do.
Thank you,
As many numbers as possible.
I'm rebuilding the complete side so all and any parts numbers would be great.
What threw me was the wheel bearing I thought it had all come out , till someone confirmed on here the rest was still in the hub, I've got a pressing kit so that a be fun , said no one ever..
Thank you again
Husky.
