Re: Air con again!!
I’m on my second one. Had it done under warranty a few years ago. But given the prices of originals I wouldn’t be surprised it has been replaced by an aftermarket one.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Air con again!!
Yes, I wouldn’t be surprised!
Marc, would you have the part number for “O” ring number 8 in Table A that you posted on page 1 of this thread.
Thank you.
Marc, would you have the part number for “O” ring number 8 in Table A that you posted on page 1 of this thread.
Thank you.
- GiveMeABreak
- Forum Admin Team
- Posts: 37403
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Air con again!!
Part number: 6460T9 (7.65 interior diameter)
Please Don't PM Me For Technical Help
Marc
Marc
Re: Air con again!!
Update.

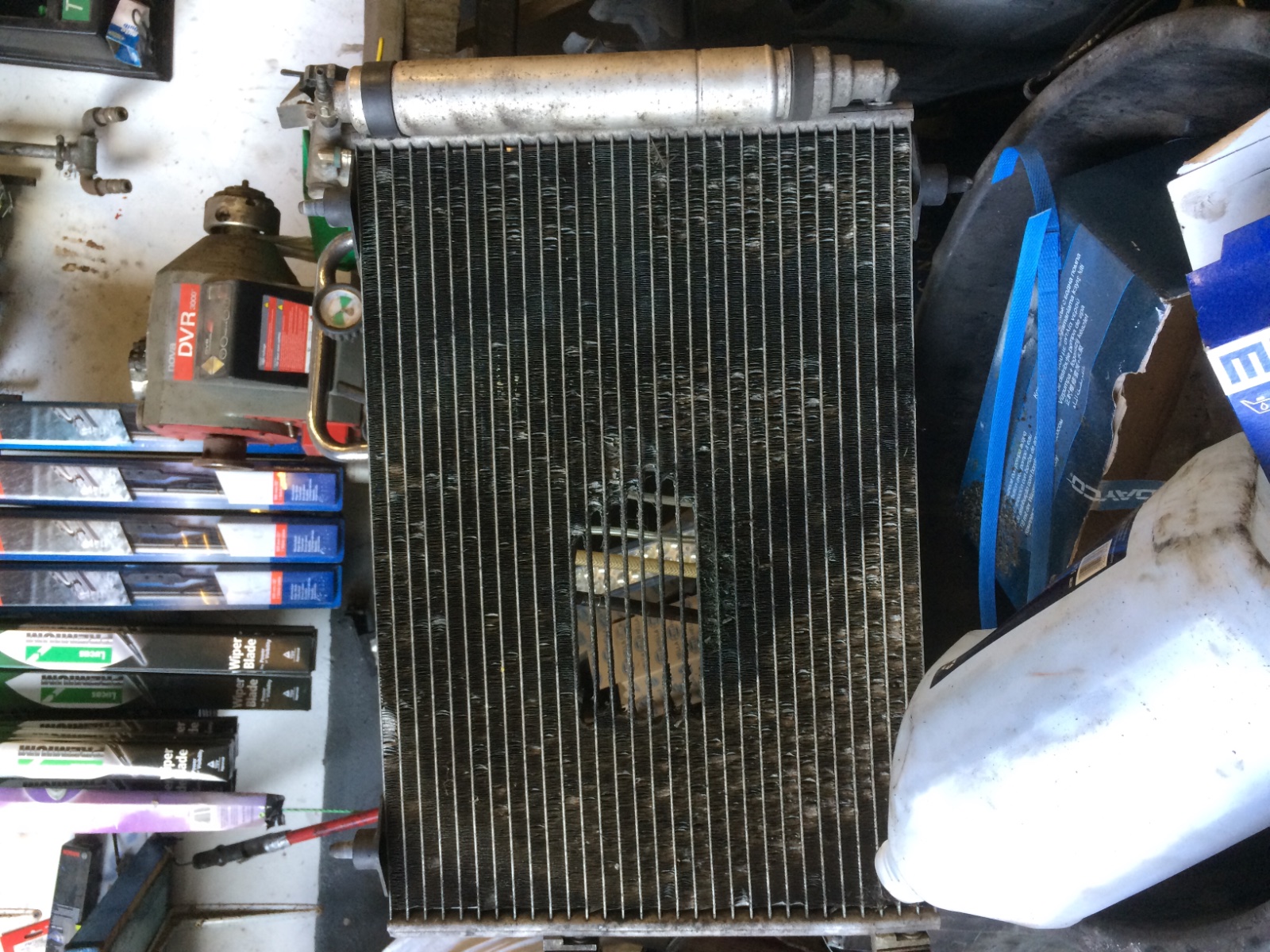

Condenser turned up from the factors and after comparing with the one removed (Valeo) it seemed a perfect fit in both form and function with no fettling required for fitting. Fitted new O rings to bottom pipe (Thanks Marc) and transferred over the pressure sensor as Citroën wanted £132 for a new one .
We then vacuumed the system and the vacuum held perfectly for an hour. We then charged the system with 530 grams of R134a and fired it up. Within a minute icy cold air flowed which continued during an extended test drive.
Now the burning question:- Why does my particular engine type only require 530 grams but the other 2 Ltr Hdi engines require 630 grams? Can anybody shed any light on this puzzle?
Thank you.
Condenser turned up from the factors and after comparing with the one removed (Valeo) it seemed a perfect fit in both form and function with no fettling required for fitting. Fitted new O rings to bottom pipe (Thanks Marc) and transferred over the pressure sensor as Citroën wanted £132 for a new one .
We then vacuumed the system and the vacuum held perfectly for an hour. We then charged the system with 530 grams of R134a and fired it up. Within a minute icy cold air flowed which continued during an extended test drive.
Now the burning question:- Why does my particular engine type only require 530 grams but the other 2 Ltr Hdi engines require 630 grams? Can anybody shed any light on this puzzle?
Thank you.
- GiveMeABreak
- Forum Admin Team
- Posts: 37403
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Air con again!!
So you filled up with 5 more Grams than recommended! Maybe she'll let you off on that one...
Regarding capacities - it's not about engine size. The DS5 is 450 regardless of engine, the X7 Euro 4 engines except the DW10BTED4 are 625, including the 2.7 and 3.0 engines, but the C4 Picasso is 450 for manual A/C on all models and 675 for those with additional A/C (for rear passengers like the Grande Picasso for example.
So it's down to the Euro standards and specific models I think.
Regarding capacities - it's not about engine size. The DS5 is 450 regardless of engine, the X7 Euro 4 engines except the DW10BTED4 are 625, including the 2.7 and 3.0 engines, but the C4 Picasso is 450 for manual A/C on all models and 675 for those with additional A/C (for rear passengers like the Grande Picasso for example.
So it's down to the Euro standards and specific models I think.
Please Don't PM Me For Technical Help
Marc
Marc
Re: Air con again!!
. I own up!
Re: Air con again!!
That’s interesting. Does the Grand Picasso have two evaporators?
Re: Air con again!!
Hmmmm. It doesn’t seem as cold on 530 grams, but looking at the pictures below......
29°C outside and 7.5°C coming from the vents, a loss of 21.5°C across the evaporated. Not too shabby!
29°C outside and 7.5°C coming from the vents, a loss of 21.5°C across the evaporated. Not too shabby!
- GiveMeABreak
- Forum Admin Team
- Posts: 37403
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: Air con again!!
No, but they can be different thicknesses and sizes.
