Bulb Type

Post by Subsonicnat »

The Bulb on the Passenger side electric window has blown presumably.
Thing is what are they called,?.
Was told they were Main dealer only,Phoned them and they do not have a clue..
I think they have wires rather than connections ...
anyone know where I can obtain one or at least what type they are,wondered if I could use Electronic Type bulbs,,, ,but may need a resistor to change the voltage..
But room is very limited where it fits.
Any idea`s.?.
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Bulb Type

Post by RichardW »

Not shown separately on parts database - new switch only, at £25. You'd have to see if you could dismantle and work out what is fitted, but it may not be possible to replace. I'd see if I could get one from a breakers.
Richard W
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Bulb Type

Post by white exec »

It'll either be an LED, or small (maybe wire-ended) filament lamp.
Open up the switch carefully, and have a look.
Chris
Subsonicnat
Posts: 123
Joined: 17 Nov 2018, 12:08
Location: Norfolk uk
My Cars: Xsara picasso exclusive 2.0 hdi MPV 2004
x 11

Re: Bulb Type

Post by Subsonicnat »

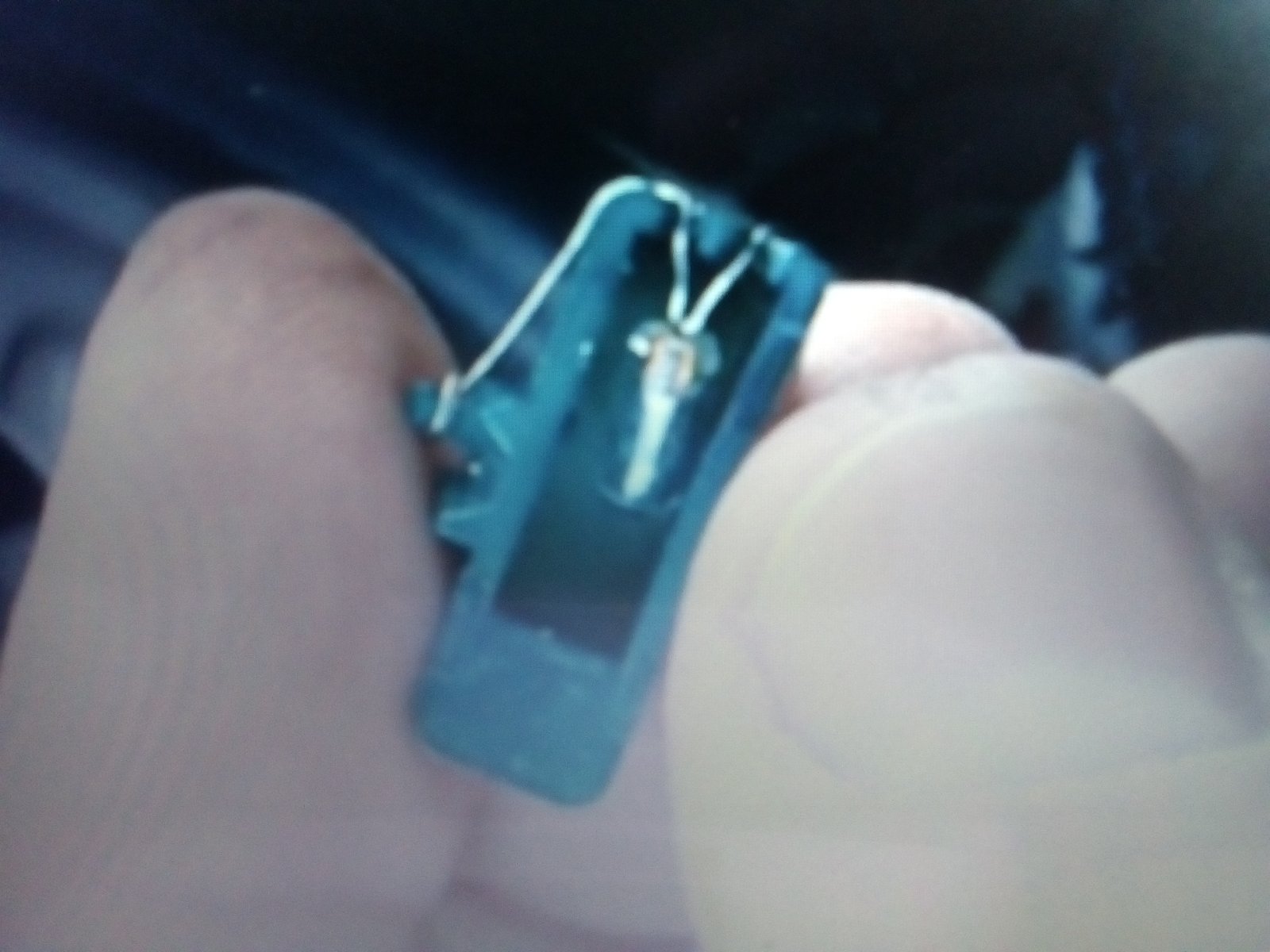

yes, Did open one I had bought online off ebay.
Trouble was this one was burnt out as well,it has 2 wires which wrap around inside the rocker switch..so looking to buy new,as buying second hand is just going to be hit and miss.Coudl go to my mates scrappy and check there I suppose.
finding a new one would be better.
Attachments
window switch bulb.jpg
window switch bulb 1.jpg
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Bulb Type

Post by white exec »

An electronics supplier should be able to supply those.
They are usually 12-14v, 1.2W.
Lamp type is "T1 (or T1.5) wire ended".
Chris
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Bulb Type

Post by xantia_v6 »

If you don't mind losing a bit of brightness, you can buy the bulbs in 14V rating, which last much longer.
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Bulb Type

Post by Paul-R »

14v bulbs will also be much less liable to melt the switch.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
Subsonicnat
Posts: 123
Joined: 17 Nov 2018, 12:08
Location: Norfolk uk
My Cars: Xsara picasso exclusive 2.0 hdi MPV 2004
x 11

Re: Bulb Type

Post by Subsonicnat »

Thanks for replys guys,
since the electronics shop Maplin closed wondered where the next port of call will be,any idea`s,??.
interesting they are called T1 bulbs,gives me something to go on. Thank You.
User avatar
myglaren
Forum Admin Team
Posts: 25365
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: Bulb Type

Post by myglaren »

User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Bulb Type

Post by xantia_v6 »

User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Bulb Type

Post by white exec »

40mA might be rather dim (= 0.56W).
Originals could be 1.2W, so you would need 14v 80mA (= 1.12W)
These tiny bulbs are often not marked with voltage/wattage, but check the wattage by measuring the current taken by a working bulb in another switch.

Some here:
https://www.ebay.co.uk/itm/Sub-Miniatur ... ctupt=true

or here*:
https://www.rapidonline.com/barthelme-0 ... 2w-57-6575
Item code: 57-6575 for the 1.2W bulb.
Other voltages/wattages available in the range too.

* Rapid Electronics (in Colchester) are a really useful company to order from.
Large range of product, far better than Maplin ever were, and ideal for small orders. Rapid dispatch. Straightforward to open an account. Full technical and dimension details for each product.
Part of even bigger outfit - Conrad Electronics - also good for on-line orders.
Chris
Subsonicnat
Posts: 123
Joined: 17 Nov 2018, 12:08
Location: Norfolk uk
My Cars: Xsara picasso exclusive 2.0 hdi MPV 2004
x 11

Re: Bulb Type

Post by Subsonicnat »

Thanks for that mate, The bulb type was with the Rapid Link,Spot On.
Sorted and ordered.
Thsnk You.
