Help! Permanent fault, Input Speed Coherence P1743

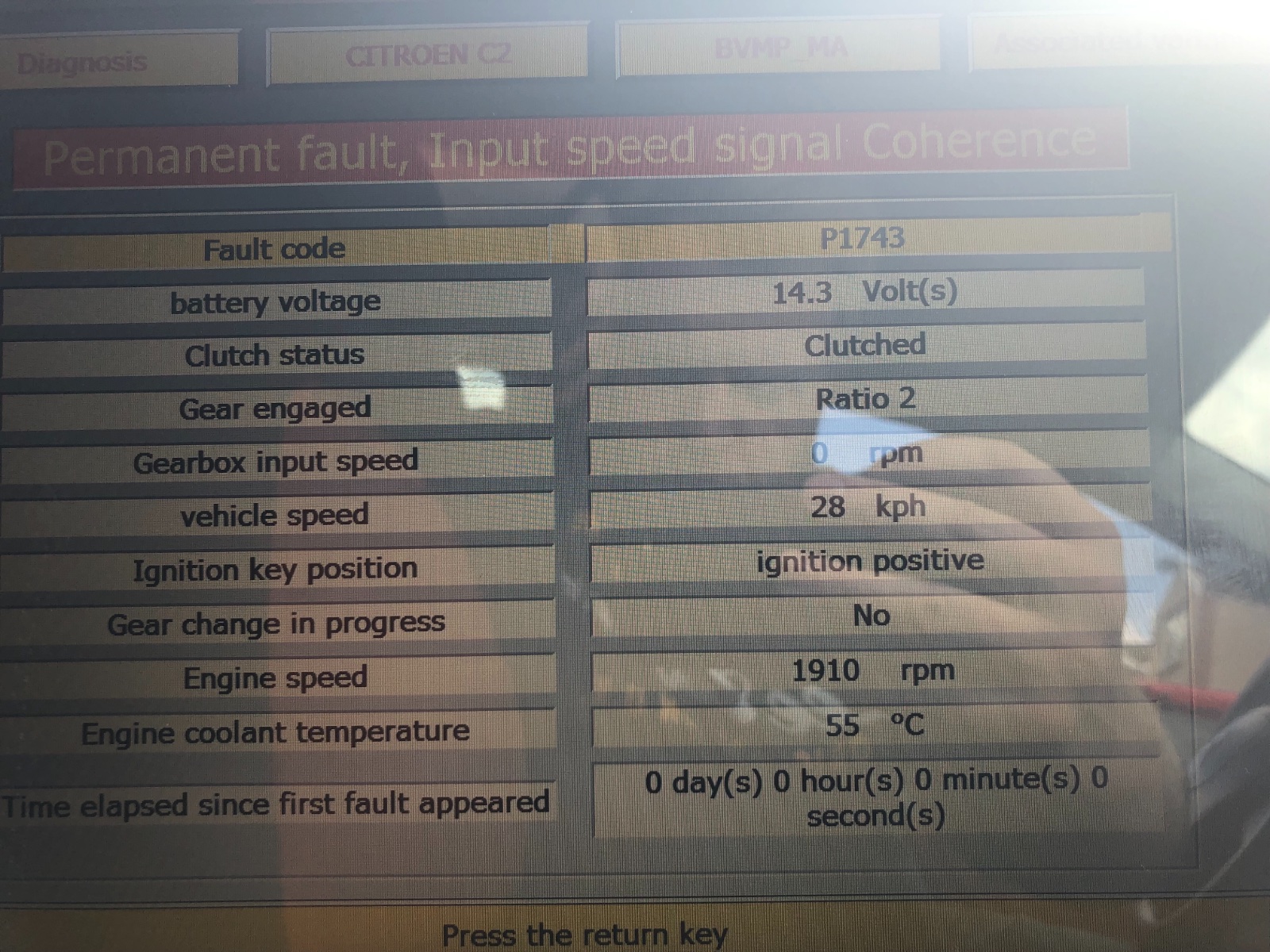

Google is sooo useless lately! I’ve got this new error now & I've no idea what it is! I’ve put an image up of the fault code in Lexia but I don’t really know where to go from here. If it helps I’m experiencing a similar issue to clutch slip but only when shifting gears. I’ll switch up a gear and the car will rev high but not bite immediately. It’s a 1.4 C2 Sensodrive
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Help! Permanent fault, Input Speed Coherence P1743
VIN please.... I need to confirm exact type - but I suspect it will be similar to the C3 system:
Fault code | P1743 |
After sales description of the fault code | Gearbox input speed signal fault: Coherence |
Description of the diagnostics | Speed outside range Acceleration of the speed outside range Impossible value when comparing the measured input shaft speed with the calculated vehicle speed with a gear engaged Time for appearance of the diagnosis: 5 seconds |
Context of appearance of the fault code | Vehicle in motion |
Technical precision on the context of appearance of the fault code | - |
Conditions of disappearance of the fault | - |
Down-grade modes if fault present | Driveability impaired Gear engagement time too long Reconstruction of the information from the engine speed sensor and vehicle speed Loss of the wheel slip detection function |
Switching on of the warning lamp and/or warning message | - |
Main customer complaints likely | - |
Suspect areas | Input shaft rotation sensor Electrical harness Controlled manual gearbox ECU |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 10
- Joined: 29 Apr 2019, 19:27
- Location: South Wales
- My Cars: Citroen C2 1.4 Furio Sensodrive
- x 4
Re: Help! Permanent fault, Input Speed Coherence P1743
Vin is VF7**************[VIN obfuscated, can be read by forum staff]
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Help! Permanent fault, Input Speed Coherence P1743
Ok, so yes, confirmed - same system and same fault code. So you have the suspects, if the Gearbox Input Speed Sensor is faulty it will affect the data sent to the ECU and therefore it can't adjust for clutch slipping. So may be worth investigating that first....
Gearbox input speed sensor connection (1662)
Role
The sensor supplies the gearbox ECU with the gearbox input speed.
This information allows the gearbox ECU:
The sensor consists of a magnetic core and a winding.
The information supplied to the gearbox ECU is an alternating voltage which varies according to the rotational speed of the gearbox input shaft.
Electrical special features
Allocation of channels of connector:
Location
The gearbox input speed sensor is located opposite the teeth of the second gear pinion of the primary shaft.

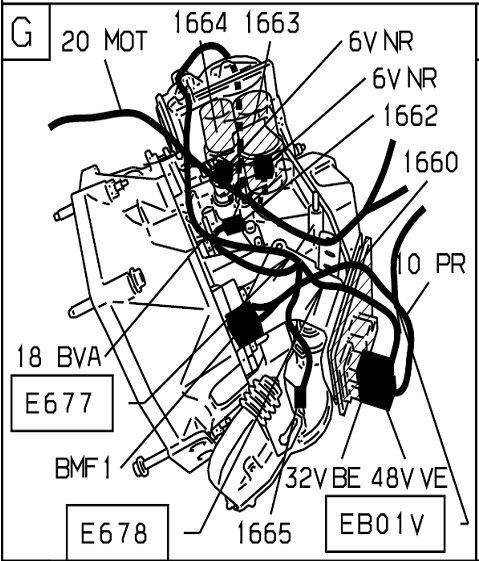

As for parts - I think it might be part 13 on the diagram below: On the electrical diagrams it is item 1662, which sort of resembles the location on this diagram:
It could of course be the ECU or any of the other issues - but if it is the Gearbox Input Speed Sensor, and it is the part 13 on the first diagram, then that is part number 2529F8:
Gearbox input speed sensor connection (1662)
Role
The sensor supplies the gearbox ECU with the gearbox input speed.
This information allows the gearbox ECU:
- To calculate the slipping of the clutch (difference between the engine speed and the input speed)
- To calculate the clutch’s load-bearing point
- To control the clutch actuator
- To check the completion of synchronisation of a gear
The sensor consists of a magnetic core and a winding.
The information supplied to the gearbox ECU is an alternating voltage which varies according to the rotational speed of the gearbox input shaft.
Electrical special features
Allocation of channels of connector:
- Terminal 1 : + signal
- Terminal 2 : - signal
- Resistance between channels 1 and 2 : 800 ohms (approx.).
- Features of the signals emitted: Variable frequency alternating voltage.
Location
The gearbox input speed sensor is located opposite the teeth of the second gear pinion of the primary shaft.
As for parts - I think it might be part 13 on the diagram below: On the electrical diagrams it is item 1662, which sort of resembles the location on this diagram:
It could of course be the ECU or any of the other issues - but if it is the Gearbox Input Speed Sensor, and it is the part 13 on the first diagram, then that is part number 2529F8:
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 10
- Joined: 29 Apr 2019, 19:27
- Location: South Wales
- My Cars: Citroen C2 1.4 Furio Sensodrive
- x 4
Re: Help! Permanent fault, Input Speed Coherence P1743
That's awesome thanks! I actually think it's number 7 based on the results I found searching for gearbox speed sensor Which look like these https://www.mister-auto.co.uk/sensor-sp ... eo/255304/
-
- Posts: 10
- Joined: 29 Apr 2019, 19:27
- Location: South Wales
- My Cars: Citroen C2 1.4 Furio Sensodrive
- x 4
Re: Help! Permanent fault, Input Speed Coherence P1743
Actually 7 may be the reverse sensor....
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Help! Permanent fault, Input Speed Coherence P1743
7 is the reversing switch
Please Don't PM Me For Technical Help
Marc
Marc
-
- Forum Treasurer
- Posts: 10871
- Joined: 07 Aug 2002, 17:12
- Location: United Kingdom
- My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl - x 996
Re: Help! Permanent fault, Input Speed Coherence P1743
Given it's reading an input speed of 0 when engine speed is 1910 and clutch engaged, it certainly appears to be suspect!
Richard W
-
- Posts: 10
- Joined: 29 Apr 2019, 19:27
- Location: South Wales
- My Cars: Citroen C2 1.4 Furio Sensodrive
- x 4
Re: Help! Permanent fault, Input Speed Coherence P1743
Thanks for the help with this, I’m gonna order the part you’ve suggested & pray it’s right & fixes the problem
-
- Posts: 10
- Joined: 29 Apr 2019, 19:27
- Location: South Wales
- My Cars: Citroen C2 1.4 Furio Sensodrive
- x 4
Re: Help! Permanent fault, Input Speed Coherence P1743
OK so update on this problem, it was indeed the sensor... however it was because the clip that holds the cable on is perished so the cable had simply slipped off. That's sorted now! Took it for MOT today & it failed on sill rust Booked in for Thursday to get a bit of welding done & I've also got to service the drums on the back as they seem seized then it's back to the garage for it's re-test
- GiveMeABreak
- Forum Admin Team
- Posts: 37323
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5721
Re: Help! Permanent fault, Input Speed Coherence P1743
Great - that's at least sorted that and good to have the feedback and update for reference. Best of luck with the welding.
