C5 X7: JWS 3309 vs. JWS 3324

Post by marsalek »

Dear colleagues,

I am about to change the auto box oil in my C5 X7 3.0 HDi from 2013. Based on service.citroen.com is the proper oil AW-1 (i.e. JWS 3324). I read here in the forum that for the EURO-4 engines the oil was JWS 3309 and for the EURO-5 the mentioned JWS 3324. Althought this was apparently for the same gearbox.

So what has the Euro-norm to do with the gearbox oil? The newer oil has lower viscosity. Could that be, that the lower-viscosity oil was used to achieve the EURO-5 norm only? In other words, is the oil for the EURO-4 engines even better for the auto box itself?

Why am I asking is, that I bought the oil for the EURO-4 engines but should use the other one. Can I still use the JWS 3309? Is it better for the auto box, or should I buy the JWS 3324?

Thanks for your comments!
Regards, Karel
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by GiveMeABreak »

What is your VIN - Post it here and I'll confirm
Please Don't PM Me For Technical Help

Marc
marsalek
Posts: 144
Joined: 21 May 2003, 16:37
Location: Germany
My Cars: Xantia X2 HDi109
C5 X7 HDi240
x 14

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by marsalek »

Hi Marc, thank you in advance!
VF7**************[VIN obfuscated, can be read by forum staff]

Regards!
Karel
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by GiveMeABreak »

Ok, so you have the AM6-2 automatic gearbox, which is rated Euro 5 Karel, so correct, you need JWS 3324. There are different variations of the AM6 - no doubt in part to meet improved Euro standards, so require different oils.
Please Don't PM Me For Technical Help

Marc
marsalek
Posts: 144
Joined: 21 May 2003, 16:37
Location: Germany
My Cars: Xantia X2 HDi109
C5 X7 HDi240
x 14

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by marsalek »

Hi Marc, thank you for checking!
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by EDC5 »

I have done a lot of research on this, and from what I gathered, both oils are interchangeable, with the latter 3324 primarily used to reduce inefficiencies. I cannot find it now but I found a PowerPoint presentation given by Aisin that said that 3324 and 3309 could be interchanged.

Also, 3309 is a mineral oil whereas I think the 3324 could be synthetic. I've considered upgrading to 3324 myself so it's interesting to see someone who thinks it’s better to 'upgrade' to the older oil :)
marsalek
Posts: 144
Joined: 21 May 2003, 16:37
Location: Germany
My Cars: Xantia X2 HDi109
C5 X7 HDi240
x 14

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by marsalek »

Hi EDC5, thanks for the reply. I really suspect that Citroen went to JWS3324 for the only reason to meet the EURO5. This was also the case when they swiched from 5W40 to 5W30 engine oil for the HDi FAP engines (again reducing the friction and lowering the fuel consumption wihtout thinking about the engine itself).

Nevertheless I ordered today 7 liters of JWS3324 (TOTAL FLUIDMATIC MV LV) and together with the JWS3309 (that I already have) I can change the auto box oil three times now :-)

If you happen to find the AISIN PPT charts, this would be a killer for the whole X7 community, mainly in Germany where I live now. The guys here seem to like following rules more happily than thinking.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by GiveMeABreak »

I'll just repeat the warning from PSA for the purposes of having all the info:
CAUTION: The oil type "AW-1" in AT6 and AM6 gearboxes with engine version Euro 5 is specific and cannot be replaced with oil type ""JWS 3309"".
EURO 5 engine: AW-1 oil
EURO 4 engine: JWS 3309 ESSO oil

EDC5 has a Euro 4 version and you have a Euro 5 AM6-2 according to your specifications. :wink:
Please Don't PM Me For Technical Help

Marc
marsalek
Posts: 144
Joined: 21 May 2003, 16:37
Location: Germany
My Cars: Xantia X2 HDi109
C5 X7 HDi240
x 14

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by marsalek »

Hi Marc,
I understand the statement given by Citroen. If they had used the JWS 3309, they'd probably have not met the EURO-5 norm (my private assumption). But there is still the possibility, the insides of the gearbox fitted to Euro5 version are different and require only the JWS-3324. This is what I am trying to find out.

I read the EDC5's posting so, that the AISIN said, the gearbox can run on both oils.

What I found (do not know anything about the reliability) is, that both 3309 and 3324 are fully synthetic.
http://www.sunsoils.com/download/Basic% ... %20ATF.pdf
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by Paul-R »

I think I understand exactly what you're saying.

Is the only difference between Euro 4 and Euro 5 the type of oil fitted or was there a change internally to the box at the same time which would make fitting the wrong oil damaging? You think that the earlier oil might give better long term protection (because it might be thicker) and the fact that the gearbox is no longer Euro 5 compliant is irrelevant to you.

The PSA warning is only to emphasise that the gearbox will no longer be Euro 5 compliant.

A further thought that I have had since following this is - is there any warning against fitting the later oil into the earlier gearbox?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: C5 X7: JWS 3309 vs. JWS 3324

Post by GiveMeABreak »

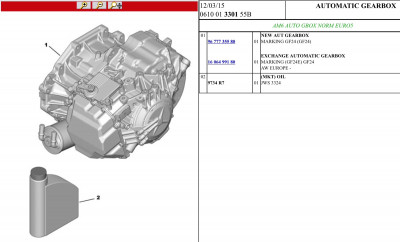

All I can tell you is that the gearboxes have different part numbers for the different versions.

2222ZS for the AM6 (GK01, GK05)for the DW10BTED4

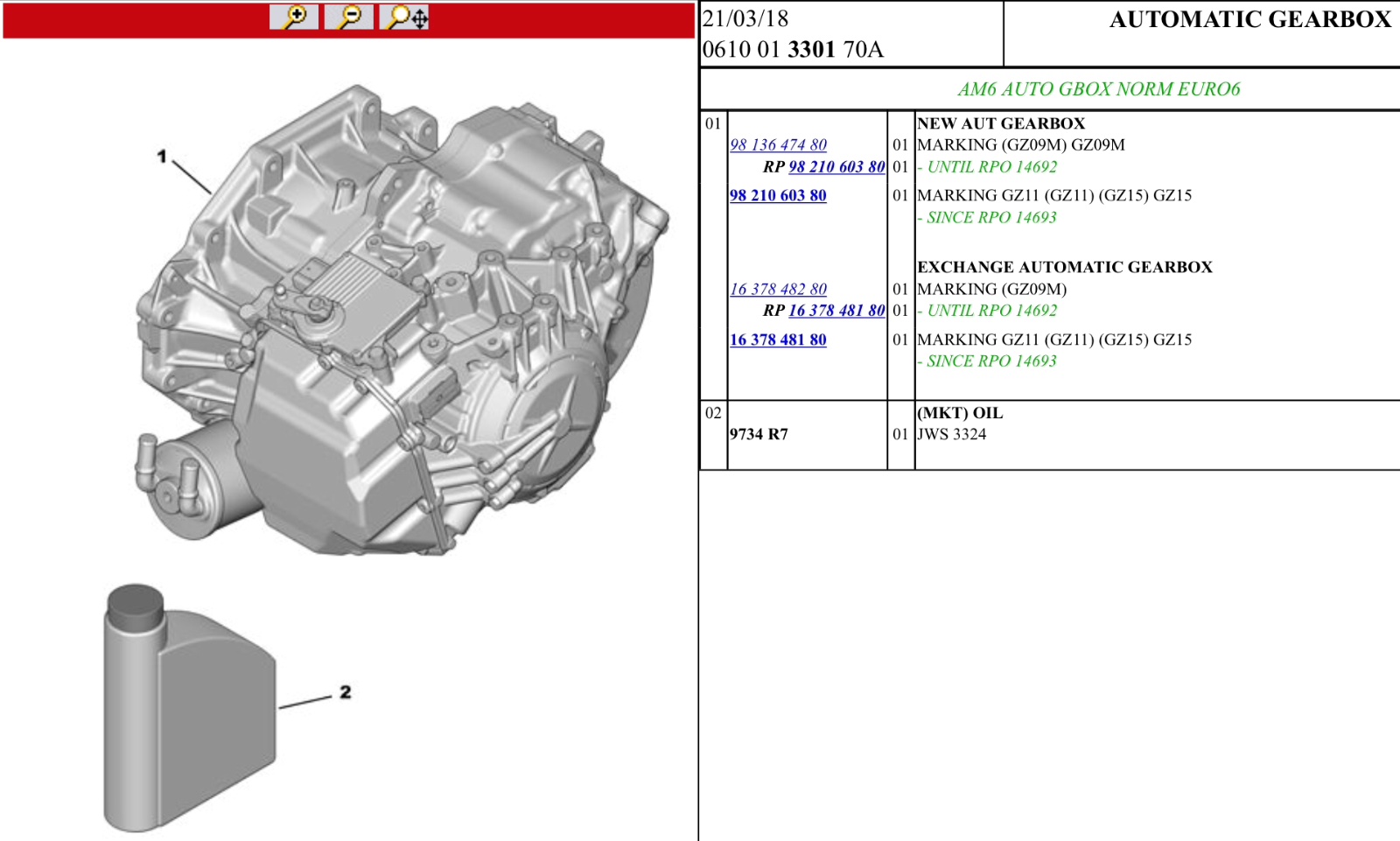

... and again DW10BTED4 Euro 6:
DW10CTED4:

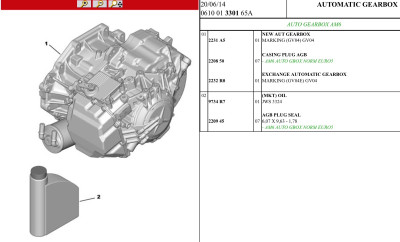

And another different box for the 3.0
