Need LCD fitted to SatNav
Moderator: GiveMeABreak
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
Hi, the parts number you gave me "Citroen Part Number 659366 " i already have that cable,

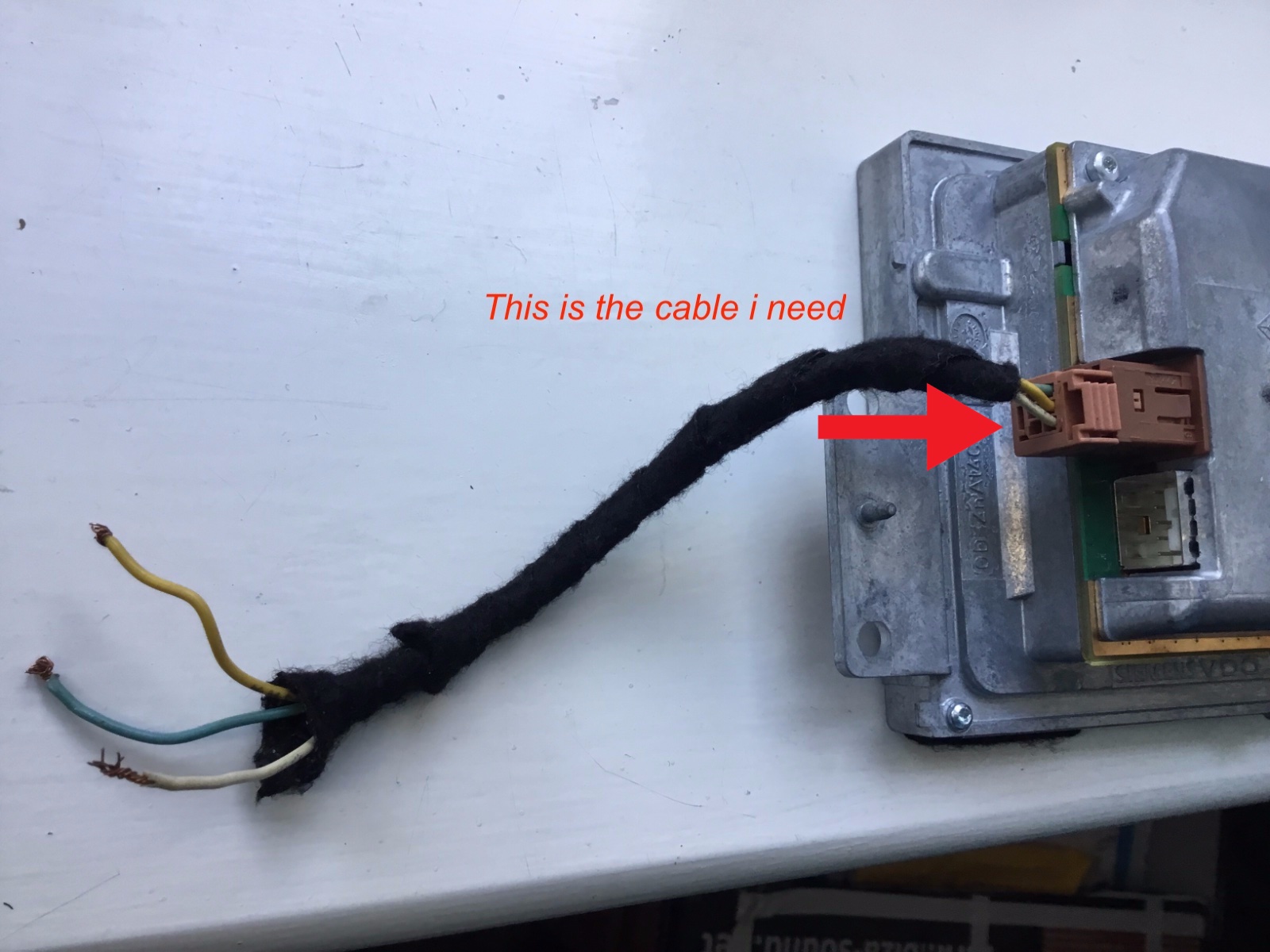

Which attaches the SatNav to the LCD , what i need is the brown cable that is shown in the picture, which powers the SatNav ( at least i think it does ? )-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav

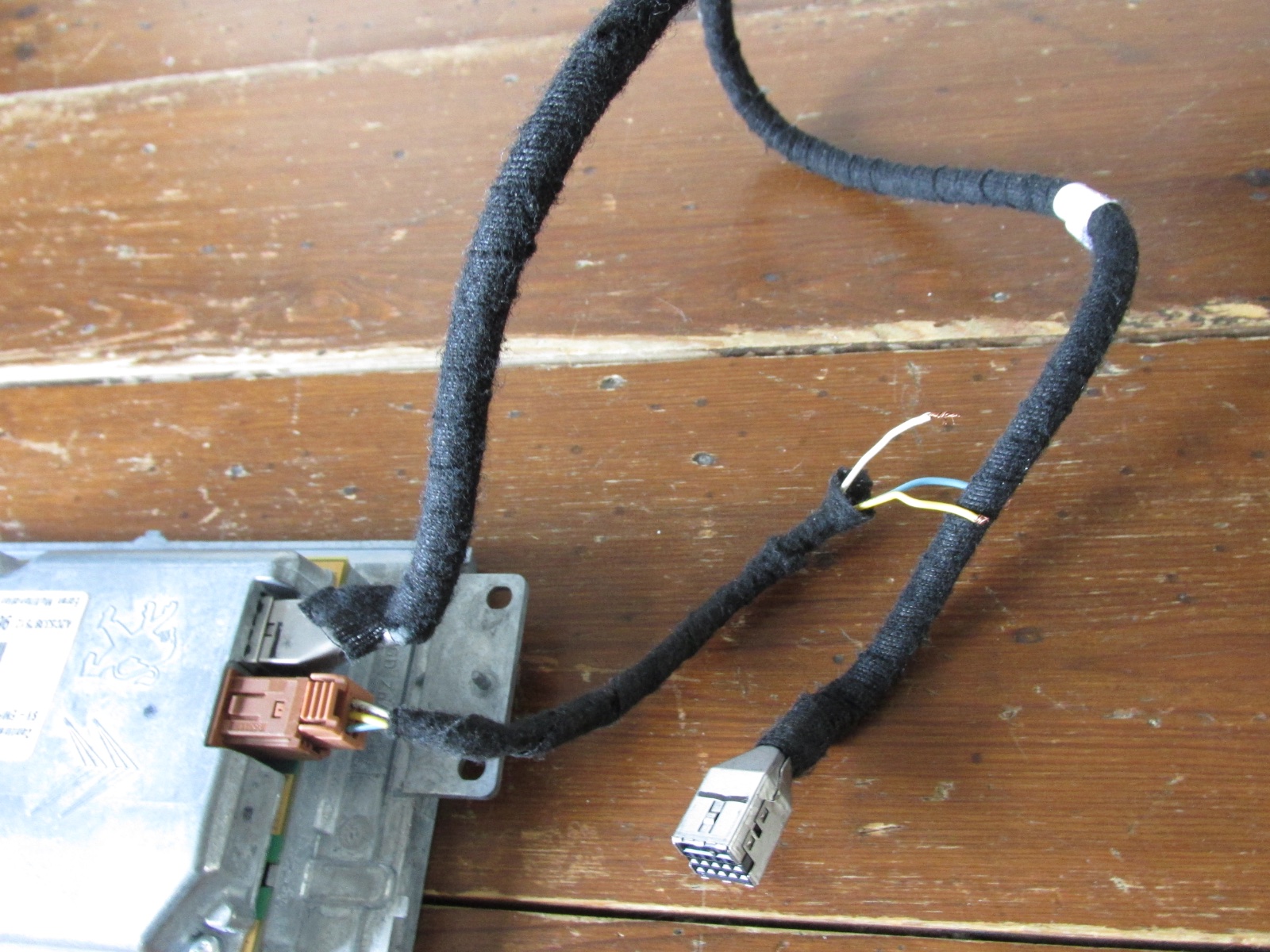

Hi i already have " Citroen Part Number 659366" see pic attached
its the brown cable i need, thanks- GiveMeABreak
- Forum Admin Team
- Posts: 37389
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: Need LCD fitted to SatNav
Ok, now I can see what's what - basically he brown connector contains 3 wires:
One is the Colour Screen Earth (7201)
One is the Colour Screen Power (7200)
One is the Rheostat Lighting (7226)
7201 will at some point end back in the Head Unit (likely 8 pin Black connector, Chanel D15)
7200 will also go to the same 8 pin connector, channel D9
7226 will end up in the Head Unit at a 12 pin connector in channel 5 (plug connector - non specific).
The problem you have is determining whether the same 3 wires also powered your old monochrome screen display and whether you can tap into this or not.
I'll ask a fellow member who did this upgrade as to what he did....
Update: Elis will check into the Forum later - he's done the mod so will be able to help you further.
One is the Colour Screen Earth (7201)
One is the Colour Screen Power (7200)
One is the Rheostat Lighting (7226)
7201 will at some point end back in the Head Unit (likely 8 pin Black connector, Chanel D15)
7200 will also go to the same 8 pin connector, channel D9
7226 will end up in the Head Unit at a 12 pin connector in channel 5 (plug connector - non specific).
The problem you have is determining whether the same 3 wires also powered your old monochrome screen display and whether you can tap into this or not.
I'll ask a fellow member who did this upgrade as to what he did....
Update: Elis will check into the Forum later - he's done the mod so will be able to help you further.
Please Don't PM Me For Technical Help
Marc
Marc
- EDC5
- (Donor 2020)
- Posts: 1216
- Joined: 01 Jul 2017, 21:48
- Location: N. Wales
- My Cars: Citroen C5 RHR AM6
- x 120
Re: Need LCD fitted to SatNav
I’ve done this mod, I used the pinouts here: http://rt4.wikidot.com/pinouts in order to know where to splice the three wires from the screen into the quadlock wires.
None of the wires from the original screen need to be used.
None of the wires from the original screen need to be used.
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
Thanks guys, looks like its beyond my skill.....
I have contacted Simon from Somerset Technical Services, hopefully he will be able to sort it for me.
Thanks once again for all your help
I have contacted Simon from Somerset Technical Services, hopefully he will be able to sort it for me.
Thanks once again for all your help
- GiveMeABreak
- Forum Admin Team
- Posts: 37389
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: Need LCD fitted to SatNav
Make sure you show him this info and that in the link to do the job.
Remember you’ll still need the BSI and MyWay configured correctly for your vehicle and options or it will not work properly.
Remember you’ll still need the BSI and MyWay configured correctly for your vehicle and options or it will not work properly.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
Will do, i will print it off and take with me,
Thanks again
Thanks again
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
Just a message to say thanks to everyone on the forum for your knowledge and pointing me in the right direction.
I had my SatNav fitted over the weekend by Simon Edwards -->http://www.ststech.co.uk
He sure knows his stuff.
Pics attached of my new setup
I had my SatNav fitted over the weekend by Simon Edwards -->http://www.ststech.co.uk
He sure knows his stuff.
Pics attached of my new setup
- GiveMeABreak
- Forum Admin Team
- Posts: 37389
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: Need LCD fitted to SatNav
No worries - Happy navigating!
