Need LCD fitted to SatNav
Moderator: GiveMeABreak
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Need LCD fitted to SatNav
Hi all,

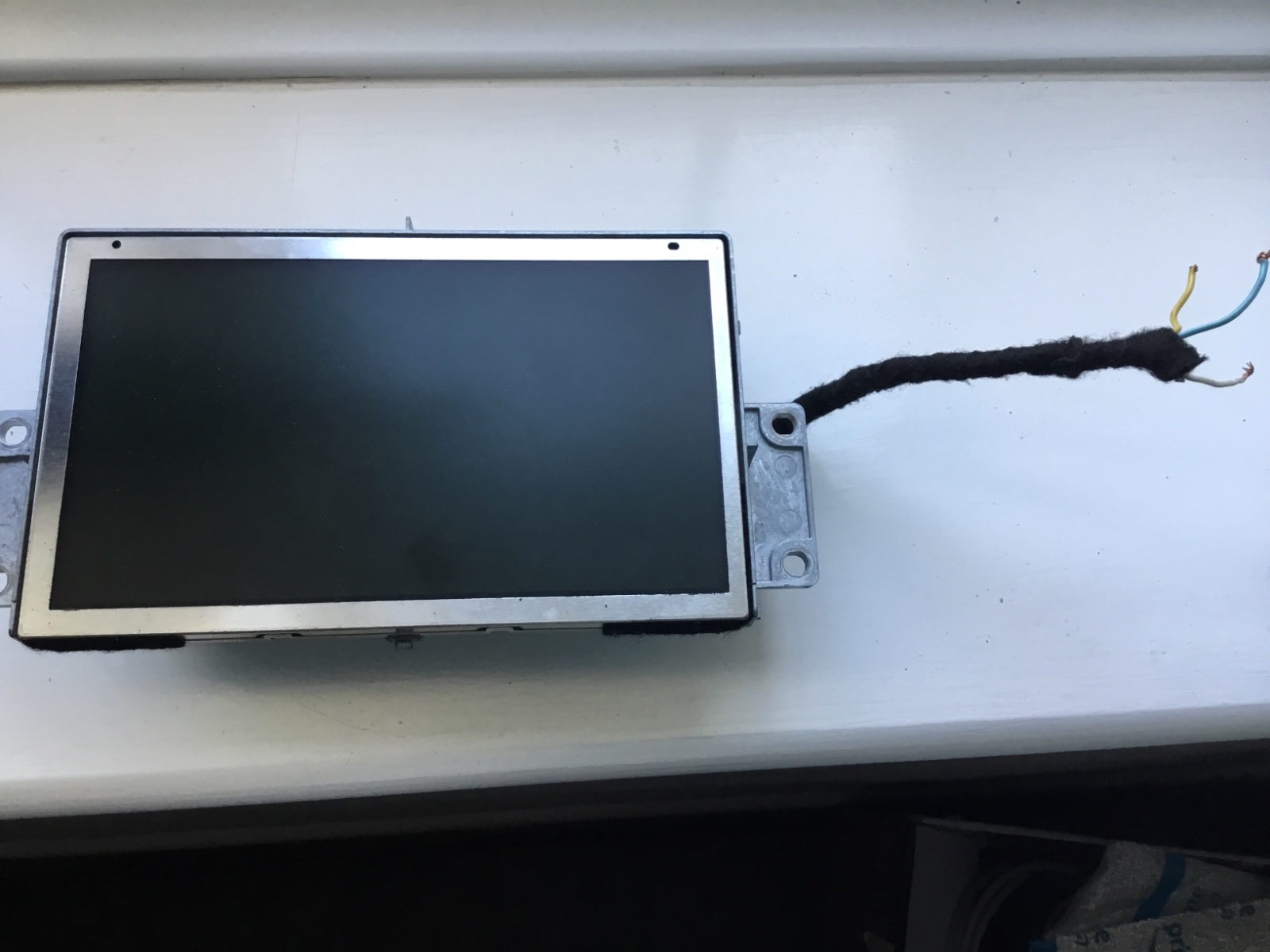

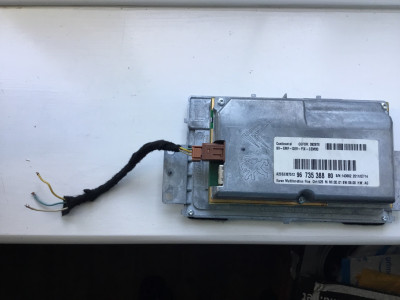

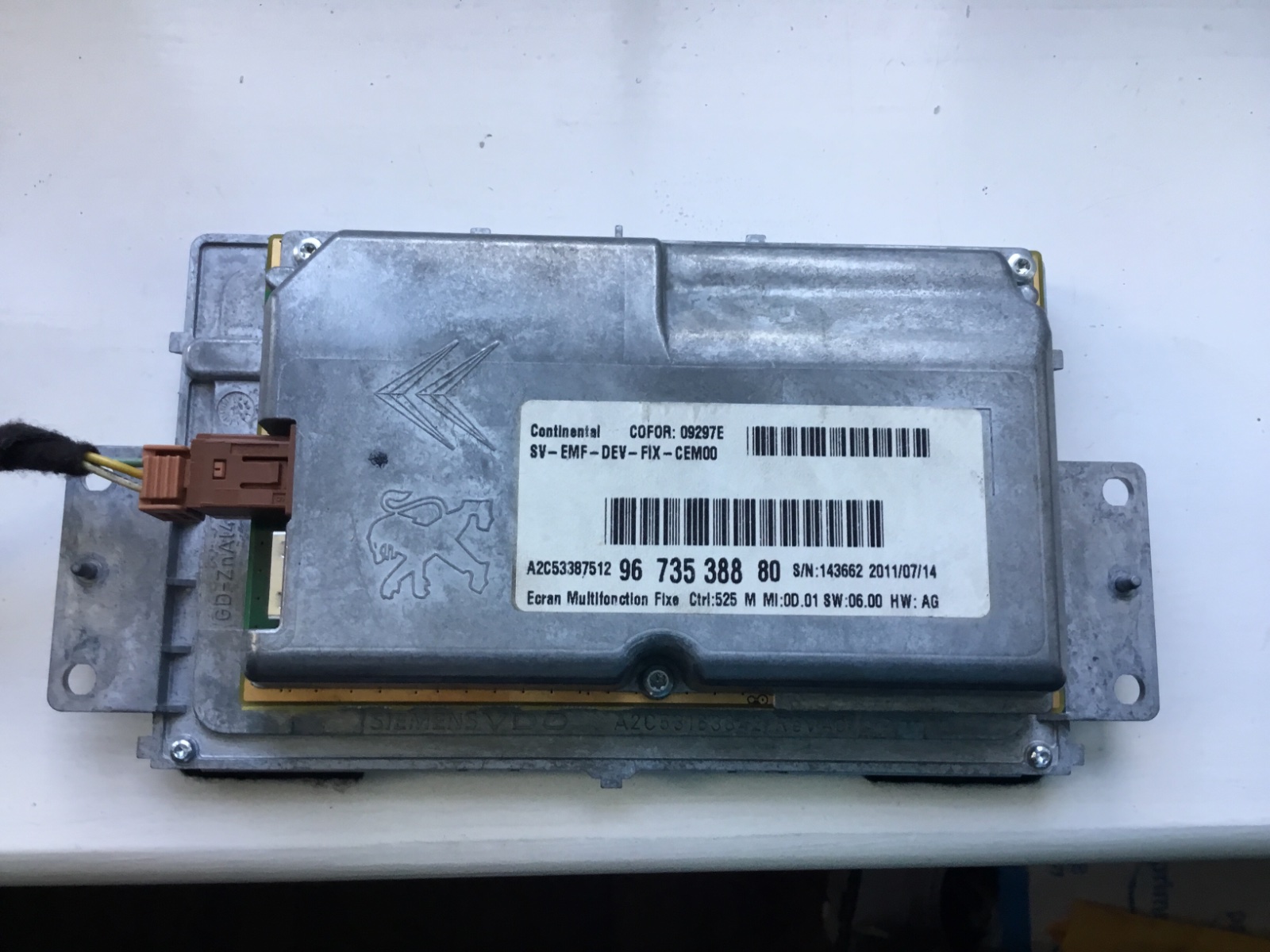

I’m looking for someone in the Dorset area ( Poole /Bournemouth) who can connect my LCD to my SatNav.
I’ve done the VIN and can sort all the rest of the install, just have no idea how to connect the brown cable ( that connected to the LCD) to the head unit to receive power, beyond my remit.
Any help or suggestions would be great,
Many thanks in advance .
[/attachment]
I’m looking for someone in the Dorset area ( Poole /Bournemouth) who can connect my LCD to my SatNav.
I’ve done the VIN and can sort all the rest of the install, just have no idea how to connect the brown cable ( that connected to the LCD) to the head unit to receive power, beyond my remit.
Any help or suggestions would be great,
Many thanks in advance .
[/attachment]
-
OnlineStickyfinger
- (Donor 2016)
- Posts: 10417
- Joined: 28 Mar 2013, 21:05
- Location: Somset my lovleee
- My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally - x 1285
- Contact:
Re: Need LCD fitted to SatNav
THIS is the man you need.....a 100 % Citroen fan...recomended
https://www.facebook.com/simon.edwards.125760
https://www.facebook.com/SomersetTechni ... 5vTL2x5I5g
https://www.facebook.com/simon.edwards.125760
https://www.facebook.com/SomersetTechni ... 5vTL2x5I5g
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
Activa, the Moose Rider
3x C5x7 Steering racks and counting
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
Stickyfinger wrote: ↑27 Apr 2019, 08:21 THIS is the man you need.....a 100 % Citroen fan...recomended
https://www.facebook.com/simon.edwards.125760
https://www.facebook.com/SomersetTechni ... 5vTL2x5I5g
Many thanks for your help Stickyfinger, i will be contacting him today
- GiveMeABreak
- Forum Admin Team
- Posts: 37190
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5689
Re: Need LCD fitted to SatNav
You are missing the specific LDV plug at the other end that has been chopped off. You'll need that for a start. The rest is pretty simple - what vehicle is this for? You haven't said in your profile.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
Thanks " GiveMeABreak" for the heads up have, i have filled out the info on my profile, but unsure why its not showing.
Citroen C5 2012 2.0 HDi VTR+ Saloon 5dr Diesel
Can you point me in the right direction for the specific LDV plug?
Citroen C5 2012 2.0 HDi VTR+ Saloon 5dr Diesel
Can you point me in the right direction for the specific LDV plug?
- GiveMeABreak
- Forum Admin Team
- Posts: 37190
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5689
Re: Need LCD fitted to SatNav
I've edited your profile as it had repeated info - hopefully this is clearer now
As for the plug it is not sold separately. You've obviously got this one from a breakers who have unceremoniously cut the wires - incredibly stupid and inconsiderate, when it could simply be unplugged from the Head Unit.
The cable is sold separately, but I'll need your VIN to get the correct one as I need to identify the exact unit you have. I can then price the cable up and get a part number for you.
As for the plug it is not sold separately. You've obviously got this one from a breakers who have unceremoniously cut the wires - incredibly stupid and inconsiderate, when it could simply be unplugged from the Head Unit.
The cable is sold separately, but I'll need your VIN to get the correct one as I need to identify the exact unit you have. I can then price the cable up and get a part number for you.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
That makes so much more sense now VIN number is FWGL0655799GB
Thanks once again for all the help
Thanks once again for all the help
- GiveMeABreak
- Forum Admin Team
- Posts: 37190
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5689
Re: Need LCD fitted to SatNav
Hi - that's not he VIN - the VIN will begin VF and will be 17 alphanumeric in length. It is displayed on the outside of the passenger windscreen at the bottom in a cut out, visible from the outside.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
Shows how much I know
VF7**************[VIN obfuscated, can be read by forum staff]
VF7**************[VIN obfuscated, can be read by forum staff]
- GiveMeABreak
- Forum Admin Team
- Posts: 37190
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5689
Re: Need LCD fitted to SatNav
Okay, some confusion here.
What you didn’t say was that at some point you or a previous owner has changed the head unit and the screen. According to your VIN number you had the monochrome screen without satnav and the RD4 system.
So this doesn’t actually help me because I don’t know which system you have upgraded to. Have you put in a MyWay, or an EMyWay (RT6), or some other system? Without knowing this I can’t tell you the correct connector cable.
If you don’t know the name of the unit that’s in there, take a quick picture of the head unit and I should be able to work it out from that.
What you didn’t say was that at some point you or a previous owner has changed the head unit and the screen. According to your VIN number you had the monochrome screen without satnav and the RD4 system.
So this doesn’t actually help me because I don’t know which system you have upgraded to. Have you put in a MyWay, or an EMyWay (RT6), or some other system? Without knowing this I can’t tell you the correct connector cable.
If you don’t know the name of the unit that’s in there, take a quick picture of the head unit and I should be able to work it out from that.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
it still has to old unit in, as i can't get the LCD connected due to cable issue, i have this--> RNEG 96736746ZD BE6450 I'm pretty sure its the MyWay system
see attached pic.
Thanks
see attached pic.
Thanks
- GiveMeABreak
- Forum Admin Team
- Posts: 37190
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5689
Re: Need LCD fitted to SatNav
Ok, so yes that is the RNEG MyWay by Harman Becker. So I can get you the cable you will need. But also, don't forget, you can't just plug this in and expect it to work.
It will need several things, doing - all with a Lexia and Diagbox *PSA's diagnostic tool.
1) It will need your VIN coded to the unit before it will operate correctly
2) The BSI and the Head Unit ECU will need configuring properly as your BSI still thinks there is a non-telematic unit installed. It will need any options configuring such as correct parking assistance units, the aerials and tuners checking for the right settings, and some of the other options deactivating that were specific to the RD4 unit you currently have.
I'm moving this topic to the Telematics section where it is better suited.
It will need several things, doing - all with a Lexia and Diagbox *PSA's diagnostic tool.
1) It will need your VIN coded to the unit before it will operate correctly
2) The BSI and the Head Unit ECU will need configuring properly as your BSI still thinks there is a non-telematic unit installed. It will need any options configuring such as correct parking assistance units, the aerials and tuners checking for the right settings, and some of the other options deactivating that were specific to the RD4 unit you currently have.
I'm moving this topic to the Telematics section where it is better suited.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
Ok thanks again .
- GiveMeABreak
- Forum Admin Team
- Posts: 37190
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5689
Re: Need LCD fitted to SatNav
You need Citroen Part Number 659366. Citroen sell these at £42.95 inc. VAT.
Item number 25 on the diagram.
Item number 25 on the diagram.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 13
- Joined: 16 Feb 2017, 17:44
- Location: Dorset, U.K.
- My Cars: Citroen C5 X7 (2010) 2.0 HDI 16V VTR+ Nav 5dr
- x 1
Re: Need LCD fitted to SatNav
great, thanks
