Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

User avatar
GiveMeABreak
Forum Admin Team
Posts: 37014
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5648

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by GiveMeABreak »

I think we are talking about different things here.

For a start the OP has a EW10J4 engine which is completely different to the one shown in his last picture which is an EW10A engine.

Chalk and cheese.

But if you are talking about the Fixing units, then the following is the correct one for the OPs engine:
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by RichardW »

No procedure for the tensioner, but the book time is only 0.9 hours, of which 0.7 hours is replacing the aux belt - so it can't be very hard!!
Richard W
User avatar
SuperMajinBuu
Posts: 22
Joined: 03 Apr 2019, 22:16
Location: Stockholm
My Cars: Citroen C4 3-door coupe, 2.0 Petrol, 16V, 100 KW, year 2005

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by SuperMajinBuu »

Hi.
So ... the plot thickens. :) I took the right wheel off today along with the protective wheel arch plastic. Took the tensioner out and I was all happy because the bit on the tensioner broke. I was already doing the celebratory dance. After further inspection I noticed that the left fastening spot became loose and it just fell in my hand. The dancing was over... :)

I have a mechanic coming over tomorrow for his opinion. What do you guys think? Will probably give it to a shop to fix this... :cry:

https://imgshare.io/image/HjZUc

https://imgshare.io/image/HjH9i
Last edited by xantia_v6 on 04 Apr 2019, 21:00, edited 1 time in total.
admiral51
Donor 2023
Posts: 2625
Joined: 24 May 2007, 10:11
Location: poole dorset uk
Lexia Available: Yes
My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff]
x 378

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by admiral51 »

Looked at the pictures and the bits seem to be the from the same type of part, could someone have been there before and not removed the previous broken bit, does look a fair bit battle worn.
Could it just have been left there or maybe someone thought it was a spacer and left in situ after a previous replacement ?
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by RichardW »

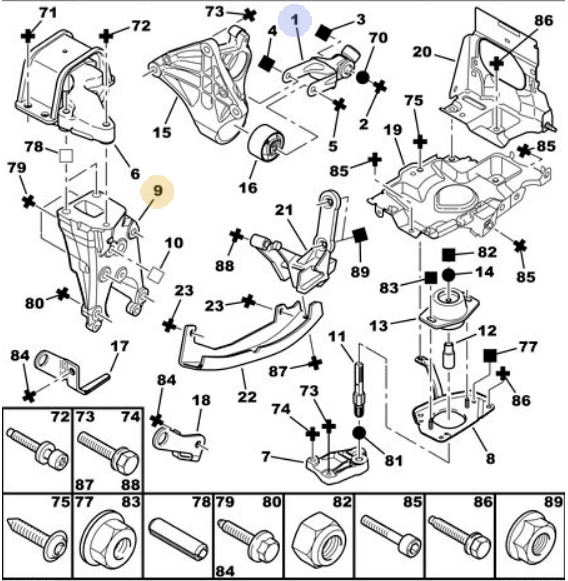

That's a bugger, but it's not a total disaster. It looks like it's part of the engine mount (No 9 in the diag Bobbins posted), here's a pic of used one from e-bay, you can see the two threaded holes at the bottom for mounting the tensioner
It should be easy enough to replace - put a jack under the engine, remove the 4 star bolts on the inner wing, and the ones on the top of the mount, then remove the 5 bolts for the mount. Even if you haven't got a jack and the right socket for the star bolts I doubt a mechanic would charge more than an hour to change this. It's widely used, eg for Citroen:

10 document(s) found for C4
2 document(s) found for C4 (B7)
3 document(s) found for C4 PICASSO
5 document(s) found for C5
4 document(s) found for C5 (X7)
4 document(s) found for C5 II
6 document(s) found for C8
2 document(s) found for DISPATCH COMBI
2 document(s) found for DISPATCH I & II
2 document(s) found for DISPATCH III
2 document(s) found for DS 4
2 document(s) found for SYNERGIE
2 document(s) found for XSARA II
3 document(s) found for XSARA PICASSO

And there will be a similar list for Peugeot - basically anything fitted with the 1.8 or 2.0 EW series petrol engine. It shouldn't be too hard to find a 2nd hand one.
Richard W
User avatar
SuperMajinBuu
Posts: 22
Joined: 03 Apr 2019, 22:16
Location: Stockholm
My Cars: Citroen C4 3-door coupe, 2.0 Petrol, 16V, 100 KW, year 2005

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by SuperMajinBuu »

I don't think I will be tackling this myself except for the used part hunt. This engine is so crammed it is a nightmare to work on. Especially as a learning project. I need to find a back alley workshop because big shops charge around 100 eur per hour for labour.
Thanks for all the help guys!
RichardW
Forum Treasurer
Posts: 10814
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 984

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by RichardW »

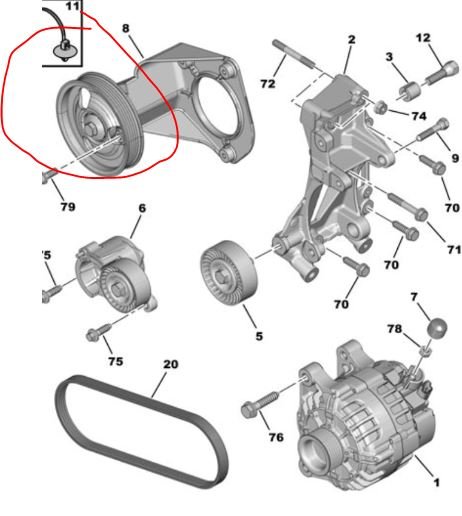

Is there another piece missing? Or have you already removed it? There should be a big free wheel pulley above the alternator (presumably where the power steering would have been before they switched to electric) - circled in the diagram below:

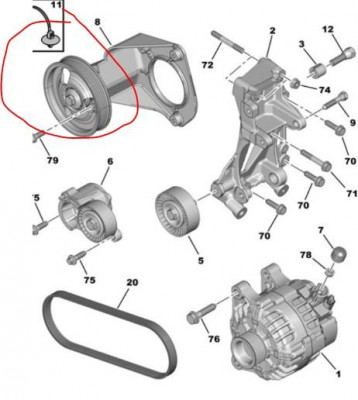

belt 2.JPG
Richard W
Online
User avatar
myglaren
Forum Admin Team
Posts: 25369
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4889

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by myglaren »

SuperMajinBuu wrote: 04 Apr 2019, 21:15 I need to find a back alley workshop because big shops charge around 100 eur per hour for labour.


:offtopic:
Are €'s legal tender in Sweden now?
I have just received my pension from Sweden and it is paid out in SKR :offtopic:
User avatar
SuperMajinBuu
Posts: 22
Joined: 03 Apr 2019, 22:16
Location: Stockholm
My Cars: Citroen C4 3-door coupe, 2.0 Petrol, 16V, 100 KW, year 2005

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by SuperMajinBuu »

RichardW wrote: 04 Apr 2019, 21:20 Is there another piece missing? Or have you already removed it? There should be a big free wheel pulley above the alternator (presumably where the power steering would have been before they switched to electric) - circled in the diagram below:

Yeah I removed that pulley to have a better look and access. :) It was just a single bolt in the middle.
User avatar
SuperMajinBuu
Posts: 22
Joined: 03 Apr 2019, 22:16
Location: Stockholm
My Cars: Citroen C4 3-door coupe, 2.0 Petrol, 16V, 100 KW, year 2005

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by SuperMajinBuu »

myglaren wrote: 04 Apr 2019, 22:40
SuperMajinBuu wrote: 04 Apr 2019, 21:15 I need to find a back alley workshop because big shops charge around 100 eur per hour for labour.


:offtopic:
Are €'s legal tender in Sweden now?
I have just received my pension from Sweden and it is paid out in SKR :offtopic:


Sorry my bad. No it is still Svensk Kronor ofcourse. I was thinking euros are an easier conversion to pounds since most of this forum is British I suppose? ;) I'm bad at SEK to GBP conversion. :) So in SEK it would be around 800-1000 per hour depending on workshop.
Online
User avatar
myglaren
Forum Admin Team
Posts: 25369
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4889

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by myglaren »

Conversion is easy with the internet - I had to do it to see how much the bank were charging for the international transfer.
Indeed the forum is predominantly British but most nations are represented.
User avatar
SuperMajinBuu
Posts: 22
Joined: 03 Apr 2019, 22:16
Location: Stockholm
My Cars: Citroen C4 3-door coupe, 2.0 Petrol, 16V, 100 KW, year 2005

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by SuperMajinBuu »

If I was to tackle this myself what kind of a jack do I need for the engine? I might rent the jack for the day.
Citroen official service said this part that I need is not available in Sweden. I wil go part hunting on Monday morning. Probably looking at a 2 hour drive one way.
I have most of the tools except the big star bolt attachment.
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by xantia_v6 »

To remove the engine mount, you just need to take the weight of the engine under the sump so that the engine does not drop when the top mount is removed. A cheap trolley jack with a suitable piece of wood on top should do the job. Do not jack the engine too high, as the engine mounts are not designed to carry the weight of the car, and the rubber mounts may tear if that happens.

While removing the engine mount you should have the front of the car supported on axle stands so that the suspension cannot change the hight of the car when the weight of the engine is taken by the jack.
User avatar
SuperMajinBuu
Posts: 22
Joined: 03 Apr 2019, 22:16
Location: Stockholm
My Cars: Citroen C4 3-door coupe, 2.0 Petrol, 16V, 100 KW, year 2005

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by SuperMajinBuu »

xantia_v6 wrote: 06 Apr 2019, 09:32 To remove the engine mount, you just need to take the weight of the engine under the sump so that the engine does not drop when the top mount is removed. A cheap trolley jack with a suitable piece of wood on top should do the job. Do not jack the engine too high, as the engine mounts are not designed to carry the weight of the car, and the rubber mounts may tear if that happens.

While removing the engine mount you should have the front of the car supported on axle stands so that the suspension cannot change the hight of the car when the weight of the engine is taken by the jack.


So I suppport the engine while all the wheels are on the ground and then I install the axle stands?
By the front of the car do you mean under the car behind the front wheels? Do the front wheels have to be off the ground?
Thanks!
User avatar
xantia_v6
Forum Admin Team
Posts: 9053
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: Weird problem with alternator tensioner/pulley - C4 2.0 16V petrol

Post by xantia_v6 »

I would put the car on axle stands first, then put the jack under the engine, and raise the engine just a few millimetres to take the weight.

Also be aware that the top engine mount holds the engine fore and aft, so with it removed the engine may want to move around a little bit.
