Door card removal...
Is there a How to on drivers door card removal had a brief look but could not see anything or is it pretty straight forward ?
-
- Posts: 29
- Joined: 29 Mar 2019, 13:14
- Location: Leighton Buzzard
- My Cars: 2013 DS3 in yellow and black 1.6 ehdi Airdream
2006 Xsara Picasso 1.6HDi in Persan Bronze ..
Re: Door card removal...
Sorry should have said 2007 C5 2.0 hdi Exclusive...
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: Door card removal...
I have your VIN, I'll get you something up as soon as I have time to dig it out - probably tomorrow if you can wait.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 29
- Joined: 29 Mar 2019, 13:14
- Location: Leighton Buzzard
- My Cars: 2013 DS3 in yellow and black 1.6 ehdi Airdream
2006 Xsara Picasso 1.6HDi in Persan Bronze ..
Re: Door card removal...
Thanks no problem , appreciate your help....
-
OnlineGiveMeABreak
- Forum Admin Team
- Posts: 37005
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5646
Re: Door card removal...
Make sure you do check the interlinking harness in the door aperture first as that is the most likely place for a wire break, given the opening and closing of the door. The ends of the rubber hose should turn or unclip (cannot remember exactly) to allow you to concertina it back to inspect the wires.
Here's the guide on removing the door card if you want to check the wiring there:
This will give access to the wiring that you can inspect, which goes through the door grommet tot he engine bay.
Here's the guide on removing the door card if you want to check the wiring there:
Tool to remove the door card clips |

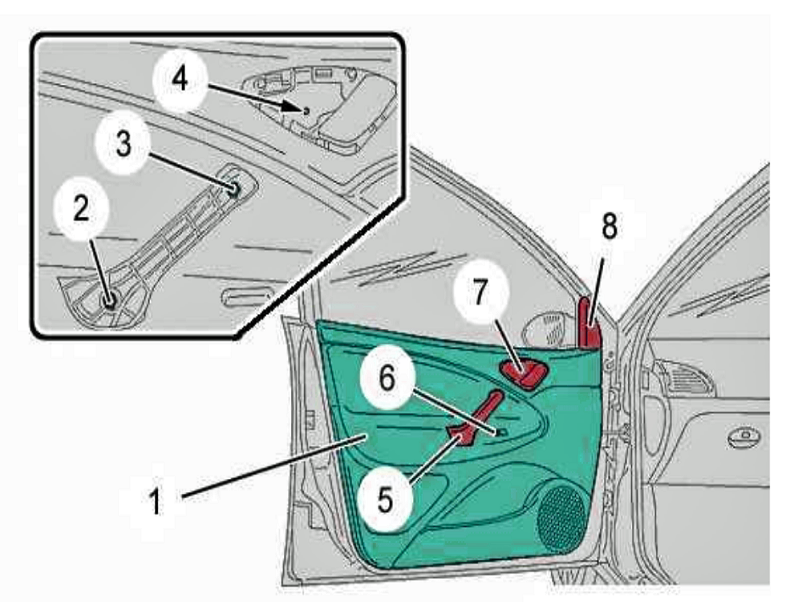

Remove:
Unplug:
|
This will give access to the wiring that you can inspect, which goes through the door grommet tot he engine bay.
The Door control Module is number 13 |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 29
- Joined: 29 Mar 2019, 13:14
- Location: Leighton Buzzard
- My Cars: 2013 DS3 in yellow and black 1.6 ehdi Airdream
2006 Xsara Picasso 1.6HDi in Persan Bronze ..
Re: Door card removal...
That's just the job ...........thanks very much..
