Xsara Picasso 1.6hdi (2017)sensor locations

[thebrasso]

Hi There.


I'm doing a little investigation into the location of the following sensors, due to an electrical issue with my car, and would really appreciate if anybody could advise me to the location if the following sensors.

Inlet air Pressure sensor
Fuel rail pressure sensor
Turbocharger copy position sensor
Air conditioning pressuere sensor

Any help as ever would be greatly appreciated.

[GiveMeABreak]

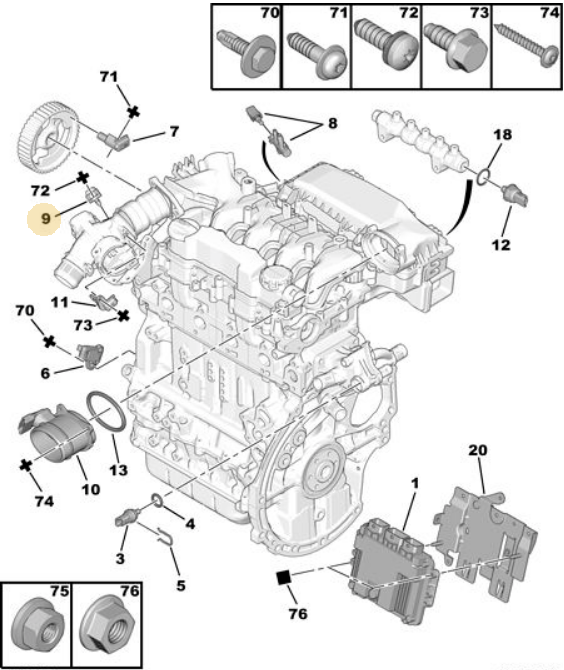

No3: Water Temp. Sensor No 6: Engine Speed Snesor No 7: Camshaft Position Sensor No 8: Temp. Sensor (Go + Support) No 9: Intake Air Pressure Sensor No 11: Air Intake Temp. Sensor No 12: Diesel High Pressure Sensor (Rail)

The turbo copy position sensor is not shown separately.

[RichardW]

The turbo copy position sensor is not shown separately.

There isn't one.... if it's a 110 engine, there is a feedback sensor built into the vacuum control solenoid down the back of the engine, but nothing on the turbo itself.

[GiveMeABreak]

It’s a DV6ATED 92 BHP Richard

[thebrasso]

Excellent work.Thank you!!

[RichardW]

It does appear to have the turbo solenoid down the back of the engine as well - there is something different about the turbo though IIRC - I think perhaps it's wastegate controlled rather than VVT as the one on the 110 is.

[thebrasso]


No3: Water Temp. Sensor No 6: Engine Speed Snesor No 7: Camshaft Position Sensor No 8: Temp. Sensor (Go + Support) No 9: Intake Air Pressure Sensor No 11: Air Intake Temp. Sensor No 12: Diesel High Pressure Sensor (Rail)

The turbo copy position sensor is not shown separately.

Hi Marc, Where can i get theses diagram from?
