RNEG - trip computer

This unit is the MyWay system, also referred to as RNEG, made by Harman Becker.
Main Features: Also referred to as RNEG, the MyWay colour satellite navigation system, has SD card, integrated European mapping, live trafic information, voice guidance and graphics in 2D or aerial perspective & it features a Bluetooth® system (Bluetooth phone compatibility only - no Bluetooth Audio Streaming).

Moderator: GiveMeABreak

piotrekwroc
Posts: 4
Joined: 26 Mar 2019, 21:42

RNEG - trip computer

Post by piotrekwroc »

Hello,
I have a problem with RNEG navigation in Peugeot 207 1.6 HDi 90HP 2009. After pressing the MODE button it switches only between the radio and NAVI, it does not show the on-board computer screen. I updated the soft to the newest one (R50b R50.03) - unfortunately no changes. In DiagBox, all the options related to the on-board/trip computer are active.

There was a F947 error in DiagBox "Fault: absence of the separate control keypad". I switched off the separate keypad in DiagBox, but it didn't help.

Can you help me?

Thank you in advance
Greetings
Piotr
User avatar
GiveMeABreak
Forum Admin Team
Posts: 26075
Joined: 15 Sep 2015, 19:38
x 2996

Re: RNEG - trip computer

Post by GiveMeABreak »

Piotr, this can happen if you have changed certain parameters in Diagbox not meant for Peugeot vehicles. These units were fitted across certain Peugeot, Citroen, & DS models. Each vehicle displays information differently - some has info like the trip information on the multi function screen, others have trip info displayed on a dashboard screen for example.

If the ECU parameters are changed for an incompatible vehicle electronic architecture, then you risk all sorts of issues with your dashboard - I've seen it happen several times when somebody thought it would be cool to change a parameter and then wondered why their car was lit up like a Christmas tree.

I note you have changed some parameters already - I strongly suggest you change it back to the original value.

If you can list the configuration parameters in the MyWay ECU (all of them), and post up your VIN, I might be able to run through them and make sure you have the correct values entered.
piotrekwroc
Posts: 4
Joined: 26 Mar 2019, 21:42

Re: RNEG - trip computer

Post by piotrekwroc »

VIN: VF3**************[VIN obfuscated, can be read by forum staff]

In the attachment I am sending a list of MyWay settings. In addition, I attached a list of MyWay errors and a list of BSI settings.

Thank you in advance.
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 26075
Joined: 15 Sep 2015, 19:38
x 2996

Re: RNEG - trip computer

Post by GiveMeABreak »

Ok leave it with me....
User avatar
GiveMeABreak
Forum Admin Team
Posts: 26075
Joined: 15 Sep 2015, 19:38
x 2996

Re: RNEG - trip computer

Post by GiveMeABreak »

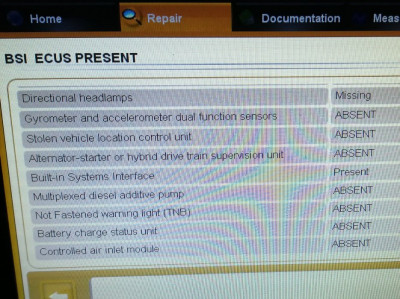

There are some options I cannot see - these are usually found when you go onto the RNEG ECU from the Global Test and then into the manual configuration. You have some of the options shown in the BSI, but I can't see the others.

One observation on the data that I have -
"Geographic area of use of the radio" - you have 'SPACE 0' and my data says it should read (Europe). Has this been changed?

The other thing my data says is that the "Heating/ Ventilation" setting should be 'Absent', where you have it set to 'Dual Zone Air Conditioning'. Sometimes this does not mean you do not have it - but that it is not supposed to be set here. You might want to try and change these 2 options back to the values the document I have says and see if that makes a difference.

Also try a BSI reset: follow my procedure here:

BSI Reset / Battery Disconnect / Reconnect Procedure

Never disconnect the quad lock connector from the RNEG before disconnecting the battery (but you must follow the procedure in the link) and again when connecting it back again.

The 'Heating / Ventilation' error code F020 may also be because this part is not configured correctly:
ECU of radio-navigation RNEG
Fault codeF020
After sales description of the fault codeFault no communication with the air conditioning ECU: Not characterised
Description of the diagnosticsNo reception by the BSI of data originating from the air conditioning ECU on the Low Speed Comfort CAN for 2,4 s
Conditions of activation of the diagnosticsEngine running
Air conditioning ECU configured present in the BSI
Conditions of disappearance of the faultReception of the data originating from the air conditioning ECU by the BSI on the Low Speed Comfort CAN for 2,4 s
Air conditioning ECU configured present in the BSI
Down-grade modes if fault presentDisplay of dashes in place of temperature
Switching on of the warning lamp and/or warning message-
Main customer complaints likelyDowngraded display of the information related to the air-conditioning
Suspect areasAir conditioning ECU CAN + electrical supply
Air conditioning ECU earth
Air conditioning ECU Low Speed Comfort CAN harness
Air conditioning ECU
Built-in systems interface
Electrical harness
piotrekwroc
Posts: 4
Joined: 26 Mar 2019, 21:42

Re: RNEG - trip computer

Post by piotrekwroc »

Thanks for the advice. I will check them as soon as I have access to the car - around 6 April. I will write if any of these changes helped.
piotrekwroc
Posts: 4
Joined: 26 Mar 2019, 21:42

Re: RNEG - trip computer

Post by piotrekwroc »

Sorry for the late reply,
GiveMeABreak wrote:
29 Mar 2019, 11:13
There are some options I cannot see - these are usually found when you go onto the RNEG ECU from the Global Test and then into the manual configuration. You have some of the options shown in the BSI, but I can't see the others.

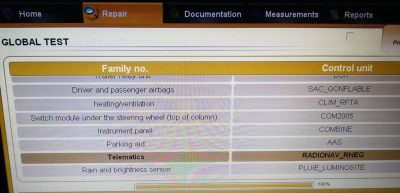

Are these the missing options?

Image ImageImage
GiveMeABreak wrote:
29 Mar 2019, 11:13
One observation on the data that I have -

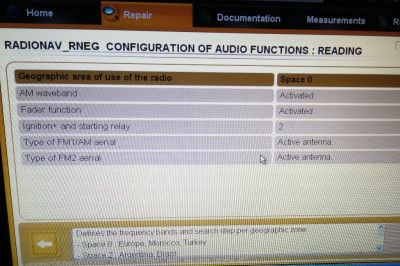

"Geographic area of use of the radio" - you have 'SPACE 0' and my data says it should read (Europe). Has this been changed?

I have 'SPACE 0", I can set SPACE 0, SPACE 2, SPACE 3 and SPACE4, but only SPACE 0 is for Europa. I haven't been changed this.
GiveMeABreak wrote:
29 Mar 2019, 11:13
The other thing my data says is that the "Heating/ Ventilation" setting should be 'Absent', where you have it set to 'Dual Zone Air Conditioning'. Sometimes this does not mean you do not have it - but that it is not supposed to be set here. You might want to try and change these 2 options back to the values the document I have says and see if that makes a difference.

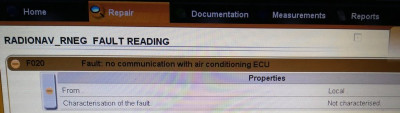

I can set 'Missing', 'Single zone air conditiong' and 'Dual zone air conditioning'. I set this parameter to 'Missing'. The error F020 (No communication with air conditioning ECU) has disappeared in RADIONAV_RNEG fault reading.
GiveMeABreak wrote:
29 Mar 2019, 11:13
Also try a BSI reset: follow my procedure here:

Battery Disconnect / Reconnect Procedure

Never disconnect the quad lock connector from the RNEG before disconnecting the battery (but you must follow the procedure in the link) and again when connecting it back again
I did it. Unfortunately, there is still no trip computer in RNEG.

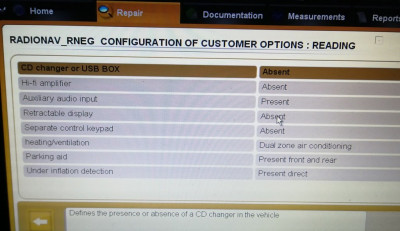

Below I attach a few more images with options. Are they set correctly?

Image Image Image Image Image

Thank you in advance
User avatar
GiveMeABreak
Forum Admin Team
Posts: 26075
Joined: 15 Sep 2015, 19:38
x 2996

Re: RNEG - trip computer

Post by GiveMeABreak »

I must of missed this. I’ll take a look as soon as I can.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 26075
Joined: 15 Sep 2015, 19:38
x 2996

Re: RNEG - trip computer

Post by GiveMeABreak »

Ok, so I've had a look this evening and I have an issue with accessing the specific BSI document for your vehicle, so I cannot compare the options against your picture.

I have looked at the ones you highlighted and they appear to be right.


It took longer as I had to copy your pictures into a single document to make it easier to see - as it kept going to your image hosting service! For future reference you know that you can upload images directly on this forum - just go to the full editor and attach the images from your PC.

So without the document specific to your 207 I cannot verify the options.

Another note for future ref - always take screen shots before changing so you can return the values to the originals in case it goes wrong.

I don't know what else to suggest at this point as without the document it's like the blind leading the blind. I can't use a Citroen one as the whole point is that these vehicles display the data differently - so would defeat the objective.
Zolysys
Posts: 4
Joined: 21 Nov 2019, 03:33

Re: RNEG - trip computer

Post by Zolysys »

RNEG cannot be programmed like the older RTx and RT6 series. Flash content is different. No tools are available by default.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 26075
Joined: 15 Sep 2015, 19:38
x 2996

Re: RNEG - trip computer

Post by GiveMeABreak »

@ Zolysys: This is an old post - and we were talking about configuration of the ECU options with Diagbox which is perfectly normal to do. We are not talking about the Magneti Marelli RT* systems. This is the MyWay thread.
