Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by TessG »

I checked in the mechanic handbook, that the engine WJY should have ECU SID 801.

I am not sure for what the ECU is responsible in this case.

I have forgotten to share this information, sometimes when the car has this problem (hard sound, weak perfomance and black smoke), after sometime while the drive it switches to the normal regime and the perfomance and sound is normal and there is no black smoke. And also the tachometer and thermometer starts working.
Last edited by TessG on 26 Nov 2018, 18:42, edited 2 times in total.
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by EDC5 »

Well, to me it sounds like the entire electrics of the engine are working intermittently. Fortunately, however, cranking and the fuel stop solenoid appear to be supplied from ignition live, and not from an ecu controlled output... so you are very lucky in that respect.

However, by the sounds of it, with the ECU in its inoperative state, the injection advance trim will be wrong along with any other ECU controlled aspects of the injection pump causing the smoke and odd sounds perhaps.

Since it appears to be a systematic and also intermittent electrical problem, I'd be looking at the ECU earth or power supply.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36998
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5645

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by GiveMeABreak »

TessG wrote: 26 Nov 2018, 16:27 I checked in the mechanic handbook, that the engine WJY should have ECU SID 801.

I am not sure which all operations the ECU is responsible for in this case.

I have forgotten to share this information, sometimes when the car has this problem (hard sound, weak perfomance and black smoke), after sometime while the drive it switches to the normal regime and the perfomance and sound is normal and there is no black smoke. And also the tachometer and thermometer starts working.
No - you don't have this injection variant - you have a LUCAS injection system. Handbooks cover different models with different engines - that's why I wanted your VIN.

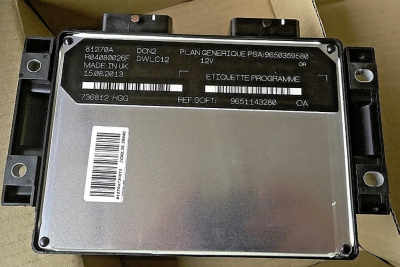

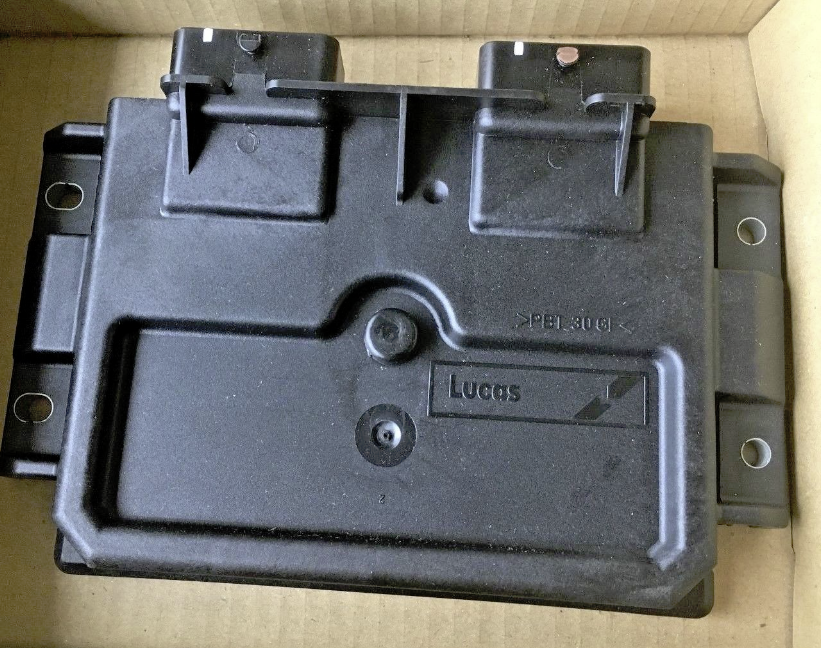

You have one of these: It's a basic Lucas injection controller
Lucas A.PNG
Lucas B.PNG
Please Don't PM Me For Technical Help

Marc
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by wheeler »

TessG wrote: 26 Nov 2018, 16:27 I checked in the mechanic handbook, that the engine WJY should have ECU SID 801.

The SID801 is for the 2.0HDi with RHY engine

WJY system fitted to the 1.9 DW8 engine is the Lucas DCN2 which as said above is very basic.
TessG
Posts: 12
Joined: 26 Nov 2018, 10:09
Location: Prague
My Cars: Berlingo I 1,9D M WJY 2002
x 1

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by TessG »

Thank you Marc, Thank you wheeler for the correction..

So I will check all the cables coming from and in ECU and power supply.

I would like to ask, I was reading some forums, people do have similar problems with starting.. many of them solved this problem by cleaning or repair of the multi conector with the label IC02A, http://i40.tinypic.com/4l2jbp.png .

I was wondering that maybe it could be also my issue? But I am not sure whether the wiring scheme can be applied on my model.
TessG
Posts: 12
Joined: 26 Nov 2018, 10:09
Location: Prague
My Cars: Berlingo I 1,9D M WJY 2002
x 1

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by TessG »

Hello, I checked all the cables and connectors. Also this one https://www.berlingoforum.com/thread-1875-page-2.html

Nothing was corroded, everything was clean. So I cleaned the connectors by air.

I found these boxes, may someone tell me what are they for? The photos of them are attached in this post.

I also checked that I have the connector for diagnosis next to the steering wheel. But I also found another connector which looks like it was for other kind of diagnosis as well? May someone check it on the photo? It was near left light bulb.

Thank you
Attachments

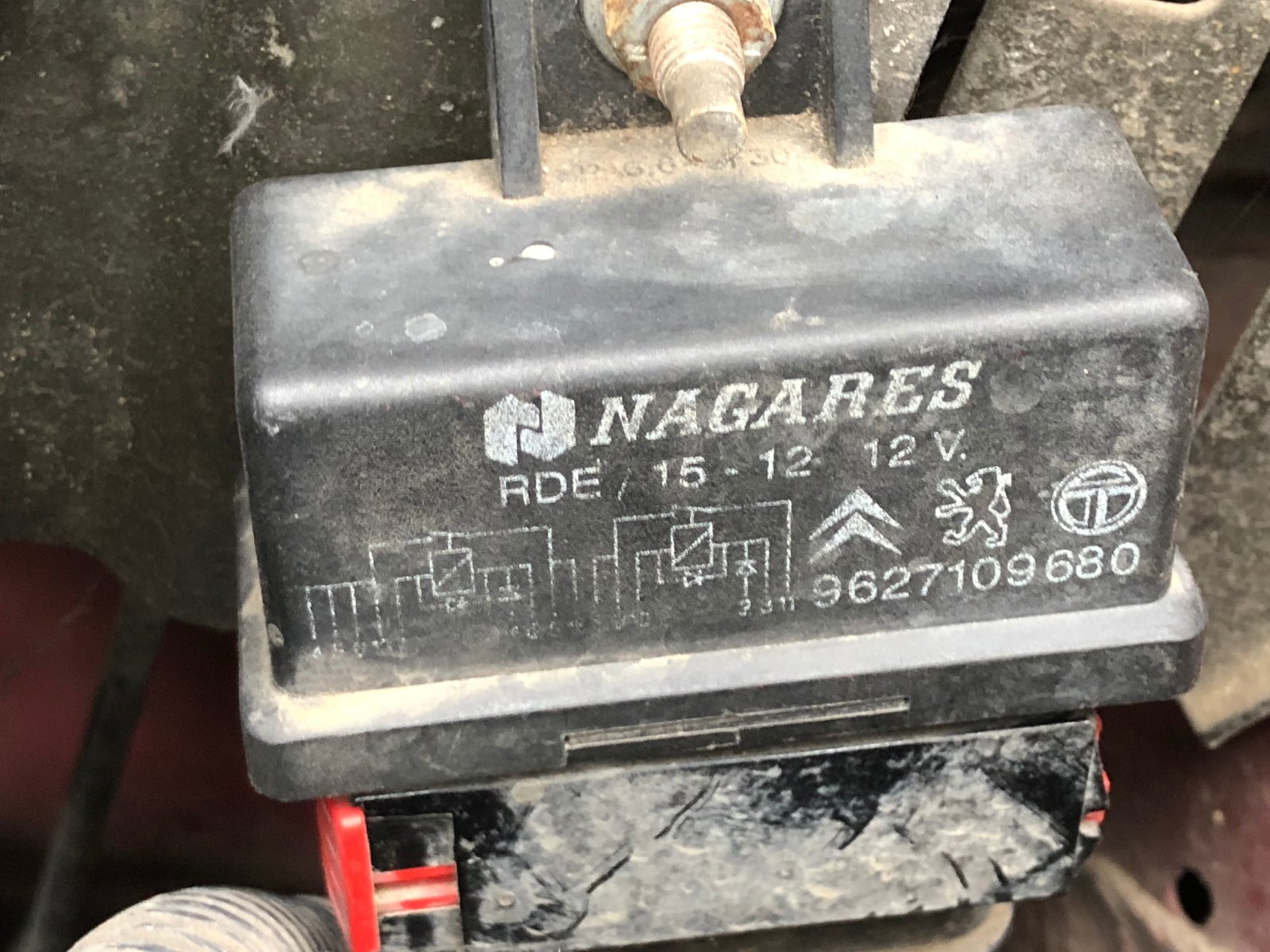

box next to the control unit
box next to the control unit

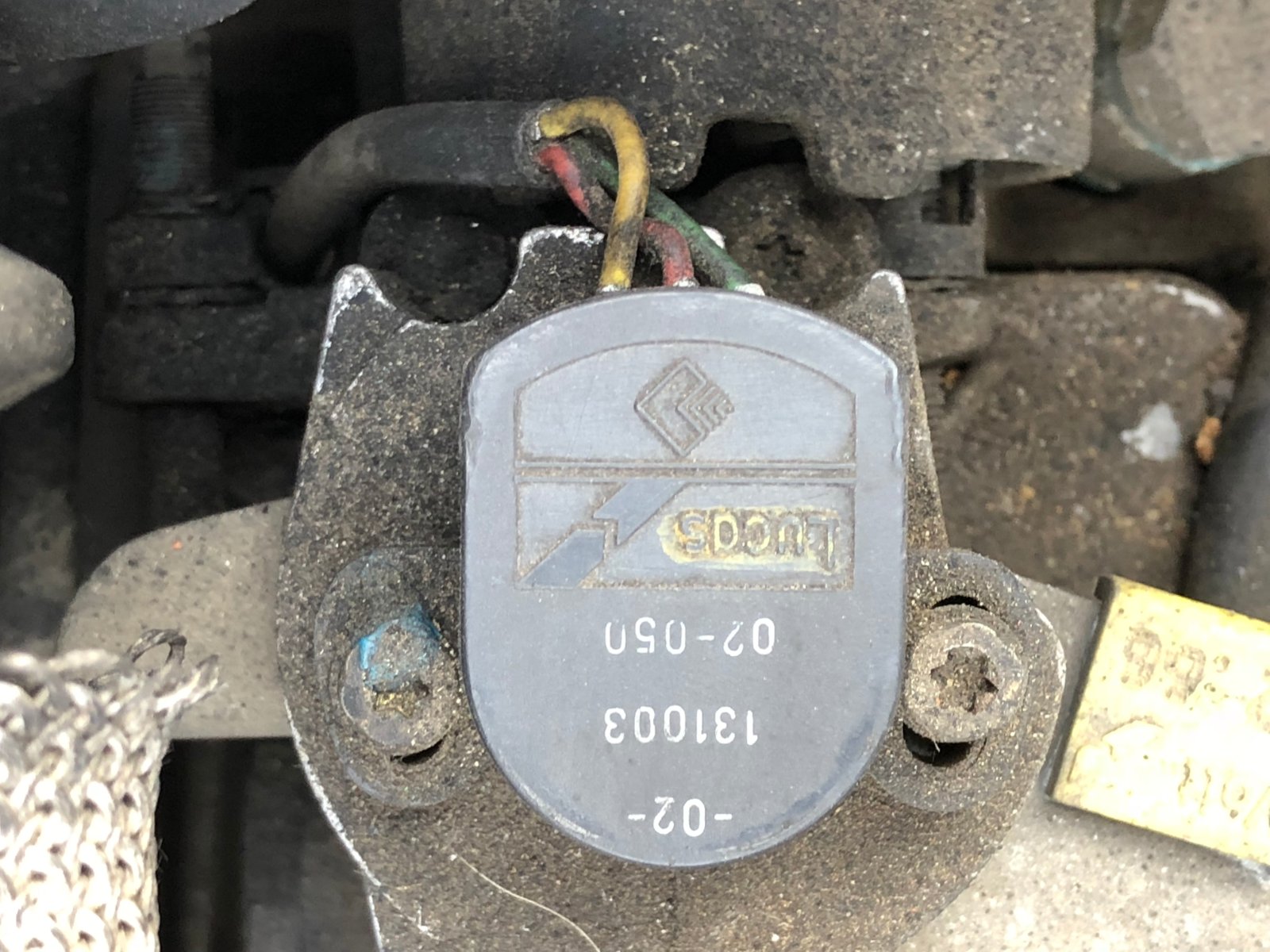

box on the injection pump
box on the injection pump
second connector for diagnosis?
second connector for diagnosis?
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36998
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5645

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by GiveMeABreak »

The first picture is the Glow Plug Relay.
The second looks like a throttle position sensor
Not sure about the third one
Please Don't PM Me For Technical Help

Marc
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by moizeau »

Could the 3rd one be an accident shock sensor, that's not fitted, I remember seeing something similar next to the LH susp in the engine bay on the 406?
Pete
Notice the BX is still top the list but sadly gone
TessG
Posts: 12
Joined: 26 Nov 2018, 10:09
Location: Prague
My Cars: Berlingo I 1,9D M WJY 2002
x 1

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by TessG »

An accident shock sensor? I will try to find more about that.. thank you!
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by moizeau »

If there's nothing near it, and you haven't changed anything, I would ignore it.
Pete
Notice the BX is still top the list but sadly gone
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36998
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5645

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by GiveMeABreak »

That’s an interesting suggestion Pete.👍

@ TessG: As Pete says, ignore it if it’s been taped up out the way. Some cars utilise the same wiring harness across a range of models, to allow for optional equipment or features. So is probably for something that isnt fitted.
Please Don't PM Me For Technical Help

Marc
TessG
Posts: 12
Joined: 26 Nov 2018, 10:09
Location: Prague
My Cars: Berlingo I 1,9D M WJY 2002
x 1

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by TessG »

After searching with Google I found nice manual for Berlingo. It is in french but it is possible to copy the text and have it translated into english by Google translator. You can download it here . Wiring diagrams start on page 81 for the old model (1996-2002). For the newer model (2002-?) page 96. The list of the codes of the components is on the pages 83-94 and the codes are probably the same for both models.

I hope it helps somebody.
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by wheeler »

Don't think the first one is the glowplug relay, far to many pins in the plug. looks like a 15 pin 'double' relay to me, it will be for supplying power to the ECU & 12v sensors.
not sure about the 3rd one but its definitely not for an inertia/impact sensor, they are 3 way plugs. it will be for something not fitted to the car if there is nothing nearby it fits. any codes printed on the wires will give a clue to what its for.
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by moizeau »

I think you're right Wheeler, also the red locking lever should be pressed in, it looks like it's in the 'unlock' position from the photo. On my 406 the locking mechanism had broken and from time to time it vibrated loose and the engine would turn but not fire. I found the problem when I connected PP2000 and it wouldn't see the car. Started wiggling things and a heard several clicks.
Pete
Notice the BX is still top the list but sadly gone
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: Berlingo I 1,9D M WJY 2002 - electrical issue

Post by wheeler »

The locking tab looks fully home to me, if you look at the opposite side from the big red bit you should be able to see a small hole that you can put a little split pin etc in to stop it coming back out.
