RD45 questions + Microphone installation C5 X7 + Amplifier installation

This unit is the RD4 or RD45 system, made by Continental.
Usually standard equipment unless another system is specified as an option. There are Single & Dual Tuner versions. RD45 features over the RD4: The RD45 has USB connectivity & integrated Bluetooth module supporting Phone & Audio Streaming.

Moderator: GiveMeABreak

Post Reply
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Thanks for checking. It means i have to replace the screen too, right?
One more question... if HU and screen replaced and let's say working... how could i handle the incoming calls? And how can i start a call? Only on phone or maybe on the controls behind the steering wheel?
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Sorry, not P206 but 207.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by GiveMeABreak »

I used the VIN but for some reason I got looking at 206 info that I had already! So so it seems you have the correct screen (part 659349) already, so it will just need configuring with the correct options when you get an RD45 unit and VIN coding.
Please Don't PM Me For Technical Help

Marc
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Yessss! Thank you for the info!
I start searching for a good HU. Than i will post additional questions. :)
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Really hard choice... On ebay there are used units from 99 pounds and on ali the new is 45 usd...
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by GiveMeABreak »

Yes, that's why you need to be careful on Ali*** as they don't do refunds and you can't return them - your rights are limited to almost non-existing, where as with ebay you have protection.
Please Don't PM Me For Technical Help

Marc
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Than it will be christmas gift to myself.
Do you know how can the phone works with bluetooth? I mean the call receiving and starting. Do i need to buy something for that?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by GiveMeABreak »

The Bluetooth module is incorporated into the RD45 unit itself. Once you hVe the head unit and multifunction screen coded properly, with the correct options, you just need to pair the phone with the head unit. The details should be in the handbook.
Please Don't PM Me For Technical Help

Marc
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Hello Again, I am planning to buy the required parts for my RD45 upgrade.
First question about lexia:
is it ok if i buy this: https://www.ebay.co.uk/itm/Valise-Diagn ... rk:38:pf:0

and lexia software separated? The kits with other type of connector are more expensive.

Second question for the HU:
I will try aliex... because of the money :(.
I found this: https://www.aliexpress.com/item/Genuine ... 8da6423134

It has only one antenna connector on the back but what i saw on ebay there were 3 antenna connectors. Why? As i remember i have only one in the car...
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by EDC5 »

That diagnostic product in your first link is NOT a proper Lexia clone, it's a standard OBD reader. People on this forum recommend Easy Diagnostics as a supplier, I believe they even offer a discount to members. When I bought my Lexia clone I bought one similar to this though:

https://www.ebay.co.uk/itm/FULL-CHIP-RE ... :rk:1:pf:0

It's a 'Full chip' and 'Rev C'.

As to the number of connectors present on the RD45; some cars (like my C5) have two FM antennas for better signal, white and grey. There was some speculation as to a DAB version of the RD45 with a green antenna connector, however I bought one of these and it was not electrically connected internally.
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Hello Guys,

My RD45 just arrived. I started to (maybe done) install in the car… But few question again:

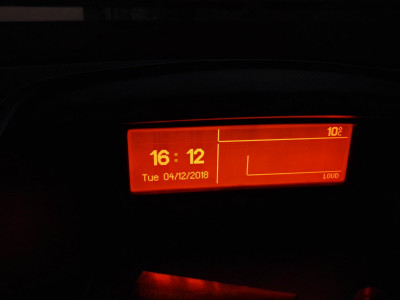

I checked the USB mp3 first. It plays the music from flash drive but during thism i see this on the display: (the main part is empty pls check the attachment)

Bluetooth: which connection is for Bluetooth? (there are two - attachment backside.jpg)
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by GiveMeABreak »

There are no socket or pin attachments for Bluetooth. The RD45 has a built in Bluetooth module.
Please Don't PM Me For Technical Help

Marc
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Hi, i mean the BT microphone. 😀

Any idea for the screen problem?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by GiveMeABreak »

Ok, well for the microphone it should be pin 9 shown on part B below: if you can read my hand notes! :-D
Please Don't PM Me For Technical Help

Marc
neszim81
Posts: 15
Joined: 25 Sep 2018, 10:04
Location: Hungary
My Cars: Peugeot 207 (2016)

Re: RD45 questions + Microphone installation C5 X7 + Amplifier installation

Post by neszim81 »

Aaah sorry, this picture is about rd4 not the 45...
However the pin is "defined" on the mic cable connector. I hope that is ok 😀
