Can’t turn off the air conditioning on my Citroen C5 2010
Moderator: RichardW
Can’t turn off the air conditioning on my Citroen C5 2010
Hello everyone i will be glad if someone can help me with this. I replaced the polen filter and since then i can’t turn off the fan on air con. Just blowing on max speed all the time. Trying to turn off or adjust from control panel not doing anything. Any ideas!
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: Can’t turn off the air conditioning on my Citroen C5 2010
The pollen filter change won't affect the blower. The only thing you may have done is dislodged some of the wiring near the pollen filter.
There is a blower motor control unit located near the pollen filter that you may have moved that could of caused this.
There is a blower motor control unit located near the pollen filter that you may have moved that could of caused this.

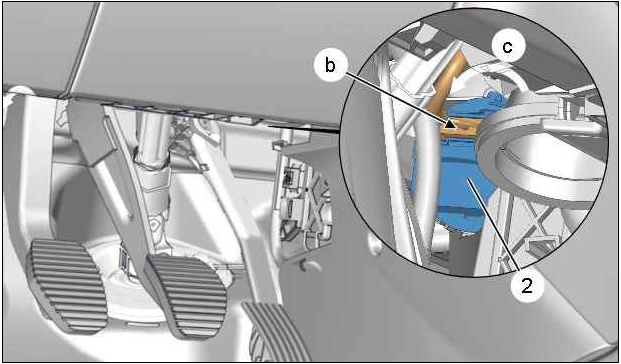

Blower Motor Control Unit | Location of Blower Control Unit |
Please Don't PM Me For Technical Help
Marc
Marc
Re: Can’t turn off the air conditioning on my Citroen C5 2010
Thanks for reply. Tried but nothing happened the blower motor looks fine. Still running and i can’t turn off. Any other ideas?
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: Can’t turn off the air conditioning on my Citroen C5 2010
The blower motor control unit is probably faulty then. They do fail and this is one of the symptoms. I would suspect this over the control panel to be honest. Do you have access to Diagbox for a test to see what, if any fault codes are showing?
Failing that pop up,or post your VIN and I’ll get you the part number.
Edited to state ‘Blower Motor Control Unit’
Failing that pop up,or post your VIN and I’ll get you the part number.
Edited to state ‘Blower Motor Control Unit’
Please Don't PM Me For Technical Help
Marc
Marc
- Paul-R
- Donor 2023
- Posts: 6935
- Joined: 07 May 2009, 16:24
- Location: Wirral, NW England; Vaucluse 84, France
- Lexia Available: Yes
- My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone) - x 1379
Re: Can’t turn off the air conditioning on my Citroen C5 2010
GiveMeABreak wrote: ↑29 Aug 2018, 20:07The blower motor is probably faulty then. They do fail and this is one of the symptoms.
How does that work Marc? TBH I can't see how the motor can be faulty and give this symptom.
A motor can only go at the speed dictated by the control unit and this is supposedly set by the control panel. Into that mix you have to add the BSI and, if there's a separate one, a heating ECU. Something there has to be the problem surely?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
- xantia_v6
- Forum Admin Team
- Posts: 9090
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 834
Re: Can’t turn off the air conditioning on my Citroen C5 2010
The motor has the speed controller built-in which can fail.
- GiveMeABreak
- Forum Admin Team
- Posts: 37396
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5739
Re: Can’t turn off the air conditioning on my Citroen C5 2010
Yes I should of said Blower Motor Control Module again Paul, that’s what I was talking about as I was carrying on from my previous post showing the module in the diagrams. On the X7 they are separate to the Motor unit itself, unlike the Xsara Picasso and others of that era that had the resistor units on the motor on some models.Paul-R wrote: ↑29 Aug 2018, 20:32GiveMeABreak wrote: ↑29 Aug 2018, 20:07The blower motor is probably faulty then. They do fail and this is one of the symptoms.
How does that work Marc? TBH I can't see how the motor can be faulty and give this symptom.
A motor can only go at the speed dictated by the control unit and this is supposedly set by the control panel. Into that mix you have to add the BSI and, if there's a separate one, a heating ECU. Something there has to be the problem surely?
I’ve edited the post to now add this bit on, thanks.
