Re: C5 X7 Steering Rack - Again!

Post by bobins »

"And on the conveyor belt tonight we have...... some pictures of a dirty old pinion shaft housing taken earlier" :)
Pinion housing 5 - own work
Pinion housing 5 - own work
Pinion housing 6 - own work
Pinion housing 6 - own work
Pinion housing 10 - own work
Pinion housing 10 - own work
Pinion housing 11 - own work
Pinion housing 11 - own work
Pinion housing 14 - own work
Pinion housing 14 - own work
Pinion housing 15 - own work
Pinion housing 15 - own work
Sadly no longer a C5 owner :(
User avatar
Sloppysod
Donor 2024
Posts: 964
Joined: 23 May 2015, 23:35
Location: North Wales
My Cars: Citroens
1 x GS, 1 x GSX (Banger raced), 1 x GSA,
2 x CX Famililles, 1 x CX GTI,
BX, XM, Xantia, C5 Mk1,
C4 (Coupe), C4 (B7),
C5 (X7)

Renault
R4 Van
Fuego
Clio Campas
x 212

Re: C5 X7 Steering Rack - Again!

Post by Sloppysod »

bobins wrote: 12 Jun 2018, 16:17 "And on the conveyor belt tonight we have...... some pictures of a dirty old pinion shaft housing taken earlier" :)
?id=8588[/img][/url]
Hi Bobins, as you have the rack apart could please take a photo of the shaft side on?

Cheers

Where's the cuddly toy or did Anthea forget it!!
Stu 🏴󠁧󠁢󠁷󠁬󠁳󠁿

"Some cause happiness wherever they go, others whenever they go"Oscar Wilde (1854-1900)

Major interventions
C5 Steering rack @ 58,000 mi
4 discs & Pads @ 63,585 mi
2 (AM6) oil exchanges @ 58,876 & 72,378 mi
Gibbo2286
(Donor 2020)
Posts: 7170
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: C5 X7 Steering Rack - Again!

Post by Gibbo2286 »

How about rigging a tube to blow air from the heater/ventilation system onto the shaft......keep it dry.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
bobins
Donor 2023
Posts: 5697
Joined: 05 Jul 2012, 18:07
Location: Midhurst, West Sussex
My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5
x 2871

Re: C5 X7 Steering Rack - Again!

Post by bobins »

Sloppysod wrote: 12 Jun 2018, 17:44
bobins wrote: 12 Jun 2018, 16:17 "And on the conveyor belt tonight we have...... some pictures of a dirty old pinion shaft housing taken earlier" :)
Hi Bobins, as you have the rack apart could please take a photo of the shaft side on?

Cheers

Where's the cuddly toy or did Anthea forget it!!

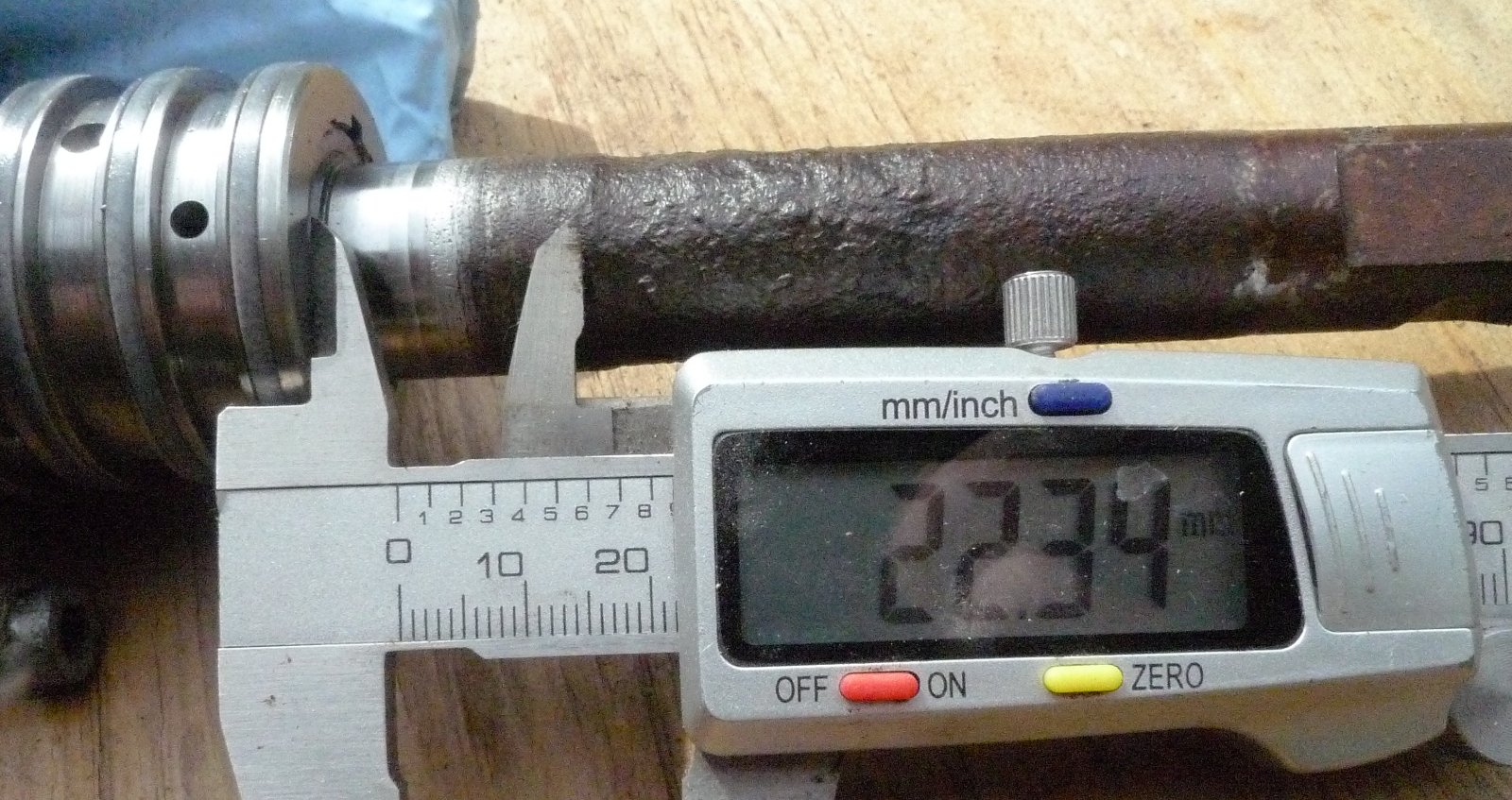

shaft 16 - own work
shaft 16 - own work

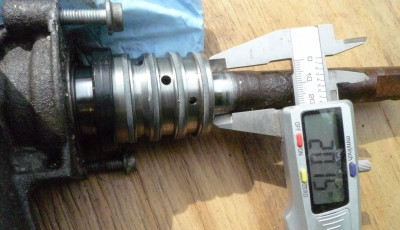

shaft 17 - own work
shaft 17 - own work
shaft 18 - own work
shaft 18 - own work
shaft 19 - own work
shaft 19 - own work
shaft 20 - own work
shaft 20 - own work
Anthea's cuddly toy - own work
Anthea's cuddly toy - own work
Sadly no longer a C5 owner :(
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: C5 X7 Steering Rack - Again!

Post by GiveMeABreak »

"Didn't he do well"!
Please Don't PM Me For Technical Help

Marc
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: C5 X7 Steering Rack - Again!

Post by white exec »

Slice off...
C5_X7 lump 3p.jpg
Round file away the thin rib...
C5_X7 lump 6.jpg
Remains of the lump will help keep gaiter - and a clip - in place.

Just an idea.
Thanks for posting all the extra photos.
Chris
User avatar
Stickyfinger
(Donor 2016)
Posts: 10411
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: C5 X7 Steering Rack - Again!

Post by Stickyfinger »

http://citroxa.rajce.idnes.cz/servo_c5_x7/

Modified method from a guy in Cz
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
User avatar
bobins
Donor 2023
Posts: 5697
Joined: 05 Jul 2012, 18:07
Location: Midhurst, West Sussex
My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5
x 2871

Re: C5 X7 Steering Rack - Again!

Post by bobins »

I've just been cooking the pinion housing as per Xantia_v6's suggestion (lightly oiled housing served with a rich jus de la Fluide DA, in case anyone was wondering :-D ) and the metal ring and oil seal came out relatively easily once cooked at gas mark 3 for 5-10 minutes. The OD of the metal ring and oil seal is 30mm, with the ID being 20mm. The oil seal is a single lip 5mm deep one. I think there'd easily be enough room for a two-lip (R23) seal in there.
Last edited by bobins on 13 Jun 2018, 20:38, edited 1 time in total.
Sadly no longer a C5 owner :(
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: C5 X7 Steering Rack - Again!

Post by white exec »

Stickyfinger wrote: 13 Jun 2018, 18:41 http://citroxa.rajce.idnes.cz/servo_c5_x7/

Modified method from a guy in Cz
Certainly deals with The Lump!
Would have preferred to see a gaiter clip at the bottom, and a longer gaiter that protected the entire shaft.
Should have been built like this in the first place.
Chris
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: C5 X7 Steering Rack - Again!

Post by Paul-R »

It also shows that LHD cars suffer the same as RHD cars.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
Sloppysod
Donor 2024
Posts: 964
Joined: 23 May 2015, 23:35
Location: North Wales
My Cars: Citroens
1 x GS, 1 x GSX (Banger raced), 1 x GSA,
2 x CX Famililles, 1 x CX GTI,
BX, XM, Xantia, C5 Mk1,
C4 (Coupe), C4 (B7),
C5 (X7)

Renault
R4 Van
Fuego
Clio Campas
x 212

Re: C5 X7 Steering Rack - Again!

Post by Sloppysod »

bobins wrote: 13 Jun 2018, 16:48 "And on the conveyor belt tonight we have...... some pictures of a dirty old pinion shaft housing taken earlier" :)
Sloppysod wrote: 12 Jun 2018, 17:44 Hi Bobins, as you have the rack apart could please take a photo of the shaft side on?

Cheers

Where's the cuddly toy or did Anthea forget it!!


Good Cuddly toy :rofl2:
Thanks, you can actually see where the seal rubbed during its life, it is also nice to see the shaft diameter is smaller than the seal diameter, which will prevent damage during reassembly. However, I think we have been looking at the wrong cause, the seal rubbing surface is free from corrosion on the picture, if corrosion was at fault then surely the rubbing surface would be marked, I am thinking it is not corrosion but the seals perish due to them holding water in the recess on top of the housing. This also means, for future failures that just replacing the seal would be sufficient. Bobbins, are there any numbers on the seal?
I have looked at the boot I covered my shaft with and one side is dirtier than the other, the 'dirt' can easily been seen from the wheel arch and could be spray from the wheel when on the wheel is turned to the right.
Last edited by myglaren on 14 Jun 2018, 06:39, edited 1 time in total.
Reason: quote tags
Stu 🏴󠁧󠁢󠁷󠁬󠁳󠁿

"Some cause happiness wherever they go, others whenever they go"Oscar Wilde (1854-1900)

Major interventions
C5 Steering rack @ 58,000 mi
4 discs & Pads @ 63,585 mi
2 (AM6) oil exchanges @ 58,876 & 72,378 mi
User avatar
bobins
Donor 2023
Posts: 5697
Joined: 05 Jul 2012, 18:07
Location: Midhurst, West Sussex
My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5
x 2871

Re: C5 X7 Steering Rack - Again!

Post by bobins »

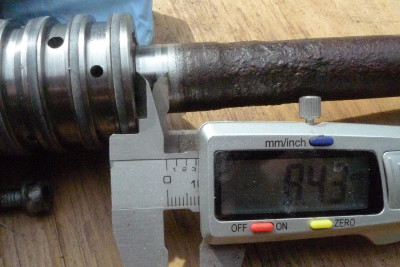

If you look on picture "shaft 19" the clean part of the shaft 'within' the 8.43mm measurement is where the metal bush (the thing with the 3 holes in it in one of the previous pictures) sits, I think the oil seal sits on the rusty part to the right. I'll try and do some proper measurements later and see where everything sits.
Sadly no longer a C5 owner :(
User avatar
Sloppysod
Donor 2024
Posts: 964
Joined: 23 May 2015, 23:35
Location: North Wales
My Cars: Citroens
1 x GS, 1 x GSX (Banger raced), 1 x GSA,
2 x CX Famililles, 1 x CX GTI,
BX, XM, Xantia, C5 Mk1,
C4 (Coupe), C4 (B7),
C5 (X7)

Renault
R4 Van
Fuego
Clio Campas
x 212

Re: C5 X7 Steering Rack - Again!

Post by Sloppysod »

Stickyfinger wrote: 13 Jun 2018, 18:41 http://citroxa.rajce.idnes.cz/servo_c5_x7/

Modified method from a guy in Cz

He also uses a two cover approach, the 1st being a 'top hat' on the shaft covering the seal, the 2nd the expandable boot, I did think of a top hat type cover but decided not as I was afraid of a guey mess between the rim of a seal and the aluminum caseing, also I had nothing available to modify.
Yes I too would have thought a longer boot, but the length looks about right to sit between the rack and the floor donut and not over the donut.
I
Stu 🏴󠁧󠁢󠁷󠁬󠁳󠁿

"Some cause happiness wherever they go, others whenever they go"Oscar Wilde (1854-1900)

Major interventions
C5 Steering rack @ 58,000 mi
4 discs & Pads @ 63,585 mi
2 (AM6) oil exchanges @ 58,876 & 72,378 mi
User avatar
Stickyfinger
(Donor 2016)
Posts: 10411
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: C5 X7 Steering Rack - Again!

Post by Stickyfinger »

Can I ask, what is the diameter of the housing/casting around where a boot would sit ?

Taken at the same level as the red arrow.
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
User avatar
bobins
Donor 2023
Posts: 5697
Joined: 05 Jul 2012, 18:07
Location: Midhurst, West Sussex
My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5
x 2871

Re: C5 X7 Steering Rack - Again!

Post by bobins »

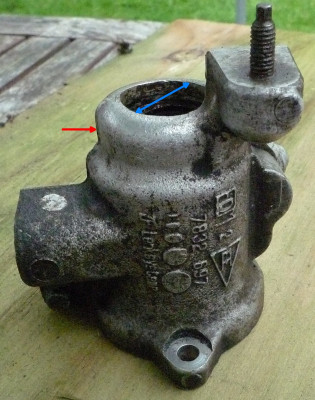

The diameter at the red arrow is 40mm. The internal diameter where the dust seal sits (blue arrow) is a good old fashioned inch.
Housing diameters - own work
Housing diameters - own work
