Dispatch starter removal

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Peter.N.
Moderating Team
Posts: 11533
Joined: 02 Apr 2005, 16:11
x 1188

Re: Dispatch starter removal

Post by Peter.N. »

Try running a lead from the battery+ and touching it on the small terminal of the starter (6) if the starter turns OK the fault is in the ignition system, if not its the starter or wiring to.

Peter
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
x 21

Re: Dispatch starter removal

Post by RPWC »

Thanks Marc, its going to auto electrician tomorrow night so he van test on Wednesday morning with fault present, working in dark otherwise. Will update once I have news. Might not be until weekend tjough, as I'm away from Weds night til Friday.
Cheers Rich :wink:
RichardW
Forum Treasurer
Posts: 10735
Joined: 07 Aug 2002, 17:12
x 963

Re: Dispatch starter removal

Post by RichardW »

The 1.6 HDi starters seem to be a bit weak, and eventually start to fail to turn when energised. The one on my 307 was like that, worse when it was hot. It usually went after a few tries - most I ever had was about 10 goes to get it to crank. Changing it, however :rofl2: I had 3 goes and failed to get it out. The bottom bolt is easy enough. The top gearbox side bolt is only visible with a mirror, but not too hard to undo with a wobble bar. The nut on the cable bracket is not visible, but can be undone by feel from underneath. The top engine side bolt is :twisted: you can just touch it over the starter, it is in no way visible. There is not enough room to get on it directly due to the wiring duct that runs down right over the starter. There is just about enough room to slide in an extension with the appropriate (allen) bit on the end, but it needs to be exactly the right length to put the ratchet head just at the rear of the solenoid, otherwise it fouls on the wiring again. I didn't have the right length extension so failed. I had found at the end that there was just enough room to reach in past the exhaust over the subframe to put your hand nearly in the right place to guide the bit into the bolt, but you need long arms to operate the ratchet as well!!
Richard W
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
x 21

Re: Dispatch starter removal

Post by RPWC »

That sounds like s garage job to me Richard, they hsve tje lift, the tools and the experience, so if it turns out to be the starter, will get my garage to do it
Cheers Rich :wink:
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
x 21

Re: Dispatch starter removal

Post by RPWC »

Peter.N. wrote: 11 Jun 2018, 10:41 Try running a lead from the battery+ and touching it on the small terminal of the starter (6) if the starter turns OK the fault is in the ignition system, if not its the starter or wiring to.

Peter

I will do that tomorrow after trying to start it
Cheers Rich :wink:
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
x 21

Re: Dispatch starter removal

Post by RPWC »

This morning I could hear a faint clunk when key turned, put it in reverse let handbrake ofc and it rolled back a couple of inches turning engine slightly in the process. Turned key again and it started.
Cheers Rich :wink:
Peter.N.
Moderating Team
Posts: 11533
Joined: 02 Apr 2005, 16:11
x 1188

Re: Dispatch starter removal

Post by Peter.N. »

Sounds like either a weak starter or weak battery. Check the battery voltage with the starter turning, should be 9 volts+.

Peter
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
x 21

Re: Dispatch starter removal

Post by RPWC »

Battery has beem checked its definitely starter related.
Cheers Rich :wink:
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
x 21

Re: Dispatch starter removal

Post by RPWC »

UPDATE. Van was left at auto electrician last night, checked out this morning, and it is the under bonnet fuse box that’s at fault. A common problem apparently.
Cheers Rich :wink:
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 13:46
x 1752

Re: Dispatch starter removal

Post by white exec »

Blown fuse, or burned-out connection?
Chris
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
x 21

Re: Dispatch starter removal

Post by RPWC »

Fuse box itself, has corrosion in it delamination of board..
part no 9666700280 anyone got one?
Cheers Rich :wink:
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36330
Joined: 15 Sep 2015, 19:38
x 5483

Re: Dispatch starter removal

Post by GiveMeABreak »

Rich, I would be a bit wary over that fuse box - I'm wondering if it is the right one as that part number does not come up at all for your VIN - and is not shown as any of the parts for that vehicle! I'm wondering if an incorrect fuse box has been sourced before??

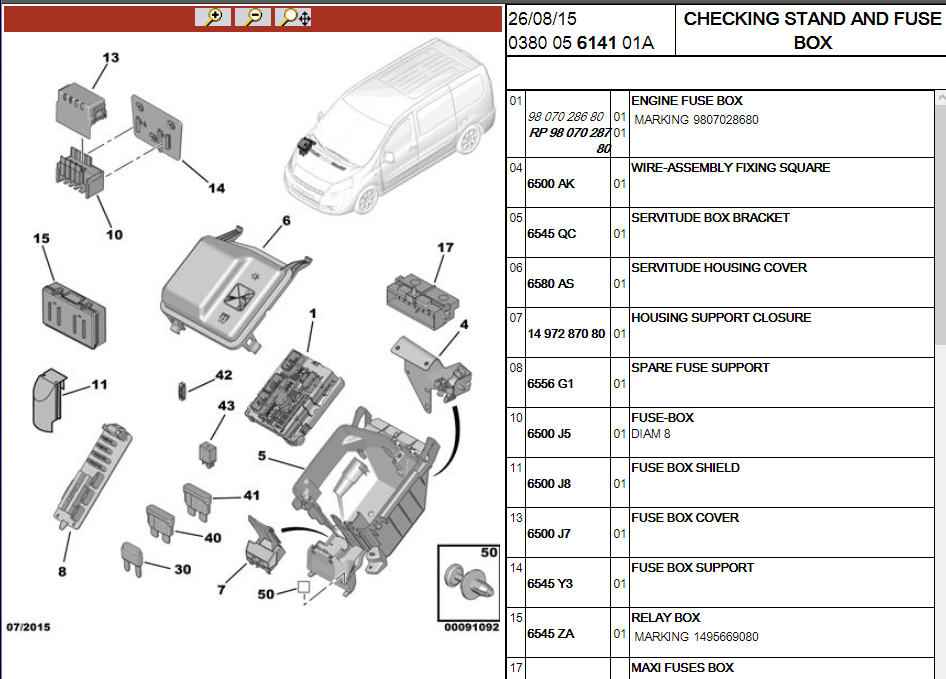

Here is the part numbers for your VIN:
Click Diagram to Zoom
Rich Fuse Box.PNG
So you need part number: 9807028680, or the replacement part: 9807028780 if it is indeed Item 1 - Engine Fuse Box.
https://www.ebay.com/itm/GENUINE-CITROE ... Swa-dWrHI9
https://www.ebay.co.uk/itm/CITROEN-BERL ... 3143681919
Please Don't PM Me For Technical Help

Marc
RichardW
Forum Treasurer
Posts: 10735
Joined: 07 Aug 2002, 17:12
x 963

Re: Dispatch starter removal

Post by RichardW »

Confusingly the early fuse boxes have a different number on them than the Citroen part number (which is not on the board anywhere!). If you buy a S/H one, then best to go off the number that is actually on the board. Unfortunately that is one of the expensive ones at nearly £220 so SH is going to be your friend I think. Looks in those links that the later one does have the same number on it as the Cit part number....!
Richard W
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36330
Joined: 15 Sep 2015, 19:38
x 5483

Re: Dispatch starter removal

Post by GiveMeABreak »

That's why I thought it might be from another vehicle, possibly having already been replaced once before. :-k
Please Don't PM Me For Technical Help

Marc
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
x 21

Re: Dispatch starter removal

Post by RPWC »

Marc, I was going to ask that, the local Citroen dealer said the same, that part number does not correspond to anything, they also quoted the part number you have. All the fuse boxes look the same, exactly, dare I get one bearing a different number or not? None of the breakers I have tried have any , been on parts gateway, breaker link, and others, no one has any. I would be most obliged if someone could give me contact details for Pug?Citroen breakers in their area, can always ask them to post if the right number comes up. My local French breaker told me the part number should begin 96, but the dealer said the one ending 680
Cheers Rich :wink:
