Dispatch starter removal

Post by RPWC »

Further to my last post on thread “ battery going flat,if I do need to change the starter , how hard is it? Looks a right p I t a, as can only see one bolt, how many are there?
Cheers Rich :wink:
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Dispatch starter removal

Post by RPWC »

Anyone done this before?
Cheers Rich :wink:
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Dispatch starter removal

Post by RPWC »

So can nobody answer this question for me then? It’s a 20101.6 his
Cheers Rich :wink:
Online
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Dispatch starter removal

Post by Hell Razor5543 »

Give it a little time. People may be away for the weekend. I am not able to help you myself, as I have not used a Dispatch.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
bobins
Donor 2023
Posts: 5697
Joined: 05 Jul 2012, 18:07
Location: Midhurst, West Sussex
My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5
x 2871

Re: Dispatch starter removal

Post by bobins »

I don't know if this is the same as your 1.6Hdi, but Citroen list about an hour and a quarter to remove and refit.
1.6 Dispatch starter - PSA, fair use
1.6 Dispatch starter - PSA, fair use
Sadly no longer a C5 owner :(
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Dispatch starter removal

Post by RPWC »

Thanks for that, looks the same, and this morning it wouldn’t start first time, holding the key and turning ignition off and on a few times got it going, so it looks like the starter or solenoid is knackered, , going to try and get it done at the garage, as I need it for long trip on Wednesday ,and can’t risk taking it if it’s not going to start . Need to be somewhere by 9 am Thursday. Does it sound like lazy starter or starter switc to you?
Cheers Rich :wink:
Online
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: Dispatch starter removal

Post by Hell Razor5543 »

I had to replace the starter motor om my C5. I got a Bosch reconditioned motor from GSF for around £120, but I got back around half of that when I returned the old motor in the packaging. The problem with mine was that it was getting slower and taking longer to start. When I fired up the new one I thought the whole car would turn over, it spun up that fast! :D
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
Kerek85
Posts: 25
Joined: 15 Apr 2018, 23:04
Location: United Kingdom
My Cars: C3 Pluriel
C6 lignage
Mondeo v6
Fabia 1.6 cr
Mercedes E220
Xantia activa
x 1

Re: Dispatch starter removal

Post by Kerek85 »

Hiya.

Is yours a 1.6 hdi?
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Dispatch starter removal

Post by RPWC »

Kerek85 wrote: 10 Jun 2018, 20:31 Hiya.

Is yours a 1.6 hdi?
It is mate yes.
Cheers Rich :wink:
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Dispatch starter removal

Post by white exec »

Not unknown for IGN switches themselves to fail to connect, and intermittently.
Worth checking there's voltage on the switch-to-starter cable when key is turned to crank?
Chris
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Dispatch starter removal

Post by RPWC »

Going to auto electrician tomorrow , so will ask him to check it.
Cheers Rich :wink:
Kerek85
Posts: 25
Joined: 15 Apr 2018, 23:04
Location: United Kingdom
My Cars: C3 Pluriel
C6 lignage
Mondeo v6
Fabia 1.6 cr
Mercedes E220
Xantia activa
x 1

Re: Dispatch starter removal

Post by Kerek85 »

Starters aren't too bad on then. Fiddley.

Get bettery and battery box out, some air piping for top bolt. Bottom two arent so bad, wiring is easy.

It can come out without taking any exhaust stuff off, shoehorn it out the drivers side of the exhaust pipe gap near the bottom engine mount.

Only go for a good starter, don't want issues when pitting them back in. Leave bottom two bolts undone before putting top in.

Not a bad job when you've done a few. Remeber first time i was most irritated how mich stuff was in the way etc.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Dispatch starter removal

Post by GiveMeABreak »

Ok, let's try Starter this time and not Alternator (it was a long day) :-D

So wait 15 minutes before disconnecting battery so ECUs can memorise data.
  • Disconnect the battery.
  • Place the vehicle on a lift.
  • Remove the under engine protection.

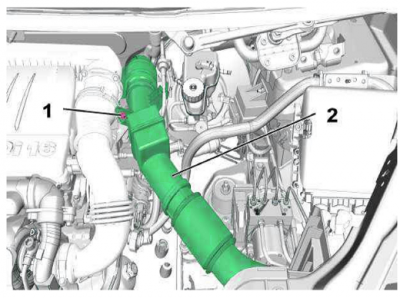

Rich Starter A.PNG
Rich Starter B.PNG
Remove:
  • The (1) bolt
  • The air duct (2)
Remove bolts (3).
Rich Starter C.PNG

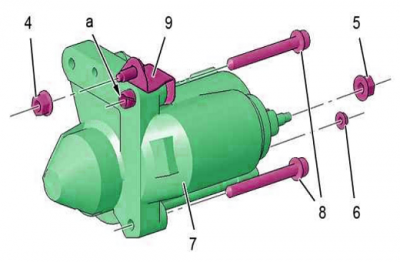

Rich Starter D.PNG
  • Remove the nuts (5) and (6).
  • Unscrew nut (4) (if necessary).
  • Move aside the starter electrical harness .
Remove:
  • The 2 bolts (8)
  • The starter motor (7)
  • Move aside the electrical harness (9) support.
Refitting

Note: Check that the centring pin is present (at "a").

Refit:
  • The starter motor (7)
  • The electrical harness support (9)
  • The 2 bolts (8) ; Tighten to 2 ± 0,3 daN.m
  • The starter electrical harness
  • The nut (5) ; Tighten to 1 ± 0,2 daN.m
  • The nut (6) ; Tighten to 0,5 ± 0,1 daN.m
  • The nut (4)
Proceed in the reverse order to removal.
  • Tighten the bolt (8) to 2 ± 0,3 daN.m.
    Refit the under-engine protection.
There you go! :-D
Please Don't PM Me For Technical Help

Marc
RPWC
Posts: 329
Joined: 27 Sep 2015, 12:06
Location: Tyneside
My Cars: Former Citroen owner.
x 21

Re: Dispatch starter removal

Post by RPWC »

Marc, that’s for the alternator lol, it’s the starter I want to remove. :-D
Cheers Rich :wink:
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Dispatch starter removal

Post by GiveMeABreak »

:rofl2: Oh, what a top hat! I think I had alternators on the brain from helping somebody else recently and lost the plot there!

I’ll sort that shortly and update that previous post!
