Glovebox removal access blower resistor pack

Post by crapday69 »

Hi I'm Gary and this is my first post.

My problem is that my heater fan just stopped working. It might be the resistor pack or just loose or burnt wires, but I cant get to it as I can remove the glovebox. I have removed all the screws in the glovebox, front screws, the hidden ones at the front inside top and the one inside middle, the 3 at the bottom under the door. I cant see anymore but the glovebox is still stuck solid, I don't want to force it as it might break something. any advice as towhead I'm doing wrong and if this will help give access to the heater blower terminals.

Gary.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Glovebox removal access blower resister pack

Post by GiveMeABreak »

Hi and welcome to the Forum Gary. There are a few more steps to follow - but you'll need to disconnect the battery and leave the car for 10 minutes or so as you'll have to remove the passenger Airbag Switch.
  • Make sure you have removed the light lens and connector
    X7 Glove A.PNG

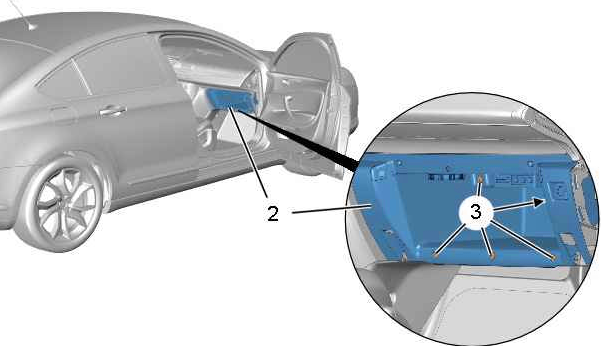

  • Remove the 5 bolts shown at (3):
    X7 Glove B.PNG
  • Remove the bolts at (4) & (5):
    X7 Glove C.PNG
  • Unclip the glovebox at (b) and remove in the direction of the arrow
    X7 Glove D.PNG
  • Next turn the Ram a quarter turn following the arrow (note will probably be anti-clockwise for the left hand side). Then remove the ram.
    X7 Glove E.PNG

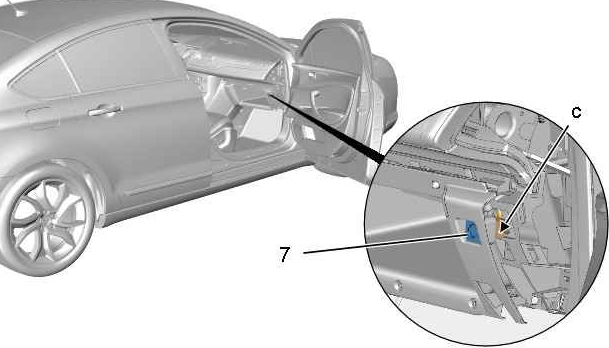

  • Disconnect the Passenger disconnection airbag switch.
    X7 Glove F.PNG
  • Disconnect the connector at (d) and the harness at (e), then remove the glovebox.
    X7 Glove G.PNG
Please Don't PM Me For Technical Help

Marc
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: Glovebox removal access blower resister pack

Post by EDC5 »

As someone who has removed and (eventually) replaced the glovebox I'd just like to point out that although useful, the screws are in different places on the RHD model, don’t let that confuse you.
Also be prepared for some acrobatics when trying to put it back and reattaching the cold air feed tube too! I distinctly remember being upside down before I’d finished with it.

Good luck :)
crapday69
(Donor 2017)
Posts: 278
Joined: 31 Oct 2017, 15:52
Location: Glasgow
My Cars: Citroen C5 Tourer 1.6 eHDi VTR+NAV
x 59

Re: Glovebox removal access blower resister pack

Post by crapday69 »

Thanks for the pics GMAB and @ EDC5 i'm going to the physio tonight lol so I don't think i'll be attempting this till my back is better then lol. Do I really need to remove the GB to access the blower resister pack?

Thanks again will be using the forum more and hopefully helping as well as getting help.


Gary.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Glovebox removal access blower resister pack

Post by GiveMeABreak »

Gary, Post up your VIN or PM me and you can clarify which part it is you need to replace - depending on your climate control unit (mono / dual). I can help you with a diagram once you know which part it is. What is the actual issue with the heater?

On the Right hand drive vehicles you gain access from the passenger compartment - but I've replaced the Pollen / Charcoal filter without taking the glovebox off. This is where it is located 0 item (2).
X7 Heating Resistance.PNG
The 'Criss cross grid you can see to the left is the cabin filter cover which you can get to easily enough (legs upside down mind)!

Unclip the connector (a). The earth bolt is (3) and there is another bolt at (2)
Please Don't PM Me For Technical Help

Marc
crapday69
(Donor 2017)
Posts: 278
Joined: 31 Oct 2017, 15:52
Location: Glasgow
My Cars: Citroen C5 Tourer 1.6 eHDi VTR+NAV
x 59

Re: Glovebox removal access blower resister pack

Post by crapday69 »

Ill get you the VIN soon. Its the dual climate control and I did change the pollen filter in the summer without taking the glovebox off. So I might not need to take it out then, heres hoping.

Gary.
Gibbo2286
(Donor 2020)
Posts: 7168
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Glovebox removal access blower resistor pack

Post by Gibbo2286 »

Some will recall I had this no fan problem on my C5 earlier on this year and it turned out to be not the resistor but the under bonnet fuse box that was damaged by corrosion and heat.

There's a thread on here about it somewhere with pictures if anyone knows how to find them.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
crapday69
(Donor 2017)
Posts: 278
Joined: 31 Oct 2017, 15:52
Location: Glasgow
My Cars: Citroen C5 Tourer 1.6 eHDi VTR+NAV
x 59

Re: Glovebox removal access blower resistor pack

Post by crapday69 »

Why is it when Mike Brewster buys a car with a problem, it never seems to be too serious lol.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Glovebox removal access blower resistor pack

Post by GiveMeABreak »

Because he had Ed China to do all the hard work while he just spent the money and moaned all the time! - But not anymore....
Please Don't PM Me For Technical Help

Marc
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Glovebox removal access blower resistor pack

Post by Paul-R »

I also had a problem with the heater blower stopping working on my X7 earlier this year. I went to all the trouble of pricing replacement new and reconditioned control packs and then found that it must have been an iffy connection.

I removed the unit and then, just on the off chance as it looked OK, decided to give it one more try. So, just try removing the electrical plug and reconnecting it. I also gave the connectors a spray of electrical contact cleaner (not WD40) as well.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
crapday69
(Donor 2017)
Posts: 278
Joined: 31 Oct 2017, 15:52
Location: Glasgow
My Cars: Citroen C5 Tourer 1.6 eHDi VTR+NAV
x 59

Re: Glovebox removal access blower resistor pack

Post by crapday69 »

Hi Marc, i've PM'd you my VIN.

Had a look at the wiring and it all looks ok. Unclipped the connection and reconnected it with a little jiggle.

All the controls light up as normal just no movement at any speed.

I.m sure I smelt a light burning smell on my way home from picking the car up, this was at the same time I noticed the blower was not working. I was involved in a side impact (other drivers fault) so the car was in getting its estimate. It must have been sitting for a couple of weeks without use. Don't know if that makes any difference. Looks like I might have to take it to garage as I really need the car before the 20th November.


Gary.
Online
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36991
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Glovebox removal access blower resistor pack

Post by GiveMeABreak »

I've not received your PM, but below is the heater detail showing the parts. Are you sure it is the heating resistance? There is also the heater motor control module shown at (10). If you've had a burning smell, then something surely isn't right - but I would want to know the cause first of all. Anyway here are all the components for a Bi-Zone Climate Control Model.
X7 Heater Detail Stop Start.PNG
Edit: Updated the Parts Diagram in light of VIN
(You have the dreaded Stop Start model Gary!
Please Don't PM Me For Technical Help

Marc
crapday69
(Donor 2017)
Posts: 278
Joined: 31 Oct 2017, 15:52
Location: Glasgow
My Cars: Citroen C5 Tourer 1.6 eHDi VTR+NAV
x 59

Re: Glovebox removal access blower resistor pack

Post by crapday69 »

VF7**************[VIN obfuscated, can be read by forum staff]******* my VIN number Marc and thanks.
Last edited by GiveMeABreak on 02 Nov 2017, 11:51, edited 1 time in total.
Reason: VIN Masked
crapday69
(Donor 2017)
Posts: 278
Joined: 31 Oct 2017, 15:52
Location: Glasgow
My Cars: Citroen C5 Tourer 1.6 eHDi VTR+NAV
x 59

Re: Glovebox removal access blower resistor pack

Post by crapday69 »

I see number 10 is the heater motor control module, but there are now arrows pointing to where it goes in the diagram. Sorry if I am being thick here.

Gary.
crapday69
(Donor 2017)
Posts: 278
Joined: 31 Oct 2017, 15:52
Location: Glasgow
My Cars: Citroen C5 Tourer 1.6 eHDi VTR+NAV
x 59

Re: Glovebox removal access blower resistor pack

Post by crapday69 »

Ive never had any problems with the stop/start, don't tell me I'm in for some problems with it lol. Its done nearly 90k miles and this is the first problem i've had with her in the 2 years i've been the owner.
