C5 Mk 1 front suspension issue

Post by tontonjon »

Hello everyone!

I have an issue with the front suspension of my Mk1 (2003) C5. It sinks, relatively quickly, to bump stops upon power down. The pump is fine, no external leaks, good ride apart from too much rolling: in short, nothing much externally to suggest what the problem is.

Turning to inside the system, my local garage cannot get any error readings from the suspension (which might mean they can't communicate with the suspension part of the ECU of course) and the height sensor switches are in good condition (externally), connected and with clean contacts.

So far the only suggestion that seems possible is a sticking needle valve in the pump due to contaminents, which happened to someone else and was rectified by pulling the pump apart and cleaning out the valves! However, the issue occurs when the power goes off, either when the car is locked or when the doors are shut and the car goes into powered-down mode (not as long as economy mode, by the way). So it seems to be an electrical rather than a mechanical fault.

My first instinct is to try a new height sensor switch just to see if there's a dodgy signal being sent (or none at all): the reason I am thinking that this might be the issue is that when the car began to sink I also noticed a deterioration in ride quality and handling. There was more body roll and drift, although I am getting used to this now it was a bit off putting at first. My mechanic is sceptical, but can't offer an alternative solution!

Other suggestions have been to do with flat spheres (no, there is good bounce still), a defective accumulator sphere (which I didn't know the car even had), or an ECU fault. I was wondering if it was because I "accidentally" depressurised the system by opening the cap on the reservoir to see if there was enough fluid inside (since I couldn't see from the outside!!!). Luckily I heard the hiss before any fluid came out!

What would help is to know if anyone else has had this issue or knows more about the system than me. I need to have a good idea of what it might be, where the components causing the problem are situated and where to get spares. I realise this may be easier with a Lexia rather than the standard diagnostics computers, or in person poking around, of course.

Any ideas? Please?

Jonathan
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 Mk 1 front suspension issue

Post by GiveMeABreak »

It won't have an accumulator sphere unless it is Hydractive 3 +. On the earlier C5s there was one at the centre front and one centre rear on Hydractive 3+ models -only.

You can't depressurise the system by opening the LDS cap. To check levels, see here:
viewtopic.php?f=3&t=58546&hilit=between ... +b#p549667
and in case it has a little air in the system:
viewtopic.php?f=3&t=58546&hilit=between ... +b#p550675
Please Don't PM Me For Technical Help

Marc
lexi
(Donor 2020)
Posts: 2803
Joined: 17 Apr 2008, 17:51
Location: Scotland
My Cars:
x 138

Re: C5 Mk 1 front suspension issue

Post by lexi »

Probably worth a check is the height switch. They are prone to drinks and the like spilling on them. The mark 1 2.2 has the 3+ system but 2.0 hdi basic only has 4 spheres of course.
Citroen C5 1.6 HDI 110bhp Estate 06 plate

French Mistresses gone.
Citroen C5 HDI Mk 1 hatchback
Vel Satis 3.5 v6
ZX 1.9D Est.
ZX 1.9DHatch
Xantia 1.9td est.
Xantia 2.0 hdi Est.
Xantia V6 MK1
Xantia V6 MK 2
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: C5 Mk 1 front suspension issue

Post by wheeler »

GiveMeABreak wrote: 07 Oct 2017, 16:05 It won't have an accumulator sphere unless it is Hydractive 3 +. On the earlier C5s there was one at the centre front and one centre rear on Hydractive 3+ models -only.

No C5's have accumulator spheres. The extra spheres on the 3+ models are for the stiffness regulators.
User avatar
tontonjon
Posts: 79
Joined: 25 Dec 2014, 19:28
Location: South West UK
My Cars: Deep Purple Mk2 Cactus manual and Emerald Blue Mk2 Cactus automatic
Used to own 1970 DSuper and 2003 C5
x 7

Re: C5 Mk 1 front suspension issue

Post by tontonjon »

There is an accumulator sphere listed in the diagram I have been given, that "evens out the pressure pulsations of the pump". I wonder if the person who wrote it had all the facts.

I had a similar issue with the DSuper I used to own. When I was a novice, I was replacing all the spheres and I searched and searched for the accumulator, using the DS manual to guide me. There was, of course, no sign of it as the ID system didn't have them.
User avatar
tontonjon
Posts: 79
Joined: 25 Dec 2014, 19:28
Location: South West UK
My Cars: Deep Purple Mk2 Cactus manual and Emerald Blue Mk2 Cactus automatic
Used to own 1970 DSuper and 2003 C5
x 7

Re: C5 Mk 1 front suspension issue

Post by tontonjon »

lexi wrote: 07 Oct 2017, 21:34 Probably worth a check is the height switch. They are prone to drinks and the like spilling on them. The mark 1 2.2 has the 3+ system but 2.0 hdi basic only has 4 spheres of course.


Nothing spilt on mine, I can assure you!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 Mk 1 front suspension issue

Post by GiveMeABreak »

wheeler wrote: 07 Oct 2017, 21:49No C5's have accumulator spheres. The extra spheres on the 3+ models are for the stiffness regulators.
C5s do have accumulator spheres actually Wheeler and are officially referred to as such:

The suspension accumulators (12 & 14) on H3+ are clearly shown. The firmness regulator (13) is a separate component and controls them.

This is for the C5 X7 rear as an example, but the same applies on the earlier models, except that there is only a single accumulator sphere at the rear.

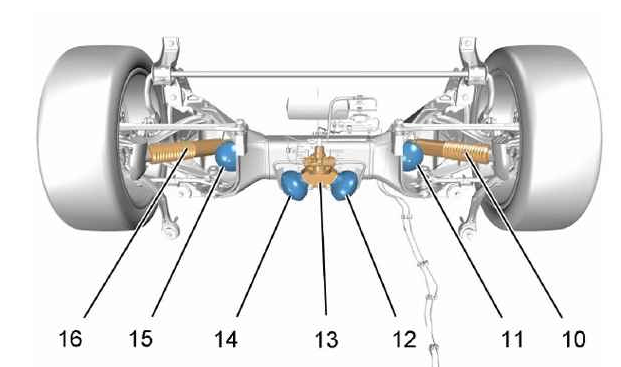

X7 Rear Susp Diag.PNG
(10) Rear suspension cylinder (right).
(11) Rear suspension sphere (right).
(12) Rear stiffener regulator accumulator (right).
(13) Rear firmness regulator.
(14) Rear stiffener regulator accumulator (left).
(15) Rear suspension sphere (left).
(16) Rear suspension cylinder (left).

And a close up:
The suspension accumulators (16)
The firmness regulator (17) with its support (14)


The same is for the Front, with the exception that there is a single accumulator.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 Mk 1 front suspension issue

Post by GiveMeABreak »

tontonjon wrote: 07 Oct 2017, 21:56 There is an accumulator sphere listed in the diagram I have been given, that "evens out the pressure pulsations of the pump". I wonder if the person who wrote it had all the facts.

I had a similar issue with the DSuper I used to own. When I was a novice, I was replacing all the spheres and I searched and searched for the accumulator, using the DS manual to guide me. There was, of course, no sign of it as the ID system didn't have them.


Yes the diagram will likely be correct - but should only refer to H3+ models - not the standard C5 MK I & II with 4 corner spheres. Some people get confused between them and the technology.
If you want to know what you have post or PM your VIN and I'll clarify your system.
Please Don't PM Me For Technical Help

Marc
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: C5 Mk 1 front suspension issue

Post by wheeler »

tontonjon wrote: 07 Oct 2017, 21:56 There is an accumulator sphere listed in the diagram I have been given, that "evens out the pressure pulsations of the pump". I wonder if the person who wrote it had all the facts.

There is a small 'accumulator sphere' inside the BHI for evening out the pump pulsations. Its more of a little damper & not regarded as a replaceable part, you cant see it, its inside the BHI. It's neither an accumulator or a sphere.

They may be labelled as accumulator spheres, as far as I'm concerned they are not accumulators. Surely an accumulator sphere by definition is for holding a reserve of pressure.
They hydractive 3+ manual for the mk1 makes no reference to an accumulator sphere (with the exception of the membrane pulse damper inside the BHI).
The manual refers to it as Suspension sphere of the stiffness regulator

17 Suspension sphere of the stiffness regulator
21 Rear suspension sphere
22 Hydractive 3+ regulator
23 Rear height sensor


Also looking at the presentation manual for the X7 it even refers to the spheres on the front cylinders as accumulators
Attachments
C5 front.jpg
Last edited by wheeler on 08 Oct 2017, 15:16, edited 1 time in total.
Online
Hell Razor5543
Donor 2023
Posts: 13727
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk2 VTX+ estate.
x 2993

Re: C5 Mk 1 front suspension issue

Post by Hell Razor5543 »

A simple way to check what type of suspension system you have is to look at the control buttons. If you have two (up and down) it is H3, but if there is a third (sport) it is H3+. However, the VIN search will completely clarify the setup.
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX
Ex C5 2.0HDi VTR
Ex C5 2.0HDi VTR

C5 2.2HDi VTX+
Yes, I am paranoid, but am I paranoid ENOUGH?
Out amongst the stars, looking for a world of my own!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 Mk 1 front suspension issue

Post by GiveMeABreak »

wheeler wrote: 08 Oct 2017, 15:00 They may be labelled as accumulator spheres, as far as I'm concerned they are not accumulators. Surely an accumulator sphere by definition is for holding a reserve of pressure.
They hydractive 3+ manual for the mk1 makes no reference to an accumulator sphere (with the exception of the membrane pulse damper inside the BHI).

Sorry, but document B3BB1BP0 on the Mark I makes the same reference in the procedures, so I'm leaving it there and stand by what I've said. :)
Please Don't PM Me For Technical Help

Marc
User avatar
tontonjon
Posts: 79
Joined: 25 Dec 2014, 19:28
Location: South West UK
My Cars: Deep Purple Mk2 Cactus manual and Emerald Blue Mk2 Cactus automatic
Used to own 1970 DSuper and 2003 C5
x 7

Re: C5 Mk 1 front suspension issue

Post by tontonjon »

Thank you all.

Yes, it's a Mk1 C5 Hydractive 3. But it's still going down at the front, accumulator spheres or not!

If I may refer to my first post, does anyone know why this might be and what needs to be done to rectify it? So far, all I have is that a valve in the pump is probably stuck and I need to get the pump cleaned. I'm hoping it's simpler than that, though.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 Mk 1 front suspension issue

Post by GiveMeABreak »

Have a look at the diagram. The anti-sink function is provided by the front and rear exhaust electrovalves. So it is possible that the front exhaust electrovalve is malfunctioning. Number 37 refers to 2 front and rear inlet electrovalves and also the 2 front and rear exhaust valves.

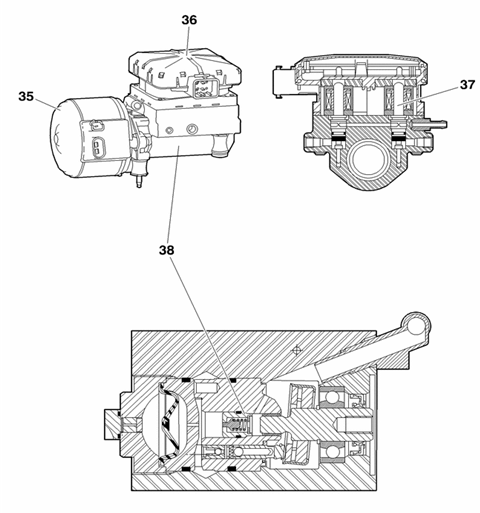

C5 MK I Electrovalves.PNG
So a good clean up of the electrical connector the the BHI might be in order in case this is contaminated. (but don't get underneath with the vehicle unless it is independently supported).
Please Don't PM Me For Technical Help

Marc
User avatar
tontonjon
Posts: 79
Joined: 25 Dec 2014, 19:28
Location: South West UK
My Cars: Deep Purple Mk2 Cactus manual and Emerald Blue Mk2 Cactus automatic
Used to own 1970 DSuper and 2003 C5
x 7

Re: C5 Mk 1 front suspension issue

Post by tontonjon »

Marc,

OK, I'll add that to the list.

In the meantime, the mechanic has told me that both front suspension struts are leaking. I had a look at the post on the C5 X7 strut replacement, but I've got a Mk1 (2004) C5 and the suspension units for my car seem to be supplied in two pieces - the strut and the top section that bolts on to the body. The X7 strut is one piece, which seems to me to be much easier!

The issue is now that I have to pay a small fortune for replacements. The cheapest is not an option as the supplier only has the left one. The other suppliers struts cost over £300 each and I need to keep the cost down as much as I can. EDC5 said that he got his from Germany: I'm struggling to find the supplier.

Can anyone help? I'd like to get this done ASAP so I can forget about the car for a while! It's either that or I replace it - and I don't want to have to do that just yet!

Jonathan
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 Mk 1 front suspension issue

Post by GiveMeABreak »

Before you suspect the worst, are you sure they are leaking struts or just weeping? On your car the LDS return fluid pipes might be worn or split and may just need checking and cutting and re-attaching if there is sufficient length. Here's a video of a repair:
