Re: C5 X7 2-in-1 navigation tutorial
But these config files are some files which have to pe uploaded via Diagbox into bsi for example or just instructions in order to see what we have to configure manually?
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 X7 2-in-1 navigation tutorial
They are the list of parameters that need changing in the relevant sections, depending on the presence / absence of equipment / options.
Please Don't PM Me For Technical Help
Marc
Marc
- EDC5
- (Donor 2020)
- Posts: 1216
- Joined: 01 Jul 2017, 21:48
- Location: N. Wales
- My Cars: Citroen C5 RHR AM6
- x 120
Re: C5 X7 2-in-1 navigation tutorial
Sorry if I'm missing something here.
On some RD4 cars, the USB is connected to the radio via the Nomad box, this box acts as a virtual CD changer and therefore connects to the CD changer part of the Quadlok. I assume the RT6 has it's own USB controller on board therefore a different USB socket is required that connects directly to the RT6.
Unless you have and actual 6 CD changer, nothing should be in the part C of the RT6.
On some RD4 cars, the USB is connected to the radio via the Nomad box, this box acts as a virtual CD changer and therefore connects to the CD changer part of the Quadlok. I assume the RT6 has it's own USB controller on board therefore a different USB socket is required that connects directly to the RT6.
Unless you have and actual 6 CD changer, nothing should be in the part C of the RT6.
-
- Posts: 82
- Joined: 27 Sep 2017, 13:30
- Location: Iasi, Romania
- My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP
Re: C5 X7 2-in-1 navigation tutorial
Where is this Nomad Box? Perhaps the cable from my hand rest USB port is plugged in into that box. If I can find it, I can unplug the grey conector and plug it into RT6 directly.
- EDC5
- (Donor 2020)
- Posts: 1216
- Joined: 01 Jul 2017, 21:48
- Location: N. Wales
- My Cars: Citroen C5 RHR AM6
- x 120
Re: C5 X7 2-in-1 navigation tutorial
Is it under your gear stick lever console?
-
- Posts: 82
- Joined: 27 Sep 2017, 13:30
- Location: Iasi, Romania
- My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP
Re: C5 X7 2-in-1 navigation tutorial
As you can see here,
http://m.aliexpress.com/item-desc/2041304339.html
This USB Port has one cable,probably like mine. One side is plugged into USB Port, the second into......... where?
http://m.aliexpress.com/item-desc/2041304339.html
This USB Port has one cable,probably like mine. One side is plugged into USB Port, the second into......... where?
-
- Posts: 490
- Joined: 05 Feb 2012, 15:51
- Location: Finland
- My Cars: Now:
C5 X7 HDi 240 Exclusive Tourer
ZOE 22kwh Intense
Before:
C4 1,6 Coupe Automatic
C5 X7 HDi136 Exclusive Sedan A
Xantia HDi110 Berline
Xantia 1,8SX Berline - x 28
Re: C5 X7 2-in-1 navigation tutorial
Second plugs directly into RT6! I would just buy that set and replace your existing usb plug with that and connect it directly RT6. No need to worry about location of that nomad-box.
-
- Posts: 82
- Joined: 27 Sep 2017, 13:30
- Location: Iasi, Romania
- My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP
Re: C5 X7 2-in-1 navigation tutorial
Xantippa, but what if my existing one has a connector somewhere which is plugged in using the same grey connector? It is not much more simple to unplug this and put it into RT6? This is what I am willing to find, where is my USB port cable behind going...
-
- Posts: 490
- Joined: 05 Feb 2012, 15:51
- Location: Finland
- My Cars: Now:
C5 X7 HDi 240 Exclusive Tourer
ZOE 22kwh Intense
Before:
C4 1,6 Coupe Automatic
C5 X7 HDi136 Exclusive Sedan A
Xantia HDi110 Berline
Xantia 1,8SX Berline - x 28
Re: C5 X7 2-in-1 navigation tutorial
I think that nomad-box was workaround to get usb- and bluetooth support for RD4 and that's why it connects differently. So you cannot connect RD4 usb and RT6 usb same way.
-
- Posts: 82
- Joined: 27 Sep 2017, 13:30
- Location: Iasi, Romania
- My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP
Re: C5 X7 2-in-1 navigation tutorial
But I am interested just in find out where is this nomad box where my USB port cable is going..
-
- Posts: 82
- Joined: 27 Sep 2017, 13:30
- Location: Iasi, Romania
- My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP
Re: C5 X7 2-in-1 navigation tutorial

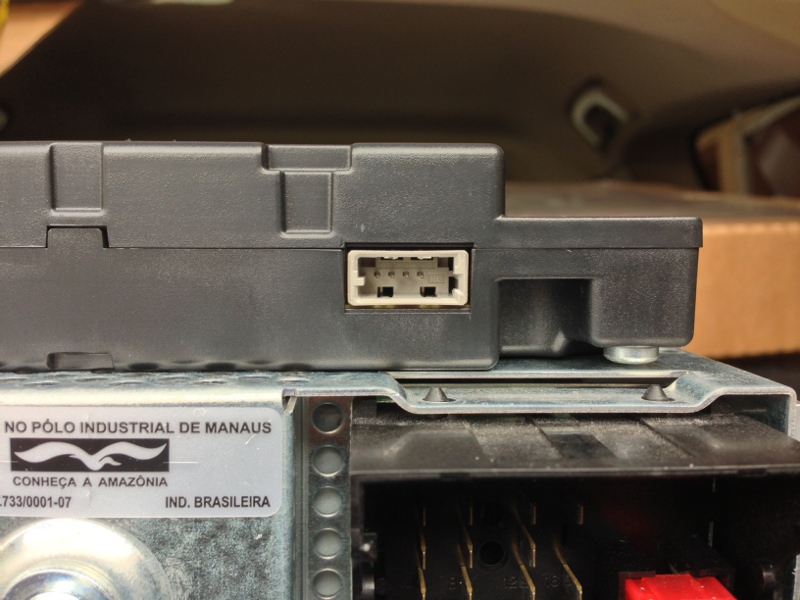

Look what I have just found. Seems that this is the nomade module. And it has two connectors, the small one is for usb and aux. what do you think, is this the same with usb connector from RT6?
-
- Posts: 82
- Joined: 27 Sep 2017, 13:30
- Location: Iasi, Romania
- My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP
Re: C5 X7 2-in-1 navigation tutorial
And for me seems these are exactly the same. So what I have to do is to find the nomade module and unplug the usb connector, and plug it into rt6. I think the same I need to do for microphone but who knows which are the two wires....and where to link them.
- EDC5
- (Donor 2020)
- Posts: 1216
- Joined: 01 Jul 2017, 21:48
- Location: N. Wales
- My Cars: Citroen C5 RHR AM6
- x 120
Re: C5 X7 2-in-1 navigation tutorial
Here is the RT6 pinout
Look for microphone, Pin 3 and Pin 9 of "CC" is the microphone, you may habe to run a new cable (I did)
Throw the Nomade box away and connect the USB socket directly to the RT6.
-
- Posts: 82
- Joined: 27 Sep 2017, 13:30
- Location: Iasi, Romania
- My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP
Re: C5 X7 2-in-1 navigation tutorial
This is what I will do but where is this box?
- GiveMeABreak
- Forum Admin Team
- Posts: 37420
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5741
Re: C5 X7 2-in-1 navigation tutorial
I’ll dig it out for tou this morning before I get on with the other job.
Well done guys, that sounds like it and makes sense. I could see from my earlier posts and diagrams that there was a aux mulimedia block, so no doubt it is this that is providing the bluetooth and the music using the CD changer wiring. I struggled to see how the USB can be wired into part C.
It would help if they used the same terminology to describe the equipment in the wiring diagrams, documents and parts!
Well done guys, that sounds like it and makes sense. I could see from my earlier posts and diagrams that there was a aux mulimedia block, so no doubt it is this that is providing the bluetooth and the music using the CD changer wiring. I struggled to see how the USB can be wired into part C.
It would help if they used the same terminology to describe the equipment in the wiring diagrams, documents and parts!
