Re: C5 X7 2-in-1 navigation tutorial

Post by GiveMeABreak »

Not quite true. Some older models of VCI could be reflashed (not by a firmware update) they need a special EEPROM coding device and software.

This is different to the normal firmware that is automatically applied to the VCI during diagbox software upgrade or downgrade. The firmware is contained in the software and done automatically.

Unless you have taken your unit apart for examination, you can’t say for sure whether it has the 10k resistor and full set uf Octocouplers.

I will send you the PSA checker software link shortly, then you can print me a screen shot and I will be able to tell what revision you have.
Please Don't PM Me For Technical Help

Marc
vlad2004v
Posts: 82
Joined: 27 Sep 2017, 13:30
Location: Iasi, Romania
My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP

Re: C5 X7 2-in-1 navigation tutorial

Post by vlad2004v »

Perfect thanks.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2-in-1 navigation tutorial

Post by GiveMeABreak »

Email Sent
Please Don't PM Me For Technical Help

Marc
vlad2004v
Posts: 82
Joined: 27 Sep 2017, 13:30
Location: Iasi, Romania
My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP

Re: C5 X7 2-in-1 navigation tutorial

Post by vlad2004v »

Thank you Marc, I have just replied you in the email.
vlad2004v
Posts: 82
Joined: 27 Sep 2017, 13:30
Location: Iasi, Romania
My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP

Re: C5 X7 2-in-1 navigation tutorial

Post by vlad2004v »

Hei Marc! Good news, it worked!

I was able to connect everywhere. And I went directly into Telematic first, install it and add the VIN, after that into BSI and set on Present: Telematic and on Absent: Radio, Display, CD Changer.

What do you think?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2-in-1 navigation tutorial

Post by GiveMeABreak »

Ok great news, just write all previous values down first - really important as some items must be set to certain values.

Try and code the RT6 in first and the screen, let it update and write the configuration file, come out and test the unit. Don't try and change too many things to start with, get the basics done first as it is easier to track what you did. ALWAYS write down any values yiou change FROM and TO, so you can undo them for troubleshooting.
Please Don't PM Me For Technical Help

Marc
vlad2004v
Posts: 82
Joined: 27 Sep 2017, 13:30
Location: Iasi, Romania
My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP

Re: C5 X7 2-in-1 navigation tutorial

Post by vlad2004v »

All what I did was to go to Telematic, manual configuration and VIN Code Write. Then the display was restarting, together with the navigation. After this, I went to BSI - Configuration - And Here I have modified the following:

Radio: Change from PRESENT to ABSENT
Display: Change from PRESENT to ABSENT
CD Changer: Change from PRESENT to ABSENT
Telematic: Change from ABSENT to PRESENT.

After that, I have saved this.

Is there everything else what needs to be done?

Thank you.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2-in-1 navigation tutorial

Post by GiveMeABreak »

Dual Tuner should be the same as your previous one.
'Multifunction Screen Option' - should be present
'Presence of a Radio RD4' - No
'Sound Alert for Parking Assistance Emitted by Switch Module Under Steering Wheel' - NO
'Audio Equipment' - ABSENT
'NaviDrive telematic unit' - Present
'Display' - Absent
'Hands Free Kit' - Yes

These are options you might come across - with the settings I think they should be according to my notes (but please record settings before changing).
Please Don't PM Me For Technical Help

Marc
vlad2004v
Posts: 82
Joined: 27 Sep 2017, 13:30
Location: Iasi, Romania
My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP

Re: C5 X7 2-in-1 navigation tutorial

Post by vlad2004v »

It seems to me that I couldn’t find these parameters that you are mentioning. Could be because I went into a different place on the menu?

My direction was Fault Read -> configuration.

Can you please show me the correct way?

And I still have to check how to Connect the USB port from hand rest to RT6. I have the connector from doner.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2-in-1 navigation tutorial

Post by GiveMeABreak »

According to 'EDC5' who has the RD45, his USB goes into the back of the RD45 (which is what I think you had) - so can't you just plug this into the RT6?
Picture in post:
viewtopic.php?t=58078&start=15#p540565

Re the configuration, this is from the BSI configuration - you have to change modes to configure it (but I can't remember now - a few years since I needed to change anything)! You can change the options from the various ECUs though.

Check if the parking sensor visual and audio display is working too.
Please Don't PM Me For Technical Help

Marc
vlad2004v
Posts: 82
Joined: 27 Sep 2017, 13:30
Location: Iasi, Romania
My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP

Re: C5 X7 2-in-1 navigation tutorial

Post by vlad2004v »

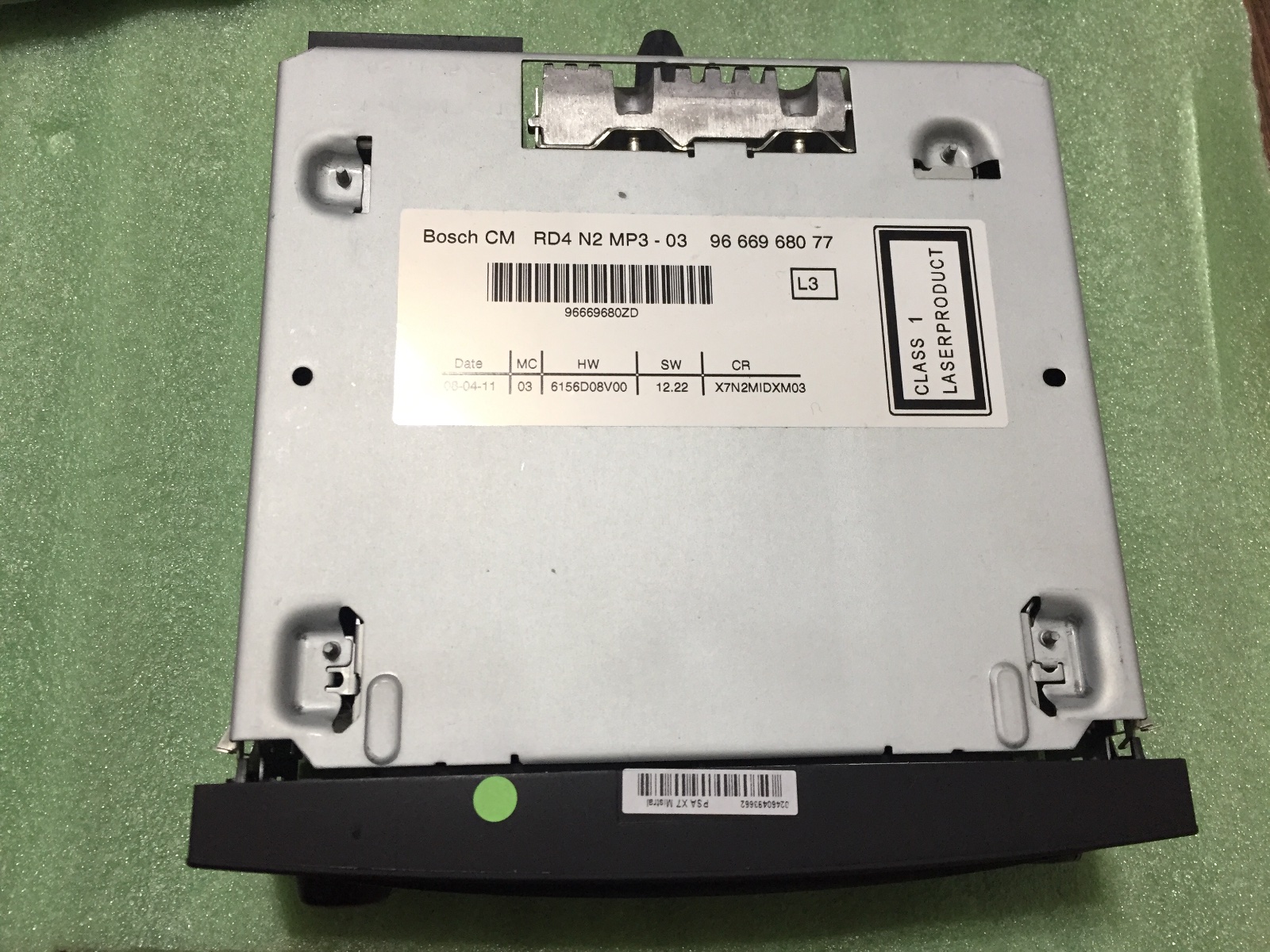

The parking sensors were working from the beginning, but regarding the usb, my unit, which was a RD4 N2 by Bosch, has not that connector. So I don’t know how my USB port from hand rest was linked to the player. In the photo it’s my old player.
Attachments
vlad2004v
Posts: 82
Joined: 27 Sep 2017, 13:30
Location: Iasi, Romania
My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP

Re: C5 X7 2-in-1 navigation tutorial

Post by vlad2004v »

And a photo from the connectors side.
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2-in-1 navigation tutorial

Post by GiveMeABreak »

Ok, can't see the back for connections, but if you say it isn't there it isn't there!

Re the parking sensors - with this system you should get the visual and audio differently - visual on large screen and audio output from the speakers - and possibly, like mine, the speakers output the sound and volume based on the obstacles rear / fron / left/ righ / middle etc. That's what I meant.
Please Don't PM Me For Technical Help

Marc
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: C5 X7 2-in-1 navigation tutorial

Post by GiveMeABreak »

Vlad - just seen you added the picture - any chance you can get a clearer shot of the quad lock pins - the big black section with a bit of light so I can see the connections clearly?
Please Don't PM Me For Technical Help

Marc
vlad2004v
Posts: 82
Joined: 27 Sep 2017, 13:30
Location: Iasi, Romania
My Cars: Citroen C5 III 2.0 HDi RHH 163 HP
Citroen C4 I 1.6 HDi 9HY 110 HP

Re: C5 X7 2-in-1 navigation tutorials-

Post by vlad2004v »

Yes, sure.
Attachments
