Dual Climate control one side hot the other cold

Post by Gazzaman22 »

Hi Guys

I'm new here.
So apologies if i'm doing something wrong!

I've a Citroen c5 2004-2008 which is after developing a strange problem
The passanger side is blowing cold air all the time when the heating fan is turned on, or temperature is changed to Max or Low, Drivers side is fine(its a right hand side drive car)

Anybody point me in a certain direction to find out what going on with it please and thanks.

Gazzaman
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Dual Climate control one side hot the other cold

Post by GiveMeABreak »

Hi and welcome to the Forum.

Yes it quite likely that one of the passenger side flap motors has packed in or worn out. They have plastic gearing that can over time wear the cogs out so it gets stuck in the last position it operated at.
Please Don't PM Me For Technical Help

Marc
User avatar
waynedance
Posts: 973
Joined: 29 May 2011, 22:56
Location:
My Cars:
x 8

Re: Dual Climate control one side hot the other cold

Post by waynedance »

Done this fix myself. There is a modified part needed that main agent knew nothing about until I gave it to them.

Give the forum a search it's on here somewhere but my is a mk1.

Sent from my SM-G935F using Tapatalk
Volvo S80 D5.........
C5 2.2HDi Exclusive 2003 manual (now gone).
2009 Renault Megane, the misses drive.
Had a 1988 BX 19TRS Auto many moons ago.
Forgive any spelling mistakes, it's the phone not me.
Gazzaman22
(Donor 2022)
Posts: 76
Joined: 05 Jan 2017, 15:18
Location: Ireland
My Cars: Citroen C5 (2004-2008) 1.6hdi 5 door Hatch
x 2

Re: Dual Climate control one side hot the other cold

Post by Gazzaman22 »

Thanks for the replys guys, I'll have a look for the fix.... Is it easy enough done? I'd consider myself kinda okay at messing and tryna fix
User avatar
waynedance
Posts: 973
Joined: 29 May 2011, 22:56
Location:
My Cars:
x 8

Re: Dual Climate control one side hot the other cold

Post by waynedance »

Took me 10 mins to fix on mine...
Volvo S80 D5.........
C5 2.2HDi Exclusive 2003 manual (now gone).
2009 Renault Megane, the misses drive.
Had a 1988 BX 19TRS Auto many moons ago.
Forgive any spelling mistakes, it's the phone not me.
Gazzaman22
(Donor 2022)
Posts: 76
Joined: 05 Jan 2017, 15:18
Location: Ireland
My Cars: Citroen C5 (2004-2008) 1.6hdi 5 door Hatch
x 2

Re: Dual Climate control one side hot the other cold

Post by Gazzaman22 »

waynedance wrote:Done this fix myself. There is a modified part needed that main agent knew nothing about until I gave it to them.

Give the forum a search it's on here somewhere but my is a mk1.

Sent from my SM-G935F using Tapatalk
What is an MK1
Was yours on the passanger side?
I've scoured the site and cant find a "how to" (seen pics for the drivers side)
Can you remember what the part number is please?

Thanks
User avatar
waynedance
Posts: 973
Joined: 29 May 2011, 22:56
Location:
My Cars:
x 8

Re: Dual Climate control one side hot the other cold

Post by waynedance »

https://www.frenchcarforum.co.uk/forum/ ... =3&t=32780

This is a mk1

Yes mine was the passenger side. Would have thought mk1 and 2 the same but not sure.

Best thing to do is remove yours and check the heater box to see if is chewed up where the motor cog goes.

Passenger foot well on the side of the heater box. Remove and leave plugged in and see if cog moves when adjusting temp and flap controls. Think I removed the glovebox to make it easier to remove.

Sent from my SM-G935F using Tapatalk
Volvo S80 D5.........
C5 2.2HDi Exclusive 2003 manual (now gone).
2009 Renault Megane, the misses drive.
Had a 1988 BX 19TRS Auto many moons ago.
Forgive any spelling mistakes, it's the phone not me.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Dual Climate control one side hot the other cold

Post by GiveMeABreak »

Gazzaman22 wrote:Was yours on the passanger side?
I've scoured the site and cant find a "how to" (seen pics for the drivers side)
Can you remember what the part number is please?
Thanks
Post up your VIN and I'll have a look for the part and see if it is any different from the Mark I. The controls can vary depending on Mono or Dual zone climate control on the Mark II.
Please Don't PM Me For Technical Help

Marc
User avatar
waynedance
Posts: 973
Joined: 29 May 2011, 22:56
Location:
My Cars:
x 8

Re: Dual Climate control one side hot the other cold

Post by waynedance »

Did you manage to look into the fault?

Sent from my SM-T580 using Tapatalk
Volvo S80 D5.........
C5 2.2HDi Exclusive 2003 manual (now gone).
2009 Renault Megane, the misses drive.
Had a 1988 BX 19TRS Auto many moons ago.
Forgive any spelling mistakes, it's the phone not me.
User avatar
Dommo
Posts: 1191
Joined: 11 Apr 2009, 09:43
Location: Stoke-on-Trent
My Cars: Current
07 C5 VTX+ 2.2 HDi 173hp
97 S1 Activa
06 Boxster S
93 XM 2.1 Turbo SD

Previous cars
91 Toyota Soarer UZZ32 Active Suspension
97 S1 VSX 1.9 Turbo D
99 Xantia Activa
98 2.1TD Xantia
99 306
x 19

Re: Dual Climate control one side hot the other cold

Post by Dommo »

My C5 mk1 facelift (2007) has this fault on the drivers side. Seems to be a common fault with the 407's where the spindle to the flap fails. I need to fix mine as in this weather my side of the car is baltic!!
Gazzaman22
(Donor 2022)
Posts: 76
Joined: 05 Jan 2017, 15:18
Location: Ireland
My Cars: Citroen C5 (2004-2008) 1.6hdi 5 door Hatch
x 2

Re: Dual Climate control one side hot the other cold

Post by Gazzaman22 »

[img][img][/img][/img]
GiveMeABreak wrote:
Gazzaman22 wrote:Was yours on the passanger side?
I've scoured the site and cant find a "how to" (seen pics for the drivers side)
Can you remember what the part number is please?
Thanks
Post up your VIN and I'll have a look for the part and see if it is any different from the Mark I. The controls can vary depending on Mono or Dual zone climate control on the Mark II.
Sorry guys....
Only seeing these messages now....

Havent got around to looking at it yet.
VIN is VF7**************[VIN obfuscated, can be read by forum staff]

Thansk so much
Attachments
Last edited by Gazzaman22 on 01 Mar 2017, 15:46, edited 1 time in total.
Gazzaman22
(Donor 2022)
Posts: 76
Joined: 05 Jan 2017, 15:18
Location: Ireland
My Cars: Citroen C5 (2004-2008) 1.6hdi 5 door Hatch
x 2

Re: Dual Climate control one side hot the other cold

Post by Gazzaman22 »

waynedance wrote:Did you manage to look into the fault?

Sent from my SM-T580 using Tapatalk
Hopefully get lookiing at it this weekend
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Dual Climate control one side hot the other cold

Post by GiveMeABreak »

Ok, first there are significant differences between the Mark I and your Mark II. For a start yours has Dual Zone Air conditioning and the Mark 1 doesn't, so there are additional Reduction motors on the Mark II and are different parts completely.

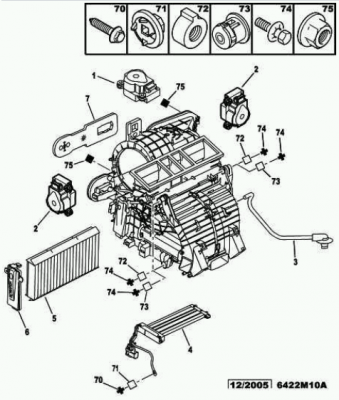

On the first picture, the reduction gear is identified as parts 1 and 2. There are two part 2 units, left and right - so would suggest that your left hand one is possibly the faulty one.
Mark II Air Reduction Gear
Mark II Air Reduction Gear
Mark 1 Air Reduction Gear
Mark 1 Air Reduction Gear
There are 2 units on each side of the vehicle. On each side there is one unit for the air distribution (2) and another unit (3) next to it for the mixing flaps. So you'll need to do a bit of testing to see if it is either the air that is not blowing on the left or the whether the air is remaining at the same temperature, depending on how you have set the air distribution control.

Getting to these may involve taking the passenger glovebox off, unless you can get in by removing the passenger footwell trim (gearbox side) and getting in and above to the right of the pollen filter (the cartridge looking slot shown where the (a) is on the picture - but there are 4 bolts holding each of these units on.

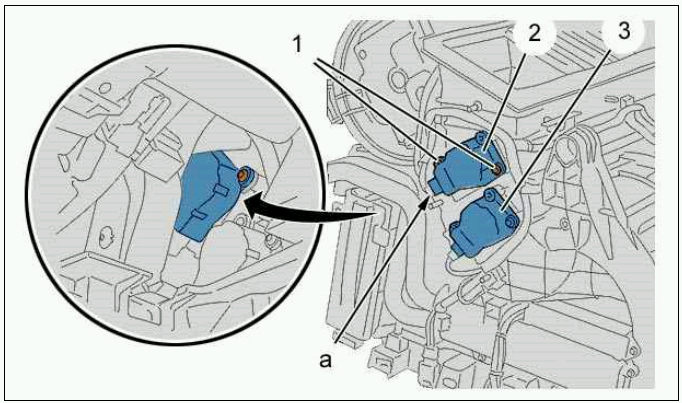

Mark II Detailed View
Mark II Detailed View
Please Don't PM Me For Technical Help

Marc
Peter.N.
Moderating Team
Posts: 11563
Joined: 02 Apr 2005, 16:11
Location: Charmouth,Dorset
My Cars: Currently:

C5 X7 VTR + Satnav Hdi estate Silver
C5 X7 VTR + Hdi Estate 2008 Red

In the past: 3, CX td Safaris and about 7, XM td estates. Lovely cars.
x 1199

Re: Dual Climate control one side hot the other cold

Post by Peter.N. »

My mark 1 (01) had dual zone heating, I think it depends on the trim level. I had the same problem but sometimes found that if you turn the heat right down, wait for it to settle and then turn it right up again it would sometimes respond.

Peter
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Dual Climate control one side hot the other cold

Post by GiveMeABreak »

I think the Mark 1 has separate temp controls. but not sure about the separate air distribution controls like the Mark II on, so would have the mixer flap, but the diagrams are not very useful.

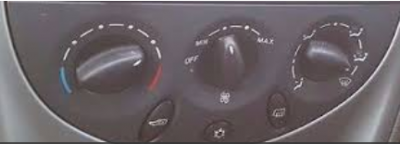

C5 Mark I Mono Zone
C5 Mark I Mono Zone

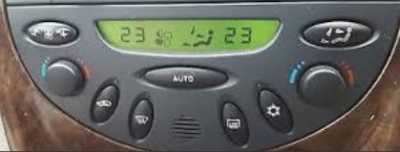

C5 Mark I Dual Zone (no separate air distribution for passenger)
