AX brake booster conversion plumbing

[jsp]

hi all,

I am converting my non brake boosted ax to one with brake booster.

I have one issue and that is the left front wheel brakes very retarded while the right wheel brakes instantly.

I have bleeded all throughly but, no brakes on my front left wheel.

Here is the brake lines I have set up:

RF LR

RR LF



What have I done wrong?

[jsp]

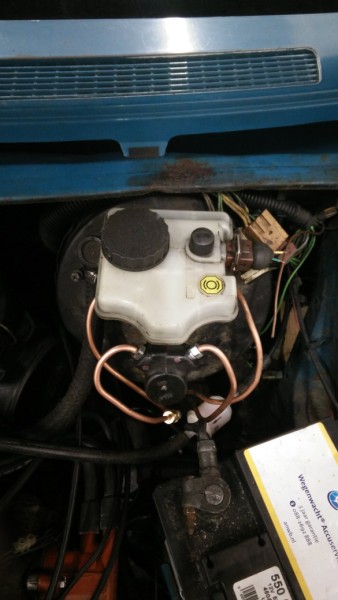

I have plumbed it like this any other ideas?

[jsp]

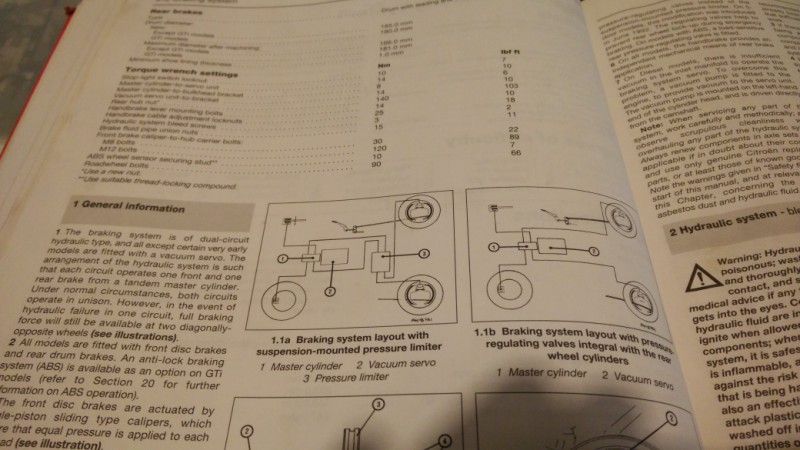

I have connected like this. but, I have rear brake cilinders without limiter do I need one with auto. limiters?

[jsp]

Nobody knows this?

I bled the system three times now.

[RichardW]

Not exactly a normal problem! Have you taken a servo and master cylinder from a servo'd car and fitted it to a non servo car? Are the calipers the same? Presume you have fluid at the caliper that is not working? Does it work if you clamp off the other hoses?

[jsp]

Sorted. Connected the wrong rear lines on the wrong side on the main cylinder. working now without issues.
