Heater blower problem - 2014 2.0 BlueHdi Grand Picasso Mk2 Exclusive+

[binraider]

I am trying to diagnose why my heater blower has stopped working on my 2014 2.0 BlueHdi Grand Picasso Mk2 Exclusive+.

First i replaced the blower resistor, as trying to find out the correct fuse or relay to check proved challenging. Changing the resistor did not make any difference, so i checked the voltage on the Red/Black cable coming into the Resistor which I assume to be the power in - that showed nothing. The control panel works - i.e. appears to work, and you can hear the "Levers" moving into place near to where the heat exchanger is, but there is no blowing to speak of.

I have tried to find out which fuse or relay to check but there seems to be so much variation between models when looking on the internet its just a muddle.

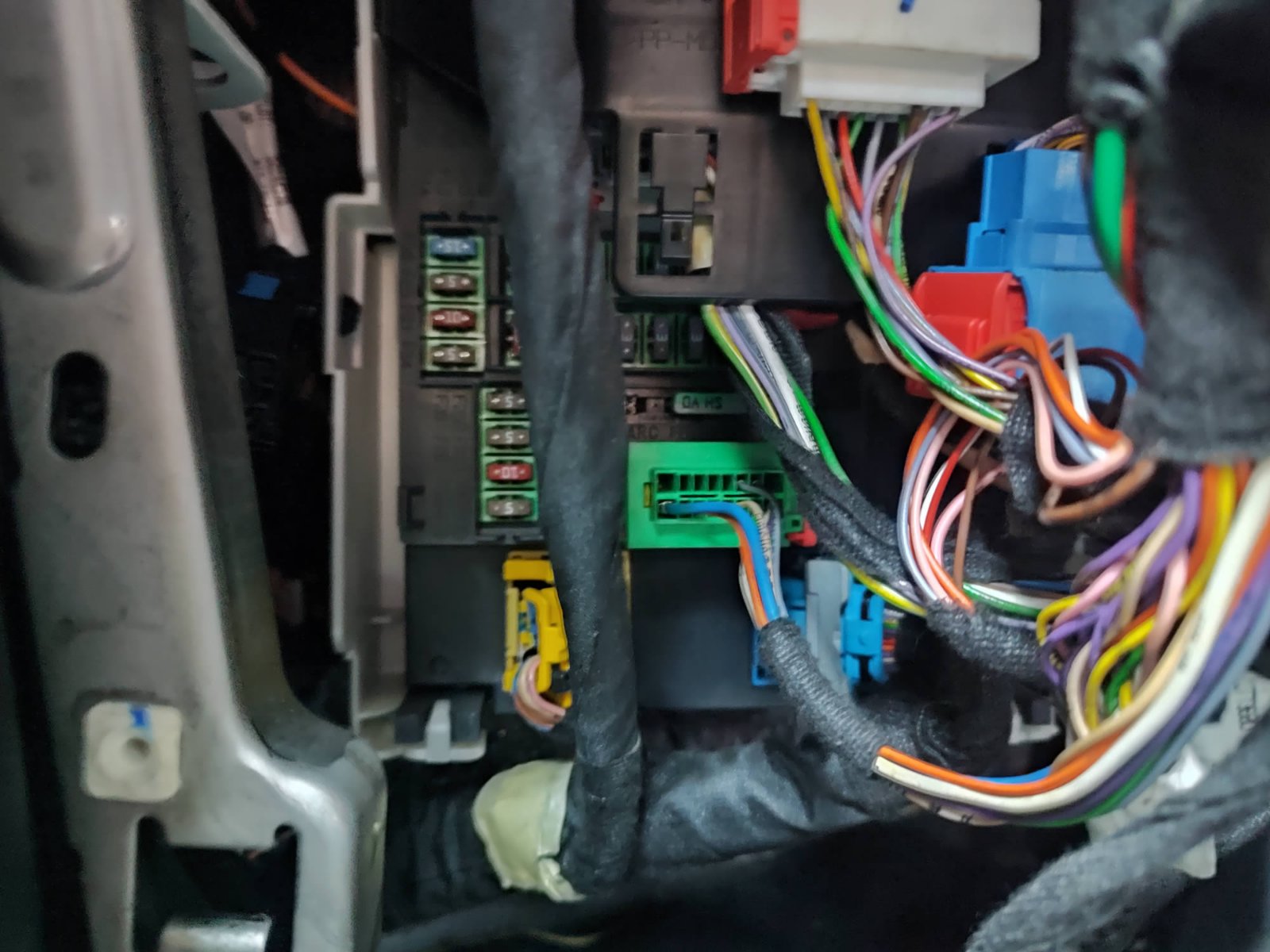

Plus the fusebox behind the glovebox seems to be a double decker one - one on top of another.

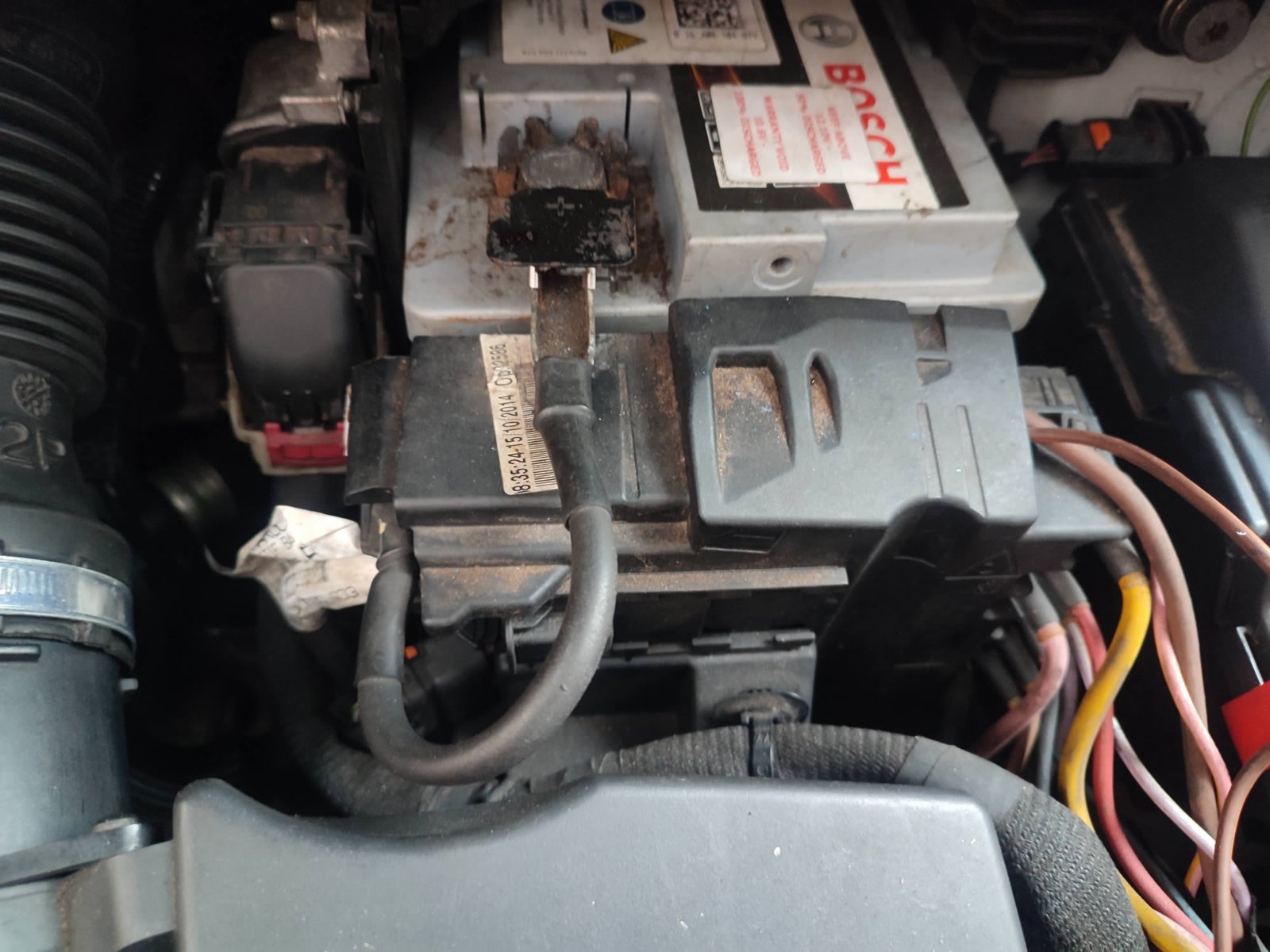

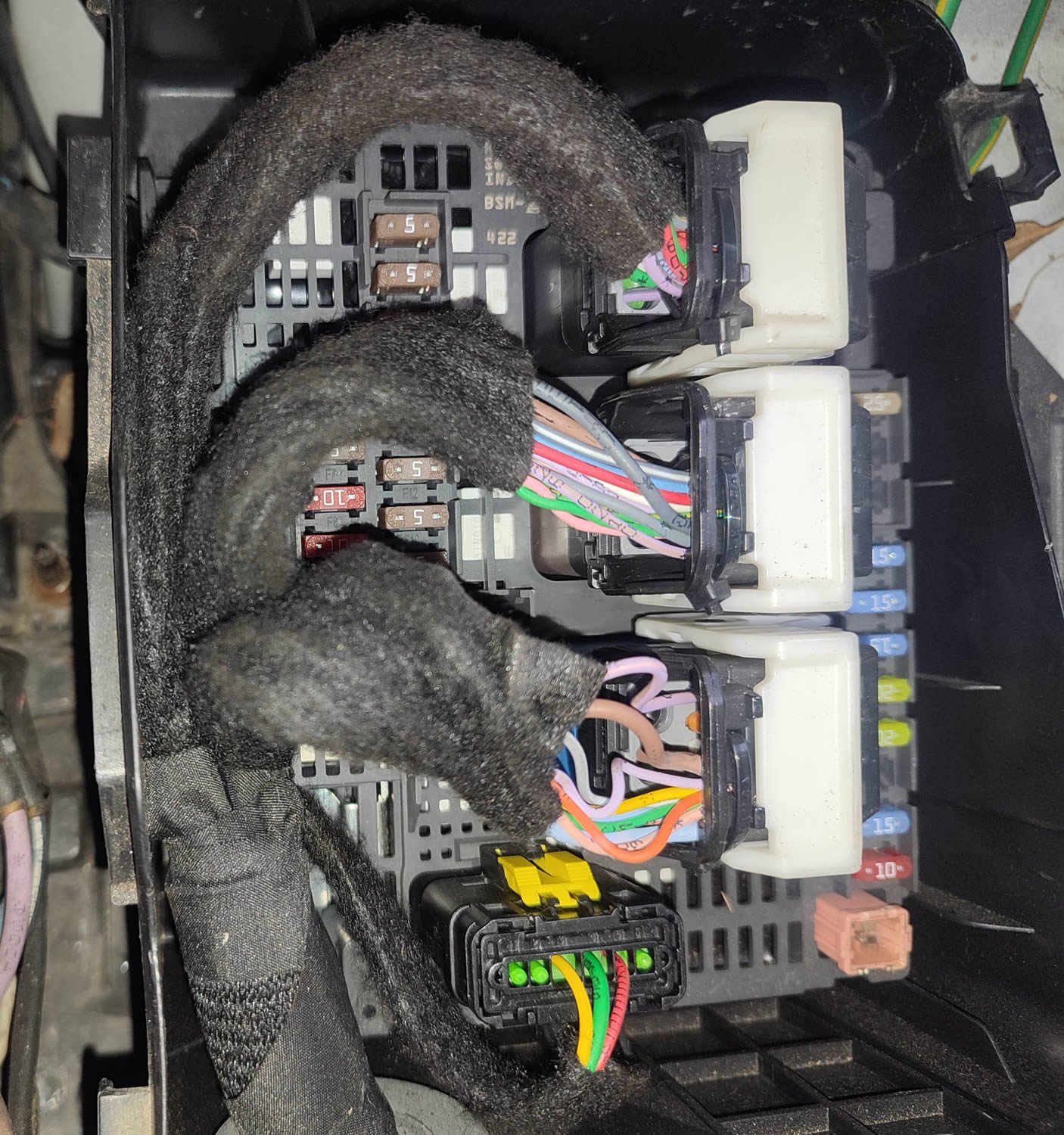

Does anyone know which fuses in the two fuseboxes are the correct ones to check/look at? Also there must be a relay in the mix - the same for that?

Thanks,
Marshall

[mickthemaverick]

Unfortunately your car is too new for the diagrams I have access to but hopefully a member with full access will see your query and help you out.
