cam-cranck waveform request

[peyvey]

Hello people

who can provide me with a known good cam cranck waveform from a 2.0 Hdi dw10 engine code RHC preferably from the pico library but other will also be appreciated
I bought a picoscope 2405A to find it is no longer supported in the automotive software from PICO and i can't get acces to their library
I hope someone can help me
Peyvey

[mickthemaverick]

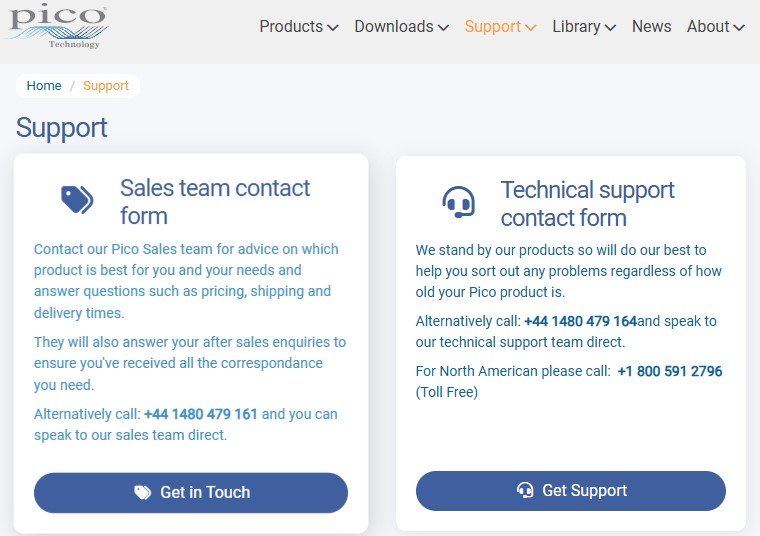

Pico say they will support anyone with their kit regardless how old it is as you can see in this extract from their website:

BFTW

So I would go on their site and ask your question at: https://www.picoauto.com/tech-support

[peyvey]

I did contact pico support and asked for a different way to acces their library They said there wasn't
As i understand it the earlier versions of automotive worked fine with the 2000 series , but i have tried all earlier versions i could find, to no avail
It is just a way to make you buy a more expensive device although mine cost 300 euro second hand. I am annoyed that i cannot even use their library

[wheeler]

Not from this exact engine but its a 2.0 HDi

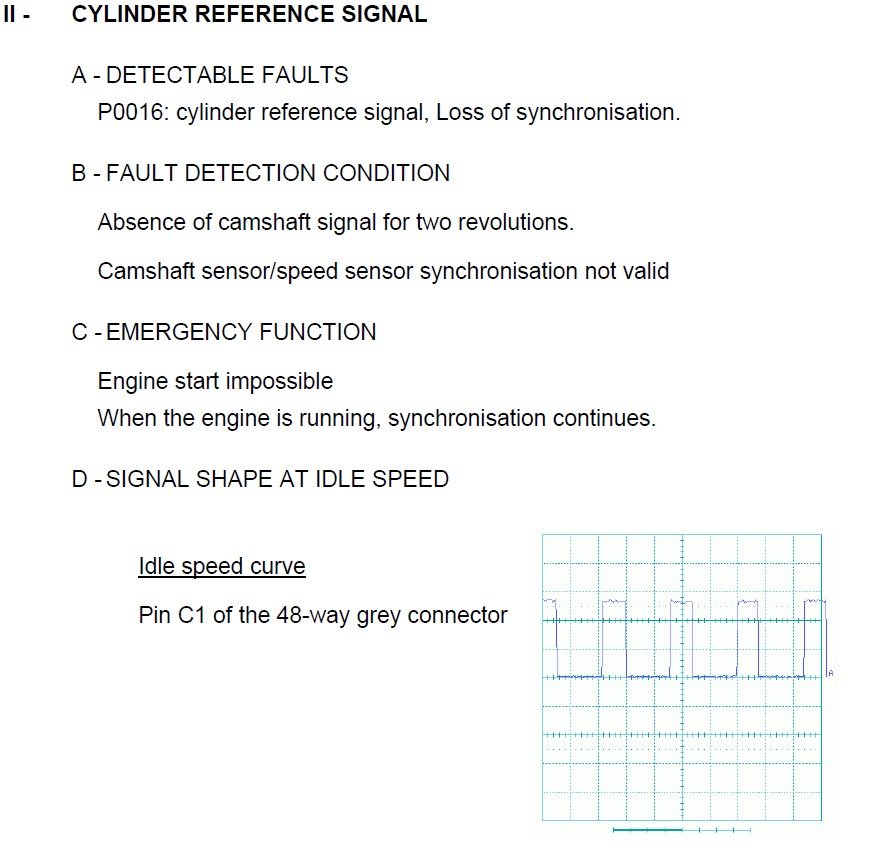

Cam senso top image

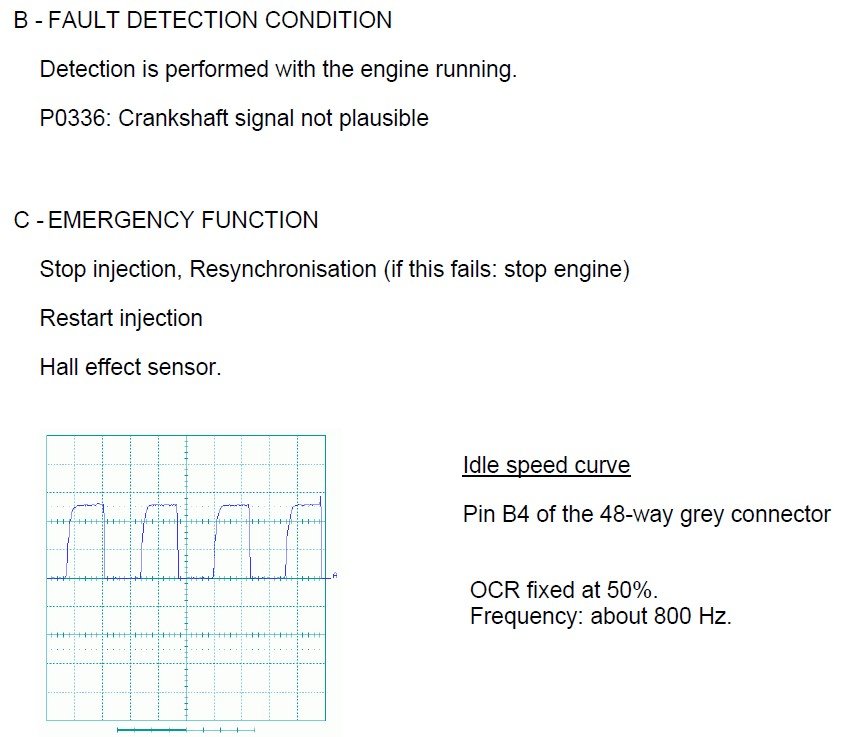

Crank sensor bottom

[peyvey]

Thank you for your support but i need both signals in one graph on a fixed time base, so i can study the synchronisation between the two and compare it with the waveform that i made
I have a waveform from an engine code RHB wich is the 110 KW version but i dont know if it is different from the 120 KW, Engine code RHH is also 120 KW so i gues that also would be fine

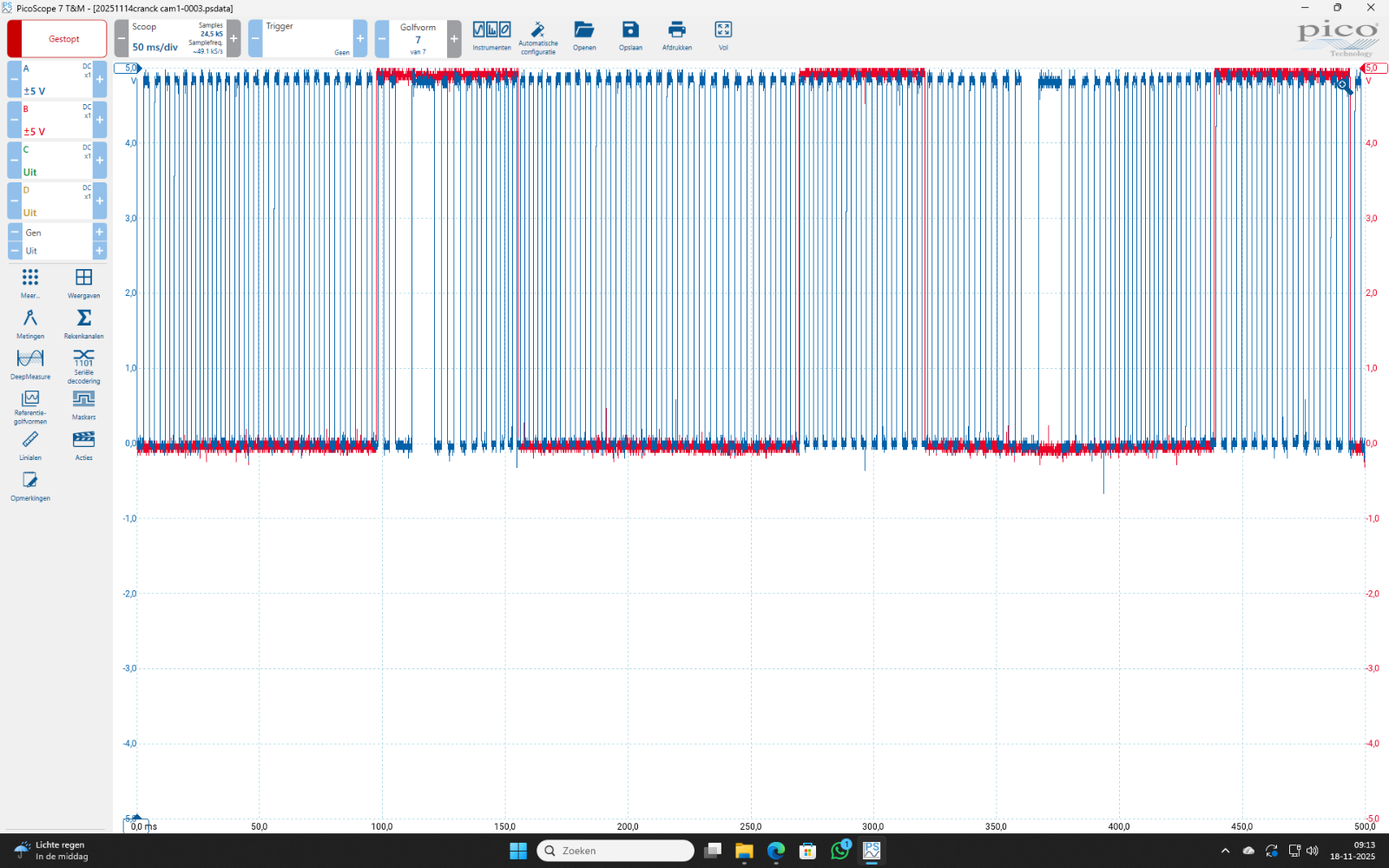

I'll attach my own waveform to this post maybe someone can see if it's right
