Xantia 2 RPM signal location

[Nick Orfanidis]

Hello
Can anyone help me locate an RPM signal to my Xantia 2?
With the little knowledge I have , I assume that there must be one RPM signal cable at the wires of the ignition coil unit. In many cars that don't have tachometer by factory, the mechanics "take" a signal from there to install an aftermarket tachometer.
In my case , there no need for tachometer , because the car has its own. But I want to install an adjustable Shift Light, somewhere close to the instrument cluster, and it would be very convinient if a signal would come by factory behing the instrument cluster.
Also, if anyone knows, the voltage range of the signal it would be great.
Thank you in advance!

[wheeler]

What is your RP number & we can have a look at a wiring diagram.

[xantia_v6]

I have these diagrams for the XU10J4 engine in series 2 Xantia, probably quite similar tp the 1.8.

It looks like wire 429 goes from the crank position sensor to the tachometer and cruise control.:

[Nick Orfanidis]

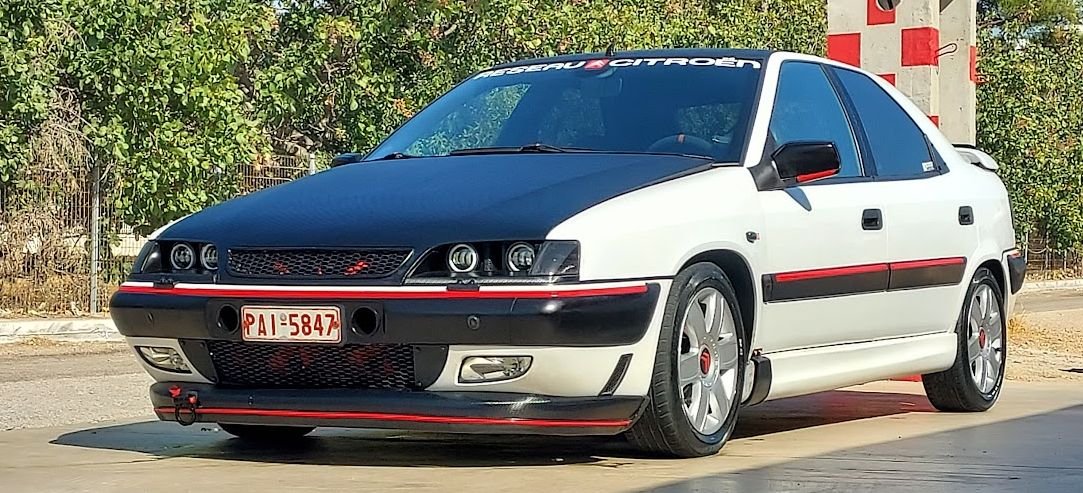

Thank you for your answers. I will try to find it behind the instrument cluster. The car is Xantia II with 1.6 motor gasoline as a model. If anyone knows anything more , please inform me.

[wheeler]

Component 1620 is the vehicle speed sensor, that is the speedometer signal to the instrument panel.

Component 1313 is the engine speed sensor, this is the signal we are after, i can find a diagram for just the rev counter, we can see the signal from the sensor to the ECU but not where it goes to the instrument panel.

[xantia_v6]

Oops sorry about the misinformation.

It looks like the Engine RPM pulses must be wire 426, which also goes to the 16 pin diagnostic connector (as 4260).
