Haynes wire colour codes

Unread post by in06khattab »

Hi,

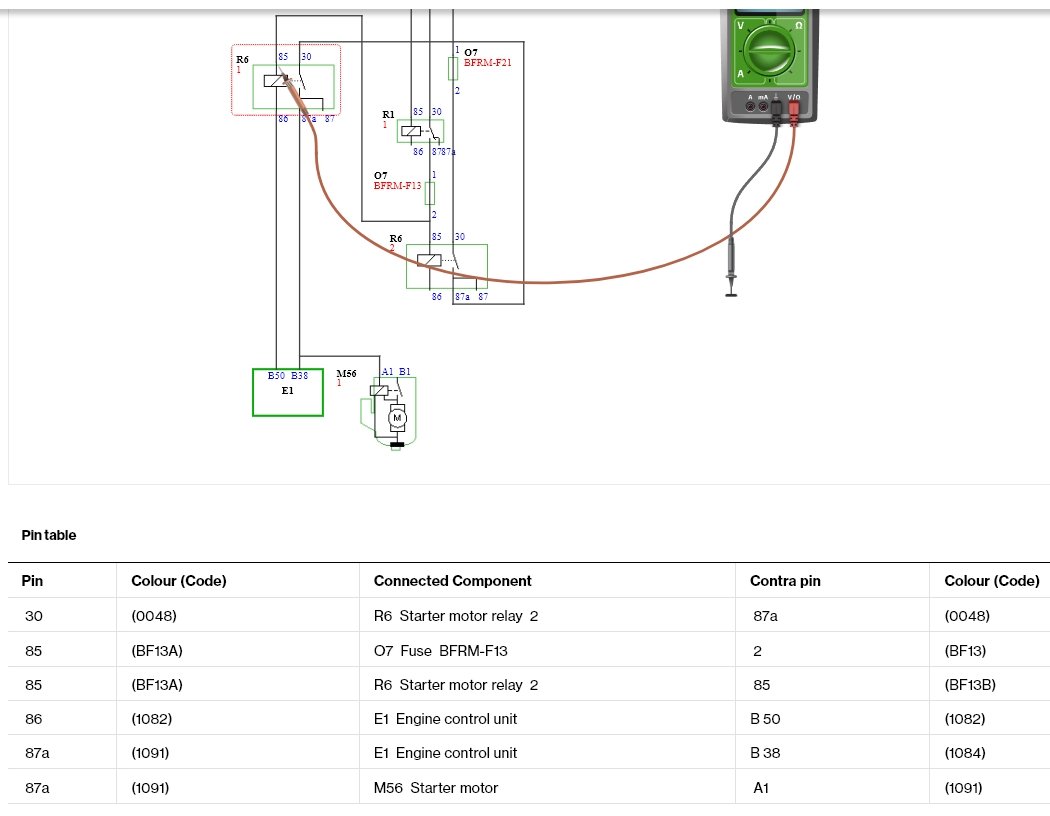

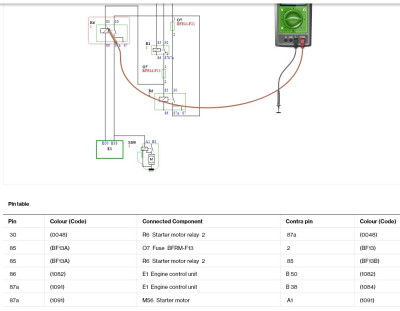

Does anyone have a conversion from wire codes to wire colours. The Haynes Autofix for Corsa F starter relay only shows wire numbers:
Top
User avatar
xantia_v6
Forum Admin Team
Posts: 10731
Joined: 09 Nov 2005, 22:03
x 1346

Re: Haynes wire colour codes

Unread post by xantia_v6 »

Assuming that they are using the PSA scheme, there is no cross reference between the numbers and colours. The number should be printed on the jacket of the wire every few centimetres.
Top
User avatar
Paul-R
Moderating Team
Posts: 8990
Joined: 07 May 2009, 16:24
x 1868

Re: Haynes wire colour codes

Unread post by Paul-R »

The colours of the wires can, and do, change along the length of the run.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson
Top
wurlycorner
Donor 2024
Posts: 2177
Joined: 30 Oct 2012, 22:37
x 272

Re: Haynes wire colour codes

Unread post by wurlycorner »

That column means they either give the Colour, or the Code. And if it's a code, it's in brackets.
So there isn't a conversion from (Code) to colour - the code is the printed number wire code on the wire (that's what you need to look for) and it could be any colour wire.
--
Iain

'85 CX GTi Turbo s1 (met. blue)
2x '85 CX GTi Turbo s2 t1 (met. silver & grey)
'88 CX GTi Turbo s2 T2 (met. light blue)
CX DTR T2 Safari (silver)
2x '96 Xantia Activa (Black & met. green)
'01 C5 2.0 HDi LX Estate (Blue)
'11 C5 X7 3.0 V6 Exclusive Tourer
Top
in06khattab
Posts: 7
Joined: 19 Jul 2025, 12:53
x 1

Re: Haynes wire colour codes

Unread post by in06khattab »

Thank you very much!
Top
