Torque specs for wishbone bolts and ball joint

This is the Forum for all your Citroen Technical Questions, Problems or Advice.
Dustysweeper
(Donor 2023)
Posts: 96
Joined: 29 Jan 2023, 16:26
x 20

Torque specs for wishbone bolts and ball joint

Unread post by Dustysweeper »

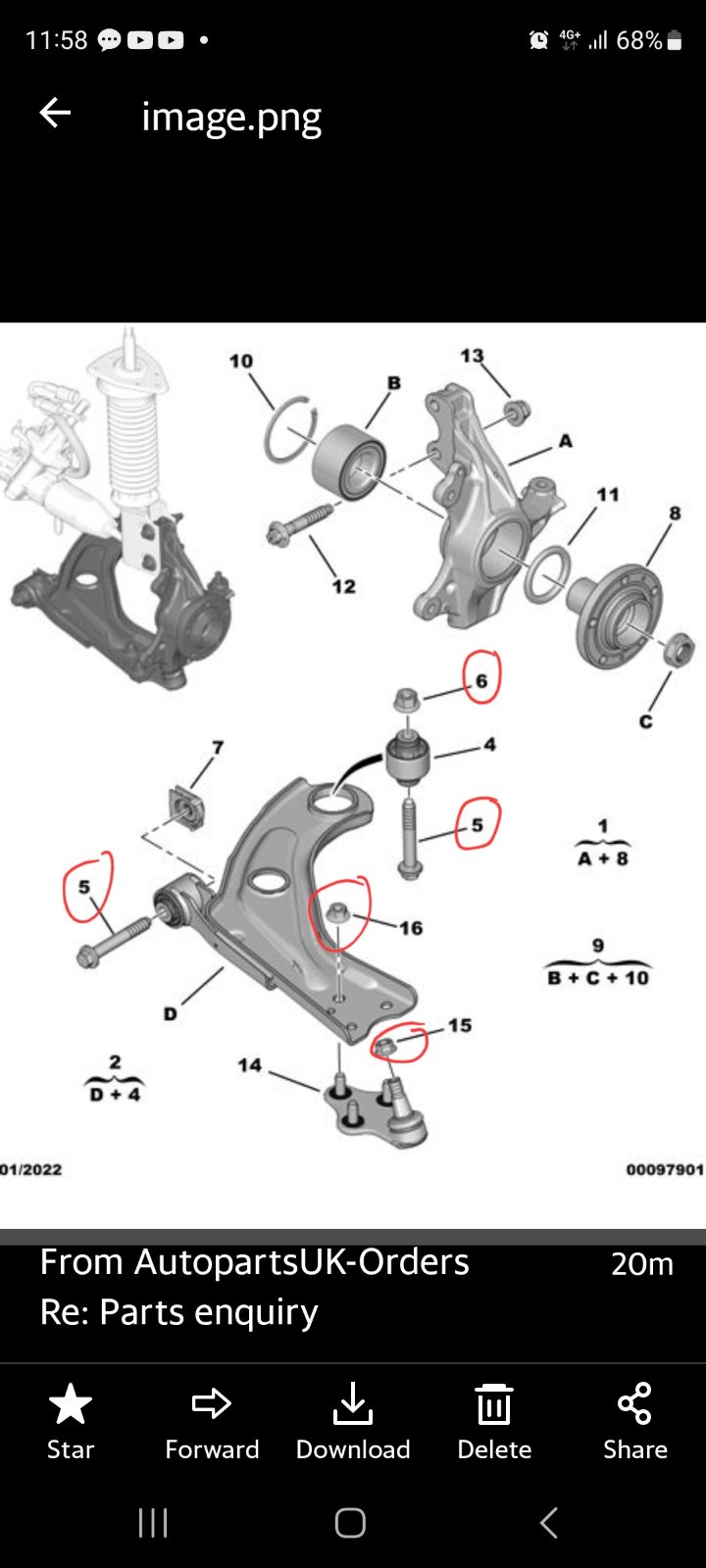

Could anyone tell me the torque numbers for number 5, 6 15, and 16 on the attached picture please.

Citroën C4 Grand Picasso 1.6 HDI B78 2014

Many thanks.
Screenshot_20250313_115830_Yahoo Mail.jpg
Top
Dustysweeper
(Donor 2023)
Posts: 96
Joined: 29 Jan 2023, 16:26
x 20

Re: Torque specs for wishbone bolts and ball joint

Unread post by Dustysweeper »

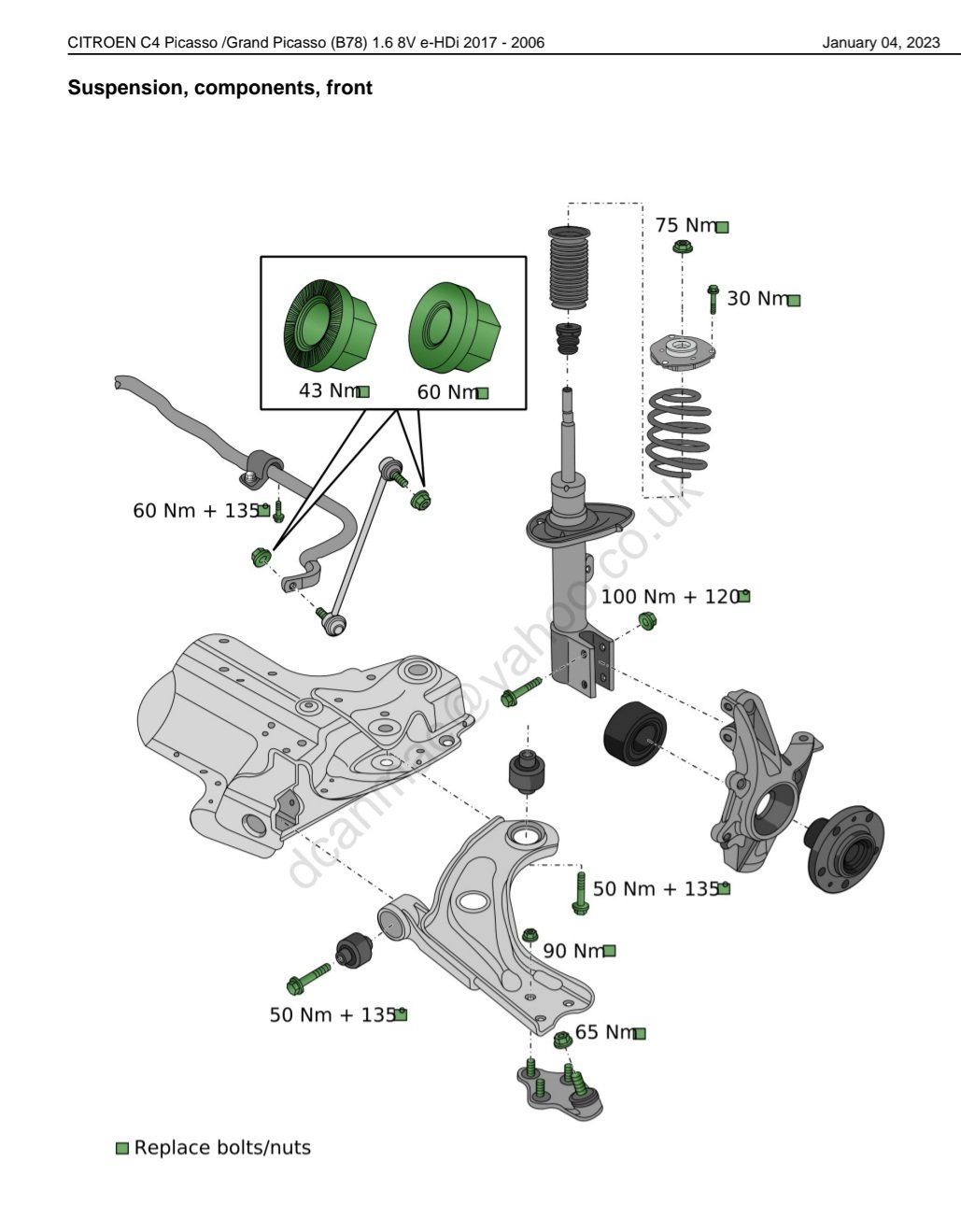

Screenshot_20250318_123456_Samsung Notes.jpg
Top
