Xantia (1993 td) cigarette socket NO Power

[Stickyfinger]

F16 is live
Earth to the socket is good
Light on the socket works (so earth is good)
No power to the red power lead on .... key OFF -- key AC -- car running
Connectors are good, wire seem fine.

Am I missing something ?

[RichardW]

Am I missing something ?

12V feed?!

Broken wire or socket? Have you got a wiring diagram, is there a relay somewhere?

[Stickyfinger]

Not got diagrams for the 93 td....my 97 S1 Activa ones show no relay/socket fuse @F16/20amp

Socket is fine, earth is fine (the light works thus the earth is good as it earths via the body to the sockets earth wire/black), no volts on Multi-Meter when I probed the connector on the back of the plug or when disconnected etc.

I have removed the fuse @F16 / swapped it a number of times.

The live (red wire) feed is totally dead, the fuse (I assume the correct one) @ F16 is live when the key is in the Acc position and when the car is running.

All other fuses etc work/show volts/all probed

[xantia_v6]

The wiring diagram indicates that F16 is the correct fuse. I suspect that you have a faulty fuse board, maybe a bent fuse contact, or maybe a bad soldered joint on the board.
Did you try inserting F16 in the other (permanent live) position?

[Stickyfinger]

Did you try inserting F16 in the other (permanent live) position?

Which is ?

[RichardW]

Is it possibly one like the shunt on later cars where there are 2 positions, one is switched and one permanent live?

[Stickyfinger]

Not sure........wil look this morning ....BUT

There are never any volts ..... even when the car is running/no matter what key position.

[peter306]

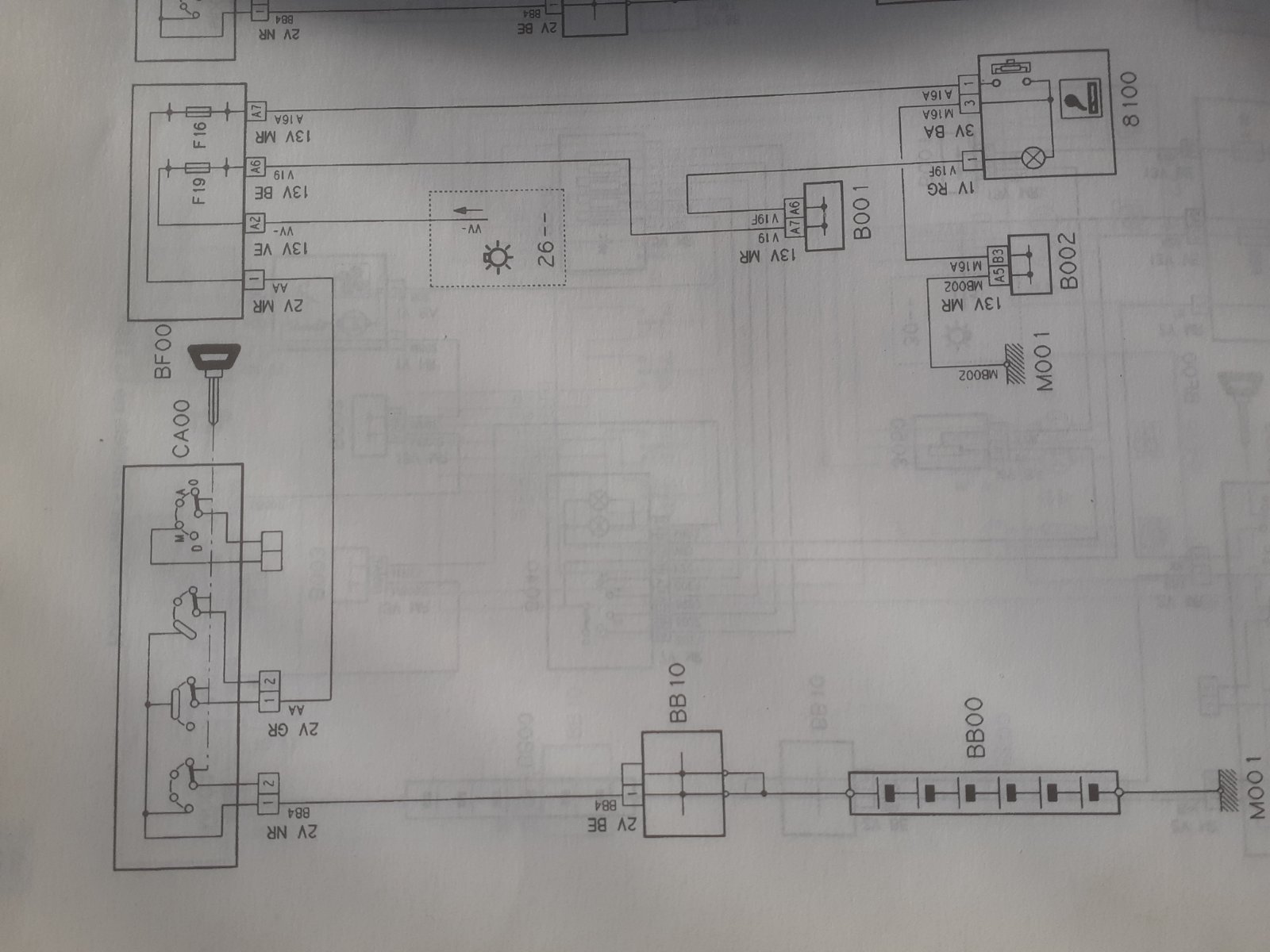

up to 1998 diagram, from the haynes book

[peter306]

Hi Alasdair,
PM me your postal address and i'll post the manual to you.
As mines a 2000 and I have the manual for that

Peter

[Stickyfinger]

Hi Peter....is it for a 93 early type ??

.....if so that would be great !

[peter306]

Hello,
1993 to 1998
K to S reg

[RichardW]

Looks like a simple circuit. Pop the fuse out and check it's not blown. Check for 12v on the fuse box outlet connector (pin A7 of a 13 pin brown connector). Check for 12V at the socket connector. This will tell you if it's the fuse, fusebox, or wire and you can repair accordingly.

[Stickyfinger]

At the moment I am looking at a break/failure in the feed wire.....access is rather problematic for my big hands so finding where will be a pain (literality !)....with luck it has flexed close to the tray which will allow a joint to be added.....if not I will run a fly wire from a piggy back fuse and do the job when the dash comes out in the summer.
