Hello all,
I'm at a bit of a loss here. I have searched the forums here and google, used image search and have come up blank. I am hoping someone can help me.

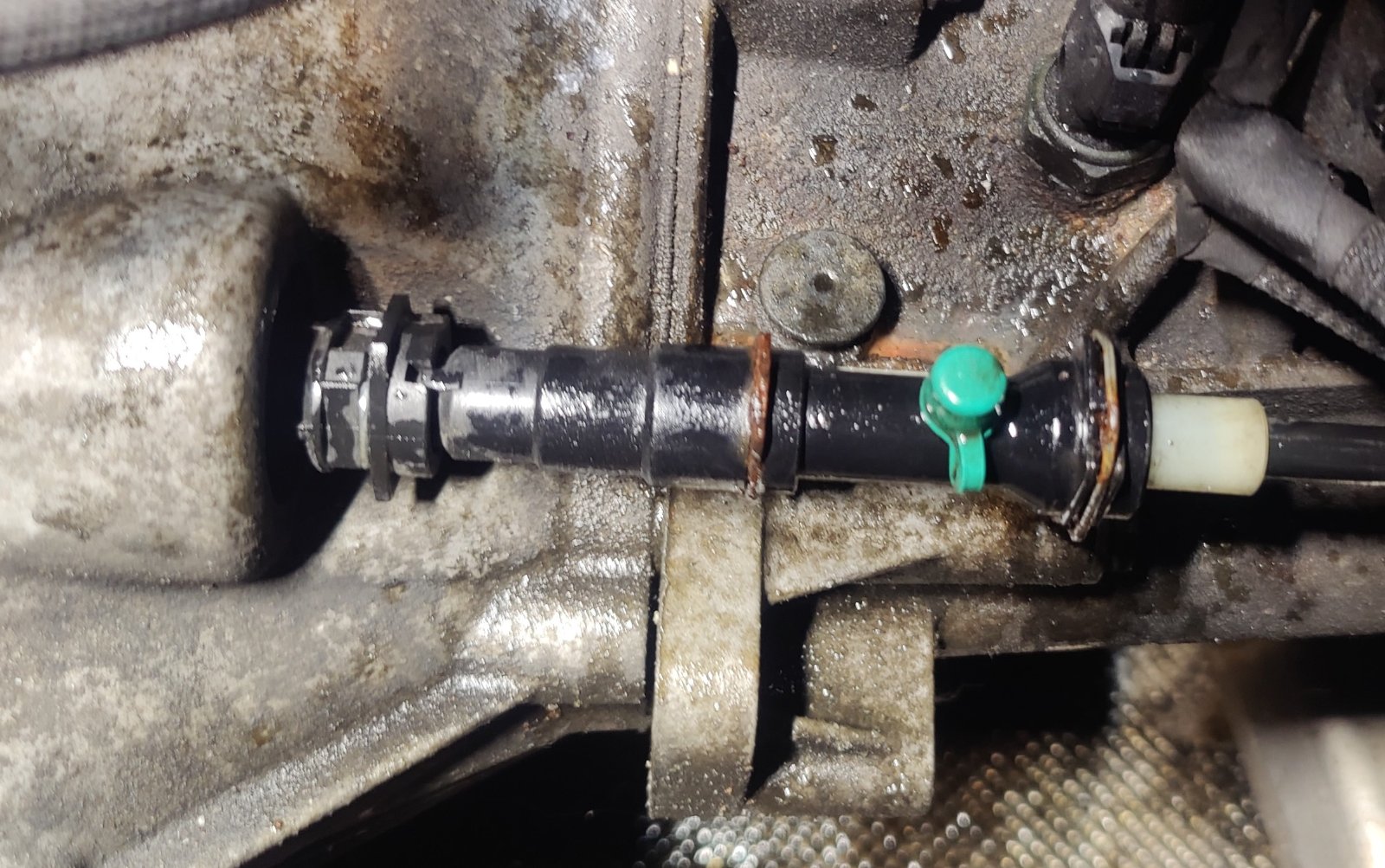

The other day, my clutch pedal hit the floor and (with a pool of hydraulic fluid all over the road) by the time I had the car home, I could see that the problem was something to do with the pipe with the bleed nipple going to the slave.
BUT here starts the problem. I can't find any pictures or references to this type of interfacing bleed system.
I have seen Marc's excellent write-up on this area in the C3, but the C4 Picasso I have has something different which I am struggling to understand, let alone, source. I expect it will be a Dealer only part but I was also thinking of looking at breakers ... but as I say, it almost feels they have done something special to my car as the only similar part I can find is in the hydraulic system on a mazda fuel injection system.... aaarrgghh
can anyone point me at something I have missed? please
Nigel
C4 G-Picasso 2l excl '15 - Clutch Hydraulic Bleed interface
-
- Donor 2024
- Posts: 7
- Joined: 29 Jun 2024, 21:06
C4 G-Picasso 2l excl '15 - Clutch Hydraulic Bleed interface
Last edited by myglaren on 30 Jan 2025, 14:15, edited 1 time in total.
Reason: Image fixed
Reason: Image fixed
-
- Forum Admin Team
- Posts: 41618
- Joined: 15 Sep 2015, 19:38
- x 6773
Re: C4 G-Picasso 2l excl '15 - Clutch Hydraulic Bleed interface
I've removed the last 2 posts as they aren't really relevant, Wishdoctor is already a donating member Paul.
@Wishdoctor: I don't currently have the procedure for your vehicle in the resources section, but I'll put one up shortly to cover this system, but it may take me a while to assemble. Check back here for the link, which I'll put up when complete. I have your VIN already.
Note: It's a very long procedure as it covers multiple configurations / types, so will take a while to complete.
@Wishdoctor: I don't currently have the procedure for your vehicle in the resources section, but I'll put one up shortly to cover this system, but it may take me a while to assemble. Check back here for the link, which I'll put up when complete. I have your VIN already.
Note: It's a very long procedure as it covers multiple configurations / types, so will take a while to complete.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2024
- Posts: 7
- Joined: 29 Jun 2024, 21:06
Re: C4 G-Picasso 2l excl '15 - Clutch Hydraulic Bleed interface
Thanks Marc.
Do you know what that part is called so that I can at least try to find the right thing? As you say, there are multiple configurations and types (and then the special - my car is one of the 3 to ever have this configuration - part that Citroen has gifted me).
I think they had the governor's mazda in the corner when they were building my car, and they bent the hydraulic pipe so it was a bit short for the OEM...."oops... what now?... Oh, that mazda has a hydraulic bleed connector on the fuel throttle system that is about the right size, we shall gift it to this Citroen for Nigel and we shall name it..... A C4 Grand Picasso Exclusive, for such it is!"
Do you know what that part is called so that I can at least try to find the right thing? As you say, there are multiple configurations and types (and then the special - my car is one of the 3 to ever have this configuration - part that Citroen has gifted me).
I think they had the governor's mazda in the corner when they were building my car, and they bent the hydraulic pipe so it was a bit short for the OEM...."oops... what now?... Oh, that mazda has a hydraulic bleed connector on the fuel throttle system that is about the right size, we shall gift it to this Citroen for Nigel and we shall name it..... A C4 Grand Picasso Exclusive, for such it is!"
-
- Forum Admin Team
- Posts: 41618
- Joined: 15 Sep 2015, 19:38
- x 6773
Re: C4 G-Picasso 2l excl '15 - Clutch Hydraulic Bleed interface

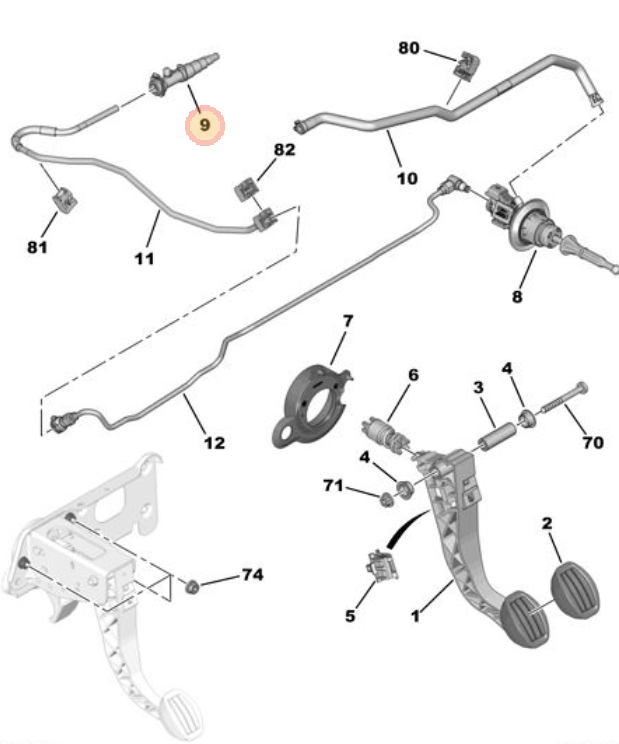

Ok, so I'll be putting the guide up this evening, but in the interim, here's the clutch diagram and I think you're referring to item (9):
9) Circuit Bleed Union, part: 9676664180, £45.24 inc. VAT from Citroen.
If another part, just let me have the item number from the daigram.
9) Circuit Bleed Union, part: 9676664180, £45.24 inc. VAT from Citroen.
If another part, just let me have the item number from the daigram.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Forum Admin Team
- Posts: 41618
- Joined: 15 Sep 2015, 19:38
- x 6773
Re: C4 G-Picasso 2l excl '15 - Clutch Hydraulic Bleed interface
Ok, so I've just completed the guide, located here:
STT Type 6 Speed Manual Gearbox - Removal Refitting - Hydraulic Clutch Control
