C4 CACTUS LIN Fault & Cruise control dropping out

[EdMar]

Hi

I'm new to the forum,

I recent got a C4 Cactus with a niggling code.

Bsi U1F1B LIN Fault 21 is the most persistant code.

I'm no longer able to access servicebox after stellantis take over (no VAT number)

Could I possible request some wiring diagrams ?

Mainly LIN BUS relating to U1F1B code, BSI terminals ,
VIN : VF7**************[VIN obfuscated, can be read by forum staff] , sorry forgot to get production number
If possible would also like, Telematics Terminals. TouchScreen
Multimedia CAN.

Cruise control drops out occasionally, Vehicle speed signal code (didn't log number),
There is a worn suspension bus my be affecting ESP / Cruise.

ESP light not on when cruise drops out, also ESP off button not responding

Also U1F3E Absence of telematics comms, & U1F18 Touch screen not communicating on multimedia CAN.

Also on one start, no audio from radio was observed.

I am thinking a data comm problem in the BSI/Telematics/Touchscreen area

Is touch screen comms a requirement for Cruise control function ?

Thanks in advance

[EdMar]

Hi,

I'm a bit further on with this,

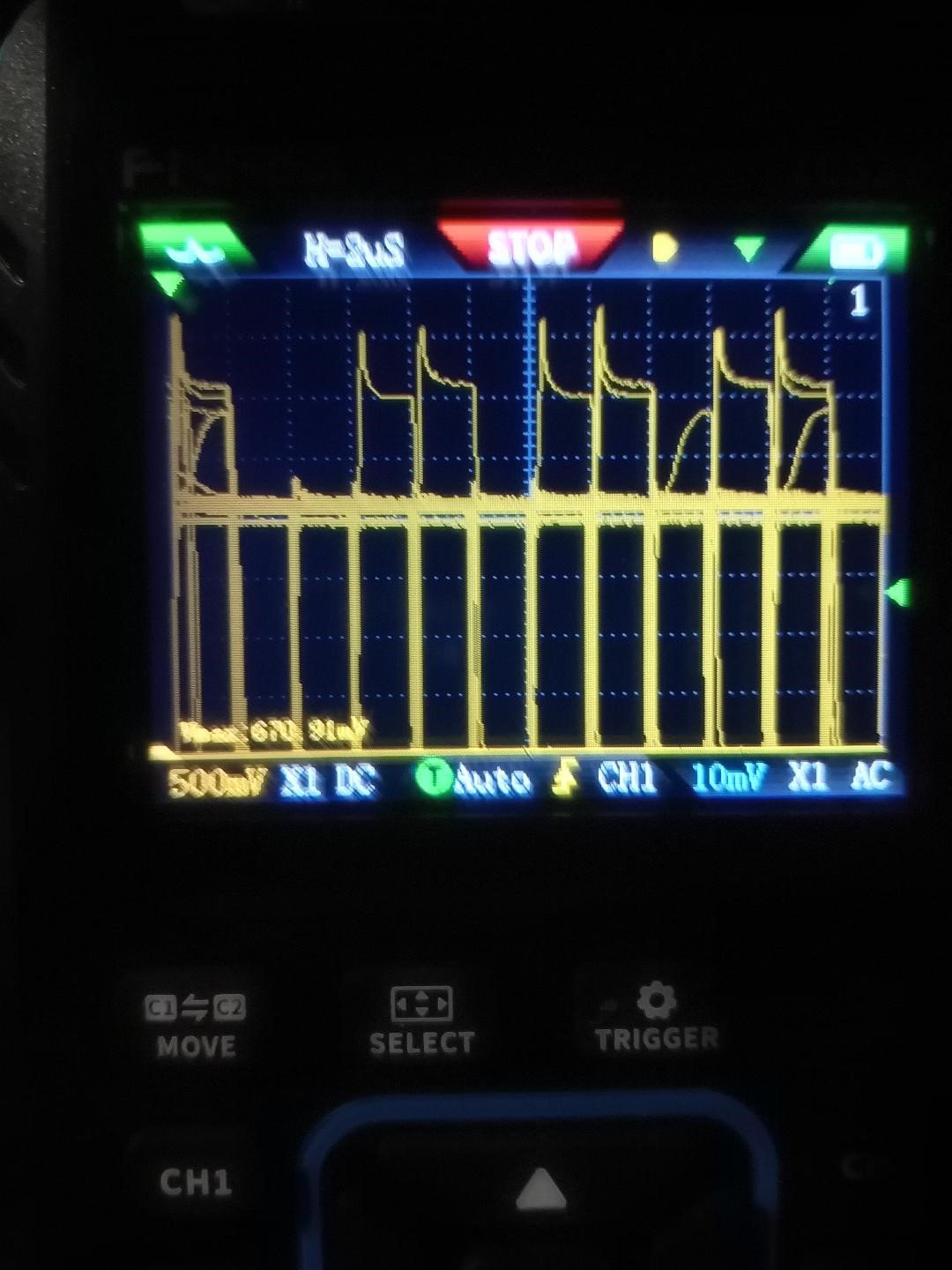

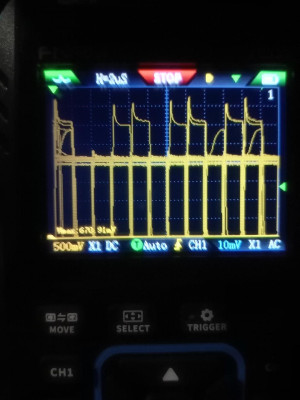

Santa brought me a nice handheld scope fast enough to check CAN

There are issues with CAN network, think I know what it is

I will post more if I manage to confirm.

Wiring diagrams would help pls.

[GiveMeABreak]

Hi, sorry but I don't have any wiring diagrams for the Cactus, and we don't provide technical docs / wiring diagrams unless staff already have them.

Any issue with the ESP system and cruise control and any associated features like Hill Start Assist, descent control and such will be deactivated.

[EdMar]

Hi

Yes I am thinking that it is a message from an ESP related component possibly on a LIN BUS connection , that is not getting through to the ABS due to noisy CAN.

ESP button linked to BSi by LIN?

Codes can be misleading some times,
With out having the scenario which triggers the code, Hyundai manuals descibe what sets the code, but most codes range from lost in translation to down right obscure.

I'm thinking the code meaning may be closer
'Message from LIN connected component not reaching destination'

Noisy can not letting low priority button message though, is my working theory at the momemt.

Been prodding ESP button every few minuites & fails about 5% of the time.

Hope do a bit of reverse engineering on the CAN next week.

[EdMar]

Hi,

Could I request the build sheet pls?

Also a parts look up , if convenient,
If there an ABS loom listed for cactus

Similar to this ebay one for C4
https://www.ebay.co.uk/itm/296774156227?

Thanks

[GiveMeABreak]

Sure, build sheet:

Vehicle Characteristics
Vehicle family	C4 CACTUS
AS/RP N°	14529 82 1 0105
Warranty Start Date	23/09/2016
Engine serial number	10 JBHA 0179657
OPB	009V
BER	e2*2007/46*0440*05
P4A	9814183799
General Information
PRODUCT TYPE	PASSENGER CAR
COMMERCIAL MARQUE/COMPONENT TYPE	CITROEN
VEHICLE FAMILY	C4 CACTUS
SILHOUETTE	5-DOOR SALOON
TRIM LEVEL	HIGH MEDIUM
ENGINE	DV6FD FAP DIESEL
TRANSMISSION	BVM5
PAINT TYPE	METALLIC LACQUER
BODY COLOUR	KTP - SHARK GREY PAINT
INTERIOR TRIM TYPE	CLOTH WARP AND WEFT CURITIBA "23"
UPHOLSTERY COLOUR	"FR"
GEARBOX (CHARACTERISTICS)	MANUAL GEARBOX BE4/5 O
CONVERSION GUIDANCE	WITHOUT CONVERSION
DEFINITION TO FOLLOW	INITIALE RANGE
ENGINE (TYPE)	DV TYPE ENGINE
BADGE	FAMILY BADGE
Vehicle Characteristics
TRIM LEVEL	HIGH MEDIUM
PAINT TYPE	METALLIC LACQUER
BODY COLOUR	KTP - SHARK GREY PAINT
INTERIOR TRIM TYPE	CLOTH WARP AND WEFT CURITIBA "23"
UPHOLSTERY COLOUR	"FR"
GEARBOX (CHARACTERISTICS)	MANUAL GEARBOX BE4/5 O
SPEEDOMETER DRIVE	WITHOUT SPEEDOMETER RATIO
Fuel Supply-Engine
ENGINE	DV6FD FAP DIESEL
FUEL SUPPLY	DIRECT EXCHANGER TURBO INJECTION
DIESEL FILTER WATER DETECTOR	WITHOUT DIESEL FILTER WATER DETECTOR
FUEL	DIESEL GRADE DA/DE/DE+
EMISSIONS STANDARD (ENGINE)	EURO 6.1 ENGINE EMISSION CONTROL
ENGINE (TYPE)	DV TYPE ENGINE
CAPACITY	1600 CM3
CATALYTIC CONVERTER	2-COMPONENT CATALYTIC CONVERTER LOWER FILTER 50PPM 30 GR
FUEL TANK	FUEL TANK WITH LOCATING TAB
OPTIMISATION OF VEHICLE’S CONSUMPTION	NORMAL FUEL CONSUMPTION OPTIMISATION
COOLING MOTOR	RADIATOR TH : 18 - 21 DM2 BRAZED ALUMINIUM
CRANKCASE GAS CIRCUIT HEATING	WITH HEATER CASING GAS CIRCUIT
POWER VARIATION (ENGINE)	POWER 73 KW - 254 NM
EOBD SELF-DIAGNOSIS SYSTEM	"EOBD" AUTO-DIAGNOSTIC WITHOUT ACCELEROMETER
DEVICE (ANTIPOLLUTION)	"EGR" EXHAUST GAS RECYCLING
VEHICLE TECHNICAL DEPOLLUTION	EURO 6.1 VEHICLE TECHNICAL EMISSION CONTROL
PARTICLE FILTER	WITH PARTICLE EMISSION FILTER
FAN	1 AERO 2-SPEED 140W FAN WITH SCOOP
FUEL VAPOUR RETRIEVAL	WITHOUT PETROL VAPOUR RECUPERATION
INJECTION ASSOCIATED VARIANT	MOUNTING BOSCH
TANK FILTER	CITHOUT RESERVOIR FILTER
STOP AND START	WITHOUT STOP AND START
Gearbox Transmission
TRANSMISSION	BVM5
GEARBOX (CHARACTERISTICS)	MANUAL GEARBOX BE4/5 O
FINAL DRIVE RATIO	AXLE RATIO 19 X 72
SPEEDOMETER DRIVE	WITHOUT SPEEDOMETER RATIO
WHEEL STYLE	17" ALLOY WHEEL
SEAL, WHEEL END	NOT AFFECTED
DIFFERENTIAL (GEARBOX)	DIFFERENTIAL 77
RIM/TYRE SIZE	17 INCH TYRE FITMENT
TYRE (SIZE, TYPE)	205/50 R17 V NON REINFORCED TYRE
WHEELS FITTED	6,5" RIM ROAD WHEELS
WHEEL (TYPE)	ALLOY WHEEL ASSEMBLY 1
INFLATION PRESSURE LOSS INDICATOR	INDIRECT TYRE UNDER-INFLATION DETECTION WITHOUT LOCATION
GEARBOX TYPE	GEARBOX BE4R
Suspension-Steering-Brakes
ABS	WITH ABS BRAKES
FRONT ANTI-ROLL BAR	FRONT ANTI-ROLL BAR DIAM 20
BRAKE TYPE	VENTILATED FRONT DISCS/REAR DRUMS
STEERING WHEEL ANGLE	WITH ABSOLUTE STEERING WHEEL ANGLE ESTIMATOR
SUSPENSION	NORMAL SUSPENSION
DYNAMIC STABILITY CONTROL SYSTEM	ELECTRONIC STABILITY PROGRAM
BRAKE ASSOCIATED VARIANT	ESP TEVES MK100E
STEERING (OPERATION)	ELECTRIC POWER STEERING
ELECTRIC STEERING	ELECTRIC STEERING POWER 68 AMPERES
PEDAL BRACKET (TYPE)	SIMPLE STANDARD PEDAL BRACKET
Body Fittings
TOWBAR	WITHOUT TOWBAR
AERIAL	AERIAL + GPS
FINISHER (SELF-ADHESIVE)	GLOSS BLACK REAR SURROUND TRIM
SIDE MOULDINGS (TYPE)	BLACK AIRBUMP SIDE PROTECTORS
WHEEL EMBELLISHER (STYLE)	WITHOUT WHEEL CAP
UNDERBODY SHIELD	PLAST+FOAM UNDER ENGINE PROTECT+OPTIMISED REAR
REVERSING LAMPS	WITH 1 REVERSING LIGHT
INDICATORS	LUMINOUS SIGNATURE
ADDITIONAL SHIELD (UNDER ENGINE)	W/O ENGINE UNDERSHELDING
EXT. LOAD RETENTION RING (ATTACHMENT)	TRUCK EXTERIOR LASHING RING
EXT. REARVIEW MIRROR COMP. FUNCTION	MANUAL FOLD EXTERIOR MIRROR
ENGINE BAY SOUNDPROOFING	SOUNDPROOFING UNDER BONNET + BULKHEAD + SERVO
WINDSCREEN WIPER	FRONT WIPER BLADE WITH RAIN SENSOR
REAR SCREEN WIPER (OPERATION)	INTERMITTENT REAR SCREEN WIPER
FRONT PANEL BLANK	WITHOUT FRONT BUMPER PLUG
ROOF GLASS	WITHOUT ROOF WINDOW
BUMPER	STD COLOUR-CODED FR/RR BUMPER
NUMBER PLATE	WITHOUT LICENCE PLATE
LUGGAGE RACK	MOUNTING WITH ROOF BARS
FRONT FOGLAMP	FOG LAMPS WITH CORNERING LIGHT
EXTERIOR REAR VIEW MIRROR (DRIVER SIDE)	ELECTRIC DRIVER’S EXTERIOR MIRROR
EXTERIOR REAR VIEW MIRROR (PASSENGER SIDE)	PASSENGER ELECTRIC DOOR MIRROR
SPARE WHEEL	SPACE-SAVING SPARE WHEEL
EXTERIOR ACCESSORIES	BODY COLOUR EXTERIOR HANDLE
BUMPER TRIM	MAT BLACK FR CAPPING + BLACK RR
GLASS (APPEARANCE)	TINTED + DARK-TINTED RR WINDOW GLASS
WINDOW (TYPE)	LAMINATED WINDSCREEN + TOUGHENED REAR SCREEN
Interior Fittings
INTERIOR TRIM TYPE	CLOTH WARP AND WEFT CURITIBA "23"
ANTI-THEFT ALARM	WITHOUT THEFT PROTECTION ALARM
REAR HEAD RESTRAINT	REAR HEADREST ADJUSTABLE
FRONT HEAD RESTRAINT	FRONT HEADREST ADJUSTABLE
REAR SEAT	SEPARATE FOLD BACK BENCH SEAT
LUGGAGE COVER	SHELF
REAR SEATBELT	3 REEL 3 PT REAR SAFE BELT + UNBUKLED WARNING
FRONT SEATBELT	RETRACTOR ALARM DRIVER + PASS S/BELT
CLIMATE (AMBIENT TEMP)	TEMPERATE COUNTRIES
CHILD LOCK	ELECTRIC REAR CHILD LOCK
SPEED GRADUATIONS	SPEED GRADUATION IN MPH
GEAR SELECTOR	FLOOR GEAR CONTROL
RADIO EQUIPMENT	FEED AERIAL RECEIV FRT SPEAKER TWT REAR SPEAKER
DRIVING POSITION	RIGHT HAND DRIVE
REMOTE CONTROL	WITH REMOTE CONTROL
BOOT AND LOAD SPACE LIGHTING	AUTO BOOT LIGHT AND LOAD VOL SWITCH
DASHBOARD EQUIPMENT	MID GREY DECORATION
INT. TRIM AND EQUIPMENT VARIATION	STANDARD HANDBRAKE KNOB
MISC. INT. LAMPS	LIGHTING BY LEDS
LOAD SPACE TRIM	CARPET BOOT MAT+BLACK RING
INSTRUMENT PANEL (CHARACTERISTICS)	LCD DIGITAL INSTRUMENT PANEL WITH SEGMENTS
LOUDSPEAKER	4 FR SPEAKERS (2 TW + 2 FR)+2 RR SPEAKERS
RADIO CONTROLS	DIRECT CAR RADIO CONTROL
POLLEN FILTER	WITH POLLEN FILTER
PASSENGER COMPARTMENT SOUNDPROOFING	PASSENGER COMPARTMENT SOUNDPROOFING CROSSMEMBER+BULKHEAD+TUNNEL+RR WHEEL ARCH+FR FLOOR
FRONT SEAT ARMREST	FRONT SEAT CENTRAL ARMREST
COMPACT DISC	WITHOUT COMPACT DISC
SATELLITE NAVIGATION SYSTEM	NAVIGATION 2 COLOUR SCREENS
DRIVER’S WINDOW LIFT	STANDARD ELECTRIC DRIVER’S FR WINDOW
PASSENGER’S WINDOW LIFT	STD ELEC CONTROL FRONT PASSENGER ELECTRIC WINDOW
DISPLAY	DIGITAL TOUCH SCREEN
COURTESY MIRROR	DRIV OCCULT+PASS OCCULT W/O LIGHT
OIL GAUGE	W/O OIL LEVEL INDICATOR
FITTING REAR HEAD RESTRAINT	MOUNT 3 REAR HEAD-REST
HEATING ELEMENT	NON HEATED SEAT
FRONT LATERAL AIRBAG	THORAX SIDE + CURTAIN AIRBAG
PASSENGER AIRBAG	WITH AIRBAG ON PASSENGER SIDE
ON-BOARD COMPUTER	COMPUTER
EQUIPMENT PACK	W/O EQUIPMENT PACK
EXTERIOR REAR VIEW MIRROR (HEATED)	HEATED EXTERIOR MIRROR
AIRBAG DEACTIVATION	MANUAL AIRBAG DEACTIVATION
REAR LOAD FLOOR	WITHOUT REAR LOAD FLOOR
STORAGE (DRIVING POSITION)	W/O SETTING BOX
RADIO RECEIVER	SMEG DIGITAL RADIO RECEIVER
REFRIGERATION	AUTOMATIC AIR CONDITIONING
CRUISE CONTROL	REGULATOR AND SPEED LIMIT
DRIVER’S SEAT HEIGHT CONTROL	PARALLEL DRV HEIGHT ADJ
INTERIOR REAR VIEW MIRROR	DAY - NIGHT INTERIOR MIRROR
DRIVER AIRBAG	DRIVERS AIR BAG
LOAD SPACE STORAGE	W/O BOOT TIDY
TUNER RADIO	MONO RADIO TUNER
EXTERIOR TEMPERATURE (SCALE)	CELSIUS EXTERIOR TEMPERATURE INDICATOR
OBSTACLE DETECTION SYSTEM	RR RADAR OBSTACLE DETECTOR + RR CAMERA
INFLATION PRESSURE LOSS INDICATOR	INDIRECT TYRE UNDER-INFLATION DETECTION WITHOUT LOCATION
TRIM ADAPTATION	PLASTIC KNOB + PVC GAITER
FLOOR MAT	W/O CARPETMAT
RADIO FREQUENCY	WESTERN EUROPE RADIO FREQUENCY
LOCKING CONTROL	CENTRAL DEAD LOCKING
WINDOW (TYPE)	LAMINATED WINDSCREEN + TOUGHENED REAR SCREEN
STEERING WHEEL	LEATHER STEERINGWHEEL
FAN	1 AERO 2-SPEED 140W FAN WITH SCOOP
AUDIO PACK AUXILIARY SOCKET	1 JACK SOCKET + USB
TELEMATIC UNIT	WITHOUT TELEMATIC UNIT
Electrical
ALTERNATOR	ALTERNATOR 150 AMP
BATTERY	BATTERY L2 640
REMOTE CONTROL	WITH REMOTE CONTROL
STARTER MOTOR	STARTER MOTOR CL 4
BOOT AND LOAD SPACE LIGHTING	AUTO BOOT LIGHT AND LOAD VOL SWITCH
SPECIAL LIGHTING	DAYLIGHT RUNNING LIGHTS
REVERSING LAMPS	WITH 1 REVERSING LIGHT
MISC. INT. LAMPS	LIGHTING BY LEDS
INDICATORS	LUMINOUS SIGNATURE
EXT. REARVIEW MIRROR COMP. FUNCTION	MANUAL FOLD EXTERIOR MIRROR
CEN. LOCKING REM CONTROL FREQUENCY	433.92 MHZ SUPER HETERODYNE
MULTIPLEXING	ECO ELECTRICAL ARCHITECTURE
BATTERY CHARGE MEASUREMENT	WITHOUT BATTERY CHARGE MEASUREMENT
FRONT FOGLAMP	FOG LAMPS WITH CORNERING LIGHT
LIGHTING OF LAMPS	AUTOMATIC SWITCHING ON OF LIGHTS
Component Manufacturers
BRAKE ASSOCIATED VARIANT	ESP TEVES MK100E
INJECTION ASSOCIATED VARIANT	MOUNTING BOSCH
Miscellaneous
SPECIAL SPECIFICATION	STANDARD
MODIF. DURING MODEL YEAR	MINOR INDEX "06"
CONDENSER (SPECIFICATIONS)	CONDENSER 19.2 DM - THICKNESS 12CM
ATMOSPHERIC CONDITIONS	NORMAL ATMOSPHERE
DRIVING POSITION	RIGHT HAND DRIVE
VIN PLATE	EUROPEAN UNION CONSTRUCTOR’S PLATE + NRE
RADIO HEADPHONE SOCKET	SINGLE ACCESSORY SOCKET
TRAFFIC SIDE	DRIVING ON THE LEFT-HAND SIDE
SIDE IMPACTS	DOOR WITHOUT REINFORCEMENT
SET OF KEYS	2 HIGH FREQUENCY REMOTE CONTROL KEYS
DOOR SEAL	SEAL DIRT EXCLUDER
REFRIGERANT	AIRCON FLUID 1234 YF
EMERGENCY EQUIPMENT	W/O HELP EQUIPMENT
EXTERIOR ACCESSORIES	BODY COLOUR EXTERIOR HANDLE
SLAVE CONTROL UNIT	BSI + COM 2008

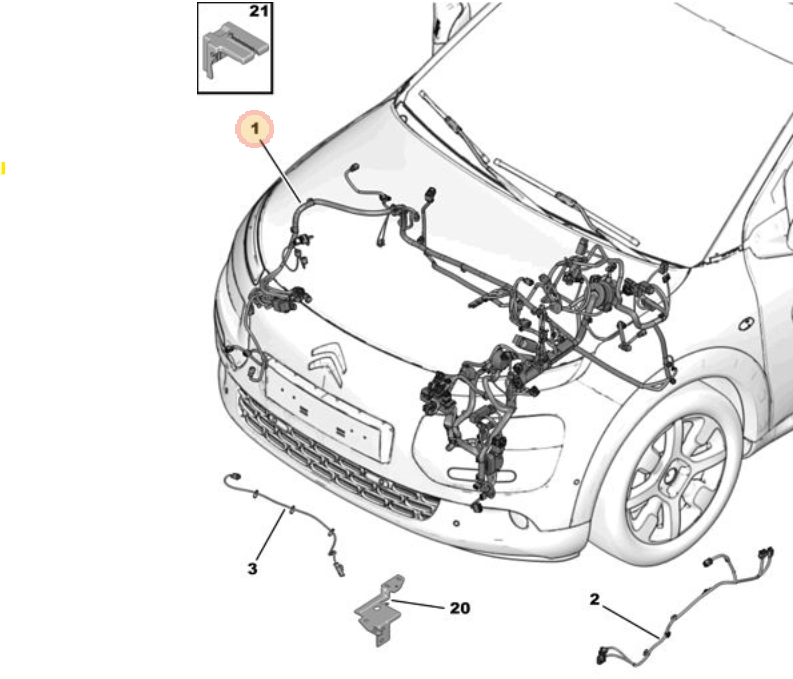

As far as the harness is concerned, there's no separate electrical harness for the ESP system (apart from the wheel speed sensors of course). It is integrated into the main wiring harness:

(1) Main Harness, part: 1614307080, £1051.52

[EdMar]

Hi,

Thakyou,
Build sheet informative ,
Manual fold mirrors,
they are stuck & i didnt wasnt to 'encourage' them too much incase they were power fold (some power fold need taken apart to free them)

Standard power windows,
That explains why I cant reprogram the Auto-windows

Is there a thread for requesting build sheets , radio codes etc ?

I used to use servicebox and other manufacturer sites,(before new stellantis system req VAT no.)
and i do a bit of diagnostic work for mates in the trade, so often forum donations are worth the time saving (previously would have jumped on servicebox etc which were chargable)

Borrowed a picoscope & quick decode of can bus, showing low priority packets getting dropped, mate says PSA cars with ABS in wheel arch prone to water ingress & any time he has arch liner out, clutch etc, he checks ABS plug, contact cleaner spray & electrical grease.

Thanks again

[GiveMeABreak]

Pop up any parts only requests on the Official Parts Thread to help ensure your request is not missed. Ask for a build sheet as needed, (please bear in mind this isn't intended for commercial use), but we don't mind the occasional request.

Just for reference: PSA vehicles don't need radio codes - the Head Units are all VIN-coded to the vehicle.

[EdMar]

Hi ,

Thanks, I was thinking Renault for radio codes, but I think newer ones are VIN coded to.

I get a few diagnostic jobs from mates in the trade, sevicebox etc wanting VAT is may the push I need to go into it in a bigger way.
In the mean time if I have any commercial related requests, I'll make the odd extra donation .

Thanks

[GiveMeABreak]

No worries - it's the time more than anything as we have hundreds of posts to get through on the Forum each day. Staff can't provide any official technical help for Renault as they have a different system, so staff can only help with part numbers and part diagrams for Citroen, DS Autos and Peugeot.

Renault should also use VIN coding this day and age for their telematics units too.
