Hi All,
Would anyone be able to provide me please with a wiring schematic for a 2005 Berlingo 1.9D Vin VF7**************[VIN obfuscated, can be read by forum staff].
I am looking specifically for the wiring arrangements to the heater blower and its associated fusing and controls.
Many thanks
Wiring Diagram - Citroen Berlingo
-
Huskyxantia
- (Donor 2025)
- Posts: 3408
- Joined: 30 Jul 2018, 22:11
- x 748
Re: Wiring Diagram - Citroen Berlingo
If you join then for 2 yrs your get full help with this , parts & more on the forum its just £10 & worth every penny.
Husky.
Thinking outside of the box is better than sitting in a dark one.
Thinking outside of the box is better than sitting in a dark one.-
PaulC5
- Donor 2024
- Posts: 2273
- Joined: 06 Jun 2023, 15:26
- x 567
Re: Wiring Diagram - Citroen Berlingo
What is the problem with the heater ? Just asking since somebody may be able to help.
-
wheeler
- Posts: 7894
- Joined: 21 Sep 2002, 19:07
- x 1044
-
welldigger99
- Posts: 25
- Joined: 12 Sep 2022, 21:07
Re: Wiring Diagram - Citroen Berlingo

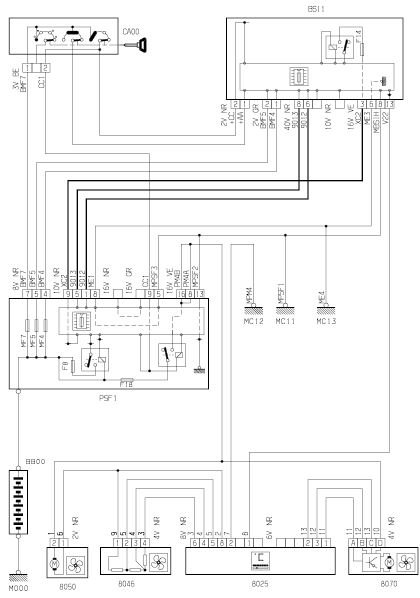

Ideal! Thanks Wheeler!
Symptoms :-
No speed graduation on heater blower. Only operates on "fully on" position.

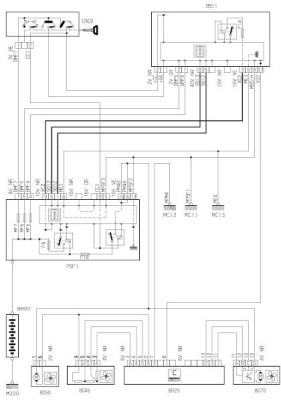

I am suspecting heater matrix, which I can clearly see on your diagram.
Many thanks. once again.
welldigger99
Symptoms :-
No speed graduation on heater blower. Only operates on "fully on" position.
I am suspecting heater matrix, which I can clearly see on your diagram.
Many thanks. once again.
welldigger99
-
ozvtr
- Posts: 823
- Joined: 13 Oct 2020, 01:11
- x 230
Re: Wiring Diagram - Citroen Berlingo
Could be damaged (burnt out) connector but my money is on the resistor block item 8046 in wheelers diagram.welldigger99 wrote: 19 Dec 2024, 17:26 No speed graduation on heater blower. Only operates on "fully on" position.
It reduces current in normal operation but it's completely bypassed in the fully on (fastest speed) position.
