I need a relay diagram for the Xantia

This is the Forum for all your Citroen Technical Questions, Problems or Advice.
Flavio Xantia
Posts: 2
Joined: 08 Oct 2024, 22:51

I need a relay diagram for the Xantia

Unread post by Flavio Xantia »

Hi! Everyone! I've been fixing a Xantia 98 2.0 Gasoline :-D , but I got stuck into a problem: I can't find a relay diagram!
I've got a few of them missing and searched a lot trying to find a diagram, but couldn't find any.
But the relays that I really want to find are the ones for the power window motors.

I would much apprecciate if someone could help me! [-o<

(Sorry for my bad english) :?
User avatar
xantia_v6
Forum Admin Team
Posts: 9523
Joined: 09 Nov 2005, 23:03
x 926

Re: I need a relay diagram for the Xantia

Unread post by xantia_v6 »

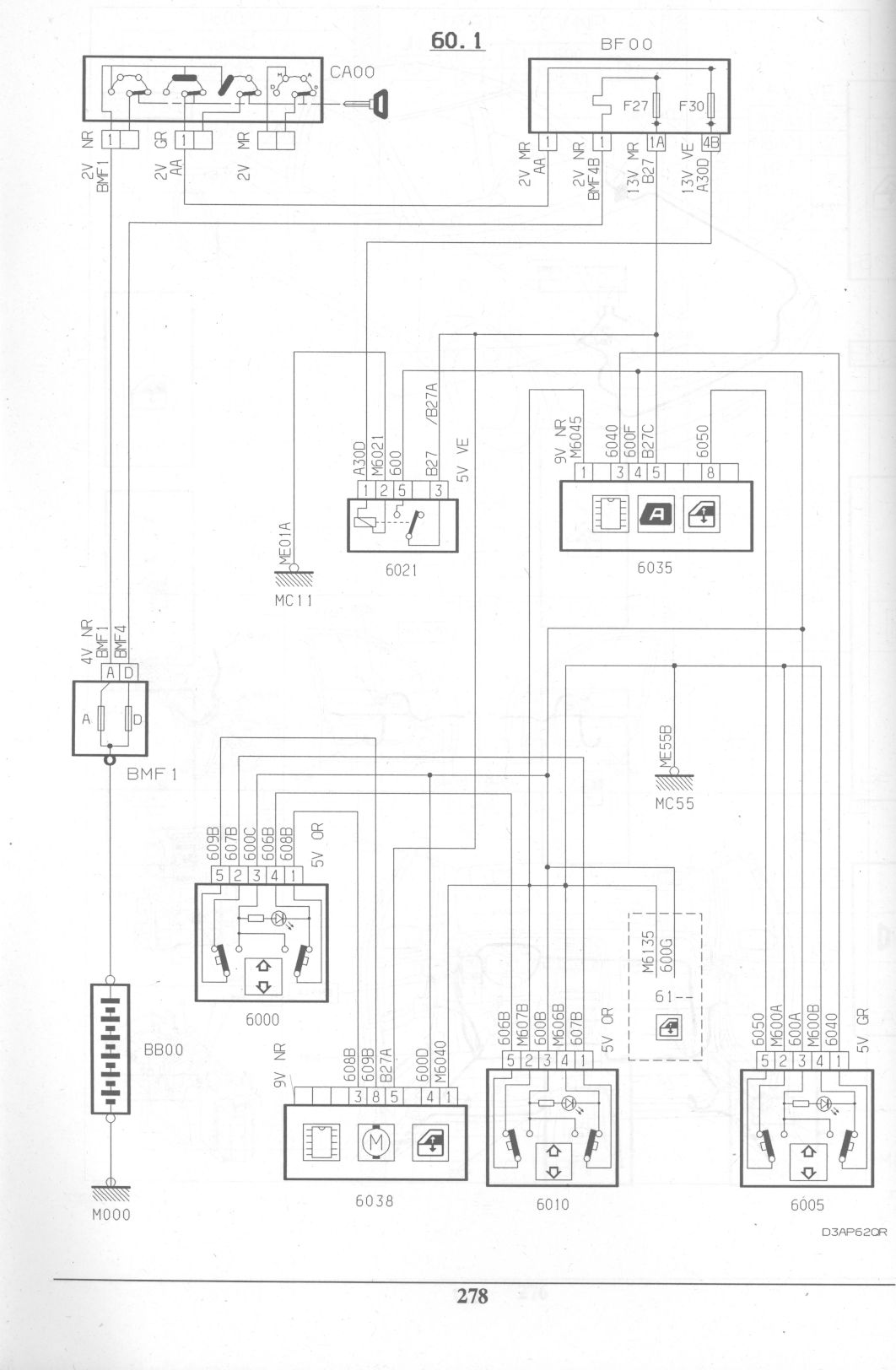

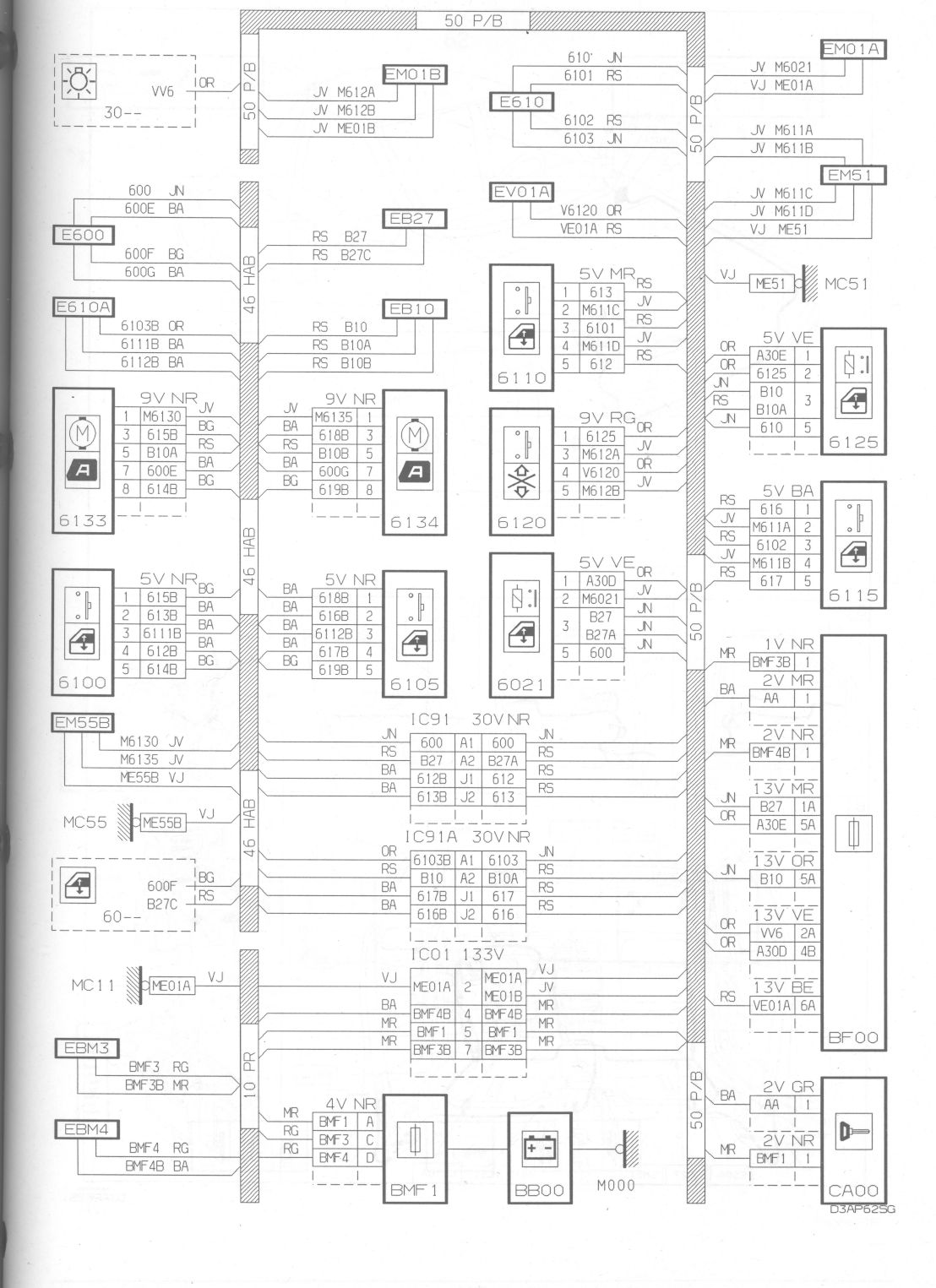

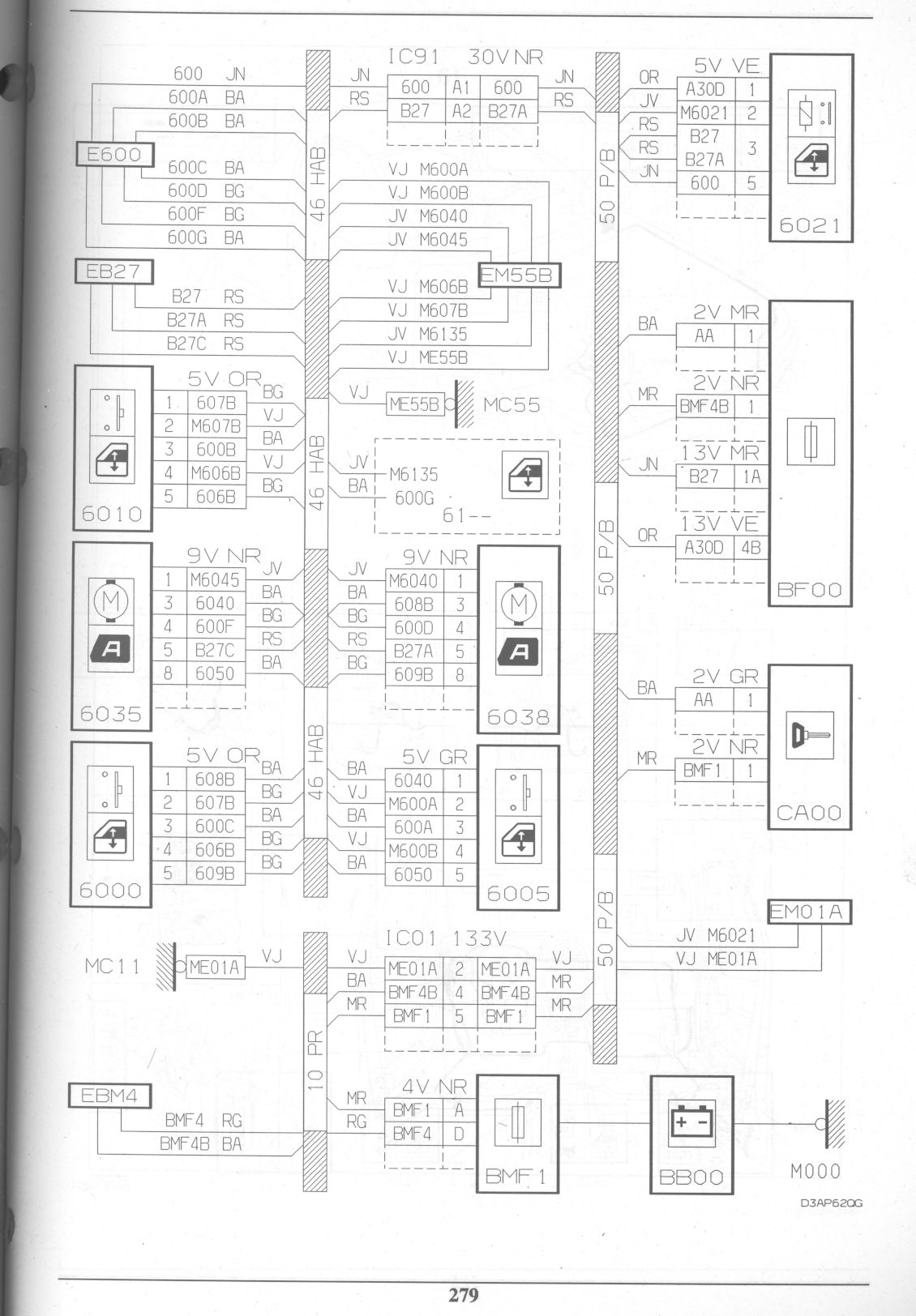

I only have wiring diagrams for RHD Xantia, but generally they are quite similar.

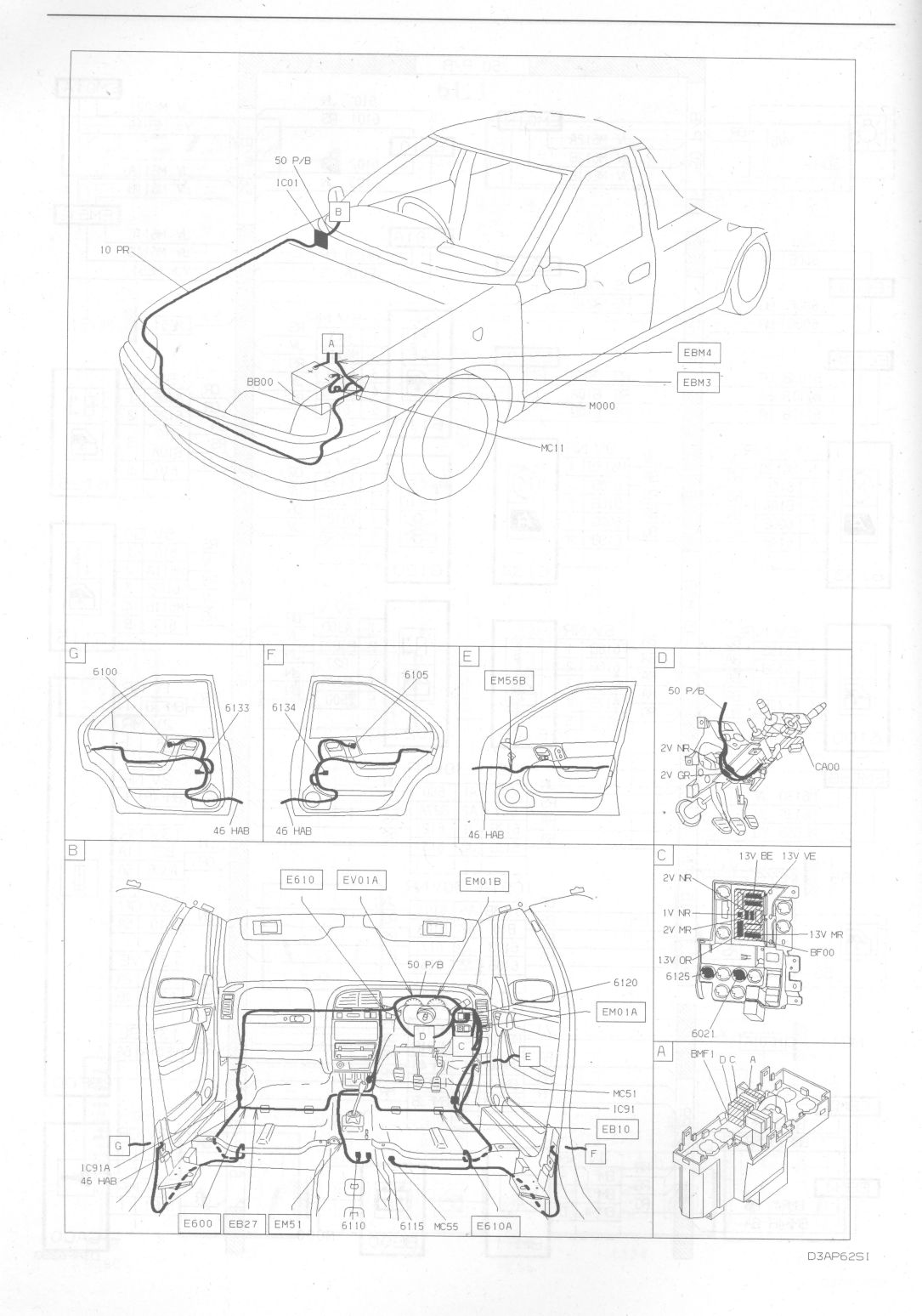

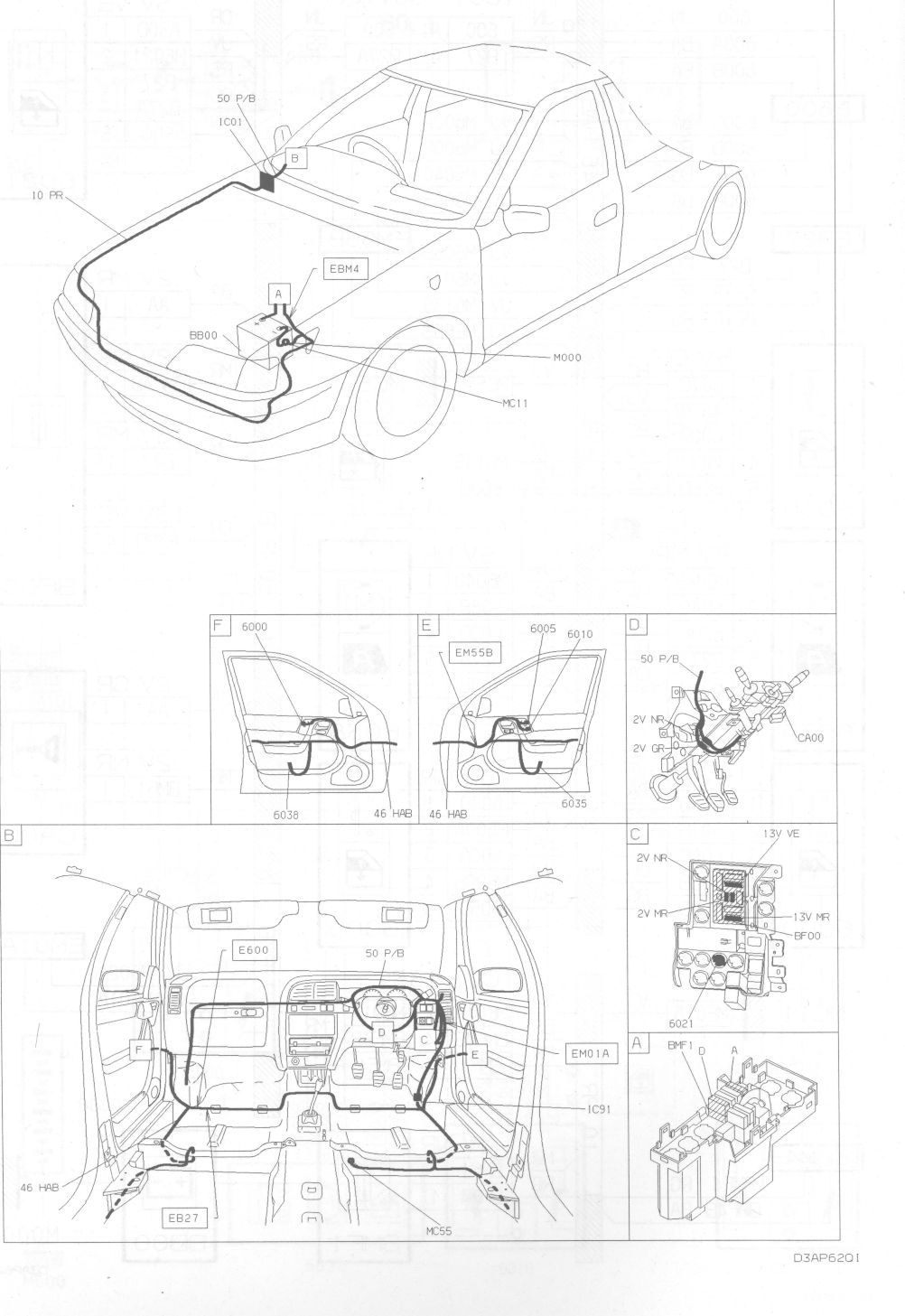

The 2 relays are located in the relay panel near the drivers feet (but they may be arranged differently for a LHD car).






Flavio Xantia
Posts: 2
Joined: 08 Oct 2024, 22:51

Re: I need a relay diagram for the Xantia

Unread post by Flavio Xantia »

THANKS A LOT MAN! :-D
I've seen you in other posts and I much apprecciate your work! =D>

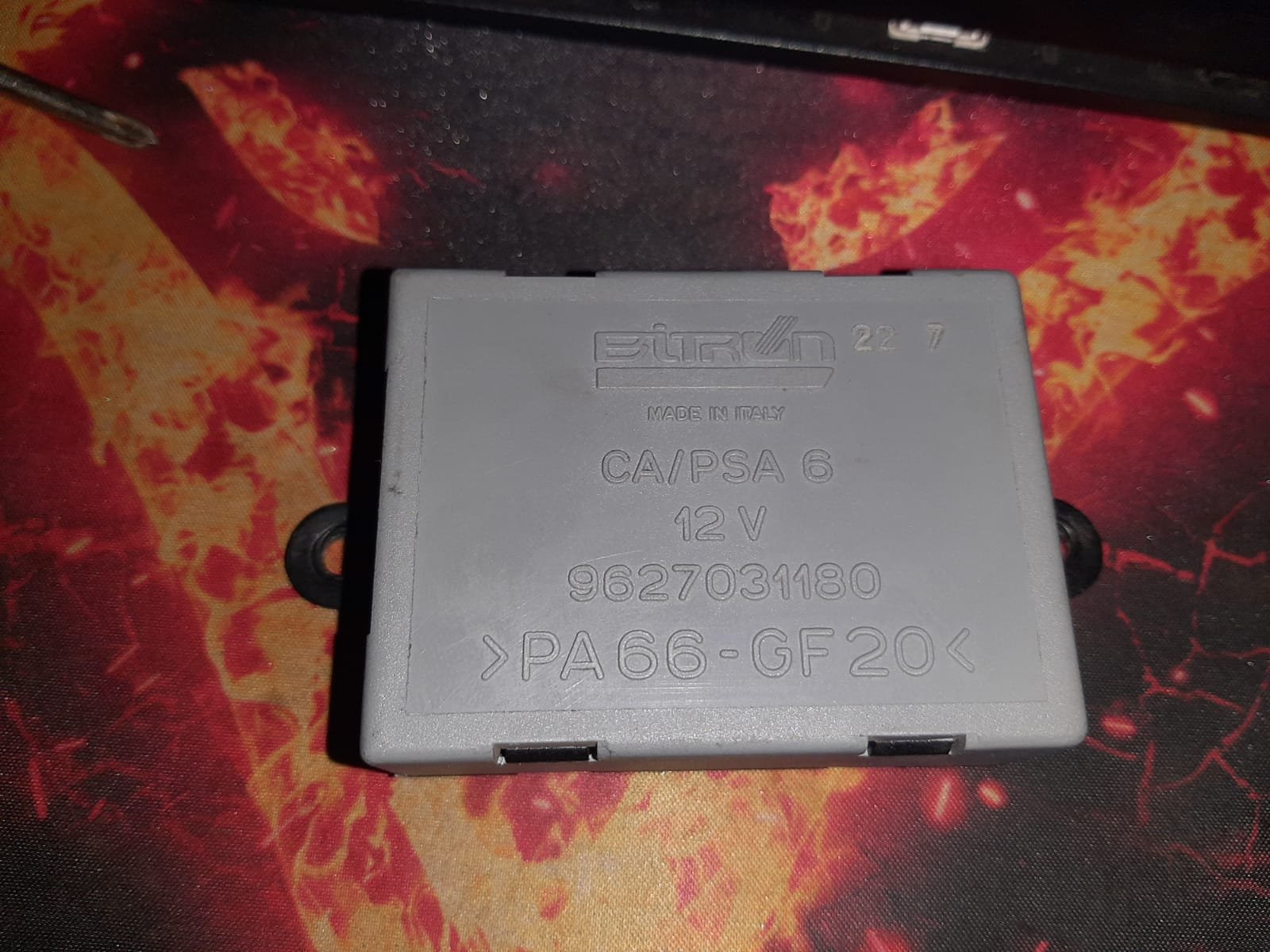

Oh! and my car has a "window control relay" does it affect any part of this circuit?

window control relay - Module: Bitron CA/PSA 6 | 12V | 9627031180 | >PA66-GF20<
Attachments
window Controller.jpg
User avatar
xantia_v6
Forum Admin Team
Posts: 9523
Joined: 09 Nov 2005, 23:03
x 926

Re: I need a relay diagram for the Xantia

Unread post by xantia_v6 »

What is the RP (orga) number of the car? There were changes during 1998.
