Hello
Can you tell me the jobs that Citroen do at each service please.
Also the build spec of a car I just bought.
I am a member and made a donation.
Any further info on the car appreciated.
VIN VF7**************[VIN obfuscated, can be read by forum staff]
THANKS.
Geoff

[GiveMeABreak]

Geoff - how did you make your donation? Donations of the required minimum for this service (£10) that are made via PayPal using the donation links are automatic and will upgrade your profile, with the appropriate donor status and year info beneath your user name, which will also be in green.

I'm asking as your donor status has not changed. Please reply via Private Message if you prefer, but do not provide any personal info here in the public forum.

[knappettg]

Oops - embarrassing. I paid c4owners on the day I joined here and confused the two. Apologies.
I have now made my donation via PayPal.

[GiveMeABreak]

No problems, here's your build sheet Geoff, and Important Servicing info to follow:

Vehicle Characteristics
Vehicle family	C4 PICASSO / C4 SPACETOURER (B78)
AS/RP N°	15994 FV 2 0911
Warranty Start Date	18/09/2020
Engine serial number	10 TMA3 0068742
OPB	00KX
BER	e2*2007/46*0356*23
P4A	9835749299
General Information
PRODUCT TYPE	PASSENGER CAR
COMMERCIAL MARQUE/COMPONENT TYPE	CITROEN
VEHICLE FAMILY	C4 PICASSO / C4 SPACETOURER (B78)
SILHOUETTE	ESTATE - LEISURE
TRIM LEVEL	UPPER LOW
ENGINE	EB2ADTS/EU63 1200 3 CYL PETROL
TRANSMISSION	STT TYPE 8-SPEED AUTOMATIC GEARBOX
PAINT TYPE	METALLIC LACQUER
BODY COLOUR	EVL - PLATINUM GREY PAINT
INTERIOR TRIM TYPE	TRIM.FINN VELOUR "1H"
UPHOLSTERY COLOUR	"FR"
DEFINITION TO FOLLOW	MID-LIFE
ENGINE (TYPE)	EB TYPE ENGINE
Vehicle Characteristics
TRIM LEVEL	UPPER LOW
PAINT TYPE	METALLIC LACQUER
BODY COLOUR	EVL - PLATINUM GREY PAINT
INTERIOR TRIM TYPE	TRIM.FINN VELOUR "1H"
UPHOLSTERY COLOUR	"FR"
Fuel Supply-Engine
FAN	2-SPEED FAN 140W AERO COMPACT DYNAMIC FLAP
DRIVE TRAIN	INTERNAL COMBUSTION DRIVE TRAIN
TANK FILTER	RESERVOIR FILTER INTERIOR
STOP AND START	WITH STOP AND START STARTER
ENGINE	EB2ADTS/EU63 1200 3 CYL PETROL
FUEL SUPPLY	DIRECT EXCHANGER TURBO INJECTION
DIESEL FILTER WATER DETECTOR	WITHOUT DIESEL FILTER WATER DETECTOR
FUEL	UNLEADED PETROL 95 QUALITY A/B/E/E+
EMISSIONS STANDARD (ENGINE)	EURO 6.3 ENGINE EMISSION CONTROL
SPEED SENSOR SIGNAL	FRONT WHEEL SENSOR NON-SIGN RR SIGNED
ENGINE (TYPE)	EB TYPE ENGINE
CATALYTIC CONVERTER	CATALYTIC CONVERTER BELOW 50PPM
FUEL TANK	FUEL TANK WITHOUT LOCATING TAB
COOLING MOTOR	RADIATOR EP28 28DM2 BRAZED ALUMINIUM
CRANKCASE GAS CIRCUIT HEATING	W/O HEATER CASING GAS CIRCUIT
EOBD SELF-DIAGNOSIS SYSTEM	"EOBD" SELF-DIAGNOSIS
DEVICE (ANTIPOLLUTION)	WITHOUT ANTI-POLLUTION DEVICE
VEHICLE TECHNICAL DEPOLLUTION	EURO 6.3 VEHICLE TECHNICAL EMISSION CONTROL
PARTICLE FILTER	WITH PARTICLE EMISSION FILTER
Gearbox Transmission
GEARBOX TYPE	ATN8 TYPE GEARBOX
TRANSMISSION	STT TYPE 8-SPEED AUTOMATIC GEARBOX
WHEEL STYLE	CITROEN 17 INCH ALLOY WHEEL
CLUTCH	WITHOUT CLUTCH
RIM/TYRE SIZE	17 INCH TYRE FITMENT
TYRE (SIZE, TYPE)	205/55 R17 95V REINFORCED TYRE
WHEEL (TYPE)	ALLOY WHEEL ASSEMBLY 1
INFLATION PRESSURE LOSS INDICATOR	INDIRECT TYRE UNDER-INFLATION DETECTION WITHOUT LOCATION
Suspension-Steering-Brakes
BRAKE ASSOCIATED VARIANT	ESP BOSCH 9.1
STEERING (OPERATION)	LOW POWER DOUBLE PINION ELECTRIC POWER STEERING
REAR ANTI-ROLL BAR	STIFFNESS 30000 NM/RAD
FRONT ANTI-ROLL BAR	FR ANTI-ROLL BAR DIAMETER 23 HOLLOW
STEERING WHEEL ANGLE	WITH STEERING ANGLE SENSOR
SUSPENSION	LOWERED SUSPENSION
SUSPENSION (ARCHITECTURE TYPE)	METAL SUSPENSION
DYNAMIC STABILITY CONTROL SYSTEM	ELECTRONIC STABILITY PROGRAM
Body Fittings
HANDS FREE ACCESS AND STARTING	FRONT ACCESS + BOOT + HANDS FREE STARTING
TOWBAR	WITHOUT TOWBAR
HORNS	HORNS-HARMONY
AERIAL	FR ROOF+GPS+DIG+INTEGRATED+GSM
FINISHER (SELF-ADHESIVE)	GLOSS BLACK REAR SURROUND TRIM
WHEEL EMBELLISHER (STYLE)	WITHOUT WHEEL CAP
INDICATORS	WITHOUT SIGNALING LIGHTS
ADDITIONAL SHIELD (UNDER ENGINE)	W/O ENGINE UNDERSHELDING
DRAUGHT EXCLUSION	FR AND RR DOOR AERODYNAMIC SEALING
EXT. REARVIEW MIRROR COMP. FUNCTION	DRIVER ELEC FOLDING+PASSENGER+DIODE+REVERSE +MEMORY
ENGINE BAY SOUNDPROOFING	SOUNDPROOFING FOR BULKHEAD + BONNET + WHEELARCH + POWER TRAIN
WINDSCREEN WIPER	2 SPEED INTERMITTENT+AUTOMATIC CADENCING
HEADLAMP WIPER	W/O HEADLAMP WIPER
FRONT PANEL BLANK	DOUBLE PILOTED AIR INLET CLOSER
ROOF GLASS	WITH ROOF WINDOW
BUMPER	BODY COL FR BUMPER+BLACK CAPPING CHR BEAD/BODY COL RR BUMPER
NUMBER PLATE	WITHOUT LICENCE PLATE
LUGGAGE RACK	MOUNTING WITH ROOF BARS
FRONT FOGLAMP	FRONT FOG LIGHTS
PANORAMIC VISUAL AID	WITHOUT PANORAMIC VISUAL AID
SPARE WHEEL	WITHOUT SPARE WHEEL
EXTERIOR ACCESSORIES	BODY-COLOURED EXTERIOR HANDLE
GLASS (APPEARANCE)	TINTED + DARK-TINTED WINDOW GLASS
WINDOW (TYPE)	LAM ATHERM+ACOUS WINDSCREEN + TOUGH REAR SCREEN
Interior Fittings
FAN	2-SPEED FAN 140W AERO COMPACT DYNAMIC FLAP
SEATING ASSOCIATED VARIANT	VARIANT ASSOCIATED WITH HIGH SEAT POSITION
DRIVER’S KNEE AIRBAG	WITHOUT DRIVER’S KNEE AIRBAG
REAR VIDEO SCREEN	WITHOUT REAR VIDEO SCREEN
CHILD OBSERVATION INTERIOR MIRROR	INTERIOR CHILD MONITORING MIRROR
AUDIO PACK AUXILIARY SOCKET	1 USB SOCKET
TELEMATIC UNIT	INDEPENDENT TELEMATIC UNIT 3S
INTERIOR TRIM TYPE	TRIM.FINN VELOUR "1H"
ANTI-THEFT ALARM	WITH THEFT PROTECTION ALARM
REAR HEAD RESTRAINT	REAR HEADREST ADJUSTABLE
SUPPLEMENTARY SEAT	2 PLACES SUPPLEMENT SEPAR SEATS
BLIND SPOT DETECTION	WITH BLIND SPOT MONITORING
LUGGAGE COVER	LUGGAGE COVER + WINDSTOP
FRONT SEATBELT	PYROT PYROTECHNIC SEAT BELT DOUBLE WITH ALARM
CLIMATE (AMBIENT TEMP)	HOT OR WIDER TEMPERATE COUNTRY
AIR CONDITIONING	WITH HEATER MATRIX
SPEED GRADUATIONS	SPEED GRADUATION IN MPH
GEAR SELECTOR	GEAR CONTROL AT THE STEERING WHEEL
CONSOLE	WITH REMOVABLE CONSOLE
DRIVING POSITION	RIGHT HAND DRIVE
ADDITIONAL HEATING	WITHOUT ADDITIONNAL HEATING
AIR EXTRACTOR	WITHOUT AIR EXTRACTOR
MIRROR LINK	WITH MIRROR LINK
LOAD SPACE LIGHTING	WITH GLOVEBOX LIGHTING
BOOT AND LOAD SPACE LIGHTING	AUTO BOOT LIGHT OR LOAD VOL SWITCH
DASHBOARD EQUIPMENT	UPPER PART PEARLESCENT ARDOISE GREY
INT. TRIM AND EQUIPMENT VARIATION	CLOTH INTERIOR EQUIPMENT TRIM
MISC. INT. LAMPS	LIGHTING BY LEDS
WORK TABLE	WITH WORK TABLE
LOAD SPACE TRIM	FOAM BOOT MAT + SOUNDPROOFING
UNDERSEAT STORAGE	2 UNDER SEAT STORAGE DRAWERS
INSTRUMENT PANEL (CHARACTERISTICS)	DIGITAL INSTRUMENT PANEL 29 WARNING LAMPS
DOOR TRIM	DECOR GLOSS VARNISH
LOUDSPEAKER	4 FR SPEAKERS (2 TW + 2 FR)+2 RR SPEAKERS
ADDITIONAL BLOWER	WITH ADDITIONAL PULSE
PASSENGER COMPARTMENT SOUNDPROOFING	SOUNDPROOFING FOR BULKHEAD + TUNNEL TOP RANGE
FRONT PASSENGER SEAT HEIGHT CONTROL	FRONT ADJUSTMENT PASSENGER SPACER
DRIVER SEAT CONTROL	DRIVERS FRT SEAT MANUAL CNTROL
FRONT PASSENGER SEAT CONTROL	PASSENGER FRT SEAT MANUAL CNTR
DRIVER SEAT ADJUSTMENT	DRIVER’S SEAT TILT BACK ELECTROPN LUMBAR SUPPORT
FRONT PASSENGER SEAT ADJUSTMENT	PASSENGER LUMBAR ADJUSTMENT
FRONT PASSENGER SEAT FOLDING	WITH FOLD PASS FRONT SEATING
FRONT SEAT ARMREST	DRIVER ANT PASSENGER FRONT ARMREST
COMPACT DISC	WITHOUT COMPACT DISC
STOWAGE BIN	FLAPS IN FLOOR
SATELLITE NAVIGATION SYSTEM	WITH NAVIGATION SYSTEM COLOUR SCREEN
HEADLAMP BULBS	DISCHARGE BULB
REAR WINDOW LIFT	SEQENT CONTR RR WINDOW LIFTER
TRAFFIC INFORMATION READER	PREVENTION+CORRECTION OF LATERAL TRAJECTORY
DISPLAY	DGT TOUCHSCREEN+12" DFT DISPLAY
OIL GAUGE	STD OIL LEVEL INDICATOR
FITTING REAR HEAD RESTRAINT	MOUNT 3 REAR HEAD-REST
HEATING ELEMENT	NON HEATED SEAT
FRONT LATERAL AIRBAG	THORAX SIDE + CURTAIN AIRBAG
FOOTWELL LIGHTING	DRIVER’S FOOTWELL + DOOR TRIM PAD LIGHTING
ELECTRIC WINDOW (OPERATION)	DRIVER’S + FRONT/REAR PASSENGER’S ANTI-PINCH
AIRBAG DEACTIVATION	MANUAL AIRBAG DEACTIVATION
COURTESY LAMP	CONTROLS FOR FRONT + REAR DOORS, FRONT + REAR INTERIOR LAMPS
HEADLAMP HEIGHT ADJUSTER	REMOTE MANUAL HEADLAMP ADJUSTMENT
WIFI	WITH WIFI
RADIO RECEIVER	DIGITAL CONNECTED NAVIGATION
REFRIGERATION	AUTOMATIC AIR CONDITIONING
CRUISE CONTROL	ADAPTIVE CRUISE CONTROL AND SPEED LIMITER
INTERIOR REAR VIEW MIRROR	ELECTROCHROMATIC DAY-NIGHT INTERIOR MIRROR
STORAGE (OTHERS)	NET SEAT BACK STORAGE POCKET
CARPET COVER	CARPET MAT 1
DRIVER AIRBAG	DRIVERS AIR BAG
LOAD SPACE STORAGE	W/O BOOT TIDY
TUNER RADIO	MONO RADIO TUNER
OBSTACLE DETECTION SYSTEM	FR AND RR RADAR OBSTACLE DETECTORS + RR CAMERA+AUTO PK
LATERAL BLINDS	SIDE BLINDS
INFLATION PRESSURE LOSS INDICATOR	INDIRECT TYRE UNDER-INFLATION DETECTION WITHOUT LOCATION
FLOOR MAT	FR + RR MATS
EQUALISER AMPLIFIER	WITHOUT EQUALISER AMPLIFIER
RADIO FREQUENCY	WESTERN EUROPE RADIO FREQUENCY
LOCKING CONTROL	DEADLOCKING + AUTOMATIC LOCKING
WINDOW (TYPE)	LAM ATHERM+ACOUS WINDSCREEN + TOUGH REAR SCREEN
STEERING WHEEL	LEATHER STEER WHEEL 4 BRANCHS
Electrical
LIGHTING OF LAMPS	AUTOMATIC SWITCHING ON OF THE LIGHTS+AUTOMATIC SWITCHING
ALTERNATOR	ALTERNATOR CLASS 15 HEA
HORNS	HORNS-HARMONY
BATTERY	BATTERY L3 760 70AH EFR 760 EN EF
STARTER MOTOR	STOP AND START BY STARTER
LOAD SPACE LIGHTING	WITH GLOVEBOX LIGHTING
BOOT AND LOAD SPACE LIGHTING	AUTO BOOT LIGHT OR LOAD VOL SWITCH
SPECIAL LIGHTING	FRONT DAY RUNNING LIGHT (DRL)
MISC. INT. LAMPS	LIGHTING BY LEDS
INDICATORS	WITHOUT SIGNALING LIGHTS
EXT. REARVIEW MIRROR COMP. FUNCTION	DRIVER ELEC FOLDING+PASSENGER+DIODE+REVERSE +MEMORY
CEN. LOCKING REM CONTROL FREQUENCY	433.92 MHZ SUPER HETERODYNE
HEADLAMP BULBS	DISCHARGE BULB
MULTIPLEXING	MODIFIED ECONOMY ELECTRICAL ARCHITECTURE
FOOTWELL LIGHTING	DRIVER’S FOOTWELL + DOOR TRIM PAD LIGHTING
COURTESY LAMP	CONTROLS FOR FRONT + REAR DOORS, FRONT + REAR INTERIOR LAMPS
FRONT FOGLAMP	FRONT FOG LIGHTS
HEADLAMP HEIGHT ADJUSTER	REMOTE MANUAL HEADLAMP ADJUSTMENT
Component manufacturers
BRAKE ASSOCIATED VARIANT	ESP BOSCH 9.1
Miscellaneous
SPECIAL SPECIFICATION	STANDARD
CONDENSER (SPECIFICATIONS)	CONDENSER 19,3DM2 THICKNESS 12
DRIVING POSITION	RIGHT HAND DRIVE
VIN PLATE	EUROPEAN UNION CONSTRUCTOR’S PLATE + NRE
LABEL	WITHOUT LABEL
RADIO HEADPHONE SOCKET	TRIPLE ACCESSORIES SOCKET
TRAFFIC SIDE	DRIVING ON THE LEFT-HAND SIDE
SIDE IMPACTS	DOOR WITHOUT REINFORCEMENT
REFRIGERANT	AIRCON FLUID 1234 YF
EMERGENCY EQUIPMENT	PUNCTURE REPAIR KIT
SURFACE CONDITIONS	GOOD TERRAIN
EXTERIOR ACCESSORIES	BODY-COLOURED EXTERIOR HANDLE

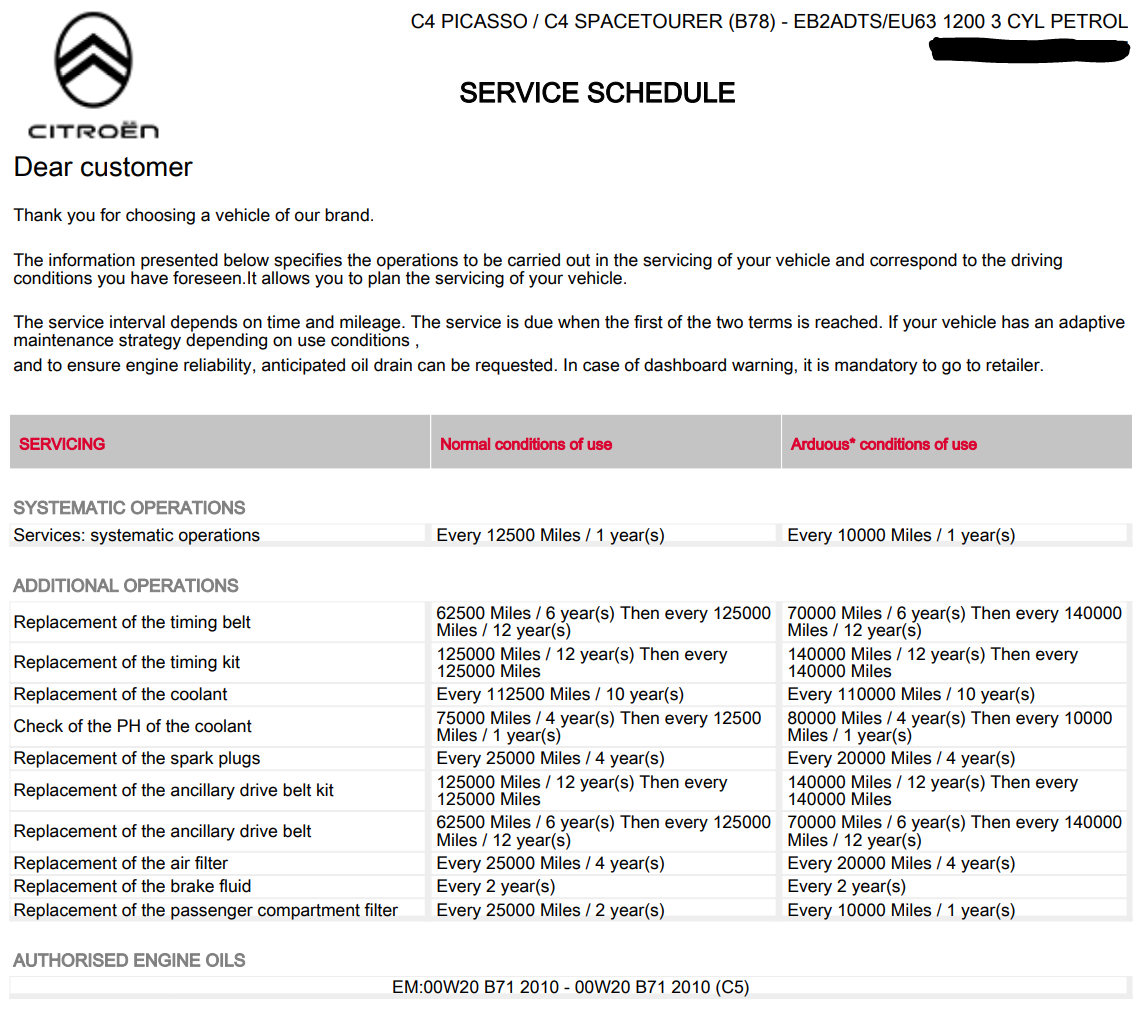

Servicing

Click to Zoom
