wiring diagram for front fog lights

Post by KennyW »

Looking for the wiring diagram for the front fog lights on Peugeot 207 year 2010.

Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, moved on.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
User avatar
KennyW
Donor 2024
Posts: 2515
Joined: 17 Jan 2006, 22:22
x 132

Re: wiring diagram for front fog lights

Post by KennyW »

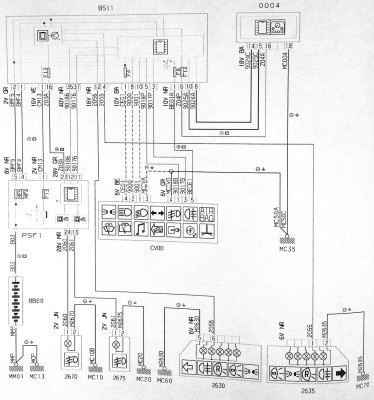

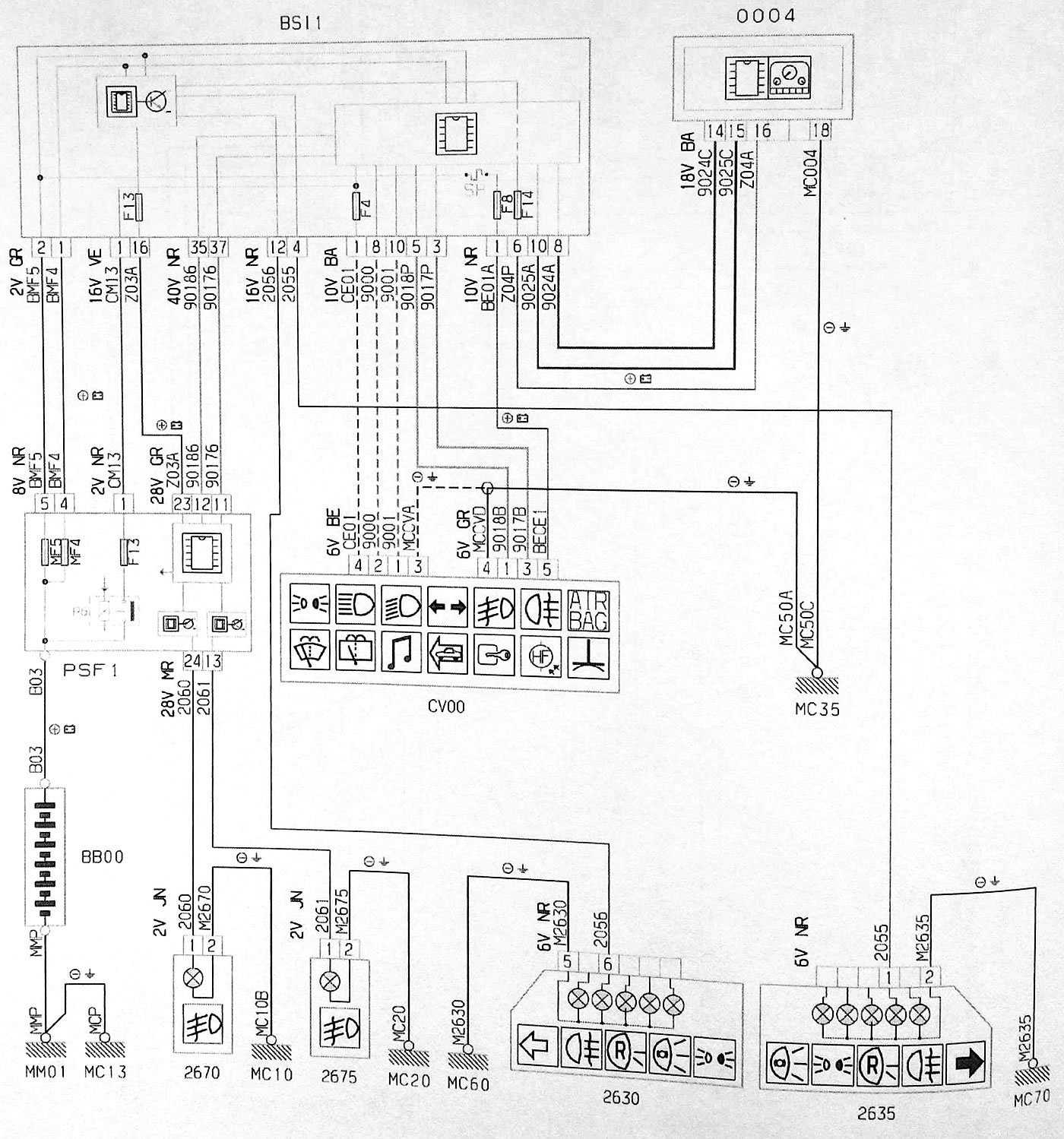

Got it above for info
