Citroen C5 2.2 Pin Flywheel

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

leithant
Donor 2023
Posts: 95
Joined: 05 Jan 2006, 23:15
x 4

Citroen C5 2.2 Pin Flywheel

Post by leithant »

Hi,
I'm wanting to set the timing on my DW12TED4 engine and I'm having trouble finding the hole to pin the flywheel. This engine doesn't have it near the starter. I've seen pix of where it is near the drive shaft but I still can't see it!

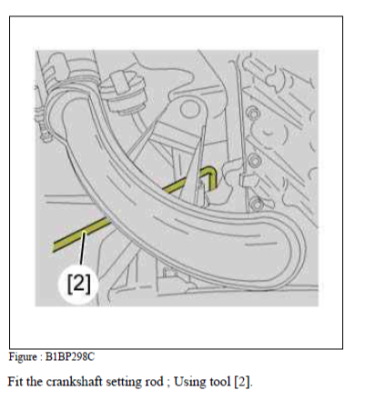

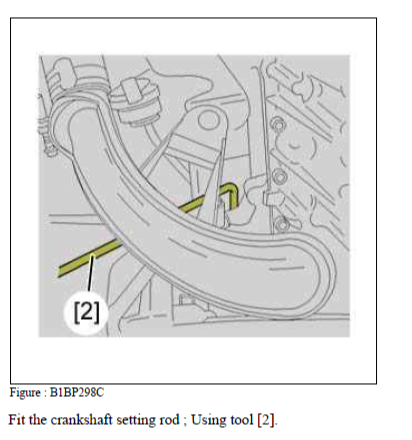

This is the image from Citroen docs, but I can't work it out.
c5 pin.png
[/img]
Any tips from those that have done it before?
Regards,
Leith
06 Citroen C5 Estate 2.2 Hdi Auto
95 Peugeot 306 S16
95 Silver Xantia VSX - now deceased :-(
MixerFistit
Donor 2023
Posts: 120
Joined: 17 Oct 2021, 14:45
x 11

Re: Citroen C5 2.2 Pin Flywheel

Post by MixerFistit »

When I was under my c8 the other day checking hoses, I noticed a gap exposing the flywheel on the opposite side of the starter (I was right underneath from the front, head further back than the axle and looking towards gearbox). Not sure if this is the spot but worth looking (safely)
2005 C8 2.2 HDI 4HW - 6 Seat, Exclusive

2006 Dispatch 2.0 HDi RHZ (SORN)
leithant
Donor 2023
Posts: 95
Joined: 05 Jan 2006, 23:15
x 4

Re: Citroen C5 2.2 Pin Flywheel

Post by leithant »

Thanks, I'll have another go. It seemed the subframe covered up were I should look.
06 Citroen C5 Estate 2.2 Hdi Auto
95 Peugeot 306 S16
95 Silver Xantia VSX - now deceased :-(
perrye
Donor 2023
Posts: 19
Joined: 01 Oct 2022, 08:55
x 6

Re: Citroen C5 2.2 Pin Flywheel

Post by perrye »

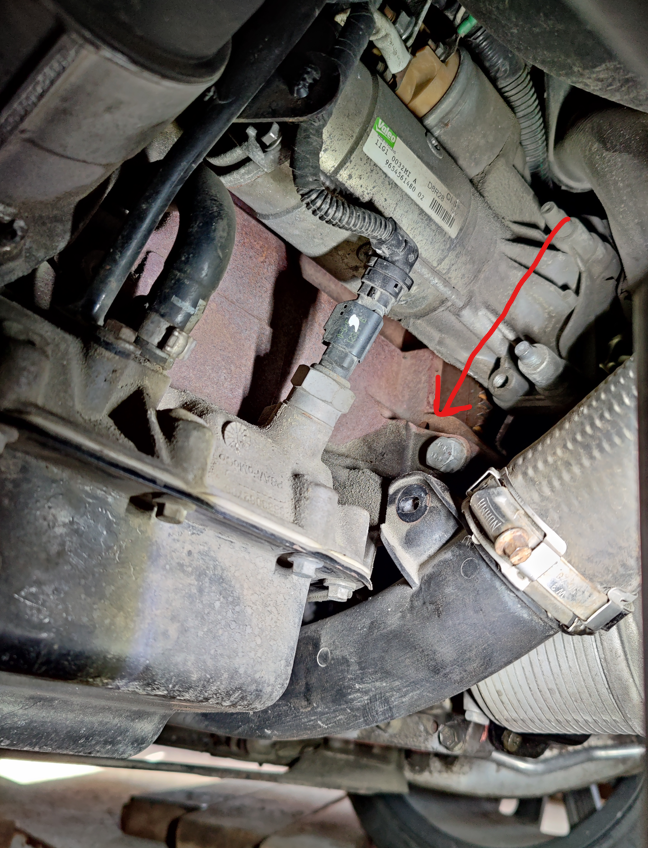

Here is a picture where it is in DW12C (508)
Attachments
508 DW12C flywheel locking pin.png
